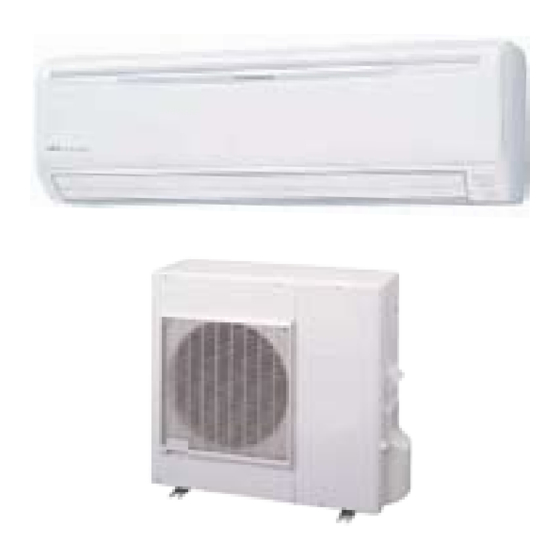

Fujitsu ASU30CLX1 Design & Technical Manual
Wall mounted type
Hide thumbs
Also See for ASU30CLX1:
- Operating manual (52 pages) ,
- Warranty statement (1 page) ,
- Manual (48 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fujitsu ASU30CLX1
Summary of Contents for Fujitsu ASU30CLX1
-
Page 1: Wall Mounted Type
AIR CONDITIONER Wall Mounted type DESIGN & TECHNICAL MANUAL INDOOR ASU30CLX1 ASU36CLX1 OUTDOOR AOU30CLX1 AOU36CLX1... -
Page 2: Indoor Unit
1. INDOOR UNIT WALL MOUNTED TYPE : ASU30CLX1 ASU36CLX1 DTR_AS048E_02 2011.02.10... -
Page 3: Table Of Contents
CONTENTS 1. INDOOR UNIT 1. FEATURE ........................01 - 01 2. WIRELESS REMOTE CONTROLLER ..........01 - 03 3. SPECIFICATIONS ....................01 - 05 4. DIMENSIONS ......................01 - 06 5. WIRING DIAGRAMS ..................01 - 07 6. CAPACITY TABLE .................... -
Page 4: Feature
FEATURE MODEL „ „ ASU30CLX1 / AOU30CLX1 ASU36CLX1 / AOU36CLX1 FEATURES „ „ High energy performance „ MODEL ASU30CLX1 ASU36CLX1 Seasonal Energy Efficiency Ratio (SEER) 16.5 15.5 BTU/hW Energy Efficient Ratio (EER) MEASUREMENT CONDITIONS ANSI/ASHRAE STANDARD 37-1988 ALL DC „... - Page 5 Power diffuser „ “Healthy horizontal air flow” does not blow cool air directly at the occupants in the room. (ft.) Power diffuser 40 (ft.) Outside air conditions: 95 F 40% Operation contents: Cooling, Set temperature (Min set temp) ( F) F, Air flow Hi, Vertical flap : Upward Horizontal flap : Center...
-
Page 6: Wireless Remote Controller
WIRELESS REMOTE CONTROLLER FEATURES „ „ Four kinds of timer setup ¾ „ (On / Off / Program / Sleep) are possible. Four kinds of timers. Easy operation. ¾ „ Easy to change transmission code (4 patterns) by button operation. ¾... - Page 7 FUNCTIONS „ „ SLEEP button MASTER CONTROL button SET TEMP. button ( Signal transmitter TIMER MODE button TIMER SET ( ) button FAN CONTROL button START/STOP button SET button (Vertical) SET button (Horizontal) SWING button RESET button TEST RUN button •...
-
Page 8: Specifications
SPECIFICATIONS WALL MOUNTED Type INVERTER COOLING ONLY Model name ASU30CLX1 ASU36CLX1 Power source 208/230V ~ 60Hz Available voltage range 187-253V ~ 60Hz 9.00 9.70 Rated BTU/h 30,800 33,000 Cooling 2.90 - 9.50 2.90 - 10.00 Min-Max BTU/h 9900 - 32400... -
Page 9: Dimensions
DIMENSIONS MODEL : ASU30CLX1, ASU36CLX1 „ „ Unit : in. (mm) 8-31/32 39-9/32 (998) (228) INSTALLATION PLACE „ „ Unit : in. (mm) Outline of unit 2-1/16 (52) or more 2-3/32 (53) or more 3-5/32 (80) or more 4-23/32 (120) or more... -
Page 10: Wiring Diagrams
WIRING DIAGRAMS MODEL : ASU30CLX1, ASU36CLX1 „ „ - (01 - 07) -... -
Page 11: Capacity Table
CAPACITY TABLE 6-1. COOLING CAPACITY MODEL : ASU30CLX1 „ „ Indoor temperature °FDB °FWB °FDB 26.31 18.98 0.82 29.31 19.09 0.83 32.30 20.83 0.84 33.30 22.49 0.85 35.30 22.40 0.86 37.30 23.86 0.87 26.28 19.70 1.08 29.27 19.81 1.10 32.27 21.61... - Page 12 MODEL : ASU36CLX1 „ „ Indoor temperature °FDB °FWB °FDB 27.62 19.93 1.01 30.77 20.05 1.03 33.92 21.87 1.04 34.97 23.61 1.05 37.07 23.52 1.06 39.16 25.05 1.07 27.59 20.68 1.33 30.74 20.80 1.35 33.88 22.69 1.37 34.93 24.50 1.38 37.02 24.41 1.39...
-
Page 13: Fan Performance
FAN PERFORMANCE 7-1. AIR VELOCITY DISTRIBUTION Note: Fan speed : HIGH MODEL : ASU30CLX1 „ „ Operation mode : FAN Unit : ft/s (m/s) (ft) 7(2) 3(1) 2(0.5) TOP VIEW Vertical flap : Up Horizontal flap : Center (ft) (ft) - Page 14 Note: Fan speed : High MODEL : ASU36CLX1 „ „ Operation mode : FAN Unit : ft/s (m/s) (ft) 7(2) 3(1) 2(0.5) TOP VIEW Vertical flap : Up Horizontal flap : Center (ft) (ft) Unit : ft/s (m/s) 7(2) 2(0.5) SIDE VIEW 3(1) Vertical flap : Up...
-
Page 15: Air Flow
7-2. AIR FLOW MODEL : ASU30CLX1 „ „ Cooling „ Number of Fan speed rotations Air flow (r.p.m.) 1120 HIGH 1480 1220 1020 QUIET MODEL : ASU36CLX1 „ „ Cooling „ Number of Fan speed rotations Air flow (r.p.m.) 1180... -
Page 16: Operation Noise
OPERATION NOISE 8-1. NOISE LEVEL CURVE MODEL : ASU30CLX1 „ „ Cooling „ NC-65 NC-60 NC-55 High NC-50 NC-45 NC-40 NC-35 NC-30 Quiet NC-25 NC-20 NC-15 1,000 2,000 4,000 8,000 Octave band center frequency,Hz MODEL : ASU36CLX1 „ „ COOLING „... -
Page 17: Sound Level Check Point
8-2. SOUND LEVEL CHECK POINT 39-3/8 in. (1m) - (01 - 14) -... -
Page 18: Electric Characteristics
ELECTRIC CHARACTERISTICS Model name ASU30CLX1, ASU36CLX1 Voltage 208/230~ Power supply Frequency Max. operating current Connection cable *)Wiring Spec. Limited wiring length *) Wiring Spec. Selected Sample (Selected based on Japan Electrotechnical Standard and Codes Committee E0005) - (01 - 15) -... -
Page 19: Safety Devices
SAFETY DEVICES Model Protection form ASU30CLX1 ASU36CLX1 Circuit protection Current fuse (PCB) 3.15A 250V Terminal protection Current fuse 3A 250V °F (100 °C) OFF Fan motor protection Thermal protection program °F (95 °C) ON - (01 - 16) -... -
Page 20: External Input & Output
EXTERNAL INPUT & OUTPUT Connector INPUT OUTPUT REMARKS Control input See external CN14 (Operation / stop) input/output settings for details. CN16 Operation status output 11-1. EXTERNAL INPUT CONTROL INPUT (Operation/Stop) „ „ The air conditioner can be remotely operated by means of the following on-site work. Operation is started at the following contents by adding the contact input of a commercial ON/OFF switch to a connector on the external control PC board and turning it ON. -
Page 21: External Output
11-2. EXTERNAL OUTPUT OPERATION STATUS OUTPUT „ „ An air conditioner operation status signal can be output. Circuit diagram example „ Indoor Connected unit control PC board Connector Ex.)Relay unit Ex.)Display 24V DC Relay power supply *33 ft. (10 m) Signal Field supply * Make the distance from the PC board to the connected unit within 33ft. -
Page 22: Function Setting
FUNCTION SETTING 12-1. INDOOR UNIT INDOOR UNIT JM 5 Auto restart JM 6 Room temperature correction Jumper Wire JM 7 JM 8 Remote controller signal code JM 10 SWITCH POSITION „ „ MAIN PCB JM10 JM10 - (01 - 19) -... - Page 23 JUMPER WIRE SETTING „ „ Auto restart setting (JM5) „ ( Factory setting) JM 5 Auto restart Connect Validity Disconnect Invalidity Room temperature correction setting (JM6, JM7) „ ( Factory setting) Room temperature correction JM 6 JM 7 Cooling Drying Connect Connect...
-
Page 24: Optional Parts
OPTIONAL PARTS Exterior Parts name Model No. Summary SU MO TU WE TH FR SA Wired remote Unit control is performed by 3 6 9 12 15 18 21 UTY-RNBYU wired remote controller. controller Fine dust, invisible mold spores, and harmful microorganisms are absorbed Apple-catechin onto the filter by static... -
Page 25: Outdoor Unit
2. OUTDOOR UNIT SINGLE TYPE : AOU30CLX1 AOU36CLX1 DTR_AO070E_02 2011.02.10... - Page 26 CONTENTS 2. OUTDOOR UNIT 1. SPECIFICATIONS ....................02 - 01 2. DIMENSIONS ......................02 - 02 3. REFRIGERANT CIRCUIT ................02 - 03 4. WIRING DIAGRAMS ..................02 - 04 5. CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND HEIGHT DIFFERENCE ..................
-
Page 27: Specifications
SPECIFICATIONS Type INVERTER COOLING ONLY Model name AOU30CLX1 AOU36CLX1 Power source 208/230V~ 60Hz Available voltage range 187-253V ~ 60Hz Starting current 14.2 17.0 Cooling 2,119 (3,600) 2,119 (3,600) Airflow rate Heating Type × Q'ty Propeller fan×1 Motor output Cooling Sound pressure level dB(A) Heating 31-7/16 x 35-7/16 x 1-7/16... -
Page 28: Dimensions
DIMENSIONS MODEL : AOU30CLX1, AOU36CLX1 „ „ Unit : in.(mm) Top view 1-1/4 3(77) 13 (330) (12) 35-3/8 (900) (31) Front view 15-3/4 (400) Side view 25-5/8 (650) Air Flow Bottom view 5-3/4 (147) 6-3/4 (170) INSTALLATION PLACE „ „ When there are obstacles at the When there are obstacles at the When there are obstacles at the... -
Page 29: Refrigerant Circuit
REFRIGERANT CIRCUIT MODEL : AOU30CLX1, AOU36CLX1 „ „ Heat exchanger 3-Way 3-Way valve ( INDOOR ) valve (Large) (Small) Muffler Pressure switch 4-Way valve Strainer Expansion valve Heat exchanger Strainer ( OUTDOOR ) Cooling Refrigerant pipe diameter Liquid : 3/8" (9.52 mm) Gas : 5/8"... -
Page 30: Wiring Diagrams
WIRING DIAGRAMS MODEL : AOU30CLX1, AOU36CLX1 „ „ - (02 - 04) -... -
Page 31: Capacity Compensation Rate For Pipe Length And Height Difference
CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND HEIGHT DIFFERENCE MODEL : AOU30CLX1, AOU36CLX1 „ „ Pipe length COOLING 7.5m 16ft. 25ft. 33ft. 66ft. 99ft. 131ft. 164ft. 99ft. 0.932 0.929 0.924 Ú 1 66ft. 0.945 0.947 0.945 0.940 Indoor unit is upper 33ft. -
Page 32: Additional Charge Calculation
ADDITIONAL CHARGE CALCULATION MODEL : AOU30CLX1, AOU36CLX1 „ „ Refrigerant type R410A lbs. oz. 4lbs. 10.1oz. Refrigerant amount 2100 REFRIGERANT CHARGE „ 66 or less Total pipe length 20 or less 0.43oz./ft. (40g/m) 14.1 28.2 42.3 Additional charge 1200 - (02 - 06) -... -
Page 33: Air Flow
AIR FLOW MODEL : AOU30CLX1, AOU36CLX1 „ „ Cooling „ Number of rotations Air flow (r.p.m.) 3600 1000 2119 - (02 - 07) -... -
Page 34: Operation Noise
OPERATION NOISE 8-1. NOISE LEVEL CURVE MODEL : AOU30CLX1 „ „ Cooling „ NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 NC-15 1,000 2,000 4,000 8,000 Octave band center frequency,Hz MODEL : AOU36CLX1 „ „ Cooling „ NC-65 NC-60 NC-55 NC-50... -
Page 35: Sound Level Check Point
8-2. SOUND LEVEL CHECK POINT 3ft. 3- in. (1m) - (02 - 09) -... -
Page 36: Electric Characteristics
ELECTRIC CHARACTERISTICS Model Name AOU30CLX1 AOU36CLX1 Voltage 208 / 230~ Power Supply Frequency *1) Max. Operating Current 17.0 18.0 Starting Current 14.2 17.0 Main Fuse (Circuit breaker) Current *2) Wiring Spec. Power Cable *3) Limited wiring length *1) The maximum current is the total current of indoor unit and outdoor unit. *2) Wiring Spec. -
Page 37: Safety Devices
SAFETY DEVICES Model Protection form AOU30CLX1, AOU36CLX1 Current fuse 5A 250V (NEAR THE TERMINAL) Circuit protection Current fuse (MAIN PRINTED 3.15A 250V x 2 CIRCUIT BOARD) OFF : 230 °F (110 °C) Thermal protection Fan motor protection program ON : 221 °F (105 °C) High Pressure...
