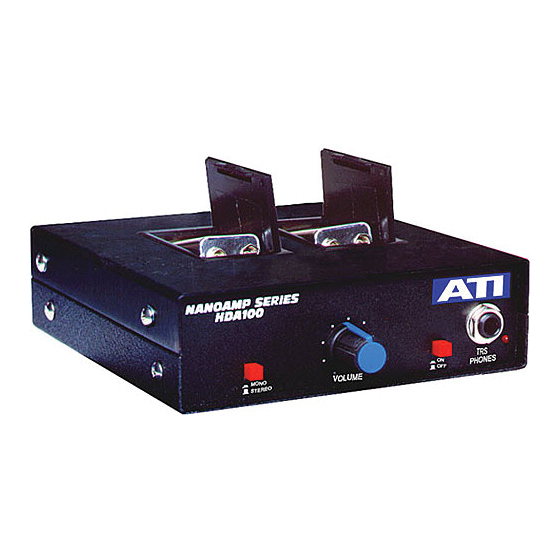

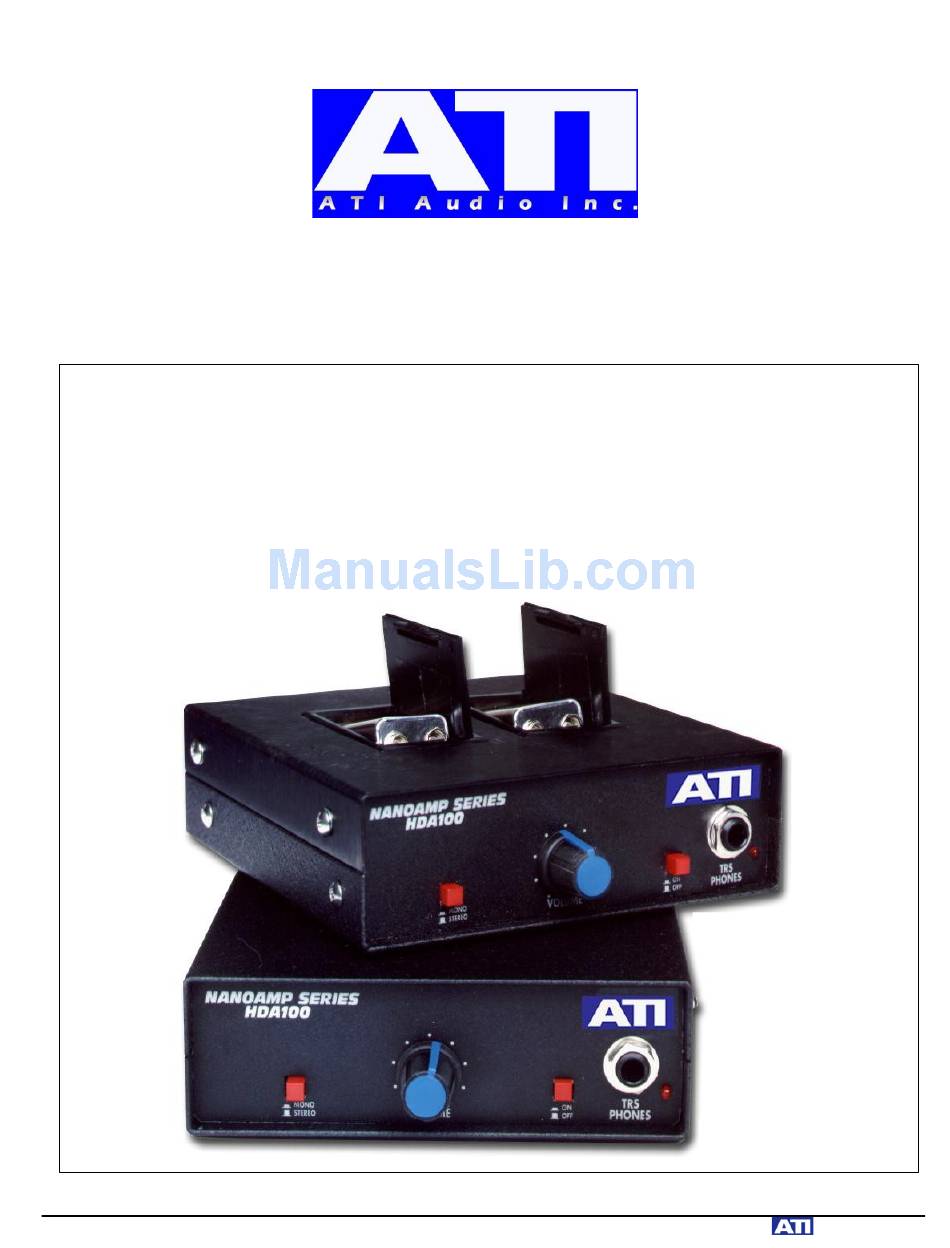

- Page 1 Model HDA100-BAT Model HDA100 © Copyright 2011, ATI Audio Inc. ATI Audio Inc. Tel: 856-719-9900 sales@atiaudio.com www. audio.com...
- Page 2 PERMANENT HEARING DAMAGE. The HDA100 is powered by 24VDC from an external power module such as the WA100-1. The DC power connector is center pin negative, sleeve position with a 2.1 mm center pin and a 5.5mm outer sleeve. Two HDA100 can share one WA100-1 with accessory DC loop-thru cable 20602-1.
-
Page 3: Specifications
POWER 24VDC nominal at up to .2A from 115VAC external power supply, WA100-1 (included). Specify WA100-2-EXCH for operation from 90-264VAC. Model HDA100-BAT can be powered by two 9V batteries installed in top cover. SIZE 1.72” (4.4cm) H X 5.75” (14.6cm) W X 6.0” (15.2cm) D ... - Page 4 ATI warrants this product to be free from defects in materials and workmanship to its original owner for a period of one year from date of purchase. ATI will repair or replace such product or part thereof, which upon inspection by ATI, is found to be defective in materials or workmanship.
