Quick Setup Guide
Start Here
MFC-9330CDW
Please read the Product Safety Guide first, then read this Quick Setup Guide for the correct setup and installation
procedure. To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
1

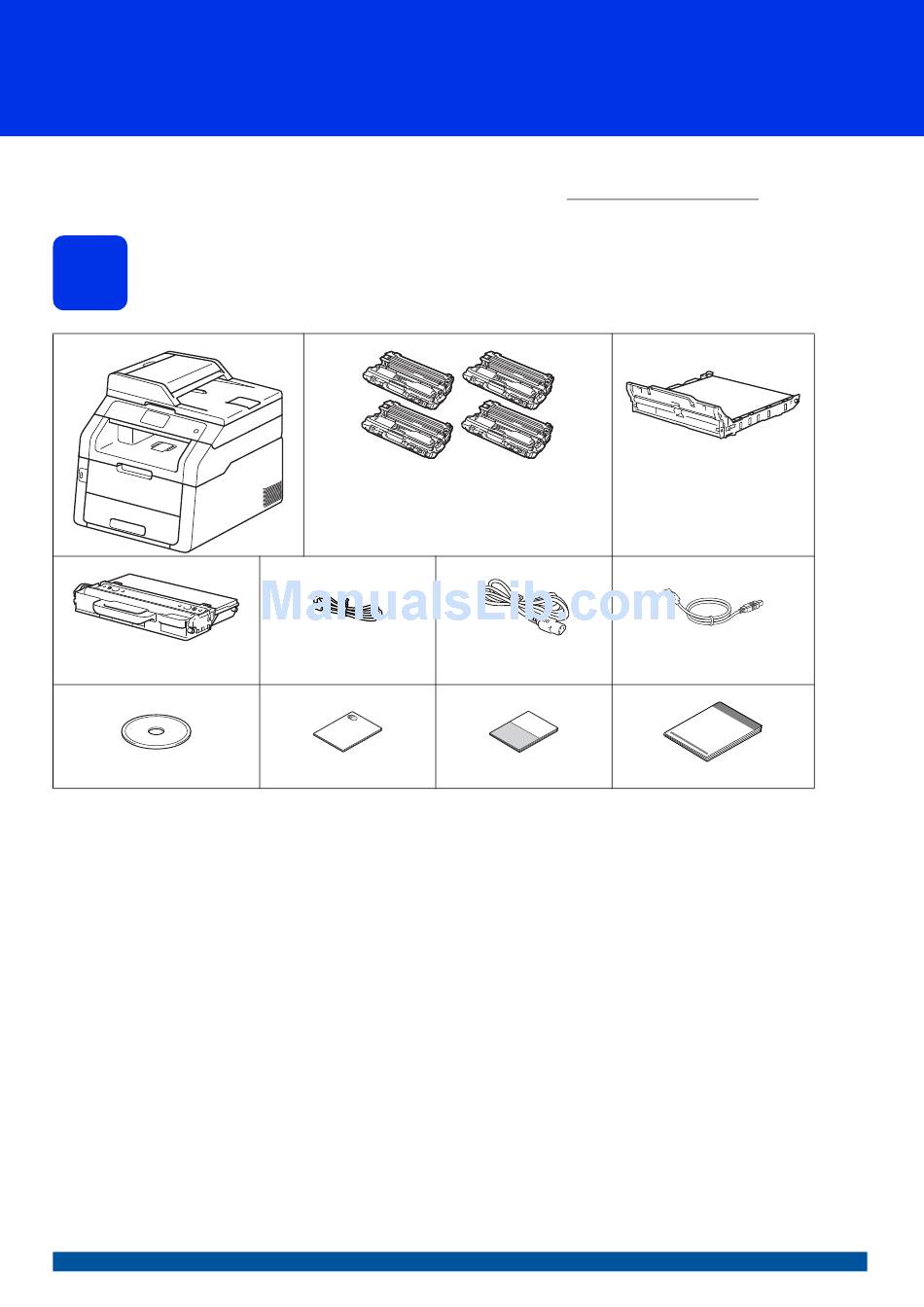

Unpack the machine and check the components
Drum Unit and Toner Cartridge Assemblies
Belt Unit
(pre-installed)
(pre-installed)
(Black, Cyan, Magenta and Yellow)
Waste Toner Box
Telephone Line Cord
AC Power Cord
USB Interface Cable
(pre-installed)
CD-ROM
Product Safety Guide
Basic User's Guide
Quick Setup Guide
TWN-ENG Version 0
