Subnet Mask
Default Gateway
Primary DNS
Second DNS
2
.
3
.
2
P
P
P
o
E
/
P
P
P
2
.
3
.
2
P
P
P
o
E
/
P
P
P
PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted
standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a
common broadband medium, such as a single DSL line, wireless device or cable modem. All
the users over the Ethernet can share a common connection.
PPPoE is used for most of DSL modem users. All local users can share one PPPoE
connection for accessing the Internet. Your service provider will provide you information
about user name, password, and authentication mode.

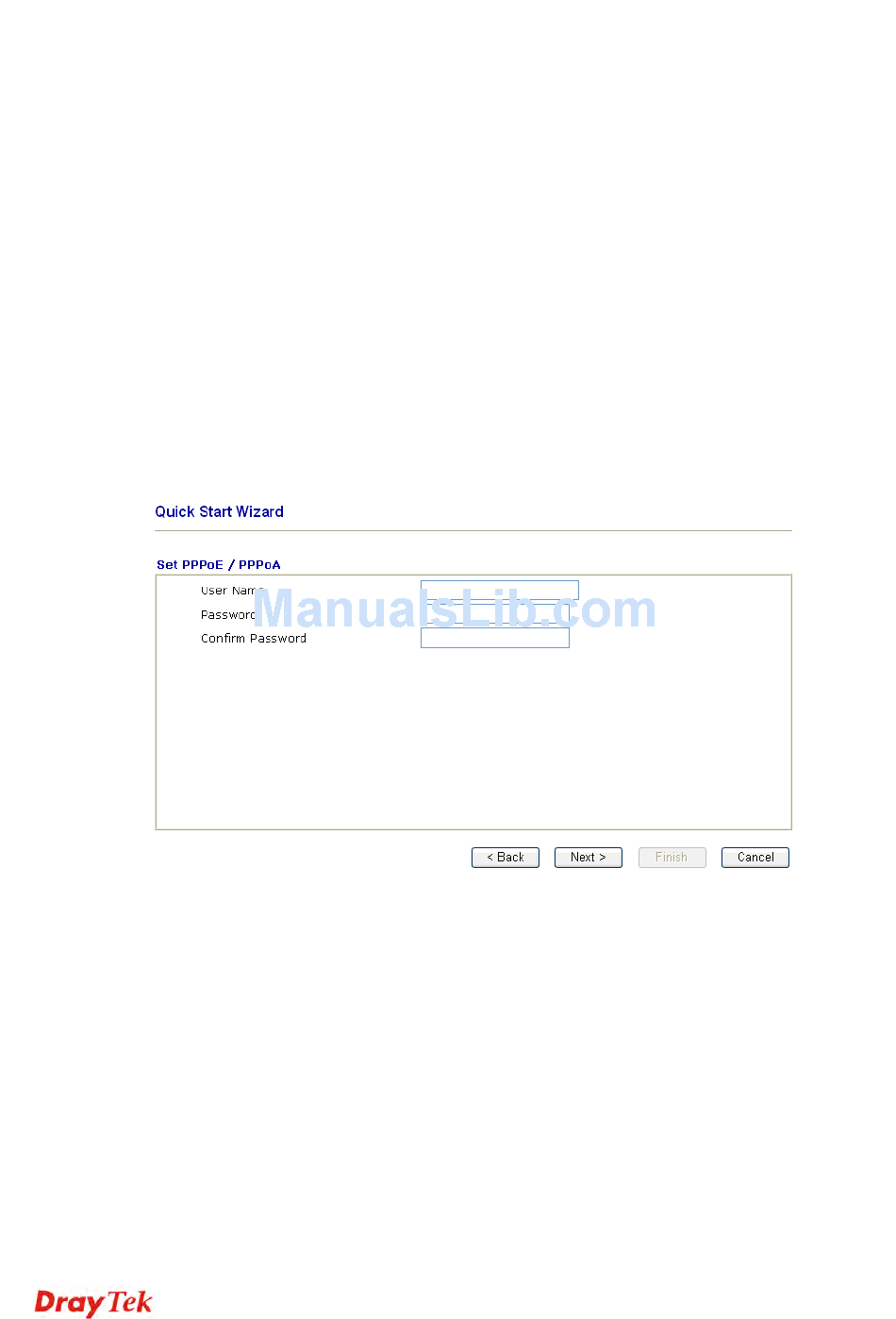

If your ISP provides you the PPPoE connection, please select PPPoE for this modem. The
following page will be shown:
User Name
Password
Confirm Password
Click Next for viewing summary of such connection.
Assign a subnet mask value for the protocol of Routed IP and
Bridged IP.
Assign an IP address to the gateway for the protocol of Routed
IP and Bridged IP.
Assign an IP address to the primary DNS.
Assign an IP address to the secondary DNS.
o
A
o
A
Assign a specific valid user name provided by the ISP.
Assign a valid password provided by the ISP.
Retype the password.
9
Vigor120 Series User's Guide
