This section will guide you to install the modem through hardware connection and configure
the modem's settings through web browser.

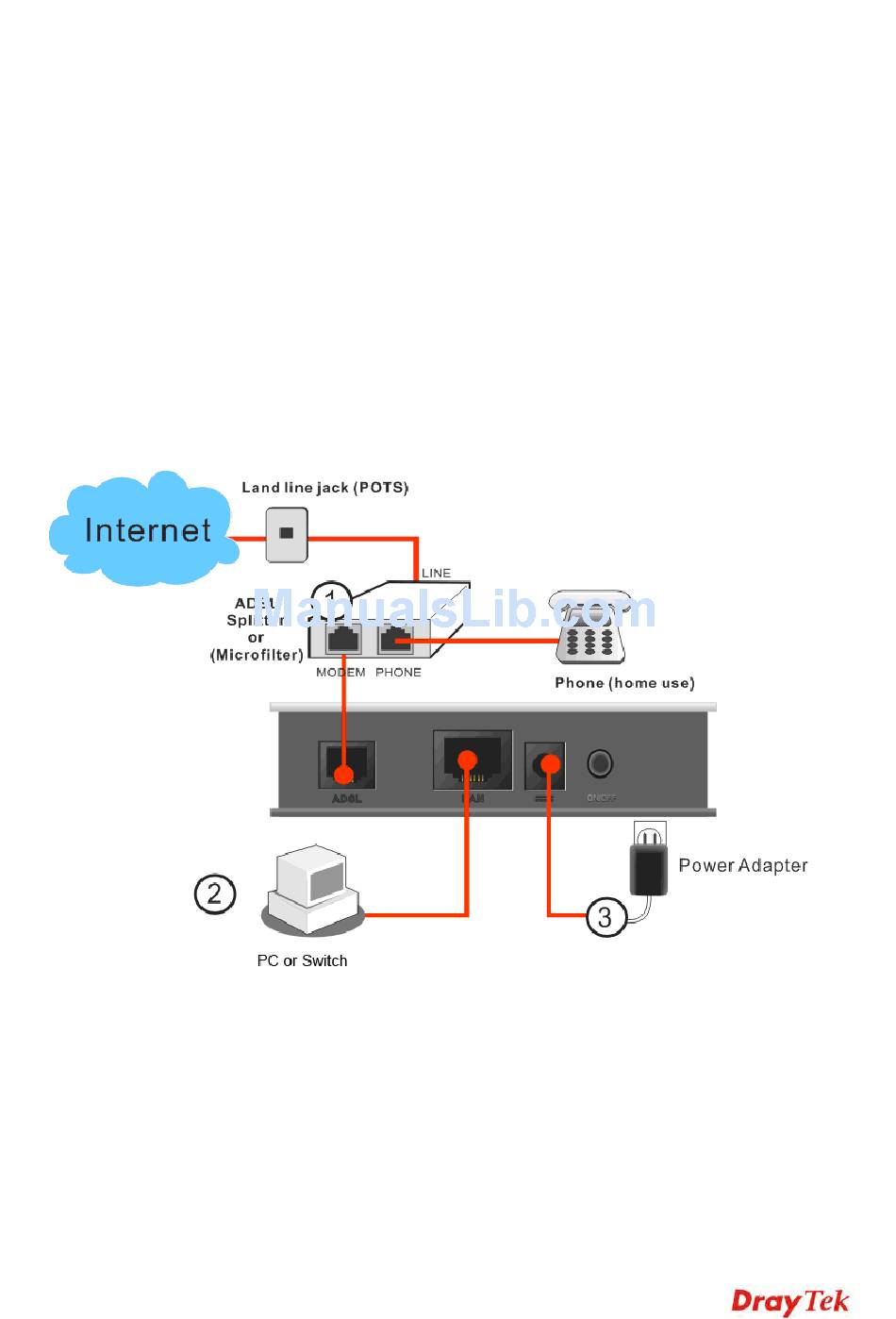

Before starting to configure the modem, you have to connect your devices correctly.
1.
Connect the DSL interface to the MODEM port of external ADSL splitter with an
ADSL line cable.
2.
Connect the LAN port to your computer with a RJ-45 cable.
3.
Connect one end of the power adapter to the Power port of this device. Connect the
other end to the wall outlet of electricity.
4.
Power on the modem.
5.
Check the POWER, ACT, LAN, DSL and INTERNET LEDs to assure network
connections.
(For the detailed information of LED status, please refer to section 1.2.)
