Summary of Contents for RTI RKM-1

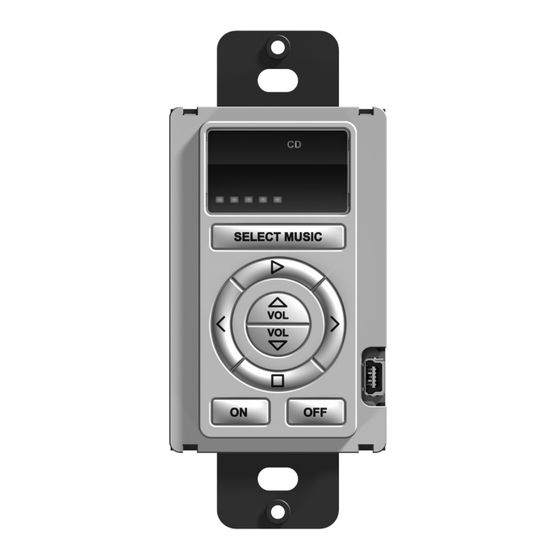

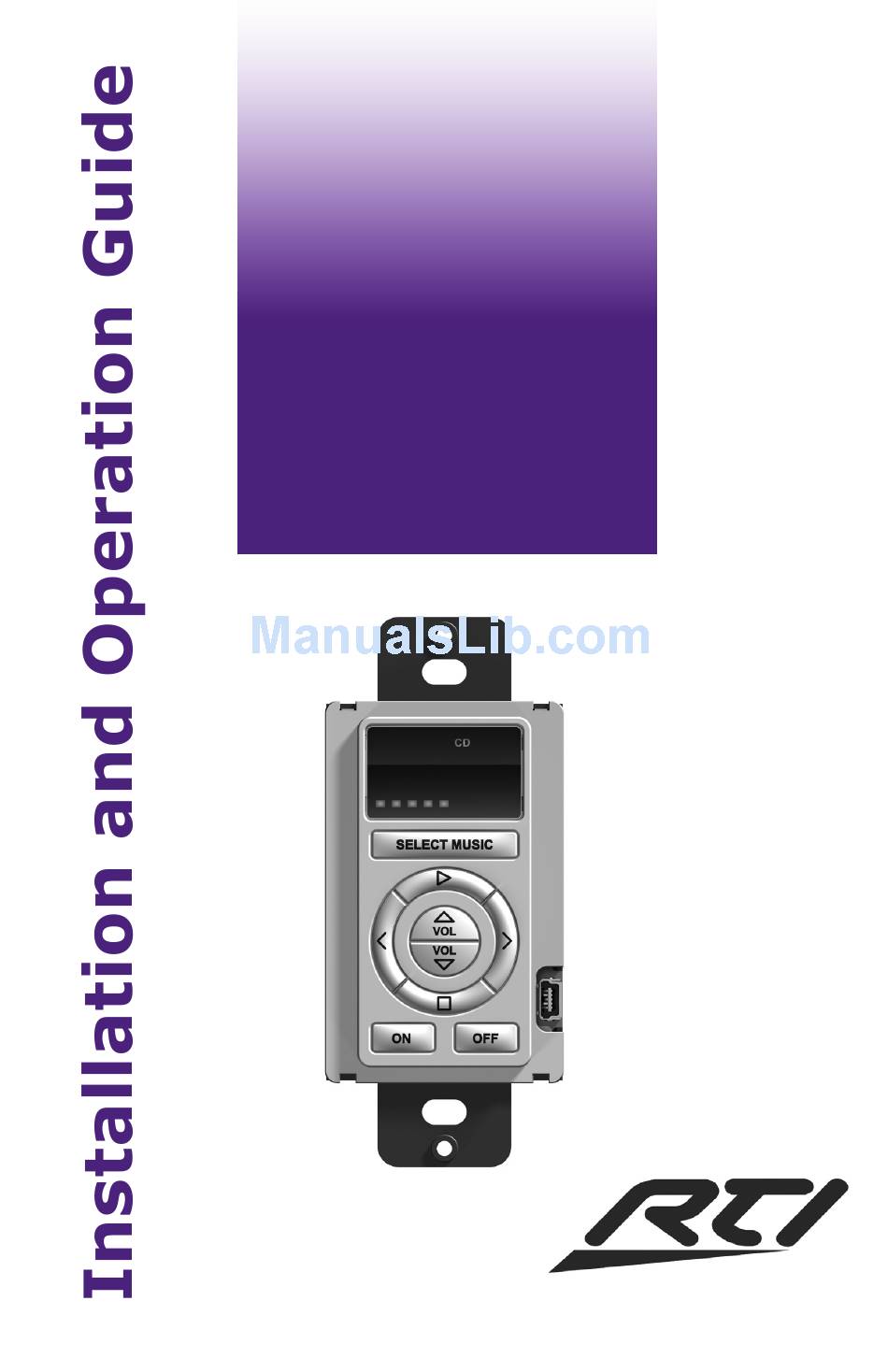

- Page 1 It’s Under Control ® It’s Under Control ® RKM-1 Multi-Room Audio Keypad 70-2004-5 V.0...
- Page 2 RKM-1 Multi-Room Audio Keypad Copyright © 2008 Remote Technologies Incorporated All rights reserved.
-
Page 3: Federal Communications Commission Notice
This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. 117 612 914 deClARAtIOn OF COnFORMItY (dOC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration... -
Page 4: Safety Suggestions
RKM-1 Multi-Room Audio Keypad sAFetY suGGestIOns Read Instructions. Read all safety and operating instructions before operating the unit. Retain Instructions. Keep the safety and operating instructions for future reference. Heed Warnings. Adhere to all warnings on the unit and in the operating instructions. -
Page 5: Limited Warranty And Disclaimer
Remote Technologies Incorporated shall not be liable for errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this guide. RKM- and the RTI logo are registered trademarks of Remote Technologies Incorporated. - Page 6 RKM-1 Multi-Room Audio Keypad...
-
Page 7: Table Of Contents
It’s Under Control ® tAble OF COntents Federal Communications Commission notice ....3 safety suggestions ............4 limited Warranty and disclaimer ....... 5 Contents ..............7 Chapter 1 - Welcome ........... 9 Important Notes ............9 Product Contents ............ 0 Chapter 2 - Features ........... 11 Chapter 3 - Installation and Operation ....... - Page 8 RKM-1 Multi-Room Audio Keypad...
-
Page 9: Chapter 1 - Welcome
Do not subject the RKM- to smoke, dust, or vibrations. The display may be damaged from excessive shock or vibration. Only use the power supply that is specified for the RKM-1. Using the wrong type of power supply may result in damage. -
Page 10: Product Contents
Thoroughly inspect the RKM- and packing materials for signs of damage. Report any damage to the carrier immediately. Report any equipment malfunctions to RTI or an authorized RTI distributor. COMPAtIbIlItY The RKM- and Integration Designer™ software are compatible with infrared (IR) commands with carrier frequencies between 5KhZ and 460KhZ, as well as those commands that do not use a carrier. -
Page 11: Chapter 2 - Features
It’s Under Control ® CHAPteR 2 | FeAtuRes The RKM-1 provides superior quality and reliability as well as these specific features: Provides feedback from many popular multi-zone receivers (when used together with two-way enabled RTI control processors). Use any standard Decora type faceplate. - Page 12 RKM-1 Multi-Room Audio Keypad CHAPteR 2 | FeAtuRes KeYPAd ReFeRenCe Cover Plate Threaded Holes Electrical Box Mounting Holes Display Source Select Button Programmable Function Buttons USB Port Control Port...
-
Page 13: Chapter 3 - Installation And Operation
CHAPteR 3 | InstAllAtIOn And OPeRAtIOn MOuntInG The RKM-1 is designed for flush-mount installations in walls or cabinets. It requires an available mounting depth of .5 inches (8mm), including cables, from the front surface of the wall. Normally, the RKM- is mounted in a standard single-gang electrical box or mud ring. - Page 14 The display can be altered to closely match the audio sources that will be controlled by changing the lens film that is used. A sheet with ten lens films are included with the RKM-1, each with different source configurations. nOte: The RKM-1 ships with the Display Lens uninstalled. For first-time installation, skip to step .
-
Page 15: Wiring Diagram
It’s Under Control ® CHAPteR 3 | InstAllAtIOn And OPeRAtIOn WIRInG dIAGRAM Control Port Pin Out Pin 8 Ground Pin 7 Ground Pin 6 Infrared Pin 5 +6VDC Pin 4 +6VDC Pin Infrared Pin 2 RS-485+ Pin RS-485- Use Cat-5 Cable Use Full Cat-5 Pairs... - Page 16 CHAPteR 3 | InstAllAtIOn And OPeRAtIOn PROGRAMMInG display The RKM-1 has a flexible, programmable interface. Once the display lens film has been chosen and installed contains the audio sources that will be controlled, the display backlights are enabled/disabled within the Integration Designer™...
-
Page 17: Chapter 4 - Specifications
It’s Under Control ® CHAPteR 4 | sPeCIFICAtIOns Power Supply +9VDC to +6VDC, 50mA max Backlights Blue LED - Eight sources; Nine step volume level indicator. Infrared Output Port 200mA output, Drives up to 000 ft (00 m) of wire. Operating +2°F to +22°F (0°C to +50°C) Temperature... - Page 18 RKM-1 Multi-Room Audio Keypad...
-
Page 19: Chapter 5 - Troubleshooting
Device Manager within the Windows® Control Panel. Make sure you are using the programming cable that was supplied by RTI and that both ends are connected securely. Make sure the PC detects the presence of the RKM-. If it doesn’t, unplug the USB cable, wait for about ten seconds, and plug it in again. - Page 20 RKM-1 Multi-Room Audio Keypad...
-
Page 21: Chapter 6 - Service And Support
Fax (952) 25- info@rticorp.com RtI teCHnICAl suPPORt At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. - Page 22 And suPPORt shipment of RKM-1 for service RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination.
-
Page 23: Index
Keypad Reference ............. 2 Limited Warranty/Disclaimer ..........5 Operation ................ 5 Product Contents .............. 0 Safety Suggestions ............. 4 Service and Support ............2 Contact RTI ..............2 Shipment for Service ............. 22 Technical Support ............2 Specifications ..............7 Troubleshooting ..............9... - Page 24 RKM-1 Multi-Room Audio Keypad It’s Under Control ® Remote technologies Incorporated 5775 12th Avenue east, suite 180 shakopee, Mn 55379 tel: 952-253-3100 Fax: 952-523-3131 www.rticorp.com © 2008 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
