Summary of Contents for RTI RK1

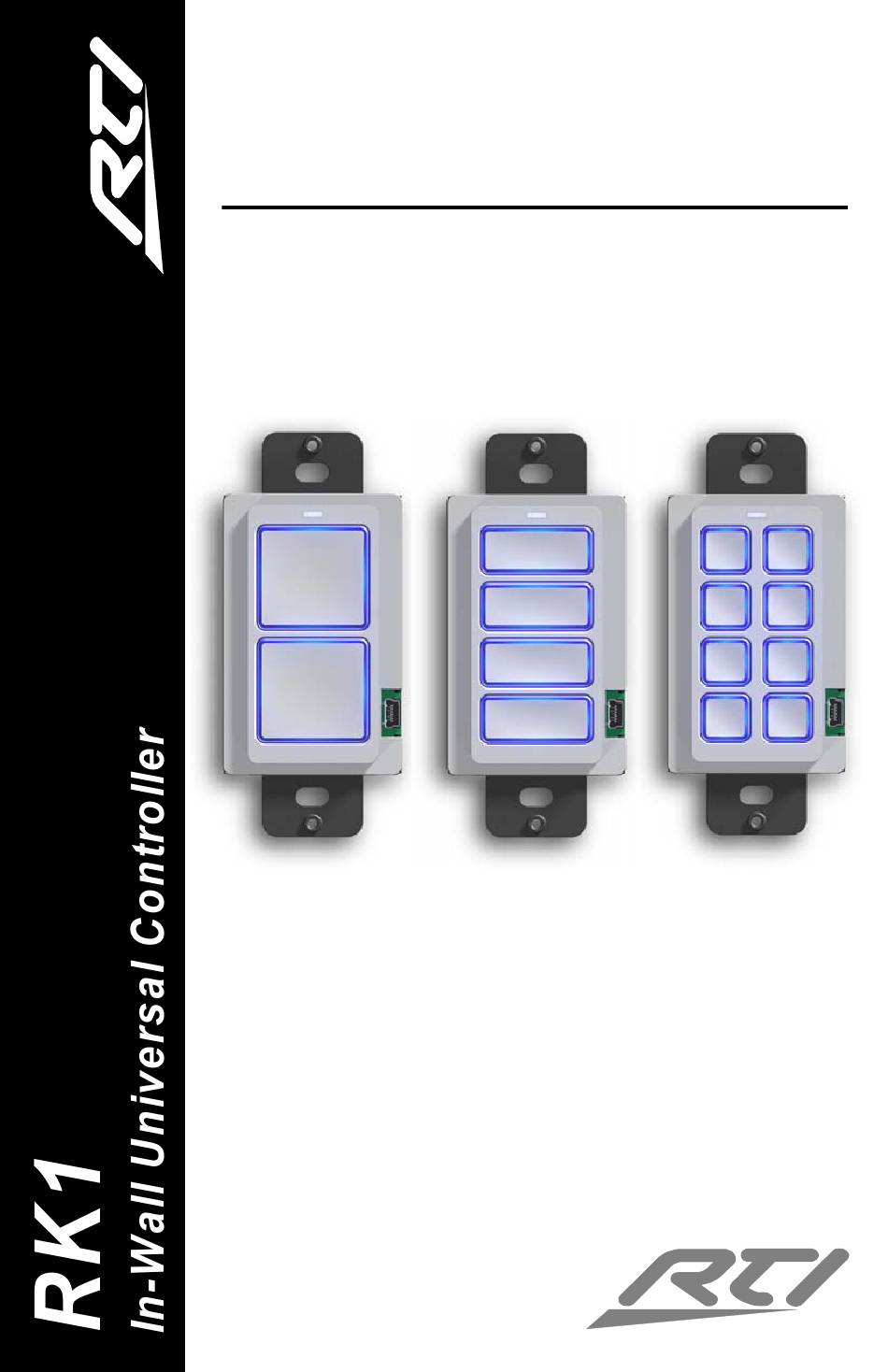

- Page 1 Operation & Installation Guide v1.0...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,...
- Page 3 Heat. Keep the unit away from heat sources such as radiators, heat registers, stoves, etc., including amplifiers that produce heat. Power Sources. Connect the unit only to an RTI approved power supply. Power Cord Protection. Route power supply cords so that they...
-
Page 4: Limited Warranty
LIMITED WARRANTY Remote Technologies Incorporated warrants its products for a period of one (1) year from the date of purchase from Remote Technologies Incorporated or an authorized Remote Technologies Incorporated distributor. This warranty may be enforced by the original purchaser and subsequent owners during the warranty period, so long as the original dated sales receipt or other proof of warranty coverage is presented when warranty service is required. - Page 5 Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brands and their products are trademarks or registered trademarks of their respective holders. RK1, It’s Under Control, TheaterTouch, and the RTI logo are trademarks of Remote Technologies Incorporated.
-
Page 6: Table Of Contents
Contents Federal Communications Commission Notice ---------------------- i Safety Suggestions -------------------------------------------------------- ii Limited Warranty -------------------------------------------------------- iii Disclaimer-------------------------------------------------------------------iv Contents------------------------------------------------------------------------ v Chapter 1. Welcome ----------------------------------------------------------1 Compatibility Note---------------------------------------------------------1 Unpacking and Inspection -----------------------------------------------2 Product Contents -----------------------------------------------------------2 Software Requirements ---------------------------------------------------2 Chapter 2. Introduction -----------------------------------------------------3 Features-----------------------------------------------------------------------3 Important Notes ------------------------------------------------------------4 Cleaning ----------------------------------------------------------------------5 Getting Started --------------------------------------------------------------5 Keypad Reference ----------------------------------------------------------6... - Page 7 RK1 Universal System Controller Chapter 6. Service and Support----------------------------------------- 13 Updates and New Products-------------------------------------------- 13 Contacting Remote Technologies Incorporated ------------------- 13 RTI Technical Support -------------------------------------------------- 13 Specifications---------------------------------------------------------------- 15...
-
Page 8: Chapter 1. Welcome
The RK1 can be used as a stand-alone device or as part of an expandable central control system. When used with the available... -
Page 9: Unpacking And Inspection
After unpacking your new RK1 universal system controller, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the RK1 and packing materials for signs of damage. Report any damage to the carrier immediately. Report... -
Page 10: Chapter 2. Introduction
Chapter 2. Introduction FEATURES The RK1 provides superior quality and reliability as well as these specific features: § Use any standard Decora® type faceplate. § Fits in single gang outlet box. § Three different cover plate colors available. § Two, four or eight assignable/programmable button models available. -
Page 11: Important Notes
Do not use sharp objects on the buttons. It is designed to § operate with a touch of your finger. Do not let the RK1 get wet. It should not be handled with § wet hands or placed in an area where it could get wet. -
Page 12: Cleaning
Introduction CLEANING Occasional cleaning may be required, depending on use. To clean your RK1, lightly dampen a lint-free cloth with a glass cleaner or mild detergent, and wipe the buttons, surrounding bezel, and faceplate. GETTING STARTED The RK1 is turned-on by simply applying power to it. RTI... -
Page 13: Keypad Reference
RK1 Universal System Controller KEYPAD REFERENCE Electrical Box Ambient Light Mounting Holes Sensor Function Buttons Programming Port Cover Plate Threaded Holes Front View Master/Slave Port Control Port Rear View... -
Page 14: Chapter 3. Operation
BUTTON LABELS The RK1 includes a set of labels for attaching to the face of each button. The label sheets include a wide variety of function names that are appropriate for most common scenarios. The procedure... - Page 15 RK1 Universal System Controller 1. Remove the clear keycap. 2. Place the label within the rubber pocket. 3. Replace the clear keycap. Repeat the steps above for each button, and then replace the front cover.
-
Page 16: Chapter 4. Installation & Programming
The RK1 is designed for flush-mount installations in walls or cabinets. It requires an available mounting depth of 2.0 inches (50mm) from the front surface of the wall. Normally, the RK1 is mounted in a standard single-gang electrical box or mud-ring. -
Page 17: Master/Slave Operation
RK1 Universal System Controller MASTER/SLAVE OPERATION Two RK1 units can be connected together using a Cat-5 patch cable between the Master/Slave ports on each unit. This allows two keypads to sync with each other so they behave like one larger keypad. Any combination of two, four, or eight button RK1 units can be connected together. -
Page 18: Chapter 5. Troubleshooting
Make sure you are using the programming cable that was supplied by RTI and that both ends are connected securely. Make sure the PC detects the presence of the RK1. If it doesn’t, unplug the USB cable, wait for about ten seconds, and plug it in again. - Page 19 RK1 Universal System Controller If you are still having problems, try adjusting the IR code “Minimum Repeats” value TheaterTouch Designer programming software. If the IR code is executed inside a macro that contains multiple IR codes, try inserting a small time delay before the problem code. If...
-
Page 20: Chapter 6. Service And Support
RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. - Page 21 For Technical Support or assistance with your RTI product, contact RTI at: (952) 253-3137 support@rticorp.com www.rticorp.com/support For questions regarding Service or Repair of your RTI product, contact RTI at: (952) 253-3136 service@rticorp.com www.rticorp.com/service Please do not return products to RTI without return authorization.
-
Page 22: Specifications
Specifications 9 - 16 VDC, 0.3 Amp max Power Adjustable backlight Power Management brightness/power down time Fixed: 2, 4, or 8 Buttons User-changeable labels RGB-LED Backlight User-definable color 200mA output Infrared Output Port Drives up to 1000 feet (300 meters) of wire +32 °F to +122 °F Operating Temperature (0 °C to +50 °C) - Page 23 RK1 Universal System Controller High-impact molded Front Cover ABS plastic Purchased separately Front Plate (Decora Type) Mounts into standard Mounting single gang electrical box 4.1 in (104mm) x 1.8in Dimensions (H x W x D) (46mm) x 1.7 in (43mm) 1.7 in (43 mm) Plus Cables...
- Page 24 ® It’s Under Control R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d R e m o t e T e c h n o l o g i e s I n c o r p o r a t e d 7651 Anagram Drive...
