RTI RKM-1+ Quick Reference Manual

RKM-1+
Multi-Room Audio Keypad
Quick Reference Guide
Cover Plate
Threaded
Holes
Interchangable LED
Backlit Film
Source Select
Button
Programmable
Function Buttons
USB Port
Electrical Box
Mounting Holes

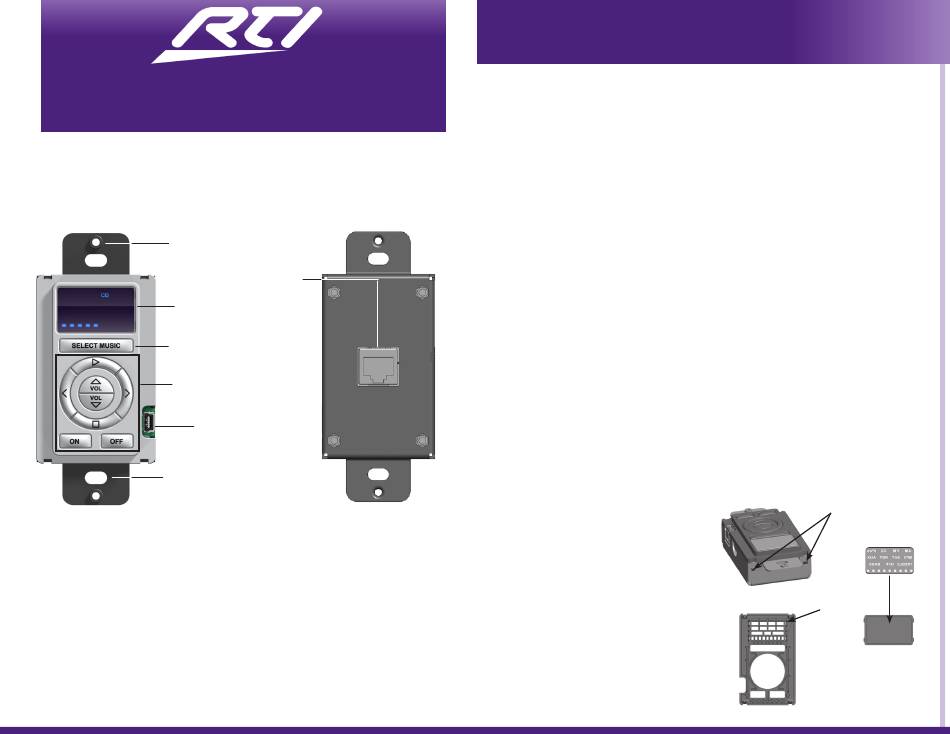

RKM-1+ Front
Control Port
RKM-1+ Rear

Key Features

The RKM-1+ audio keypad is designed for multi-room audio control, and provides the
flexibility to control almost any multi-zone receiver or distributed audio system.
The RKM-1+ provides superior quality and these specific features:
• Provides feedback from multi-zone receivers via any RTI XP series control processor.
• Includes white, black, and light almond wallplates and buttons.
• Backlit volume level indicator.
• Non-volatile Flash memory stores system configuration even when power is lost.
• IR output port drives up to 1000 feet of wire for standalone control.
• Field upgradable firmware.
• USB programming.
• Eight (8) fully programmable hard buttons.
• Customizable, laser-etched LED backlit films are available.
• Selectable LED film provides feedback of power status, selected source, and volume level.
• Use any standard Decora type wallplate.
®
(Decora is a registered trademark of Leviton Manufacturing Co. Inc.)
®
Installation & Operation
Mounting
The RKM-1+ is designed for flush-mount installations in walls or cabinets. It requires an
available mounting depth of 1.5 inches (38mm), including cables, from the front surface of
the wall. RTI recommends that the RKM-1+ be mounted in a single-gang electrical box or
mud ring.
Power
The RKM-1+ is turned on simply by applying power to it either via a connecting block (e.g.
the RTI CB-8) or other power supply (9VDC - 16VDC, 350 mA), such as an RTI PS16-1.
LED Backlit Film Installation & Custom Wallplate and Button Replacement
The LED backlit film can be changed to more closely match the audio sources that will be
controlled. A sheet with ten lens films is included with the RKM-1+, each with different source
configurations. Additionally, different colored wallplates and buttons allowing you to further
tailor your RKM-1+. To install the LED display film, change the faceplate, and/or replace the
keys, follow the instrutions below:
1) Remove the wallplate by pressing a
flathead screwdriver into the release tab
slots.
2) If applicable, remove existing hard button(s)
with your fingers and replace with the color
button. Press the button down and
right-side-up on the keypad until it is firmly
seated.
3) If changing the LED backlit film, press
screwdriver into groove on backside
of the faceplate to pull display lens off.
3) Choose appropriate LED backlit film.
4) Align film inside the raised edge on the
backside of the display lens (the letters
will appear reversed from backside so
that they appear correctly when viewed
from frontside).
5) Once aligned, press film firmly in place.
6) Snap display lens back onto wallplate,
paying attention to correct orientation.
7) Snap wallplate back onto RKM-1+.
It's Under Control
Release Tab Slots
LED Backlit Film
RKM-1+
Groove
Display Lens
(backside)
Wallplate (backside)
®
