Summary of Contents for Enercell 6100006

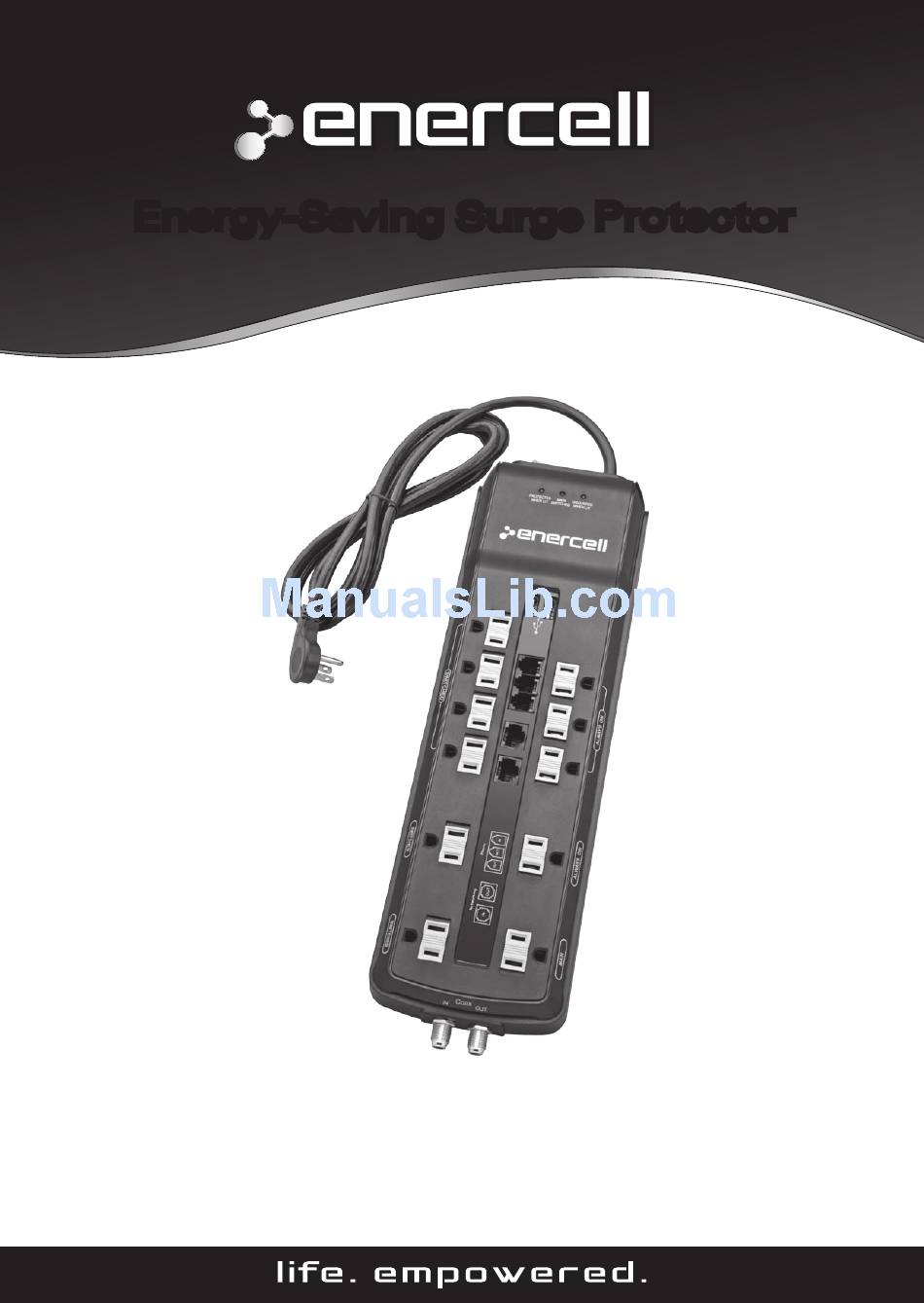

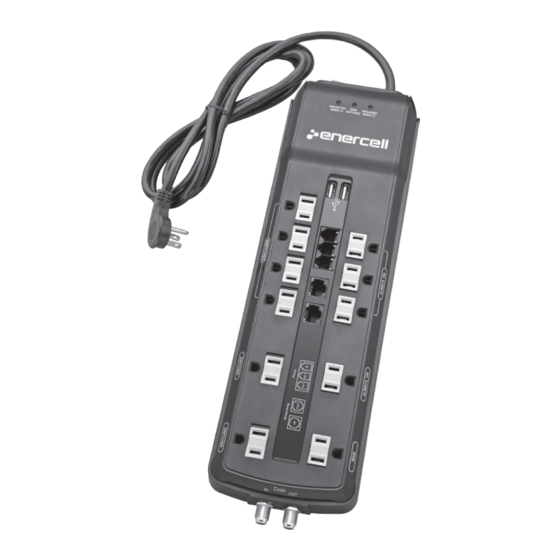

- Page 1 6100006 User’s Guide ® Energy-Saving Surge Protector Please read this user’s guide before using your new surge protector. ®...
-
Page 2: Package Contents
Package contents • Surge Protector • User’s Guide • Quick Start Features • Protects your equipment against harmful power surges • Child safety covers help keep small fingers away from danger • Also charges two personal electronics devices using the built-in dual USB ports •... -
Page 3: Connect Equipment
Connect equipment Safety Cover Slide the safety covers aside to make the following connections: • MAIN Outlet: Plug in your main component (usually a TV or computer). • SWITCHED Outlets: Plug in components that are used only with the main component. -
Page 4: Typical Power Connections
Typical power connections PROTECTED WHEN LIT Lights when the connected devices are protected. USB Charging Port Mobile phone USB cables are not supplied. SWITCHED Home Theater Home Office VCR or DVD player Scanner Gaming system Printer Powered speaker Monitor... - Page 5 MAIN SWITCHED: Lights when the device plugged into the MAIN outlet is turned on. GROUNDED WHEN LIT: Lights when connection to the wall outlet is properly grounded. ALWAYS ON Home Office Home Theater Router or modem Satellite or VOIP phone cable receiver MAIN Home Theater...
-
Page 6: Communication Connections
Communication connections Ethernet cables, modular telephone cords, and coaxial cables are not supplied. Phone IN Networking Phone OUT Networking IN Coax IN Coax OUT Note: The Antenna/Cable connection on this unit allows voltage to pass through. -
Page 7: Troubleshooting
Troubleshooting If the RESET/OFF switch turns off: The 15A circuit breaker has tripped. Examine your connected equipment and remove the device that is overloading the circuit. Then switch RESET/OFF back to RESET. If the GROUNDED WHEN LIT indicator does not light when you plug in the surge protector: Move your surge protector to a different grounded, three- prong AC outlet. -
Page 8: Specifications
Specifications Line Voltage ................120V AC Line Current..................15 A Frequency ................50/60 Hz Cord Length/Plug Type......... 8ft (2.4m), right angle plug Circuit Breaker ................15 A Noise Frequency Range.......... 150 kHz – 100 MHz Noise Attenuation Level............Up to 30dB Maximum Surge Voltage ............6,000V AC Total Maximum Surge Current..........150,000A Total Maximum Energy Dissipation ........... -
Page 9: Important Safety Information
Important safety information • This product is intended for indoor use only. • This surge protector is not a lightning arrestor and might not protect against lightning-induced surges. • The total wattage of all connected devices must not exceed 1,875 watts. •... -
Page 10: Fcc Information
If they do, you will be given advance notice so as to give you an opportunity to maintain uninterrupted service. g) Enercell products are sold exclusively at RadioShack. If your Enercell surge protector is not performing as it should, take it to your local RadioShack store for assistance. - Page 11 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 12 Equipment”) and if the Connected Equipment is damaged during the Warranty Period by a transient voltage surge/spike from the AC power line, telephone line or coaxial line that enters the Connected Equipment through the Product, then Ignition L.P . will reimburse the original purchaser of the Product the lesser of: (a) the repair charges for the Connected Equipment;...
- Page 13 estimate from the authorized service center must indicate that the damage to the Connected Equipment was surge-induced; and 3) Ship the original surge protector, postage prepaid to: Ignition L.P ., 4241 12th AVENUE EAST SUITE 400, SHAKOPEE, MN 55379. Include: (a) your name, address and daytime telephone number;...
- Page 14 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. © 2011. Ignition L.P . All rights reserved. Enercell is a registered trademark used by Ignition L.P . Printed 03A11 in China...
