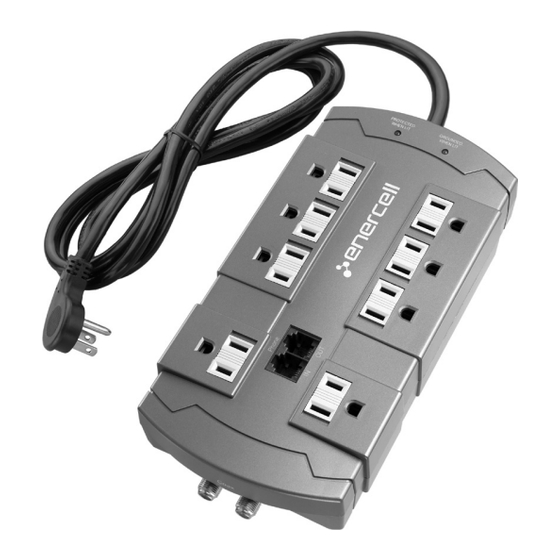

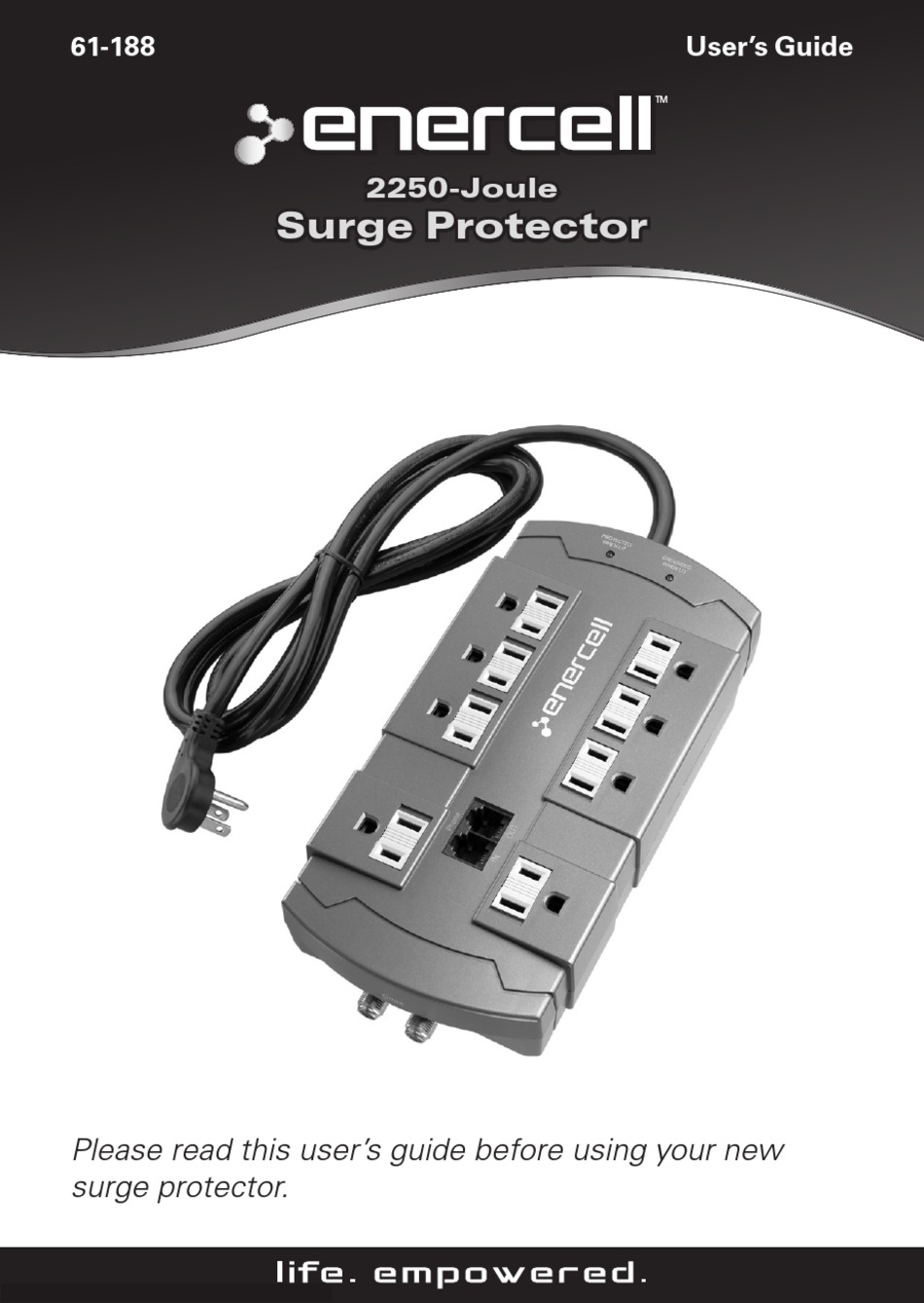

- Page 1 61-188 User’s Guide Product name and product name 2250-Joule descriptors Surge Protector Please read this user’s guide before using your new surge protector.
-
Page 2: Package Contents
Package contents • Surge Protector • User’s Guide • Quick Start Features • Protects your valuable equipment from damage caused by sudden electrical spikes and surges • Filters electromagnetic and radio-frequency interference to ensure steady performance of the connected equipment Plug into wall outlet 1. - Page 3 Phone OUT Phone IN Note: The Antenna/Cable connection on this unit allows voltage to pass through...
- Page 4 PROTECTED WHEN LIT GROUNDED WHEN LIT Coax IN DVD Player Coax OUT...
- Page 5 • Coax IN/OUT: Using coaxial cables (not supplied), connect your TV antenna to Coax IN and connect Coax OUT to your TV. Phone IN/OUT: Using modular telephone cords (not • supplied), connect your telephone wall jack to Phone IN and connect Phone OUT to your fax, modem, or telephone.
-
Page 6: Troubleshooting
Troubleshooting If the RESET/OFF switch turns off. • The 15A circuit breaker has tripped. Examine your connected equipment and remove the device that is overloading the circuit. Then switch RESET/OFF back to RESET. If the GROUNDED WHEN LIT indicator does not light when you plug in the surge protector. -
Page 7: Specifications
Specifications Line Voltage .................. 120 V Line Current..................15 A Frequency ................50/60 Hz Cord Length/Plug Type.........6 ft (1.8m), right angle plug Circuit Breaker ................15 A Noise Frequency Range.......... 150 kHz – 100 MHz Noise Attenuation Level............Up to 30dB Maximum Surge Voltage ............6,000 V Total Maximum Surge Current..........105,000A Total Maximum Energy Dissipation .......... -
Page 8: Fcc Information
» Never install a telephone jack in wet locations unless the jack is specifically designed for use in wet locations. » Never touch un-insulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. • Retain Instructions — Retain the safety and operating instructions for future reference. - Page 9 Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. 10. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this surge protector does not disable your alarm equipment.
- Page 10 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. © 2010. Ignition L.P . All rights reserved. Printed 03A10 Enercell is a trademark used by Ignition L.P . in China 61-188...
