- Page 1 USER S MANUAL Rev 1.0...
- Page 2 JANUS HD Caution Do not clean the product with the liquid or the volatility chemical. (it may damage on the product. And it might cause a fire or an electric shock.) Do not insert something into the product and let the product be heavily attacked.
-
Page 3: About The Product

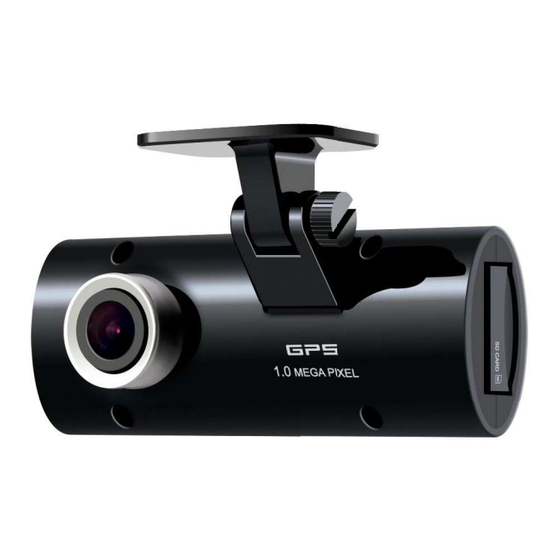

User s Manual About the product Thank you for purchasing Janus HD. Janus HD features a built-in GPS antenna, h.264 video compression for ultra-clear video, and intuitive playback software for you to archive and view your recorded videos. Janus HD is... - Page 4 JANUS HD Contents...
-
Page 5: Contents Of The Package
User s Manual Contents of the package Cable Holder JANUS HD & Bracket SDHC card AV out cable Cigar jack cable Contents of package can be changed. SDHC memory model can be changed in accordance with the market supply situation. -
Page 6: Name Of Each Part
JANUS HD Name of Each part Bracket Lens Front EMG button REC LED GPS LED Rear Mini USB is only for factory s debugging use. It cannot be used for the other purpose. It cannot be connected with PC. Power Jack... - Page 7 User s Manual Features JANUS HD Image Sensor 1M CMOS sensor Audio input MIC Built In Video Compression H.264 Audio Compression ADPCM Record resolution 720P(1280*720), HVGAW(640*384) Record Speed Max.30fps Emergence button Event record by the emergency button G-Sensor Event record by the outside impact...
-
Page 8: Easy Installation
5. After attaching the bracket on the windshield and fix the screw of the bracket with the coin. 6. Please connect the power cable with JANUS HD and tie up the power cable. 7. Please start the drive and use the product(Keeping REC LED light on means the normal operation). -
Page 9: Installation
User s Manual Installation Insert the SDHC card into the SD card slot like the left image. In case that the SDHC card is compulsorily inserted unlike the left image, damages will happen in SDHC card and the product. Assemble the bracket with the main body. - Page 10 JANUS HD Remove the protection cover from the adhesive bracket and loosen the screw of the mounting bracket slightly loosen to adjust the mounting angle. Firmly press the mounting bracket combined with the product onto the suitable place of the windshield.
- Page 11 User s Manual Tighten the screw of the mounting bracket with the coin. Tighten screw to secure mounting position, Road view camera s angle should be adjusted in accordance with the windshield s tilt. Put the power cable in order with the cable fix holder.
- Page 12 JANUS HD Plug in the car adapter to the product and into the cigarette lighter to power Product takes 30 seconds to start up. It starts recording with a beep. During normal operation, REC LED will always be on.
-
Page 13: Monitor Connection
User s Manual Monitor Connection Connect the mini-jack from the video cable into the Monitor port on the side of the unit.. Connect the video cable into the video input of the portable display(not included). Only use the supplied video cable. Not support. - Page 14 JANUS HD Install the viewer _HD(1.x.x).exe file from the installation CD. (If the OS is windows VIST/7, click the right button of mouse and install with user s authorization. Foreign languages are provided and the program will be translated according...
- Page 15 User s Manual Viewer Guide Backward play, Play Volume up/down 1 frame playback Explore events Repeat a event GPS signal window Pause Print Next Event Back up Playback speed Set up Speed Open a file E-google map GPS Signal Bar (Under the conditions that the internet is...
-
Page 16: How To Playback
JANUS HD How to playback After turning off the product and take SDHC card. Insert SDHC card into PC and click the viewer program Icon to execute the program. On the main menu, select the time data you want play and click the play button to watch the recorded data. - Page 17 User s Manual Playback Double click the left button of the mouse to convert the full screen from the main screen. To return the main screen, click the left button of mouse again. On the play screen, click the right button of the mouse on the position to make the zoom.
- Page 18 1. AVI back-up file can be played back in Windows Media Player or other AV players. 2. JDR back-up file can be played back in only JANUS HD viewer program. 3. Image back-up file can be shown in an image viewer or Paint of...
-
Page 19: System Setup
User s Manual System Set-up Resolution- Select one among 720P or HVGAW. Camera- Adjust the frame/sec. Quality- Video quality among levels like Very high/high/normal/low/very low . Above setting are to make the influence on the data size and the SD card storage space. -
Page 20: Event Setup
JANUS HD Event Set-up Event- Emergency/Impact /Over speed /Sudden deceleration /Sudden acceleration Frame : Pre-alarm: 2~6 seconds recording before event occurs. Post-alarm:2 ~30 seconds recording after event occurs. Over speed- Set up the over speed monitoring system. Once the over speed limit has been exceeded, the device will begin recording. -
Page 21: User Settings
User s Manual User Settings Car Info- Input the license number of the vehicle. Driver Info- Driver s name. Serial No- s serial no. User s Info User ID- Input ID to log in the main screen(Default : admin). Password- Input the password to log i(Default- No password). Caution This menu is for the private information. - Page 22 JANUS HD Removal Disk In case that some errors happen in SD card, this function is for restoring or formatting the data of SD card. Before this work, please back up the recorded data in SD card in preparation for the worst case to lose the recorded data.
- Page 23 User s Manual Version KERNEL- Show the information about KERNEL. RAMDISK- Show the information about RAMDISK. S/W VER- Shoe the information about the software. VIEWER- Show the viewer version.
-
Page 24: How To Upgrade
JANUS HD How to upgrade 1. Please download the firmware for upgrading the product. Visit http://www.januspage.com and download the latest firmware. 2. Turn off the product. 3. Remove SD card. 4. Connect SD card to PC and copy the downloaded latest firmware in the update folder of SD card. -
Page 25: Troubleshooting
User s Manual Troubleshooting Phenomenon Check point The product does not turn on Check if it is connected to a power supply Check whether the correct voltage is being used. Contact the nearest service center if the device doesn t turn on even if it is connected to a power properly. - Page 26 JANUS HD Reference The scope of warranties and liability We are not responsible for the harm caused by product failure, damage due to loss of data, and other damage caused by using the product. This device s purpose is for recording the vehicle accidents but all the accidents that video recording is not guaranteed.
-
Page 27: Guarantee Card
User s Manual Guarantee card...
