Summary of Contents for Janus Janus Pro HD

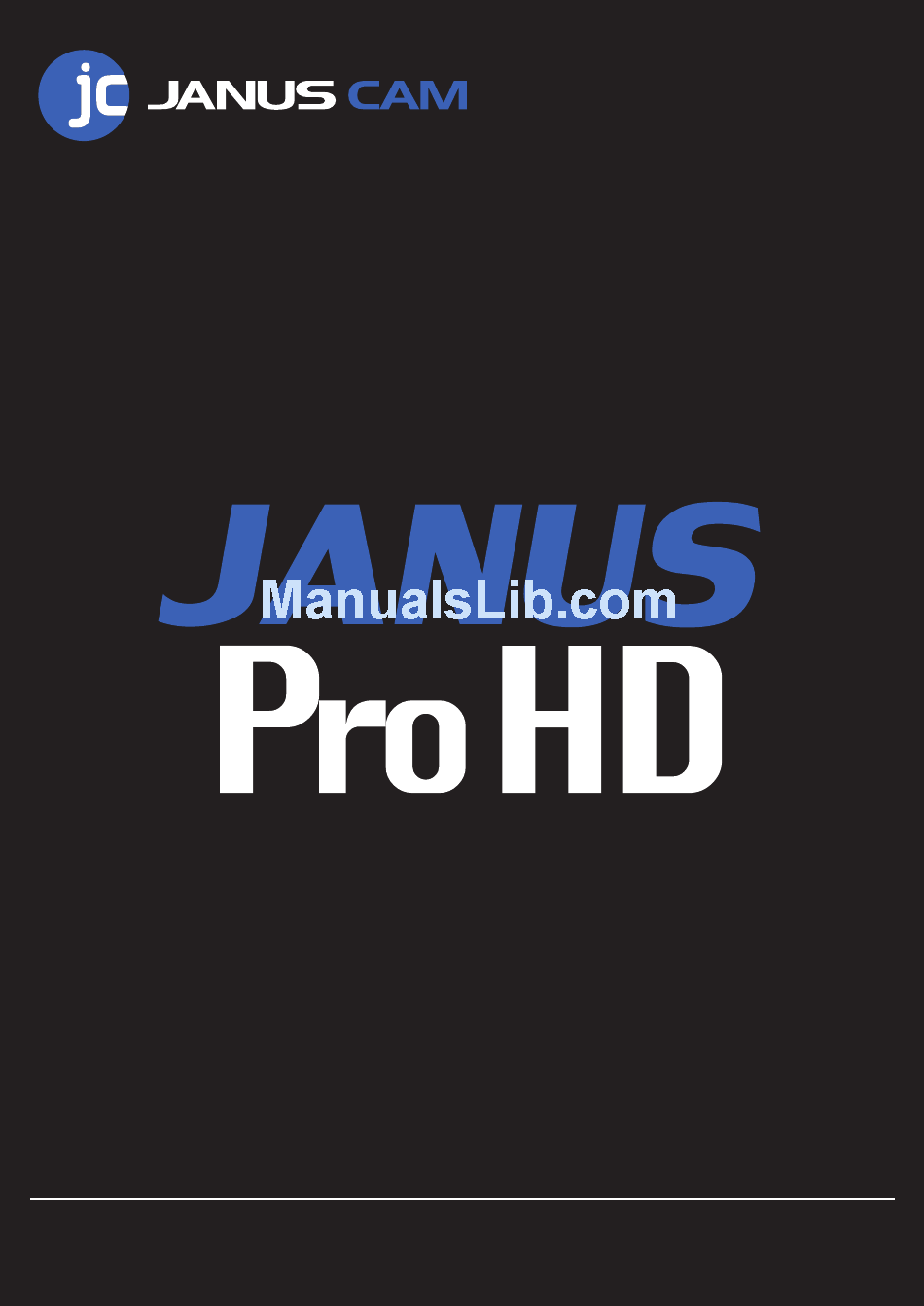

- Page 1 1280X720 High Definition Vehicle Black Box User’s Manual Read user’s manual carefully in order to protect the user’s safety and ensure toaccurate use of the product.
-
Page 2: Product Warranty
Content Before using this product Warranty and Limitation of Liability/ Precaution Caution SD Card / How to remove SD Card How to use Product Features Component Name of product details Product Specification Product Description Voice Announcement and LED How to install 12~13 How to format SD Card Exclusive PC Viewer... -
Page 3: Before Using This Product
- Consistent care and attention is essential when handling the SD Card that saves recorded data. - Janus Pro HD was developed to record and save video footage of vehicle accidents and/or any impact to the vehicle. - Page 4 (removing the SD card by force can cause damage to the camera. Lightly press SD card to remove) - If Janus Pro HD is disconnected from power source, it can record videos for 5 to 10 seconds. ▶ SD card Insert 1.
-
Page 5: How To Use
- Do not use water or harsh chemicals when cleaning the camera. Only use a soft and dry cloth for cleaning. - If Janus Pro HD is physically damaged or disconnected from power supply, the camera can not record and/or save data. -
Page 6: Product Features
4 Product Features Janus Pro HD is a black-box that is installed into a vehicle for video and audio recording. The Janus Viewer can prove video and audio evidence of vehicle accidents, damages and/or physical conflict. Real High-definition - Front : Real HD 1280X720 - View Angle front : 110˚... - Page 7 Product Features 5 Audio Recording - When recording, audio is synchronized with video recordings. Firmware Update - Firmware upgrades for SD cards are available to help with product performance. ▶ For more information, visit www.januscam.com Parking-Mode function - It can be efficient to save a large number of video files in a small memory space of SD card. - Parking Mode function can only be supported using the constant power supply.
- Page 8 Micro SD Card SD card adapter Cigarette Lighter Adapter Manual Optional accessories External GPS Constant Power Cable Video Cable SD Card Reader ▶ Janus Cam is not liable for after service of Micro SD card and Micro SD card adapter...
- Page 9 Name of product details Adhesive tape Mounting Bracket Security LED Camera Camera Front Event button Mode button Rec. LED GPS LED Back Power Input Micro SD card slot (DC12V) Video out (2.5 ) Left Right...
-
Page 10: Product Specification
8 Product Specification Product specification Spec. Note Color dark red Channel Front Lens Angle 110˚ 1.5 Mega Level of illumination Above 0.5 LUX. Exterior Video In/Out V-OUT(2.5pie) NTSC/PAL Built-in High Intensity LED Quick button support Function (Event, Mute, Self-Format, Parking Mode) Resolution 1280*720(HD) Video Format... -
Page 11: Product Description
Product Description 9 Insert Micro SD Card to save recorded video files on smart phone or PC. ◎ Three different folders are created. Please see below for and the explanations for each folder: EVENT INFINITE PARKING (Impact) (Constant) 20% of micro SD card space and 70% of micro SD card space and 10% of micro SD card and overwrites at over-capacity... - Page 12 - 2 : Video, 3: Ground The width of AV input port can be different by the different models of navigation. ▶ The AV Cable is an optional accessory, which can be purchased through Janus Cam. Buttons EVENT(EVENT / SD Format) - Lightly press the Event Button to start EVENT recording - Press the EVENT button for 5 seconds to allow Micro SD card to self-format.
- Page 13 Voice Announcement and LED 11 Announcement Messages Security LED GPS LED 1.Please have a safe drive today. REC LED 2. You cannot use the current SD card. Please replace the SD card. 3. We are starting the new upgrade. 4. The upgrade is complete. Rebooting the system.
-
Page 14: How To Install
12 How to Install How to install the Front Camera 1. Insert the enclosed Micro SD 2. Remove protective plastic film from card into camera adhesive on mounting bracket. 3. Before mounting, clean area on 4. Connect the cigarette power cable windshield. - Page 15 How to install 13 How to install Mount Bracket EVENT MODE - Place rubber ring on mount and lock by turning clockwise. ▶ Turn the locking cover clockwise to adjust angle. Turn the locking cover anti-clockwise to loosen.
-
Page 16: How To Format Sd Card
14 How to format SD card 1. Double –click “My computer” 2. Click the right hand side of mouse to “Removable Media Device” Click the left hand side of mouse to “Format” on menu bar. 3. Follow Window pops up as shown in the picture below. Select “Quick Format”. Click the left hand side of mouse to “Start”... - Page 17 How to format SD card 15 5. Do not click the “Cancel” button. Must wait until formatting is completed. 6. Click “OK” button when format is completed. 7. Click “Close” button on the status bar. 8. Format session is completed.
-
Page 21: Map Button
Exclusive PC viewer 19 Map Button Map button should appear when the Internet is available [Mini-map screen] [Large map screen] (1) Map Information Screen : It displays Mini Map Screen (2) Enlargement : [+]Map Screen enlargement Reduction : [-]Map Screen reduction (3) Map Conversion : Mini Map/Large Map (4) Map scroll On/Off (5) Map and satellite view conversion... -
Page 22: Configuration Setup
20 Exclusive PC Viewer Configuration Set-up... - Page 23 ▶ Return and replacement will be made within 14 days from product delivery. ▶ If you want your product to be returned, ▶ You are required to return the product to Janus Cam with original packaging without breaking the seal on your product.
- Page 24 This product is an auxiliary device designed to secure safe driving of vehicle. Janus Cam shall not be responsible for any vehicle accident copyright Janus Cam Janus Cam ⓒ . All rights reserved.
