IMPORTANT: PLEASE READ THIS MANUAL
BEFORE INSTALLING UNIT
DO NOT CONNECT POWER SUPPLY until unit is completely installed. Make sure electrical service to the fan and light is locked in
"OFF" position.
WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS – OBSERVE THE FOLLOWING:
a. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact your manufacturer's representative.
b. CAUTION: Before installation, servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as tag, to the service panel.
c. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. This unit is only for use in non-
fire-rated installations.
d. When cutting or drilling into wall and ceiling, do not damage electrical wiring and other hidden utilities.
e. NEVER place a switch where it can be reached from a tub or shower.
f. If this unit is installed over a tub or shower, it must be connected to a GFCI (Ground Fault Circuit Interrupter) – protected branch circuit.
g. The combustion airflow needed for safe operation of fuel burning equipment may be affected by this unit's operation. Follow the heating equipment manufac-
turer's guidelines and safety standards such as those published by the National Fire Protection association (NFPA), the American Society of Heating,
Refrigeration, and Air Conditioning Engineers (ASHRAE) and the local code authorities.
h. Exhaust fans must always be vented to the outdoors.
CAUTION: "FOR GENERAL VENTILATION USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIAL AND VAPORS."
CAUTION: BULB USED IN FLUORESCENT MODELS NOT DIMMABLE
CAUTION: USE ONLY TCP XR3014 BULBS IN FLUORESCENT MODELS AND PAR16 OR MR16 GU10 50W MAXIMUM IN HALOGEN MODELS

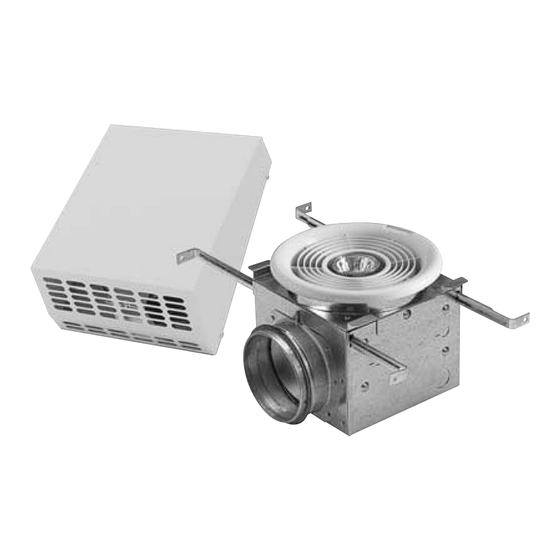

EXTERIOR WALL MOUNT BATH FAN MODELS
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
PBW110 • PBW110F • PBW110H
PBW Series
Premium Bath Fans
Advertisement
Table of Contents
Related Manuals for Fantech PBW110
Summary of Contents for Fantech PBW110
- Page 1 CAUTION: BULB USED IN FLUORESCENT MODELS NOT DIMMABLE CAUTION: USE ONLY TCP XR3014 BULBS IN FLUORESCENT MODELS AND PAR16 OR MR16 GU10 50W MAXIMUM IN HALOGEN MODELS EXTERIOR WALL MOUNT BATH FAN MODELS PBW110 • PBW110F • PBW110H INSTALLATION, OPERATION AND MAINTENANCE MANUAL...
-
Page 2: Electrical Connection
For the quietest possible installations, Fantech recommends a minimum of 8' of insulated flexible duct between any inlet grille and fan. When using flexible type 2. Bring incoming electrical service through the romex connector and the fan duct work, duct should be stretched as tight and straight as possible. - Page 3 Step 5 - Connect the fan to the housing. Install the 4" or 6" duct work from the fan to the ceiling grille housing. Insulated flexible type duct work (recommended for all Fantech bathroom exhaust applications) will result in much quieter operation. Secure duct work in place and seal. If using Insulated flexible duct work, seal the inner liner to the duct connector of the and then seal the outer shell over the top of the inner liner.
- Page 4 Warning FANTECH, INC. products are designed and manufactured to provide reliable performance, but they are not guaranteed to be 100% free from defects. Even reliable products will experience occasional failures and this possibility should be recognized by the user. If these products are used in a life support ventilation system where failure could result in loss or injury, the user should provide adequate backup ventilation, supplementary natural ventilation, failure alarm system, or acknowledge will- ingness to accept the risk of such loss or injury.
