Summary of Contents for Linkcom Link View CDPTZIN1.3MP

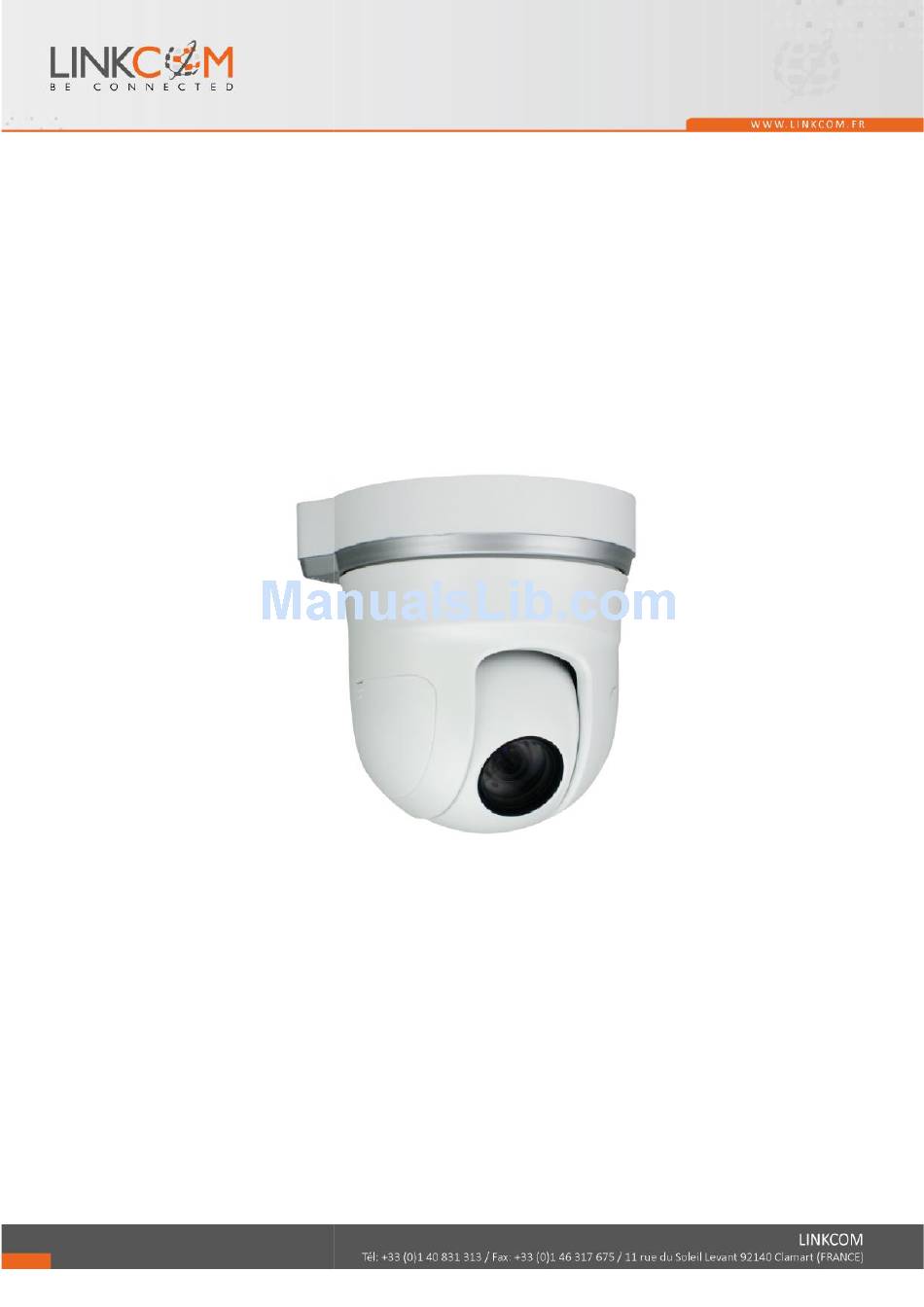

Page 1 User Manual User Manual Please find the latest version of the manual and firmware at www.linkcom.fr Please find the latest version of the manual and firmware at www.linkcom.fr Please find the latest version of the manual and firmware at www.linkcom.fr...
Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).
Page 3: Table Of Contents
CONTENT Preface Product Specifications III. Product Installation Monitor Setting Hardware Installation IP Assignment Install ActiveX control Live Video IP Camera Configuration System Network A/V Setting Event List Network Configuration I/O Configuration VII. Factory Default VIII. Universal Password Package Contents Micro SD Card Compatibility...
Page 4: Preface
Preface This IP Camera is a 1.3 Megapixel PTZ IP camera. It has a web server built in. The user can view real-time video via IE browser. The IP Camera simultaneously supports H.264, Motion JPEG & MPEG4 video compression and dual streaming which provides smooth and high video quality. The video can be stored in a Micro SD card and played back remotely.
Page 5 Maximum Aperture F1.6~F3.1 Pan / Tilt Range Pan: 360° / Tilt: 0°~90° auto flip Manual Control Speed Pan: 0.45°~90°/s / Tilt: 0.35°~45°/s Preset Speed 200°/s Preset Points Preset Resolution 0.15° Patrol 8 groups Auto Pan Sensitivity 0.05 lux @F1.6(B/W), 0.1 lux(Color) Electronic Shutter 1/5 ~ 1/120000s Off / BLC / HSBLC...
Page 6 1280x1024@30fps,1280x960@30fps,1280x720@30fps, Video Resolution 640x480@30fps, 320x240@30fps, 176x144@30fps Video Adjust AES, BLC, D&N, AGC, Sense Up, 3D DNR, WDR, Flip, Mirror, R-Gain, B-Gain, Sharpness Triple Streaming Image Snapshot Full Screen Monitoring Compression Format H.264 / M-JPEG / MPEG4 Video Bitrate Adjust CBR, VBR Motion Detection Yes, 3 different areas Triggered Action...
Page 7: Product Installation
III. III. III. Product Installation Product Installation Product Installation Monitor Setting Monitor Setting Monitor Setting 1. Right-Click on the desktop. Select “Properties” 1. Right-Click on the desktop. Select “Properties” 1. Right-Click on the desktop. Select “Properties” 2. Change color quality to highest (32bit). 2.
Page 8: Hardware Installation
B. Hardware Installation 1. Installation STEP 1: Tighten the four tapping screws into the ceiling. STEP 2: Connect the base and camera, and then push the camera inward to fix it. STEP 3: Lock the screw for finishing the installation...
Page 9 2. Connector Instruction The camera connectors are as below. Connect the power and the Ethernet with the camera. About I/O setting, please refer to the chapter : "I/O Configuration" for details. 3. PoE (Power over Ethernet) (Optional) 802.3at, 30.0W PoE Switch is recommended Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure.
Page 10: Ip Assignment
C. IP Assignment 1. You can use the software “IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. 2. There are two language versions of IP installer. Choose one as your need: IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version 3.
Page 11 7. IP Installer will search for all IP Cameras connected on the LAN. Click on “Search Device” to refresh the result list. 8. Click one of the IP Camera listed on the left side. The network configuration of this IP camera is shown on the right side. You may change the “name” of the IP Camera as your preference (eg: Office, warehouse).
Page 12: Install Activex Control
Camera listed on “Device list” of IP Installer. An IE browser will be opened. 11. If you link to the IP Camera successfully, it will pops up a box asking you to log in. Please key in the default user name "admin" and password "admin" when you link to the IP Camera for the first time.
Page 13 When it pops up the following dialogue box, click “Yes”.
Page 14 b. You can choose another way. Go to: IE → Tools → Internet Options… → Security Tab → Trusted sites → Add the IP address and click "OK". In the site list you can key one single IP address or a LAN address. For example, if you add "192.168.21.*", all the IP address under .21 LAN will be regarded as trusted sites.
Page 15 2. Use Non-IE Web Browser If you use Firefox or Google chrome to access the IP camera but fail to watch the live video, please follow the steps to install necessary tools: (The following pictures are based on Chrome.) a. You may see the prompt message as the picture below. First, click the link: "Firstly, please install Microsoft Visual C++ 2010 Redistributable Package (x86)."...
Page 16 (iii) After finishing the download, execute the two files respectively to install them. The windows may ask you to reboot the PC when the installation is finished. b. Then, Click the second link "Please click here to download the installation program which does not support IE browser."...
Page 17 c. If you execute the steps above but still cannot see the live video normally, please try the following solution: (i) Search for the file "np_hoem_x.dll" in your system disk. For Windows XP users, please go to "Start" → "Search" → Search for "All files and folders"...
Page 18: Live Video
IV. Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name is “admin” and the password is “admin”. When the IP Camera is connected successfully, it shows the following program interface.
Page 19 3. Show system time, video resolution, and video refreshing rate 3. Show system time, video resolution, and video refreshing rate 3. Show system time, video resolution, and video refreshing rate 4. FullScreen: for viewing the live video in full screen 4.
Page 20 the camera will go back to its initial position. 2. If you click in the icon 3. Use magnifier icons to zoom in/ zoom out. Use bulls eye icons to adjust focus. • How to set a preset point 1. Use the 8-direction arrows, zoom, and focus function to shift the camera view.
Page 21 5. To start patrol, select one group from the list, and press . The camera will move according to the patrol route and dwell time you had set. If you select "All Point", the camera will go every preset point in sequence. 6.
Page 22: Ip Camera Configuration
V. IP Camera Configuration Click to get into the administration page as below. Click to back to the live video page.
Page 23: System
A. System 1. System Information a. Server Information: Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer. (ii) Select language: There are 11 languages to choose from. When you change the language, it will show the following dialogue box for confirmation.
Page 24 c. Server time setting: Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”. Note: To synchronize with the NTP Server, please set the IP camera up on the WAN instead of LAN.
Page 25 2. User Management 2. User Management 2. User Management IP CAMERA supports three different users, administrator, general user, and IP CAMERA supports three different users, administrator, general user, and IP CAMERA supports three different users, administrator, general user, and anonymous user. anonymous user.
Page 26 3. System update: a. To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Note: The firmware upgrade might be accompanied by the changing of some setting and function, and the setting options might become different to the user manual that you're reading now.
Page 27: Network
B. Network 1. IP Setting a. IP Assignment IP Camera supports DHCP and static IP. DHCP: Using DHCP, IP CAMERA will get all the network parameters automatically. (ii) Static IP: Please type in IP address, subnet mask, gateway, and DNS manually.
Page 28 c. Port assignment Web Page Port: setup web page connecting port and video transmitting port (Default: 80) (ii) HTTP Port:setup HTTPS connecting port (Default:443) d. UPnP (Universal Plug and play) This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.”...
Page 29 Windows may ask your confirmation for enabling the components. Click "Yes". • Now you can see the IP device under the LAN. Double-click the icon to access the camera via web browser. To disable the UPnP, click "Hide icons for networked UPnP devices" in the tasks column.
Page 30 e. RTSP setting If you have a media player that supports RTSP protocol, you can use it to receive the video streaming from IP camera. The RTSP address can be set for two streaming respectively. Please jump to Chapter :"Video Setting".
Page 32 Multicast, appoint IP Address and port here. TTL means the life time of packet; the larger the value is more users can receive the packet. To use Multicast, be sure to enable the function "Force Multicast RTP via RTSP" in your media player. Then key in the RTSP path of your camera: "rtsp://(IP address)/"...
Page 33 i. LLTD If your PC supports LLTD, enable this function then you can check the connection status, properties, and device position (like IP address) of this IP Camera in the network map. In the computer running Windows Vista or Windows 7, you can find LLTD through the path: Call out the Control Panel →...
Page 34 2. Advanced 2. Advanced 2. Advanced a. Https (Hypertext Transfer Protocol Secure) a. Https (Hypertext Transfer Protocol Secure) a. Https (Hypertext Transfer Protocol Secure) When the users access cameras via Https protocol, the transmitted When the users access cameras via Https protocol, the transmitted When the users access cameras via Https protocol, the transmitted information will be encrypted so that the security level is arisen.
Page 35 (ii) Create Request: Fill in the following form and click “apply”. (ii) Create Request: Fill in the following form and click “apply”. (ii) Create Request: Fill in the following form and click “apply”. (iii) After you generate a certificate request, if you choose to turn it to the (iii) After you generate a certificate request, if you choose to turn it to the (iii) After you generate a certificate request, if you choose to turn it to the trusted third-party to verify, please click “Content”...
Page 36 certificate. certificate. certificate. If you had sent the certificate request to do sign and received a signed If you had sent the certificate request to do sign and received a signed If you had sent the certificate request to do sign and received a signed certificate, please click”...
Page 37 b. SNMP(Simple Network Management Protocol) b. SNMP(Simple Network Management Protocol) b. SNMP(Simple Network Management Protocol) SNMP provides a simple framework for administering networked SNMP provides a simple framework for administering networked SNMP provides a simple framework for administering networked hardware. To manage the IP camera, you have to prepare a MIB browser hardware.
Page 38 the correct Read Community name “public”, the user has read authority to camera; Key in the correct Read Community name “public” and Key in the correct Set community name “write”, the user has write authority to camera.). Connection succeeds. (ii) SNMPv3: For data security reason, the authentication and encryption assurances are added when developing SNMPv3.
Page 39 • Example: • Example: • Example: Select SNMPv3, add new user, and key in correct security user Select SNMPv3, add new user, and key in correct security user Select SNMPv3, add new user, and key in correct security user name(write). Select the same authentication type with camera setting name(write).
Page 40 • Cold Start: The camera starts up or reboots. • Cold Start: The camera starts up or reboots. • Cold Start: The camera starts up or reboots. • Setting changed: The SNMP setting is changed. • Setting changed: The SNMP setting is changed. •...
Page 41 c. Access List You can deny an IP address or a range of IP address so that they cannot access the IP camera. Tick the "enable" box, key in the IP address you want to deny, select “deny" then click “Add" to add it to the list. You can also choose to deny a range of IP address but allow one or several IP address of them.
Page 42 d. QoS/DSCP(Quality of Server/Differentiated Services Code-point) DSCP specifies a simple mechanism for classifying and managing network traffic and provide QoS on IP networks. DSCP is a 6-bit in the IP header for packet classification purpose. Set up instruction: The number 0~63 for Live Stream, Event / Alarm, and Management represent the ratio that the bandwidth is divided.
Page 43 e. IEEE 802.1x IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to device wishing to attach to a LAN or WLAN. To use this function, you need a device to build IEEE 802.1x LAN at first. The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment.
Page 44 3. PPPoE & DDNS a. PPPoE: Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP”...
Page 45 (vi) DDNS Status • Updating: Information update • Idle: Stop service • DDNS registration successful, can now log by http://<username>. ddns.camddns.com: Register successfully. • Update Failed, the name is already registered: The user name has already been used. Please change it. •...
Page 46 4. Server setting The settings of Email, FTP and SAMBA are used when the event happens, schedule snapshot executes, or the alarm input is triggered. Select the item to display the detailed configuration options. You can configure either one or all of them.
Page 47 connection. A message box will tell you “OK!” if it works, and a test file will be uploaded to FTP space. In PORT mode, the FTP server builds the connection to the user’s data port actively. However, from the user-side firewall’s standpoint, the action of connecting from FTP server is often considered to be dangerous and should be blocked.
Page 48 5. Wireless Setting (Optional): Support 802.11 b/g/n To set up the IP camera via wireless network, use Ethernet cable to connect the camera first. After you finish the wireless setting and save it, remove the Ethernet cable. Note: The IP address is the same under both wireless and wired network. If the Ethernet cable is plugged in the camera, the IP camera will use it to link to the Internet instead of wireless router.
Page 49 Please select as the wireless system in your location. FCC is American standard. ETSI is European standard. JP is Japan standard. (iv) Channel: Assign a channel for the camera in order to avoid interference. (v) Security: Select WEP, WPA-PSK, or WPA2-PSK according to your wireless router setting.
Page 50: A/V Setting
C. A/V Setting 1. Image Setting Please refer to the details below for Image setting: a. Auto Electronic Shutter: AUTO: Both the iris and shutter are adjusted by the camera automatically. IRIS: You can adjust the aperture open or closed. The smaller the "F" value you select, the larger the aperture opens and the brighter the image becomes.
Page 51 b. IRIS Level: The higher the Iris level you select, the more light the camera gets and the image becomes brighter. However, it will not affect the true iris opening or closing that you select in auto electronic shutter options. c.
Page 52 2. Video Setting a. Select video system, NTSC or PAL. b. Basic Mode of Streaming 1 and Streaming 2: Resolution: 1280x1024, 1280x960,1280x720, 640x480, 320x240, or 176x144 (ii) Quality: The higher the quality is, the bigger the file size is. It might affect Internet transmitting speed if the file gets too large.
Page 53 c. Advanced Mode of Streaming 1 and Streaming 2: Resolution: 1280x1024, 1280x960,1280x720, 640x480, 320x240, or 176x144 (ii) Bitrate Control Mode: In CBR(Constant Bit Rate) mode, the bitrate keeps consistent all over the video. In VBR(Variable Bit Rate) mode, the bitrate changes with the complexity extent of the video data. VBR provides a better compression way and the file may be smaller.
Page 54 d. 3GPP Streaming mode: The RTSP here is separated from the RTSP setting in the "IP SETTING". 3GPP Streaming can still work even you select "disabled" in the RTSP server option of IP Setting. 3GPP mode fixed setting: 176x144 resolution, 5FPS, Video compression: MPEG4, Audio compression: AMR.
Page 55 3. Audio: IP Camera supports 2-way audio. Audio can be receive by the built-in mic in the IP camera and transmitted to remote PC. User can also send audio from remote PC mic to IP Camera’s external speaker. a. IP Camera to PC To receive Audio from IP camera, select “Enable”...
Page 56: Event List
D. Event List IP Camera provides multiple event settings. 1. Event Setting a. Motion Detection To enable global motion detection, please tick "Motion". When motion in the view is detected, "Motion!" word will be marked on the live screen, and the camera can send video or snapshot to specific mail addresses, trigger the output devise, or save video to FTP/ Micro SD card/ Samba.
Page 57 b. Record File b. Record File b. Record File Choose the file format (AVI for video clips while JEPG for snapshot) Choose the file format (AVI for video clips while JEPG for snapshot) Choose the file format (AVI for video clips while JEPG for snapshot) that can be saved or sent out when motion is detected.
Page 58 e. Network IP check: e. Network IP check: e. Network IP check: Key in the target IP address and interval. The camera checks once in Key in the target IP address and interval. The camera checks once in Key in the target IP address and interval. The camera checks once in a while according to the setting interval time that it can linked to the target a while according to the setting interval time that it can linked to the target a while according to the setting interval time that it can linked to the target...
Page 59 2. Schedule a. Schedule: After complete the schedule setup, the camera data will be recorded according to the schedule setup. b. Snapshot: After enable the snapshot function, user can select the storage position of snapshot file, the interval time of snapshot and the reserved file name of snapshot.
Page 60 3. I/O Setting a. Input Setting: IP Camera supports 2 digital input and 1 digital output. When the input condition is triggered, it can trigger the relay, send the video to mail addresses /FTP server /SAMBA. • Interval: For example, if you select "10 sec" here, once the motion is detected and action is triggered, it cannot be triggered again within 10 seconds.
Page 61 4. Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure.
Page 62 5. Micro SD card 5. Micro SD card 5. Micro SD card a. Playback a. Playback a. Playback Please Insert t h e Micro SD card before use it. Make sure pushing Please Insert t h e Micro SD card before use it. Make sure pushing Please Insert t h e Micro SD card before use it.
Page 63 c. Copy to PC You can insert the Micro SD card to PC and read the files directly, or use FlashGet instead to download the files from IP camera. (In this way you do not need to pull out Micro SD card from the camera.) To use FlashGet for downloading the image and video data from the Micro SD card, please follow the steps: Enter the data list and right-click "Files link daily", select "save target...
Page 64 (iv) Click OK to start download. • FlashGet is a free software that can be downloaded from FlashGet official website. The example above is based on FlashGet ver.1.9.6.
Page 65: Network Configuration
VI. Network Configuration • Configuration 1: a. Internet Access: ADSL or Cable Modem b. IP address: One real IP or one dynamic IP c. Only IP Camera connects to the internet d. For fixed real IP, set up the IP into IP Camera. For dynamic IP, start PPPoE. •...
Page 66 • Configuration 3: a. Internet Access: ADSL or Cable Modem b. IP address: one real IP or one dynamic IP c. IP Camera and PC connect to the internet d. Device needed: IP sharing e. Use virtual IP, set up port forwarding in IP sharing.
Page 67: I/O Configuration
VII. I/O Configuration 1. I/O Connection a. Please connect the G & IN pin to the external relay (buzzer) device b. Please connect the G & OUT pin to the external trigger device. c. I/O PIN definition • G (Ground): Initial state is LOW •...
Page 68 (i) On Off Switch mode: Click "ON", the camera will trigger the external output devise for 10 seconds. For example, your alarm buzzer will continuously ring for 10 seconds. After 10 seconds the buzzer stops ringing, or you can manually break off the output signal by clicking "OFF". (ii) Time Switch mode: Click "Pulse", the camera will trigger the external output devise for several seconds;...
Page 69: Viii. Factory Default
VIII.Factory Default VIII.Factory Default VIII.Factory Default If you forget your password, please follow the steps to revert back to default value. If you forget your password, please follow the steps to revert back to default value. If you forget your password, please follow the steps to revert back to default value. •...
Page 70: Factory Default
IX. Universal Password IX. Universal Password IX. Universal Password If you forgot the password of your IP camera, you can reset the camera to If you forgot the password of your IP camera, you can reset the camera to If you forgot the password of your IP camera, you can reset the camera to factory default, or follow the procedure below to generate a universal password.
Page 71 3. Key in the camera IP address “IP Adder.” column and MAC in “MAC” 3. Key in the camera IP address “IP Adder.” column and MAC in “MAC” 3. Key in the camera IP address “IP Adder.” column and MAC in “MAC” column, and then click “encoder”.
Page 72: Package Contents
5. Now you are logging in as administrator. Turn to User Management page. 5. Now you are logging in as administrator. Turn to User Management page. 5. Now you are logging in as administrator. Turn to User Management page. The use of universal password does not affect the previous user setting, The use of universal password does not affect the previous user setting, The use of universal password does not affect the previous user setting, so the administrator account password does not change until you edit it.
Page 73: Micro Sd Card Compatibility
XI. Micro SD Card Compatibility The following is the Micro SD Card recommended: Transcend SDHC class4 16GB SDHC class4 32GB class4 16GB class4 32GB SDHC class6 SDHC class6 SDHC class6 16GB class6 class6 class6 16GB SDHC class10 4GB SDHC class10 8GB SDHC class10 16GB SanDisk...
