Scientific Atlanta AllTouch AT6400 User Manual

Where Do I Start?

Before you begin using your remote, complete the
following initial setup tasks.

Install the Batteries

The remote requires two AA batteries (alkaline
TV DVD
STB AUX
recommended). A diagram in the battery compartment
of the remote indicates proper placement of the
batteries. When batteries are properly installed, the
light on the remote blinks each time a key is pressed.
Visit the Quick Reference Section
VOD
Use the Quick Reference section of this guide to
MENU
familiarize yourself with the remote and the functions
MENU
DVR of its various keys. Knowing the function and location
of the keys on the remote will assist you when you
are programming the remote.

Program the Remote

INTERACT
To learn how to program your remote, refer to the
SEARCH MULTISCREEN
sections What Devices Can I Control, What Devices
Do I Want to Control, and Program the Remote to
GUIDE
CH
VOL
PG
MUTE JUMP Control My Devices for further instructions.
MUTE JUMP
Find a Place to Store Your Remote
1 2 3
ABC DEF
Keeping up with one remote is much easier than
4 5 6
keeping up with four or five remotes. However, it is
GHI JKL MNO
still a good idea to find a storage location for your
7 8 9
PQRS TUV WXYZ
remote. The AT6400 is not a toy. It should be kept
0 #
out of the reach of children under the age of 6 years.
CLEAR SPACE ENTER
Program the Remote
to Control My Devices
Your remote is initially programmed to only operate
your set-top box. You will need to set up the remote to
AT6400 ™ AllTouch ®
operate your other devices using its TV, DVD, and AUX
modes. The TV key may be programmed to operate a
IR Universal
standard or high-definition television (HDTV). The
DVD key may be programmed to operate a DVD player.
Remote Control
User's Guide
Quick Reference
Welcome to the Ultimate
Control Experience!

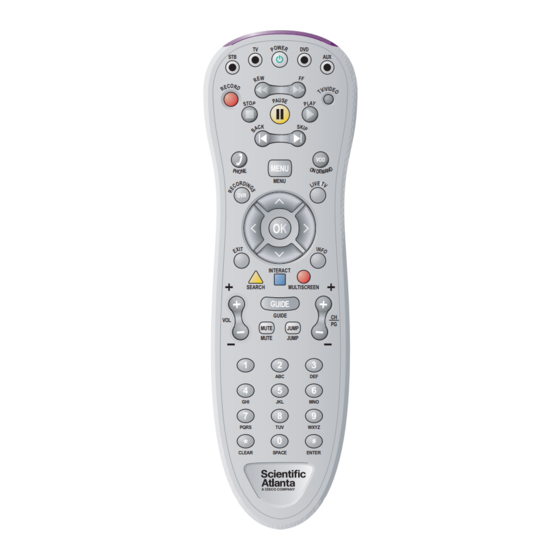

Your new AT6400 ™ AllTouch ® Infrared (IR)
Universal Remote Control (remote) is a true
TV DVD
STB
universal remote, functioning as four remotes in
one. As one example, you can use this remote to
operate your set-top box, your TV, and two other
devices, such as a DVD player and VCR.
Important Information About
VOD

Your Remote

MENU
MENU
DVR
Your remote is initially programmed to only
operate your set-top box. Therefore, you must
program the remote to operate your TV, VCR,
or other devices. See Program the Remote to
INTERACT
Control My Devices to learn how to enter
device codes and program your remote. SEARCH MULTISCREEN
Sound
Note: You must use the IR remote within line of Control GUIDE
VOL
MUTE JUMP
sight of the set-top box to operate the
MUTE JUMP
set-top box correctly.
1 2 3
How Does A Universal Remote ABC DEF
4 5 6
Control Work? GHI JKL MNO
7 8 9
PQRS TUV WXYZ
You tell the remote which type of device you Clear 0 #
CLEAR SPACE ENTER
want to operate using the four keys arched
across the top of the remote. These keys, known
as mode keys, are labeled STB, TV, DVD, and
AUX. Each mode key is associated with a specific
device. As an example, after programming the
remote, if you want the remote to operate your
TV, you simply press the TV key. Other keys you
press on the remote, thereafter, should operate
your TV. Want to switch the remote to operate a
different device? Just press the mode key for the
next device you want to operate. In this guide, you
will learn which types of devices you can control
and how to program the remote to control your
specific devices.
The AUX key may be programmed to operate a VCR, 7. Did the device power off?
a receiver, an amplifier, or an HTIB system. If the
• If yes, write down the code that worked on the
remote provides only limited functionality for a device,
you can look for a code that provides more functionality.
Refer to the code tables at the end of this guide locate
• If no, repeat this procedure from step 3 using a
additional codes to program your remote.
Note: You have the option to assign some remote keys
to operate one device type only. For example, you may
want to assign volume control to the TV only. If this is
the case, you can reprogram power, volume, and channel
control using procedures found later in this guide.
8. Repeat this procedure for each mode key you want

Assigning a Device Code to a Mode Key

to program.
1. Refer to the code tables at the end of this guide to

What If None of the Codes Work?

locate the information for the device you want to
program.
If none of the codes listed for your brand of device
Note: If your device is not listed, you may be able to operate the device correctly, or if your device is not
program the remote using the Auto-Search function. listed in the codes table, you can use the Auto-Search
Go to What If None of the Codes Work for function to search through the code library for a valid
instructions. code. This section provides a procedure for using the
Auto-Search function to search the code library for TV
2. Turn on the device that you want to assign to a
or DVD mode codes as well as a procedure for using
mode key.
the Auto-Search function to search for AUX mode
3. Press and hold the appropriate mode key (TV, DVD,
codes.
or AUX) on the remote, and then press and hold the
Note: Read the procedures in this section thoroughly
OK key.
before beginning. You need to be prepared to observe
4. Release both keys and the mode keys will flash twice.
the behavior of the remote.
5. Enter the first 4-digit setup code for the device using

Auto-Search Features

the number keys (0-9) on the remote. The mode key
will flash three times to indicate that the code entry
Consider the following items when using Auto-Search:
was accepted.
• The Auto-Search function begins searching from the
Notes:
first code.
• When an invalid code is entered, the selected
• If a valid code is not found, the green backlight will
mode key will display a long flash to indicate that
flash twice and the remote will return to normal
you have not entered the code correctly.
operation.
• Should the remote time-out before you complete
• If any other key is pressed except PLAY, ENTER,
the code setup, you will need to start over. This is
POWER, EXIT, REW, FF, or NUMBER KEYS 1
indicated by one long flash of the red LED.
through 4 (when programming the AUX mode key),
6. Point the remote at the device, and press POWER
the mode key will display a long red flash (error
to test the device.
message) and the remote returns to normal operation.
Device Control Viewing and Browsing Control
Turns devices on or off
STB
Enables set-top mode functions MENU
Device
AUX
Control
TV
Enables TV mode functions
DVR/VOD/ VOD
DVD/VCR
DVD
Control
Enables DVD mode functions
DVR
AUX
Enables AUX mode functions
Viewing
and
Browsing
DVR, VOD, DVD, VCR Control
Control
Notes:
• In STB mode, these keys control DVR and VOD
functions.
• In DVD and AUX modes, these keys may control
CH your DVD or VCR depending on how you have
PG
programmed the remote.
Records the selected program
SEARCH
Numeric
Keys
Stops DVD, VCR, VOD, or recorded
INTERACT
content
Enter
U Pauses DVD, VCR, VOD, or recorded
MULTISCREEN
content
T12129
Plays DVD, VCR, VOD, or recorded
content
Scrolls through available TV or video input
I
sources
JUMP
Moves back or forward through
recorded or On Demand content
Skips back or forward through
recorded or On Demand content
• Should the remote time-out before you complete
the Auto-Search function you will need to start over.
This is indicated by one long red flash of the red
cover of this guide. You may need it again if the
LED.
device code is accidentally erased.
• If the device is not listed and the Auto-Search
function is unable to find a usable code, you may
different setup code.
need to use the original remote provided with the
Note: If none of the codes listed for your brand
device.
of device operate the device correctly, go to
Auto-Searching the Code Library for
What If None of the Codes Work for
instructions.
TV or DVD Mode Codes
(Program Code 922)
Note: This procedure will not work for devices other
than TVs or DVDs.
1. Turn on the device you that you want to assign to
the TV or DVD key.
2. Point the remote at the device.
3. Press and while holding a selected mode key (TV
or DVD), press the OK key. For example, to search
for a TV code, press and hold TV and OK at the
same time.
4. Release both keys and all the mode keys will blink
twice.
5. Enter the programming code 9 2 2 by pressing the
number keys on the remote. The mode key you
selected in step 3 blinks twice indicating a
successful entry.
6. Point the remote toward the device, and press and
hold PLAY. The remote automatically tests each
code in its library, beginning with the most common
codes.
7. Without releasing the PLAY key, observe the device.
When a usable code is found, the device will respond
by turning off. As soon as the device powers off,
release the PLAY key to temporarily pause the auto-
search function until you choose one of the following
actions:

Sound Control

Note: These keys are assigned to the TV when the
Accesses the phone menu
TV mode key is programmed with a valid code.
Adjusts volume
Opens or closes the Main Menu VOL
Mutes sound
Accesses the On Demand Menu MUTE
Numeric Keys
Accesses the DVR list of recordings
1 2 3
Enters channel numbers, text, and
ABC DEF
4 5 6
remote codes. Also use to enter your
GHI JKL MNO
Views live TV
7 8 9
PQRS TUV WXYZ
parental control PIN
0
SPACE
Moves through selections
Clears text and numbers in text fields
CLEAR
Selects and deselects screen items #
Enters and saves (stores) an entry
ENTER
Returns from menu screens to viewing

What Devices Can I Control?

TV or video
The four mode keys arched across the top of the
Accesses the search menu
remote tell the remote which device you want to
operate.
Accesses iNTERACT (Internet and
interactive content
TV DVD
STB
Turns MultiScreen mode on or off
Displays or removes program information
Each mode key is associated with different types of
for the currently selected program. Obtains
devices. You can use each mode key to control one of
Info about a highlighted program or channel
its associated devices:
while in the program guide
Mode Key Associated Devices
STB IP gateway set-top
Displays or closes the program guide
TV* TVs (including HDTVs)
DVD* DVD players
Jumps to next section or switches to last AUX* VCRs, receivers, tuners, and Home
channel
Theater in a Box (HTIB)
*These keys can be reassigned to control different
devices. Go to the Reassign Mode Keys section of
Selects channel, up or down, when watching
CH this guide for instructions.
PG TV. Moves up or down one page in the
program guide and in some menu screens
• Save code and exit – Press the ENTER key on Note: The device categories are number-coded to
the remote to program the code in the remote provide a more direct programming method.
and the mode key will flash three times
7. Point the remote toward the device, and press and
indicating successful entry.
hold PLAY. The remote automatically tests each code
• Step forward – Press the fast-forward (FF) key in its library, beginning with the most common codes.
on the remote to step ahead through the codes 8. Without releasing the PLAY key, observe the device.
one at a time. Then, return to step 6. When a usable code is found, the device will respond
by turning off. As soon as the device powers off, release
• Step backward – Press the rewind (REW) key
on the remote to step back through the codes one the PLAY key to temporarily pause the auto-search
at a time. Then, return to step 6. function until you choose one of the following
actions:
• Exit without saving the code – Press the EXIT
• Save code and exit – Press the ENTER key on
key on the remote. The selected mode key will
the remote to program the code in the remote and
flash three times and return to normal operation.
the mode key will flash three times indicating
• Send the current code – Press the POWER key
successful entry.
on the remote to send the current code. If the
device turns back on, press the ENTER key. If • Step forward – Press the fast-forward (FF) key
the device does not turn on, return to step 6. on the remote to step ahead through the codes
one at a time. Then, return to step 7.
• Continue with auto-search function – Press the
• Step backward – Press the rewind (REW) key
PLAY key on the remote to continue with the
on the remote to step back through the codes one
auto-search function. Then, return to step 6.
at a time. Then, return to step 7.
Auto-Searching the Code Library for
• Exit without saving the code – Press the EXIT
AUX Mode Codes (Program Code 922)
key on the remote. The selected mode key will
1. Turn on the device that you want to assign to the
flash three times and return to normal operation.
AUX key.
• Send the current code – Press the POWER key
2. Point the remote at the device.
on the remote to send the current code. If the
device turns back on, press the ENTERkey. If the
3. Press and while holding the AUX key, press the
device does not turn on, return to step 7.
OK key.
• Continue with auto-search function – Press the
4. Release both the AUX key and the OK key and all
the mode keys will blink twice. PLAY key on the remote to continue with the
auto-search function. Then, return to step 7.
5. Enter the programming code 9 2 2 by pressing the
number keys on the remote. The AUX key blinks Reassign Mode Keys
twice indicating a successful entry.
You can reassign a mode key to operate a different
6. Press the PLAY key, choose one of the following
device. For example, you can reassign the AUX key to
device categories and then, using the number keys
operate a DVD player or a TV. If you reassign a key,
on the remote, press its assigned number (1 – 4)
be sure you update the table found earlier in this
based on the following list:
guide.
1 = VCRs
2 = Receiver/Tuners
Reassigning Mode Keys
3 = Amplifiers
(Program Code 944)
4 = HTIB
1. Press and hold the STB mode key on the remote.
2. Without releasing the STB key, press and hold the
OK key.
3. Release both the keys and all mode keys will flash
twice.
4. Enter the programming code 9 4 4 by pressing the
number keys on the remote. The STB mode key
blinks twice indicating a successful entry.
5. Press and release the mode key associated with the
LED Indicators type of device you want to control, and then press
and release the mode key that you want to change.
There are red LEDs underneath each of the four mode
The newly assigned mode key blinks one time
keys (STB, TV, DVD, and AUX) that flash each time
indicating a successful entry.
a key is pressed to show which device the key is
Some common examples:
currently controlling.
• To program the AUX key to operate your DVD
There are also green LEDs that illuminate several
player, press DVD and then AUX.
keys whenever the remote is in use. They stay
• To program the DVD key to operate your TV,
illuminated for a short time after a key is pressed.
press TV and then DVD.
During programming, if the remote times out before

Change Volume Control

you complete the code setup, you will need to start
over. This is indicated by one long flash of the red
By default, once the TV mode key has been programmed
LED.
with a valid code, the volume and mute buttons will
always control your TV. They will adjust the volume of
What Devices Do I Want to your TV higher, lower, or temporarily switch the volume
off (Mute), regardless of whether the remote is in STB,
Control?
TV, DVD, or AUX mode.
If you prefer, you can choose to have the volume and
To help you keep track of the devices you want to
mute buttons always control a different device rather
control, list the type of devices you have (including
than your TV, such as a home theater receiver. (See
brand) in the following table. Then, use the code tables
Controlling Volume for One Device below.) Note
at the end of this guide to locate the codes for your
that you must first program one of the mode keys,
device. For example, look under TV Group if you
such as AUX, with a valid code for that device.
need to program the remote to operate your TV. If
you have two devices that use the same key, you Alternatively, you can choose to have the volume and
must reassign the TV, DVD, or the AUX key. The mute buttons control different devices when the
STB key cannot be reassigned. Go to Reassign
remote is in different modes. For example, you might
Mode Keys. Otherwise, go to Program the want to control the volume on your TV when in TV
Remote to Control My Devices for additional mode, but the volume on your home theater receiver
instructions. when in AUX mode. (See Controlling Volume for
AUX
Different Devices below.) Note that not all devices
Mode Device have volume controls, so if you choose this option, the
Brand Codes
T12121
Key Type volume and mute buttons may do nothing in some
modes, such as STB and DVD.
Example:
DVD Sony 2066, 2193
Controlling Volume for One Device
DVD
(Program Code 955)
STB
1. Press and hold the STB mode key on the remote.
2. Without releasing the STB key, press and hold the
OK key.
TV
DVD
AUX
3. Release both keys and all mode keys will blink
twice.
4. Enter the programming code 9 5 5 by pressing the
number keys on the remote. The STB mode keys
blinks twice indicating a successful entry.
5. Press and release the mode key for the device you
want the volume keys to control. For example, if
you want to control volume through your TV, press
and release TV. The selected mode key blinks three
times indicating a successful entry.
The volume keys now control only one device whether
you are in STB, TV, DVD, or AUX mode.
Controlling Volume for Different
Devices (Program Code 955)
1. Complete steps 1 through 4 of the previous
procedure.
2. Press and release the Enter key. The STB mode key
blinks three times indicating a successful entry.
After you press the Enter key, the volume keys control
the device assigned to that mode. For example, in TV
mode, the volume keys control volume for the TV only.
Notes:
• If any other key is pressed except the Mode keys
and the ENTER key, the remote will not accept any
changes or updates. The STB mode key will display
a long red flash and the remote returns to normal
operation.
• If the remote times out before you complete
programming volume control, the remote will not
accept any changes. You will have to start over from
step 1 of this procedure.

Change Channel Control

The remote is set by default to control channel
selection on the set-top. You can also program channel
control to control any of the TV, DVD,
or AUX mode devices provided the device allows for
channel control assignment. Or, you can set the
channel selection control programming to control
channels (or page up or down) for all of the devices
programmed in the four mode keys. Otherwise, you
will only be able to control channels (or page up or
down) on a specific device, for example, the TV or
DVD.
Note: The channel control keys include CH / Page,
Jump, and the number keys 0 through 9.
Controlling Channels for One Device
(Program Code 966)
1. Press and hold the STB mode key on the remote.
2. Without releasing the STB key, press and hold the
OK key.
3. Release both keys and all mode keys will blink
twice.
4. Enter the programming code 9 6 6 by pressing the
number keys on the remote. The STB mode key
blinks twice indicating a successful entry.
5. Press and release the mode key for the device you
want the channel key to control. For example, if you
want to control channels on your TV, press and
release TV. The selected mode key blinks three times
indicating a successful entry.
The channel key now always controls the device
associated with the mode you selected in this step,
whether in STB, TV, DVD, or AUX mode.
Controlling Channels for Different
Devices (Program Code 966)
1. Complete steps 1 through 4 of the previous procedure.
2. Press and release the Enter key. The STB mode key
blinks three times indicating a successful entry.
After you press the Enter key, the channel key now
controls the device associated with the mode key you
select. For example, in TV mode, the channel key
controls the TV, but in STB mode, the channel key
controls the set-top box.
Notes:
• If any other key is pressed except the Mode keys
and the ENTER key, the remote will not accept any
changes or updates. The STB mode key will display
a long red flash and the remote returns to normal
operation.
• If the remote times out before you complete
programming channel selection control, the remote
will not accept any changes. You will have to start
over from step 1 of this procedure.
