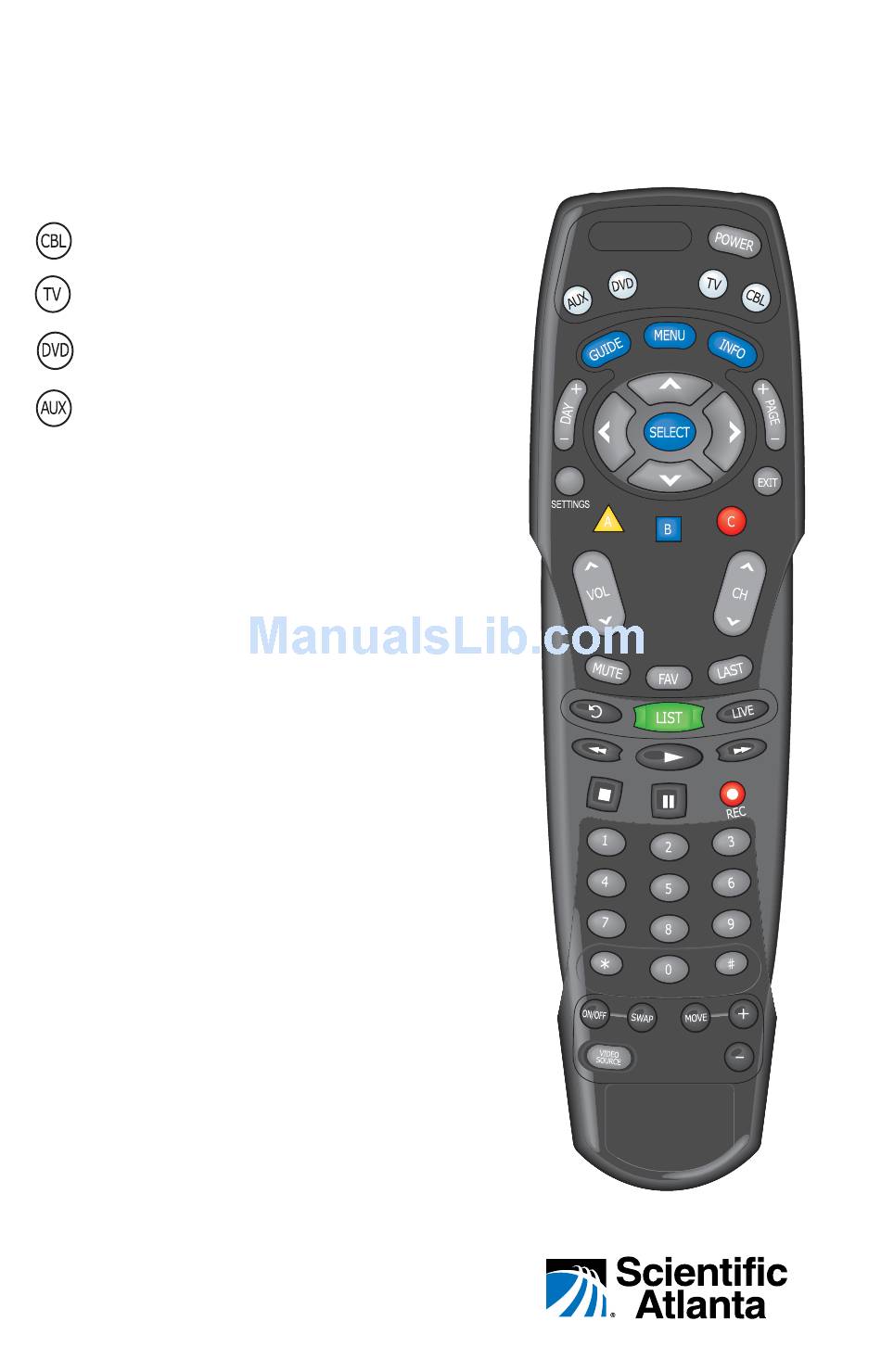

If you program codes to control devices, record your codes here: CBL: ______________________ TV: _______________________ DVD: _____________________ AUX: _____________________ ™ AT8450 Rev A AllTouch Remote Control User’s Guide ®...
In This Guide Welcome to the Ultimate Control Experience! ... 3 How Does a Universal Remote Control Work? ... 3 Where Do I Start? ... 3 Important Information About Power Control ... 3 Quick Reference ... 4 What Devices Can I Control? ... 6 What Devices Do I Want to Control? ...

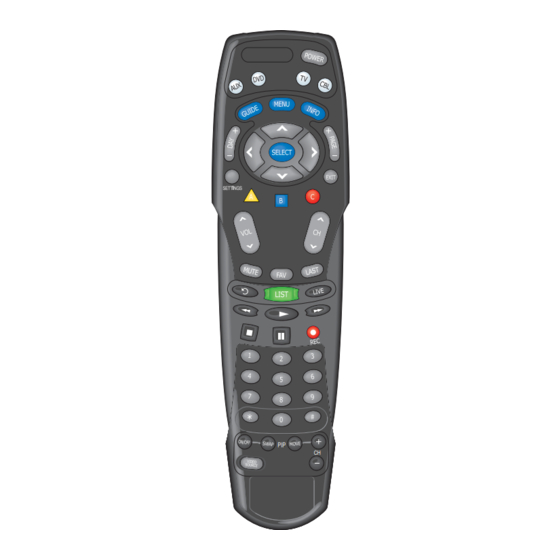

Your new AT8450 AllTouch Universal Remote Control (remote) is a true universal remote, functioning as four remotes in one. As one example, you can use this remote to operate your TV, VCR or DVD player, cable box, and audio receiver.
Quick Reference Viewing and Browsing Control Sound Control Numeric Keys Video Source Device Control Powers on or off Controls AUX functions Controls DVD functions Controls TV functions Controls Cable functions Device Control DVR Control VCR/VOD (Video-on-Demand) Control PIP (Picture-in-Picture) Control Sound Control Adjusts volume Mutes sound...
Page 5
Viewing and Browsing Control Displays the program guide Displays the Applications Menu Displays channel and program information Navigates through the program guide by days Moves through selections Selects and deselects screen item Navigates through settings or the program guide Displays the General Settings or Quick settings menus Exits settings, menus, and...
What Devices Can I Control? The mode keys arched across the top of the remote tell the remote which device you want to operate. Each mode key is associated with different groups of devices. You can use each mode key to control one of its associated devices: Mode Key Associated Devices...
Program the Remote to Control My Devices Try to use your remote to control your devices. If the remote does not work for a device, you can assign a different device code to the appropriate mode key. If the remote provides only limited functionality for a device, you can look for a code that provides more function- ality.
What If None of the Codes Work? If none of the codes listed for your brand of device operate the device correctly, you can search through the code library for a valid code. Improving Your Reaction Time When you search the code library, you need to be ready to press SELECT as soon as the remote turns off your device.
Which Code Worked? Find out which code programmed the mode key to control your device. Finding the Code That Worked (Program Code 9 9 0) 1. Press and hold SELECT and the appropriate mode key (CBL, TV, DVD, or AUX) until all mode keys blink twice.
Change Power Control Your remote was originally programmed in one of the following ways: • The remote controls power for only one device at a time. For example, in CBL mode the POWER key controls the cable box only. However, in TV mode, the POWER key controls the TV only.
Page 11
Want An Example? If you want to control power for the TV and the cable box at the same time, you would do the following. 1. Press and hold SELECT and CBL until all mode keys blink twice. 2. Press 9 9 8. The CBL key blinks twice. 3.
Change Volume Control Your remote was originally programmed in one of the following ways: • The remote controls volume for one device, such as your TV, whether the remote is in TV, DVD, or CBL mode. The AUX mode always retains separate volume control. •...
Change Channel Control Your remote was originally programmed in one of the following ways: • The remote controls channels for a single device, such as the cable box, whether the remote is in CBL, DVD, or TV mode. The AUX mode always retains separate channel control.
Change VCR/VOD Programming Your remote was originally programmed in one of the following ways: • The Rewind, Play, Fast Forward, Stop, Pause, and Record keys are known as transport keys. These keys are programmed, by default, to transmit the codes for the Explorer ™...
Put It Back the Way I Got It Return specific advanced functions or all advanced functions back to their original settings. Choose the procedure that fits your needs. Important: Your cable service provider may have programmed the dual power control feature for your convenience.
Code Tables If the remote does not recognize your device, you can find codes for your device by brand. With combination devices (such as a TV with a built-in DVD player), you have separate codes for each device component. Therefore, for ease of use, the combination device codes are listed first.
Page 17
TV Group: TVs and HDTVs TV Codes Admiral 1001, 1139, 1159 Aiko 1014 Akai 1002 Amtron 1034 Anam 1003, 1034 National 1004, 1005, 1006, 1007, 1140, 1141, 1153 Apex 1180, 1184, 1186 Audiovox 1034 Bell & 1001, 1042, 1062 Howell Broksonic 1181 Carver...
FCC Compliance United States FCC Compliance Note: This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against such interference in a residential installation.
