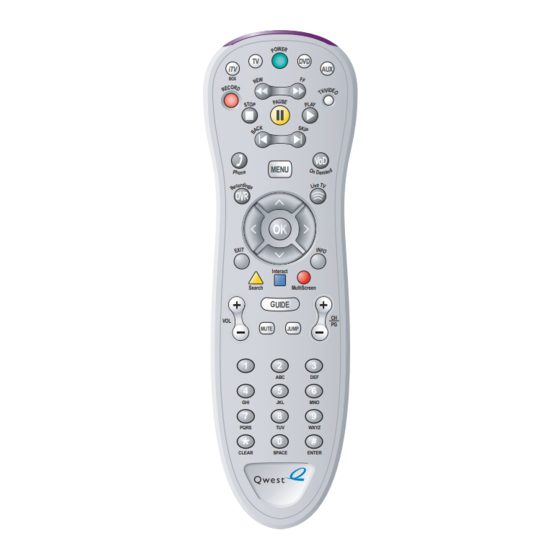

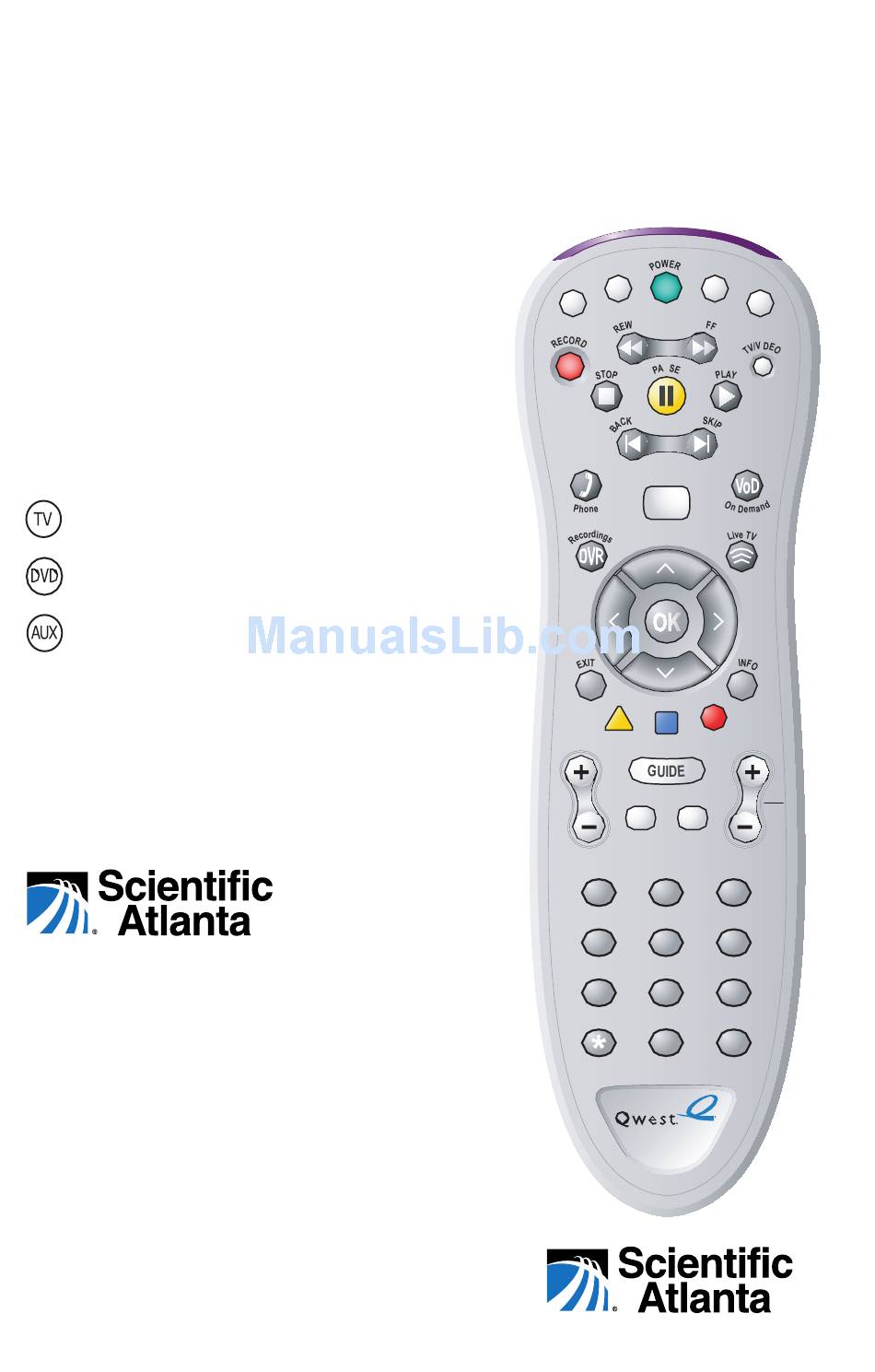

AT6420
AllTouch
™
Universal Remote Control
User's Guide (Qwest version)
Device Program Codes
If you program codes to control
devices, record your codes here:
iTV: ______________________
TV: _______________________
DVD: _____________________
AUX: _____________________
© 2005 Scientific-Atlanta, Inc. All rights reserved.
Printed in the United States of America
Scientific-Atlanta, the Scientific-Atlanta logo, and AllTouch are
registered trademarks of Scientific-Atlanta, Inc.
AT6420 is a trademark of Scientific-Atlanta, Inc.
Qwest and the Qwest logo are registered trademarks of Qwest
Communications International, Inc.
All other trademarks shown are trademarks of their respective
owners.
Product and service availability subject to change without notice.
Scientific-Atlanta, Inc.
5030 Sugarloaf Parkway
P.O. Box 465447
Lawrenceville, GA 30042
www.scientificatlanta.com
October 2005 User's Guide Part Number 4012526 Rev A
Remote Control Part Number 4011691
RF
®
Draft 02 - 9/29/05
AT6420
AllTouch
™
Universal Remote
Control
User's Guide (Qwest version)
TV
iTV
BOX
Search
VOL
1
4
GHI
7
PQRS
CLEAR
RF
®
DVD
AUX
I
U
MENU
Interact
MultiScreen
CH
PG
MUTE
JUMP
2
3
ABC
DEF
5
6
JKL
MNO
8
9
TUV
WXYZ
#
0
SPACE
ENTER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT6420 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scientific Atlanta AT6420

Summary of Contents for Scientific Atlanta AT6420

  • Page 1 Printed in the United States of America Scientific-Atlanta, the Scientific-Atlanta logo, and AllTouch are PQRS WXYZ registered trademarks of Scientific-Atlanta, Inc. AT6420 is a trademark of Scientific-Atlanta, Inc. Qwest and the Qwest logo are registered trademarks of Qwest CLEAR SPACE ENTER Communications International, Inc.

  • Page 2: Table Of Contents

    In This Guide Welcome to the Ultimate Control Experience! ................. 3 Important Information About Your Remote ..................3 How Does a Universal Remote Control Work? ................3 Where Do I Start? ..........................3 Quick Reference ..........................4 What Devices Can I Control? ......................6 What Devices Do I Want to Control? ....................

  • Page 3: Welcome To The Ultimate Control Experience

    Keeping up with one remote is much easier than keeping up with five remotes. However, it is still a good idea to find a storage location for your remote. The AT6420 is not a toy. It should be kept out of the reach of children under the age of 6 years.

  • Page 4: Quick Reference

    Quick Reference DVR/DVD/VCR/VOD Control Notes: • In DVD mode, these keys control your DVD or VCR. • These keys also control DVR functions. Records the selected program Device Moves back through recorded or Control On Demand content DVR/DVD/ VCR/VOD Moves ahead through recorded Control or On Demand content Phone...
  • Page 5 LED Indicators Returns viewing to normal full screen viewing There are red LEDs under each of the Search Go to search menu four mode keys: iTV, TV, DVD, and Interact Go to Qwest “Walled Garden” AUX that respond during use. If any (Internet content) key corresponding to the mode is pressed, the mode key will flash.

  • Page 6: What Devices Can I Control

    Program the Remote to Control My Devices. Reassign Mode Keys With the AT6420, you can reassign a mode key to operate a different device. For ex- ample, you can reassign the AUX key to operate a receiver, a tuner, or a Home Theatre in a Box system.

  • Page 7: Program The Remote To Control My Devices

    Program the Remote to Control My Devices Your remote is initially programmed to only operate your Qwest set-top box. You will need to set up the remote control to operate your AUX, TV, and DVD modes. The AUX key may be programmed to operate a VCR, HTIB, receiver, or amplifier. The TV key may be programmed to operate a standard or high-definition television (HDTV).

  • Page 8: What If None Of The Codes Work

    What If None of the Codes Work? If none of the codes listed for your brand of device operate the device correctly, you can search through the code library for a valid code. Searching the Code Library for TV or DVD Modes (Program Code 9 2 2) 1.
  • Page 9 Searching the Code Library for AUX Mode (Program Code 922) 1. Turn on the device you wish to program for use with the remote control. 2. Point the remote control at the device. 3. Press and while holding the AUX key, press the OK key. 4.
  • Page 10 Auto-Search Features Consider the following items when using the auto-search function: • The auto-search functions begins searching from the first code. • If a valid code is not found, the green backlight will flash 2 times and the remote control will return to normal operation. •...

  • Page 11: Power On Control

    After the numbers for all 4 digits are revealed, the code checking process will temporarily pause until you choose one of the following actions: • Repeat the code checking process—Press the REW key on the remote control to repeat the code checking process. Then, return to step 4. •...

  • Page 12: Change Power Control

    Change Power Control Your remote is originally programmed in one of the following ways: • The remote controls power for only one device at a time. For example, in iTV mode the POWER key controls the set-top box only. However, in TV mode, the POWER key controls the TV only.

  • Page 13: Program Homeid

    Program HomeID (Program code 914) Programming the HomeID in the remote control is necessary when radio frequency (RF) is used to transmit signals to the set-top box from the remote control. The set-top box is equipped with an RF receiver. A HomeID in RF is required for proper communication between the RF remote control and the set-top box.
  • Page 14 Draft 02 - 9/29/05...
  • Page 15 Draft 02 - 9/29/05...

  • Page 16: Code Tables

    Code Tables If the remote does not recognize your device, you can find codes for your device by brand. With combination devices (such as a TV with a built-in DVD player), you have separate codes for each device component. Therefore, for ease of use, the combination device codes are listed first.
  • Page 17 TV Group: TVs and HDTVs TV Codes TV Codes TV Codes Optonica 1079, 1139 Hitachi 1004, 1006, 1010, Admiral 1001, 1139, 1159 1011, 1012, 1050, Orion 1031, 1152 Aiko 1014 1051, 1052, 1109, Panasonic 1003, 1045, 1136, 1110, 1111, 1112, Akai 1002 1162, 1188, 1238...
  • Page 18 VCR Group: VCR and DVR TV Codes VCR Codes Devices 2005, 2006, 2007, Soundesign 1004, 1006, 1008, 2013, 2031, 2033, 1034, 1040 2039 DVR Codes Starlite 1034 Kenwood 2005, 2006, 2007, Dish Network 2186 Sylvania 1000, 1004, 1006, 2012, 2013, 2031, Echostar 2037 1008, 1017, 1057,...
  • Page 19 CD Codes VCR Codes DVD Codes Sharp 2122, 2123, 2198 Panasonic 2160 Runco 2028 Sherwood 2124 Pioneer 2161 Samsung 2004, 2009, 2011, 2041 Sony 2054, 2063, 2064, 2162 2125, 2126, 2127, Sansui 2006, 2031, 2033 Sanyo 2175 2128, 2129 Sanyo 2007, 2009, 2016, Sears 2168...

  • Page 20: Fcc Compliance

    This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) the device may not cause harmful interference, and 2) the device must accept any interference received, including interference that may cause undesired operation. AT6420 AllTouch Universal Remote Control Scientific-Atlanta, Inc. 5030 Sugarloaf Parkway...

Table of Contents
