Light & Motion Sunray 2000 Owner's Manual

Led lighting system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

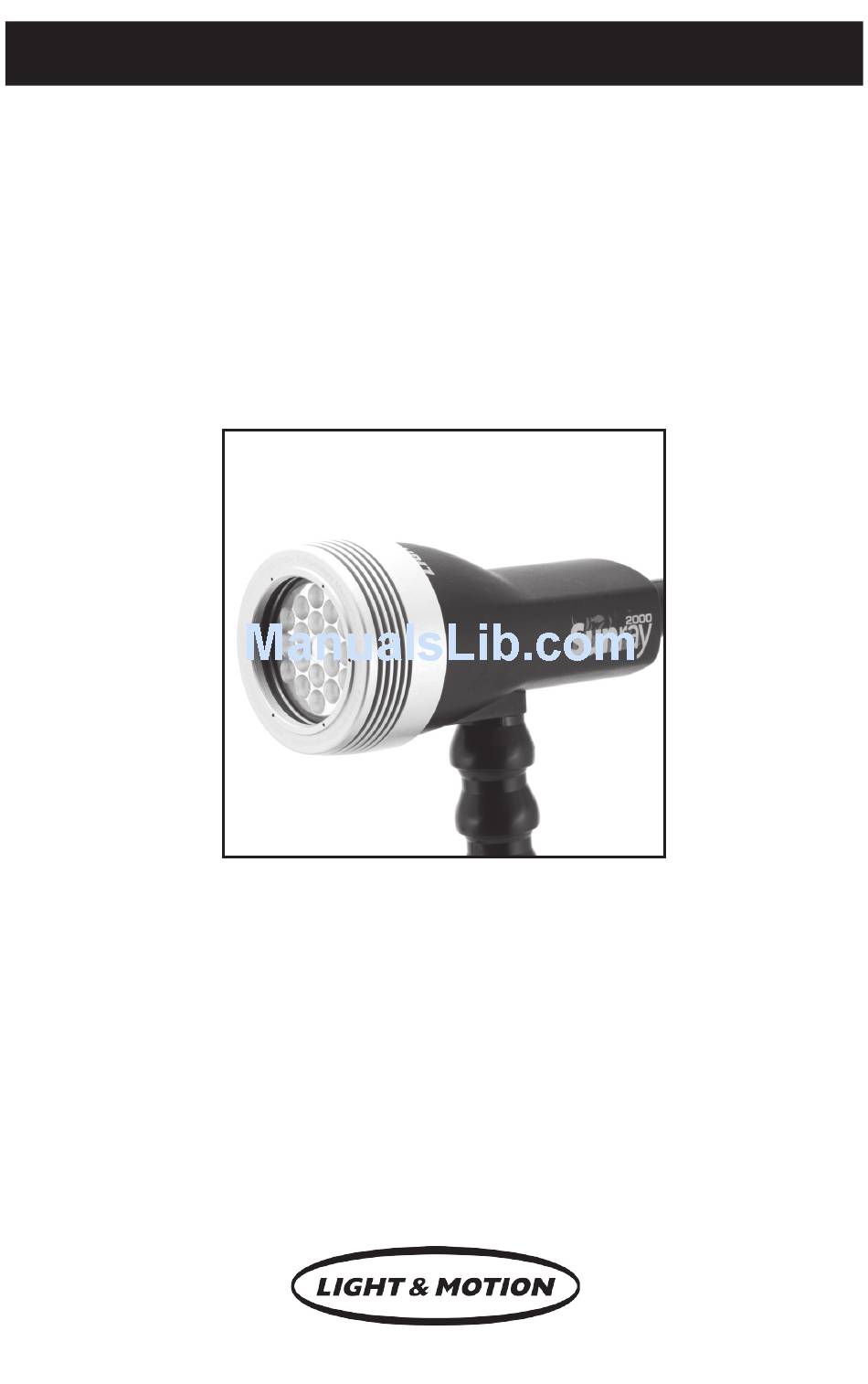

O w n e r ' s M a n u a l
Sunray 2000
LED Lighting System
www.uwimaging.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sunray 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Light & Motion Sunray 2000

Summary of Contents for Light & Motion Sunray 2000

  • Page 1 O w n e r ’ s M a n u a l Sunray 2000 LED Lighting System www.uwimaging.com...
  • Page 3 Standard Warranty Light & Motion provides a limited warranty to the original purchaser for the Sunray 2000 LED Light System against all defects in original workmanship and material, under normal use and service, for one year from the date of purchase with the following exceptions: Batteries are warranted for 90 days, and battery chargers are only warranted for use in the US and Canada.
  • Page 4 Wa rning • Wa r n i n g • Wa rni ng • Wa rn ing Caution: The Sunray 2000 LED Lighting System is designed for use underwater. Prolonged operation in air may cause the outer surfaces of the light to become hot.

  • Page 5: Table Of Contents

    Table of Contents Getting Started........... .5 Charging Batteries .

  • Page 6: Getting Started

    Getting Started Pictured below are the components of the Sunray 2000 LED lighting system. Take a moment to familiarize yourself with each part for later identification and use. Sunray 2000 LED Light System Light Arms Pod Locker NiMH Batteries Charger and...

  • Page 7: Installing Batteries

    Installing Batteries Slide the battery back into the pod with the contact end inserted first so that the connector will align with the socket inside the pod. (Refer fig. 1) Service the O-rings (See O-ring maintenance). Replace the front cap onto the pod. Insure that the removal strap attached to the battery does not interfere with the seal when the end cap is attached to the pod Turn the knob on the end cap clockwise 1/8 turn until it stops.

  • Page 8: Mounting Arm To Housing

    (Fig. 3) (Fig. 4) Mounting/Removing Light Arms To attach the arm to the base, place the arm on the base squarely, gently pushing down and rotating arm until you hear a audible click (Refer fig. 4). Remove arm by gently lifting the ring at the base of the arm upward with your thumb and forefinger while rotating the arm itself.

  • Page 9: Light Operation

    Light Operation After initial power-up the LED Receiver will flash a green light. This indicates the battery pod is ready to receive IR signals from the housing. IR controls are only available with housings that feature Smart Grips. Operation with Bluefin Housing Sunray LED lights can be operated either by the Pod Power Button or from the Smart Grip controls.

  • Page 10: Light Operation With Other Housing Brands

    Operation With Other Brands of Video Housing Turn on light by pressing the red button on the rear cap (Refer Fig 7). Press the red button again to change the light output level. Turn off light by holding the red button down for three seconds. Post-Dive Cleaning After each dive, you should dunk the lights and pods in fresh water.

  • Page 11: Return Products For Care

    Returning Products for Care We highly recommend a factory annual service to maintain proper operation of your Sunray 2000 LED lights. Before returning your Light & Motion product for care, please call or email our service department for a RMA number.
  • Page 12 300 Cannery Row • Monterey, CA 93940 (831) 645-1525 • Fax (831) 375-2517 www.uwimaging.com 905-0281-A...
