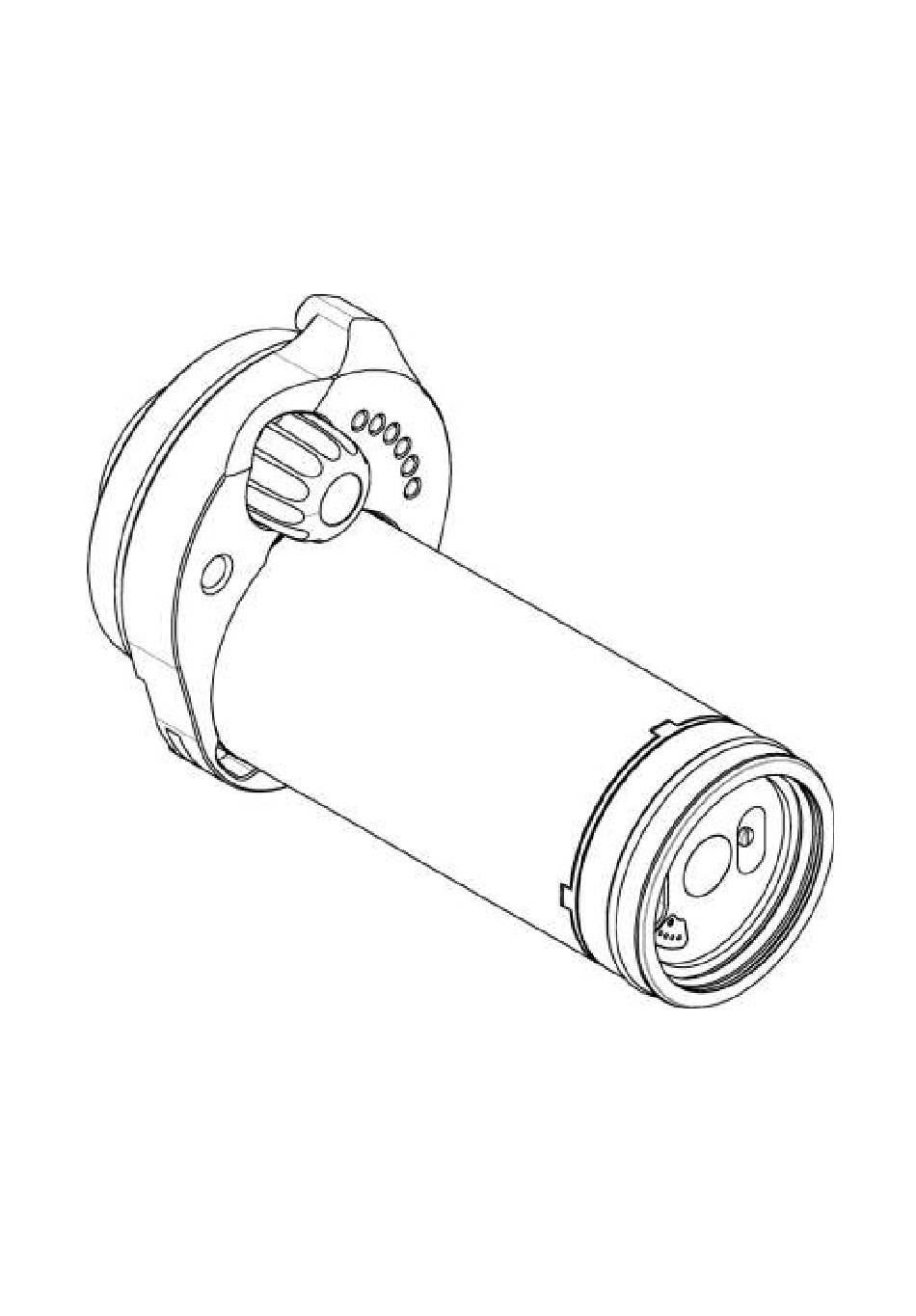

- Page 1 SOLA X HYBRID User Manual lightandmotion.com...
-
Page 2: Table Of Contents
Table of Contents Section 1 Sola X Lighthead Section 2 Clamp Installation Section 3 Battery Section 4 Connecting Light & Battery Section 5 Remove Battery Section 6 Changing Optics Section 7 Operation Section 8 Output Controls Section 9 Burst Operation Section 10 Battery Performance Section 11... -
Page 3: Sola X Lighthead
Section 1 Sola X Lighthead Fiber Optic Cable Connection Control Knob Output Indicator LEDs Battery Wings Battery Bezel Field Swappable Optic Static Latch Battery Status Button Battery Status Battery Latch LEDs USB-C Port... -
Page 4: Clamp Installation
Section 2 Clamp Installation Step 1: Install ball mount onto Step 2: Slip D-ring over clamp using ¼-20 fastener mounting clamp such that it rests inside the groove Step 3: Slip mounting clamp assembly over charging end of battery and fasten using included hardware... -
Page 5: Battery
Section 3 BATTERY State of Charge (SOC) LEDs When charging or discharging the light, the state of charge will be shown on the Battery State of Charge Indicator LEDs. Battery SOC indicator LEDs: 4 LEDs: 75-100% 3 LEDs: 50-75% 2 LEDs: 25-50% 1 LEDs: 0-25% When not in use, check the state of charge by removing the bezel and pressing the white Battery Status Button. -
Page 6: Connecting Light & Battery
Section 4 CONNECTING LIGHT & BATTERY Install Alignment dot just below wing Align battery “dot” with Sola X Lighthead “half moon”, press in and turn until battery “dot” meets “full moon” and locks. Align battery Half moon symbol Full moon symbol Half moon Full moon Locking latch... -
Page 7: Remove Battery
Section 5 REMOVE BATTERY Slide the locking latch out. Turn the battery 1/4 counterclockwise to unlock position and pull straight out. Remove Slide battery connect locking Rotate battery 90° latch out before rotating counterclockwise and gently battery. remove, pulling straight out. Pull battery STRAIGHT out Note: Always install splash covers on light &... -
Page 8: Changing Optics
Section 6 CHANGING OPTICS Dome Port Remove optic: Slide the locking latch from the optic, lift edge of optic using coin slot, gently angle optic away from locking latch and remove. Static Latch Coin Slot Locking Latch Install optic: Angle optic under static latch and press other side down until it clicks. -
Page 9: Operation
Section 7 OPERATION MODES Control Knob Indicator Light Flashing White = Start up system check Flashing Green = Travel Lockout Mode off Flashing Red = Travel Lockout Mode Purple = Burst Aqua = Continuous Step 1. Engage the battery. The control knob will flash white and output indicators will briefly flash for system check. -
Page 10: Output Controls
Section 8 OUTPUT CONTROLS Change output by rotating control knob. Switch between continuous and burst by tapping knob. Output levels can be set independently between burst and continuous modes. Table 1. Continuous (knob backlit aqua) CONTINUOUS OUTPUT LEVELS CONTINUOUS RUNTIME INDICATOR LEDs Lumens Minutes... -
Page 11: Burst Operation
Section 9 BURST OPERATION There are 2 distinct modes; Continuous and Burst. When in continuous mode, a trigger signal will toggle the light to burst and then revert to previous continuous setting. 1. Continuous (aqua) • Rotate dial to desired power output in lumens. •... -
Page 12: Battery Performance
Section 10 BATTERY PERFORMANCE Continuous 10,000 Lumens: 45 minutes Digital Burst 20,000 lumens in 5ms bursts for up to 15,000 bursts on full charge. Charge Time: 80 mins* With a minimum 60W USB-C Charger (Lower wattage power supplies will take longer) For Travel and Storage Unplug battery from light and install splash caps on both battery and light. -
Page 13: Warranty
Section 11 WARRANTY Light & Motion products are covered against defects in workmanship and materials under normal use and service for 2 years from the date of purchase. Please register your device to activate warranty coverage. Batteries, by nature of their use, are covered for 1 year. -
Page 14: Direct Mount Accessories
Section 12 DIRECT MOUNT ACCESSORIES Direct Mount Accessories Spot Optic 12º 800-0415 Medium Optic 36º 800-0459 Wide Optic 60º 800-0461 Clear Dome 800-0376 Blue Water Dome 800-0374 Green Water Dome 800-0407 Mounts Goodman Handle 800-0418 Ball Mount 800-0186 ½ Loc-Line Mount 800-0185 Other Accessories Lighthead Splash Cover 661-1825 Battery Splash Cover 661-1826... - Page 15 @lightandmotiondive Contact seva@lightandmotion.com for support. 905-0494-A-2...
