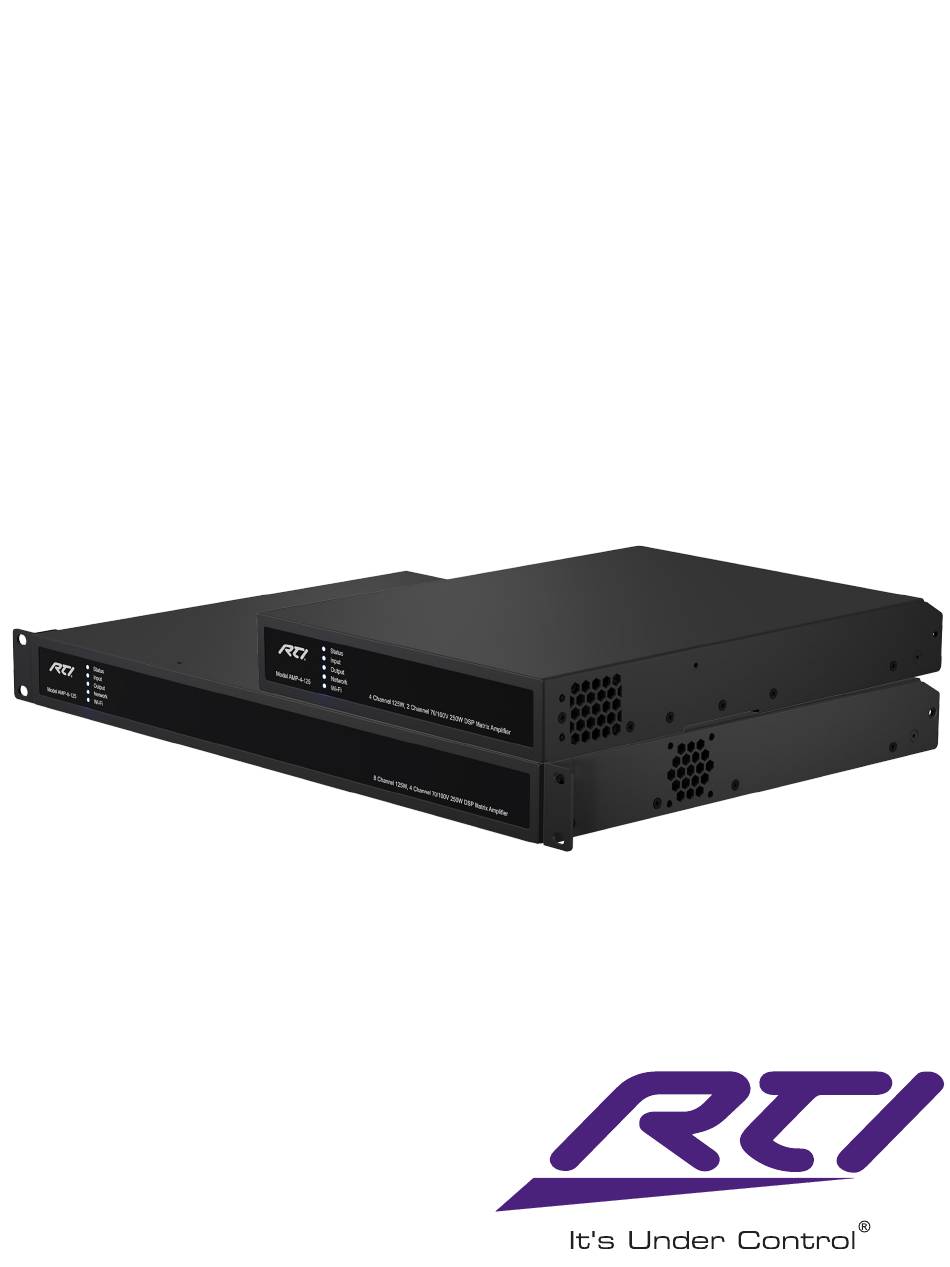

- Page 1 Installation and Operation Guide RTI Commercial Amplifiers AMP-4-125 4 Channel 125W 8Ω, 2 Channel 70/100V 250W DSP Matrix Amplifier AMP-8-125 8 Channel 125W 8Ω, 4 Channel 70/100V 250W DSP Matrix Amplifier...
- Page 2 AUDIO DISTRIBUTION Important Safety Instructions 18. T he appliance coupler, or the AC Mains plug, is the AC mains disconnect device and shall remain readily 1. Read these instructions. accessible after installation. 2. Keep these instructions. 19. Adhere to all applicable, local codes. 3. Heed all warnings. 20. C onsult a licensed, professional engineer when 4. Follow all instructions. any doubt or questions arise regarding a physical 5.
- Page 3 Configuration Menus: Settings ....................Signal Flow Schematic ........................Input Setup, Routing, GPIO Connection ..................Connections ........................... Operation ............................Specifications ..........................Introduction and Overview 1. Introduction 2. Amplifier Overview The AMP-4-125 and AMP-8-125 are half rack and full power amplifiers The AMP-4-125 and AMP-8-125 rack width respectively, 1U format power amplifiers that have been designed to provide configurable, can drive both conventional low impedance (Lo-Z, 4Ω to consistent and reliable high performance audio 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) power amplification for residential, commercial transformer coupled loudspeakers. and entertainment applications. Please read this The amplifiers provide four or eight analog inputs depending manual fully before installing and using the amplifier.
- Page 4 RCA Phono and firmware downloaded, from the AMP-4-125 and AMP-8-125 Euroblock style connectors. A GPIO (General Purpose website: http://www.rticontrol.com. Firmware con be found In/Out) Euroblock connector enables some amplifier at https://www.rticontrol.com/dealer/firmware (Dealer login functions to be controlled, and wireless or RJ45 socket is required). Ethernet network connection options are also provided. The AMP-4-125 and AMP-8-125 have no mains power 3. Carton Contents switch and are operational as soon as mains power is connected via the IEC 60320 mains socket. The AMP-4-125 and AMP-8-125 amplifiers are shipped in 2.2 Network Features a cardboard carton containing the amplifier unit, a mains cable appropriate for the sales territory, an accessory pack, The AMP-4-125 and AMP-8-125 amplifiers are TCP/IP and a document pack. The full contents is listed below.
- Page 5 AUDIO DISTRIBUTION Diagram 2A AMP-4-125 dimensions. (Shaded area defines ventilation space.) 44 mm 1.7 in 80 mm 3.1 in 25 mm 1.0 in 213 mm 8.4 in 220 mm 8.7 in www.rticontrol.com...
- Page 6 AUDIO DISTRIBUTION Diagram 2B AMP-8-125 dimensions. (Shaded area defines ventilation space.) 44 mm 25 mm 80 mm 438 mm 319 mm Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com...
- Page 7 AUDIO DISTRIBUTION Installation 4. AMP-4-125 Half Rack Width Amplifier Diagram 4A Installation AMP-4-125 Rack Ear + Half-rack Extension. 4.1 AMP-4-125 Mounting AMP-4-125 half rack width amplifiers are shipped without rack mount hardware attached but can be configured for rack installation using one standard rack ‘ear’ and one half-rack extension piece as illustrated in Diagram 4A. The installation and equipment rack should be configured to provide appropriate ventilation airflow space around the sides and rear of the amplifier. Ventilation airflow space of at least 25 mm (1 in) should be maintained along at least Rack Ear + one side of the amplifier at all times. Ventilation apertures 2 x M4 x 8 are also located on the rear panel of the amplifier and countersunk must not be obstructed. It is important to retain at least Half-rack Extension + 80 mm (3.1 in) free space for airflow behind the amplifier...
- Page 8 AUDIO DISTRIBUTION Installation 4.2 Free-standing Diagram 4C AMP-4-125 If not installed in an equipment rack, the AMP-4-125 amplifier with desk/wall Mounting Plate and adhesive feet. can be placed free-standing on a flat surface. Adhesive rubber 2 positions and 4 positions. feet are supplied for this purpose. The AMP-4-125 amplifier can also be attached to the underside of desks or wall mounted using connecting plate hardware. The adhesive rubber feet should Adhesive Foot also be used in these circumstances to minimise 4 positions the possibility of vibration between the amplifier and mounting surface. Wall and desk mounting is illustrated in Diagrams 4C and 4D.
- Page 9 AUDIO DISTRIBUTION Installation 5. AMP-8-125 Full Rack Width Amplifier Installation Note: Full rack width AMP-8-125 is intended for rack mount or free-standing installation only. 5.1 Rack Mounting 5.2 Free-standing The AMP-8-125 full rack width amplifier is supplied with If not installed in an equipment rack, the AMP-8-125 full rack rack ears fitted. The installation and equipment rack width amplifier can be placed free-standing on a flat surface. should be configured to provide appropriate ventilation Adhesive rubber feet are supplied for this purpose. Diagram airflow space around the sides and rear of the amplifier. 5A illustrates the adhesive foot locations. Ventilation airflow space of at least 25 mm (1 in) should be maintained along at least one side of the amplifier at all times. Ventilation apertures are also located on the rear panel of the amplifier and must not be obstructed. It is important to retain at least 80 mm (3.1 in) free space for airflow behind the amplifier rear panel. Diagram 5A AMP-8-125 Adhesive feet Adhesive Foot...
- Page 10 2. Use a mobile, laptop or desktop device to search for available mains cable supplied with the amplifier and connect it to a switched mains supply. WiFi networks. Connect to the AMP-4-125 or AMP-8-125 (product serial number)’ using the password, ‘password’. The AMP-4-125 and AMP-8-125 amplifiers have no mains power amplifier serial number can be found on its rear panel. switch and are operational as soon as mains power is connected. 3. Open a computer or mobile device web browser and enter the IP address: 192.168.4.1. The Control Web App interface will...
- Page 11 AUDIO DISTRIBUTION Configuration Diagram 6A Configuration Dashboard display Adjust zone volume Adjust zone volume Diagram 6B Input Tab display (only two inputs shown) 6.3.1 Input Tab Select input type The Input Tab (Diagram 6B) provides the following configuration parameters for each amplifier input channel: Input name - type to edit High-pass filter Select mono or stereo • Input name • Mono/Stereo selection •...
- Page 12 AUDIO DISTRIBUTION Configuration Diagram 6D Diagram 6C Input Mix display Input EQ display Slect mic function Mix name - type to edit Select EDIT to apply required EQ Note: The number of individual mixes possible is equal to the 6.3.2 Zone Tab number of amplifier analog outputs (two outputs enables two The Zone Tab enables installation zones to be defined and mixes, four outputs enables four mixes, eight outputs enables named, and provides access to further sub-menus. Zones...
- Page 13 AUDIO DISTRIBUTION Configuration Diagram 6F The Input Ducking function enables an alternative input Zone Source menu display to replace and attenuate the input primarily routed to the zone under configuration when the alternative input exceeds a preset level. Select zone Note: Input Priority and Input Ducking parameters can be either set to default values or their Threshold, Attack, Hold and Release values set as required.
- Page 14 AUDIO DISTRIBUTION Configuration 6.3.3 Output Tab individual amplifier outputs. The Output Tab (Diagram 6G) enables amplifier outputs to • T he Equalizer menu enables parametric equalization to be be named, linked to zones, and provides access to Delay, applied to individual amplifier outputs. Equalizer settings Room Equalizer and Speaker Preset menus. Diagram 6H configured for one amplifier output can be copied and illustrates the Output Tab display. applied to other outputs. For all Output Tab menus, the amplifier output under • T he Speaker Preset menu enables a set of speaker configuration is selected by highlighting one of the output parameters to be adjusted, and preset configurations to identifiers at the top of the display. be created, exported, imported, or cleared. Note: The number of individual outputs available for Speaker Presets can be simply applied to the selected configuration will depend on the input, zone, and output amplifier output or imported, chosen from a library, mode configuration. The diagrams following illistrate a four...
- Page 15 AUDIO DISTRIBUTION Configuration Diagram 6I Diagram 6K Speaker Preset import file selection Speaker Preset parameter adjustment Engage EQ bands Select band function Adjust gain Adjust frequency Note: The SELECT PRESET FROM LIBRARY option will be unavailable if no speaker preset libraries have been created. Adjust Q Speaker preset library creation and management is described in Section 6.3.5.
- Page 16 AUDIO DISTRIBUTION Configuration • The System Information menu provides text fields for • The Driver Alignment preset menu enables delay to be the recording of installation data. The Device menu applied to individual amplifier outputs. records amplifier specific information such as the • The Polarity preset menu enables the polarity of model number and firmware version. individual amplifier outputs to be reversed. A firmware update routine and identifier button can also be found under the Device menu. • The Limiter preset menu enables signal limiting to be engaged or bypassed on individual amplifier The Device menu records amplifier specific information •...
- Page 17 The following paragraphs describe and illustrate the recommended procedure for configuring input, zone and • The GPIO menu enables configuration of the multi-purpose output routing. A general signal flow schematic is also GPIO interface pins. A description of the individual settings illustrated in Diagram 6N. is detailed in AMP-4-125 and AMP-8-125 Control. • The LAN menu enables configuration and reset of the wired network options and parameters. www.rticontrol.com...
- Page 18 AUDIO DISTRIBUTION Configuration Diagram 6N Signal Flow Schematic (eight output amplifier) Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com...
- Page 19 6.5 GPIO Setup and Connection Open the configuration Dashboard and select the Zone The AMP-4-1256 and AMP-8-125 provide a GPIO socket Tab. The Zone Tab is shown in Diagram 6E. that enables remote control of volume, standby, mute and • S elect the zone to be configured. The number of zones trigger functions. The GPIO connector pin functions are available and their channel format (stereo or mono) will described in the GPIO Settings menu illustrated in Diagram depend on the amplifier model, input setup and output 6Q. The connection of GPIO based remote volume control mode (Lo-Z or Hi-Z). and standby/mute are illustrated in Diagram 6P and Diagram 6Q respectively. • T he AMP-4-125 can have the following zones configured: • 2 x stereo Lo-Z zones • 4 x mono Lo-Z zones • 2 x mono Hi-Z • 1 x mono Hi-Z + 1 x stereo Lo-Z zone • 1 x mono Hi-Z + 2 x mono Lo-Z zones • T he AMP-8-125 can have the following zones www.rticontrol.com...
- Page 20 AUDIO DISTRIBUTION Configuration Diagram 6O 6.5 GPIO Setup and Connection GPIO Settings Menu The AMP-4-125 and AMP-8-125 amplifiers provide a GPIO socket that enables remote control of volume, standby, mute and trigger functions. The GPIO connector pin functions are described in the GPIO Settings menu illustrated in Diagram 6O. The connection of GPIO based remote volume control and standby/mute are illustrated in Diagram 6P and Diagram 6Q respectively. Note: The GPIO connector must not be used for any unintended purpose. Amplifier damage may result from incorrect use of GPIO. Note: Shielded cable must be used when connecting standby switches and potentiometers via GPIO. Note: GPIO Pin 8 has a low output impedance and is able to supply a maximum current of 10mA. Note: GPIO Pin 1 and Pin 3 both offer ground connections: Pin 1 is connected directly to the amplifier chassis. Pin 3 is connected to the chassis via a 220 Ohm resistor. The ‘soft ground’ connection of Pin 3 is potentially useful for managing ground loops that may cause audible hum.
- Page 21 AUDIO DISTRIBUTION Connections 7. Connections Balanced input connections to the amplifiers are made via male ‘Euro Block’ connectors. Connecting cables to the AMP-4-125 and AMP-8-125 rear panel connections supplied female input connectors is illustrated in Diagram are illustrated in Diagrams 7A and 7B. 7.1 Mains Power Connection Unbalanced input connections to the amplifiers are made via RCA phono sockets connected in parallel with the These amplifiers incorporate a power factor corrected balanced inputs. universal power supply and can be used with mains input voltage from 100V AC to 240V AC, 50/60Hz. Use the mains...
- Page 22 AUDIO DISTRIBUTION Connections 7.3 Output Connections Output connections from the amplifiers are achieved via Diagram 7B male ‘Euro Block’ connectors. Ensure that speaker connection Full rack width polarity is correct throughout the installation: AMP-8-125 rear panel connections. In the case of Lo-Z speaker connections, positive (+) amplifier terminals should always be connected to positive speaker terminals and negative (–) amplifier terminals always connected to negative speaker terminals. In the case of Hi-Z speaker connections, the two speaker cable conductors should be connected between the positive (+) terminal of Output 1 and the negative terminal (-) of Output 2, and likewise for and additional Hi-Z outputs.
- Page 23 AUDIO DISTRIBUTION Connections 7.5 Speaker Cable Gauge Cable Gauge Table Lo-Z installations, 0.5dB attenuation. 4 Ω & 8 Ω loads The speaker connection cable gauge should be chosen appropriately to reflect the type of installation. The Max Cable Max Cable Cable Cross Cable Gauge Length Length adjacent tables specify the appropriate cable gauge Section (AWG) (Metres, 4 Ω (Metres, 8 Ω for less than 0.5dB cable loss with different installation load) load) types and cable lengths. 0.75 ≈18 7.5 GPIO Connections...
- Page 24 AUDIO DISTRIBUTION Connections Diagram 7E Diagram 7C GPIO cable connections. Balanced analog input cable connections. 5 mm 5 mm Diagram 7D Output cable connections. Note: Input, output and GPIO connection socket use is the same for four and eight channel output amplifiers. 5 mm Low-Z Mode 5 mm Hi-Z Mode The exclamation point printed next to the output terminals of the amplifiers is, in addition to the CLASS 2 WIRING text, intended to alert users to the risk of hazardous voltages. Output connectors that could pose a risk are marked with the exclamation point. Do not touch the output terminals while the amplifier is switched on. Make all connections with the amplifier switched off. Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com...
- Page 25 AUDIO DISTRIBUTION Operation 8. Operation Network: Off – No Ethernet network detected. Green – Ethernet network detected. Once all connections have been made and configuration WiFi: Off – WiFi disabled. options selected, the AMP-4-125 or AMP-8-125 is ready for Green – WiFi enabled. use. If an input signal above -60dB is present on any input, the front panel Input and Standby indicators will illuminate 8.2 Automatic Power Sharing green to indicate normal amplifier operation. Audio will be heard from any connected speakers. The AMP-4-125 and AMP-8-125 amplifiers incorporate a power sharing feature that automatically shares the Note: The amplifiers will not switch on from Standby Mode total power available from the amplifier’s internal power unless an input signal is present, a network ‘ON’ command supply across each pair of output channels. If one channel...
- Page 26 < 0.6W 2x Rack ears 1x ½ rack plate extension 2x Rack ears (fitted) Accessories 2x ½ rack mounting plates 2x Rear supports 2x Rear supports * 100V line mode is @ -1dB (≈ 90 V) ** AMP-4-125 may only Powershare across Ch1-2 and Ch3-4 AMP-8-125 may only Powershare across Ch 1-2, Ch 3-4, Ch 5-6 and Ch 7-8 Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com...
- Page 27 AUDIO DISTRIBUTION Specifications Power Efficiency Data The following table describes the efficiency and power performance of the AMP-4-125 and AMP-8-125 amplifiers. The table also includes the derived thermal losses. 1/8th Full Power Load Power In Power Out Efficiency Thermal Loss Thermal Loss Model (Ohms) (BTU) AMP-4-125 62.5 58.6 44.5 AMP-8-125 62.5 Standby and Idle Standby Idle @ 120V...
