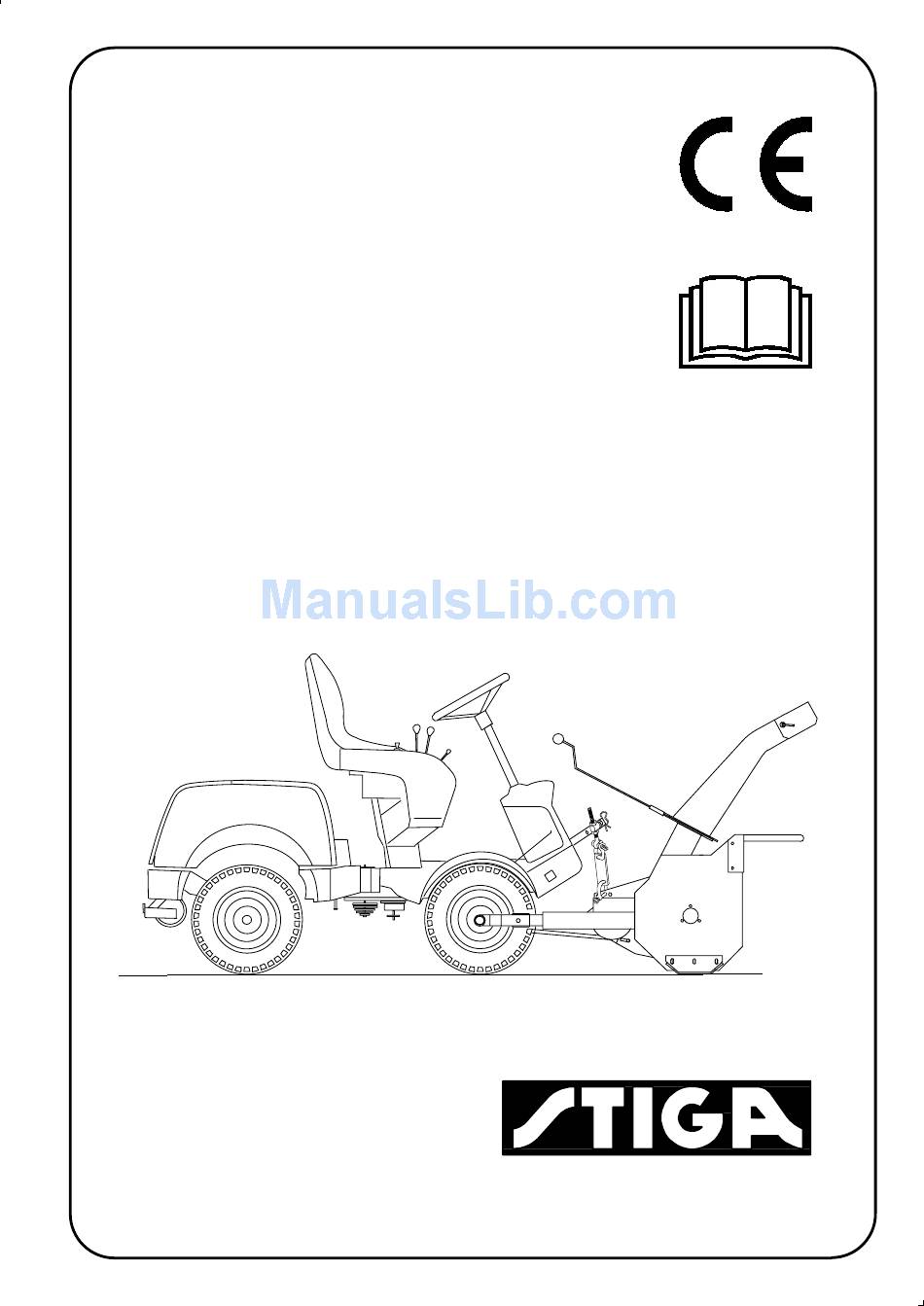

- Page 1 Instruktion Käyttöohjeet Instruksjon Bedienungsanleitung Instructions SNÖSLUNGA LUMILINKO SNØFRESER SCHNEESCHLEUDER SNOW THROWER STIGA PARK MADE IN FINLAND BY KOVA Type: PA407 Art. No: 13-1948-12 TRANÅS - SWEDEN 10127 1319-1745-02...
-
Page 2: Safety Regulations
ENGLISH SAFETY REGULATIONS Study and understand the Keep hands and feet away Turn the engine off before owner´s manual before use. from the rotating parts of the cleaning auger housing or snow thrower. discharge chute. Never put your foot or hand in the auger or in the discharge chute when the snow thrower is running. - Page 3 Do not attempt to remove ice or hard packed frozen snow. For best efficiency, clear snow before it melts, refreezes and hardens. Do not overload machine capacity by attempting to clear snow at too fast rate. If you are blowing snow where it is hilly use wheelweights STIGA 13-1982.
-
Page 4: Safety Labels
ENGLISH SAFETY LABELS WARNING Read operators manual. Keep safety devices (guards, shields and switches ) in place w hen w orking. If w heelw eights are reguested read operators manual. Do not blow snow w hen children or others are around. - Page 5 ENGLISH SAFETY LABELS DANGER Shut off engine before unclogging discharge chut. 10302 DANGER Avoid injury from rotating auger. Keep hands, feets and clothing aw ay 10303...
- Page 6 ASSEMBLY Park 2000> Park >2000 Park >2000, Electric Lift Remove the cutterhead from the machine. Fit the deflector pipe. Drive the machine up to the thrower and bolt the thrower to the attachment bracket. Fit the snow thrower's lift arm to the attachment lift. Fit the deflector pipe's turning lever on the thrower.
- Page 7 Do not rotate the auger in this direction, the belt might jump off! Park >2000 Park 2000> Fitting the V-belt MAINTENANCE ALWAYS STOP THE ENGINE before carry out maintenance or repairs. Adjusting the V-belt tension...
- Page 8 Adjusting the chain tension TECHNICAL DATA: Single stage snow thrower for front attachment to Stiga Park. Deflector pipe manually adjustable through approx. 180 degrees. Throw direction controlled from the driver's seat.
- Page 9 Factory settings 25 mm 95 deg 32 mm Type: PA407 Art. No: 13-1948-12 TRANÅS - SWEDEN...
- Page 10 INTYG BESCHEINIGUNG Tillverkare: KONEPAJA A. VANNE, KOVA, Veistämöntie 16, Hersteller: KONEPAJA A. VANNE, KOVA, Veistämöntie 16, FIN-24800 HALIKKO, FINLAND, försäkrar härmed att maskintyp FIN-24800 HALIKKO, FINLAND, bestätigt hiermit, daß die maschine PA407 är i överenstämmelse med maskindirektivet 89/392/EEC, vom Typ PA407 mit den Mashinenrichtlinien 89/392/EEC, 91/368/EEC, 93/44/EEC med särskilda hänvisningar till direktivets 91/368/EEC, 93/44/EEC unter besonderem Hinweis auf ANNEX 1 der Annex 1 om väsentliga hälso och säkerhetskrav i samband med...
