Summary of Contents for Technoware ECO 0.50

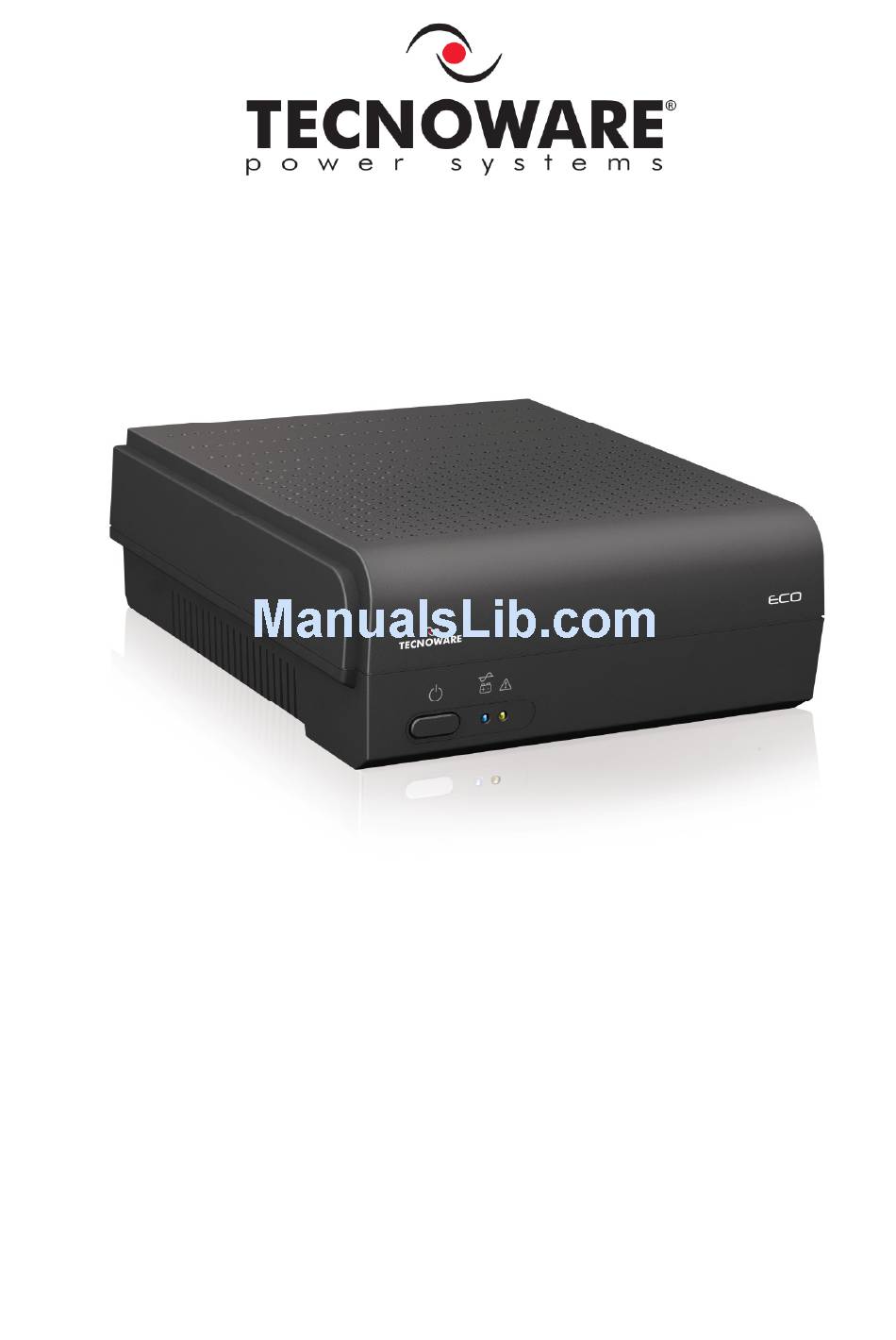

- Page 1 Uninterruptible Power Supply ECO 0.50 ECO 0.70 ECO 0.90 ECO 1.1 ECO 1.3 User’s manual...
-
Page 3: Table Of Contents
No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS ECO 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 4: Safety Warnings
Install the UPS indoors, in a protected, clean and moisture-free environment. Do not expose to the direct sun light. Do not keep liquids, flammable gases or corrosive substances near the UPS. User’s manual UPS ECO 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 5: Introduction
Automatic restart after an automatic shut down due to a low battery condition once the AC utility power • returns. Adapts automatically to 50 or 60 Hz input frequency. • UPS ECO 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 6: Receipt And Site Selection
Do not keep liquids, flammable gases or corrosive substances near the unit. • Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat. • User’s manual UPS ECO 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 7: External Description
4 seconds in Battery mode and it flashes one time every second in Low Battery condition. The ALARM led: this led (red color) is on to indicate Alarm/Fault condition. Figure 1 – Front panel UPS ECO 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 8: Rear Side
UPS starts to work in Normal mode: the LINE/BATTERY led is on. Leave the UPS in Normal mode for at least 4 hours in order to completely recharge the batteries User’s manual UPS ECO 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 9: Functioning
The UPS typically works in Normal mode: Input mains power is available and its amplitude is within specifications. In Normal mode the LINE/BATTERY led is always on. During Normal mode, the UPS recharges the batteries and keeps them in an optimal charging voltage. UPS ECO 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 10: Battery Mode
The UPS indicates the Fault condition by lighting of the Alarm led and by emitting a continuous acoustic alarm. During Fault condition, the UPS doesn’t supply Output power and so all the supplied devices are switched off. User’s manual UPS ECO 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 11: Technical Characteristics
Dimension (W x H x D) 20,7 x 8,3 x 22,8 cm Net Weight 2,5 Kg 2.6 Kg 3,5 Kg 3.6 Kg Technical data may change without prior notice UPS ECO 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 12: Maintenance
The new battery must be exactly the same type as the original one. Put inside the new battery and connect it as the original one. Reassemble the case cover. User’s manual UPS ECO 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 13: Operator Safety
After it will be necessary to refer to qualified technical personnel. Original safety characteristics might not be if, for example, the UPS has visible damage or irregular operation. UPS ECO 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... -
Page 14: Troubleshooting
ALARM led on If the described anomalies should continue despite the advised troubleshooting, or should they manifest in any other form, please contact: TECNOWARE SERVICE www.tecnoware.com User’s manual UPS ECO 0.50 – 0.70 – 0.90 – 1.1 – 1.3... -
Page 15: Conformity To The European Directives
The batteries cannot be disposed as an urban waste, but must be treated in conformity with 2006/66/CE European Directive; any violation is indictable with financial sanctions as established into 2006/66/CE European Directive. UPS ECO 0.50 – 0.70 – 0.90 – 1.1 - 1.3 User’s manual... - Page 16 TECNOWARE s.r.l. www.tecnoware.com...
