SMART Board™ X800i5
Interactive Whiteboard
System
Configuration and User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART Board X800i5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMART Board SMART Board X800i5

Summary of Contents for SMART Board SMART Board X800i5

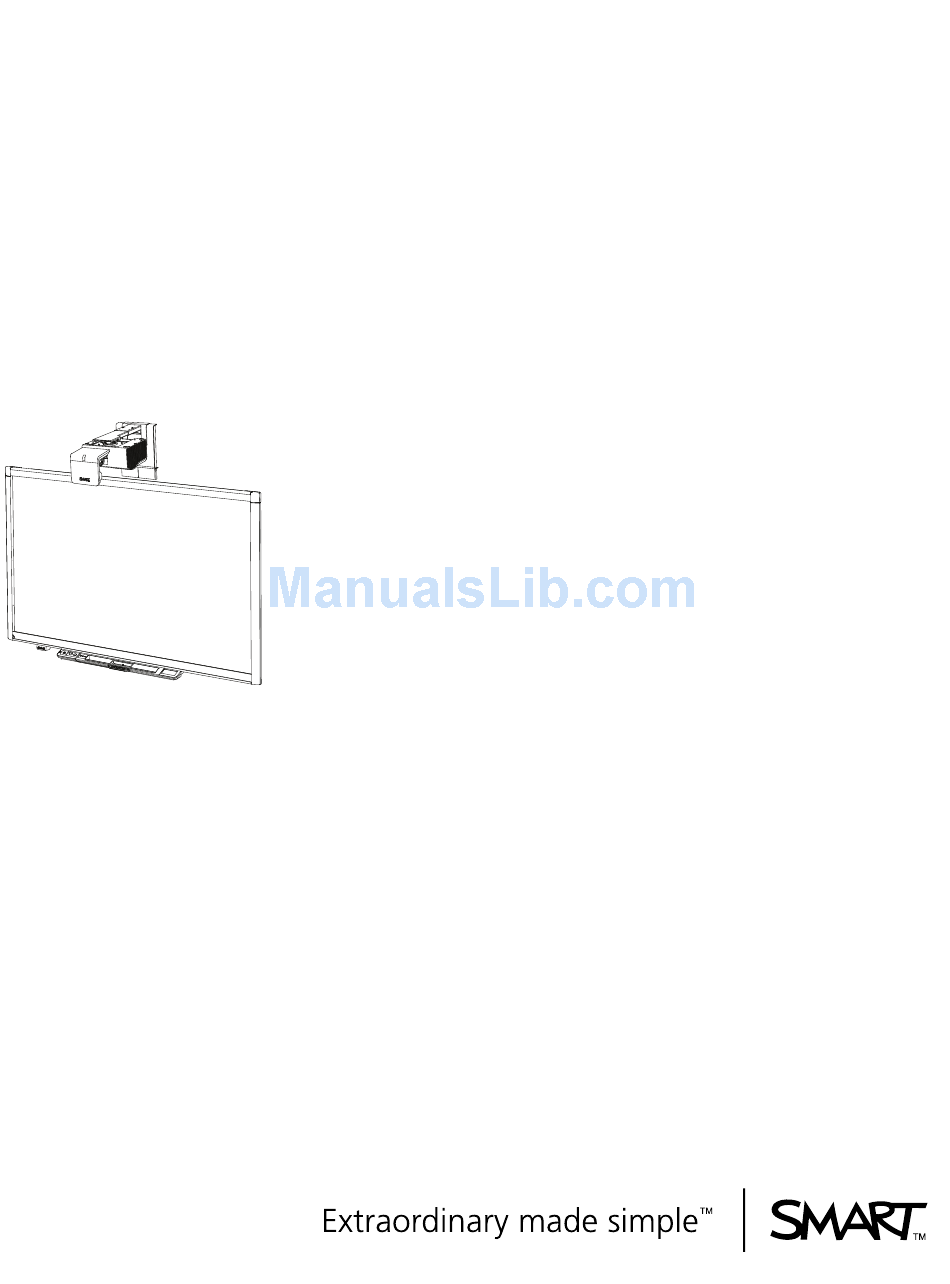

  • Page 1 PLEASE THINK BEFORE YOU PRINT SMART Board™ X800i5 Interactive Whiteboard System Configuration and User’s Guide...
  • Page 2 SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

  • Page 3: Important Information

    Failure to follow the installation instructions shipped with your SMART product could result in personal injury and damage to the product. To reduce the risk of fire or electric shock, do not expose the SMART product to rain or moisture.
  • Page 4 If in doubt, refer to the specification sheet for your product to verify the power supply type. Do not climb (or allow children to climb) on a wall- or stand-mounted SMART Board interactive whiteboard.
  • Page 5 Do not place the unit in hot locations, such as near heating equipment. Doing so could cause a malfunction and shorten the life of the projector. Avoid setting up and using the SMART product in an area with excessive levels of dust, humidity and smoke.
  • Page 6 Do not allow liquids or commercial solvents of any kind to flow into the projector. When transporting your SMART product, repack it with as much of the original packaging as possible. This packaging was designed with optimal shock and vibration protection.
  • Page 7 I M P O R T A N T I N F O R M A T I O N Using your SMART product near a TV or radio could cause interference to the images or sound. If this happens, move the TV or radio away from the projector.

  • Page 8: Environmental Requirements

    I M P O R T A N T I N F O R M A T I O N Environmental requirements Before installing your SMART Board X800i5 interactive whiteboard system, review the following environmental requirements. Environmental Parameter requirement Operating temperature 41°F to 95°F (5°C to 35°C) from 0' to 6000' (0 m to 1800 m)

  • Page 9: Table Of Contents

    Contents Important information Safety warnings, cautions and important information Environmental requirements About your interactive whiteboard system SMART Board X800i5 interactive whiteboard system features Included accessories Optional accessories Installing your interactive whiteboard system Choosing a location Choosing a height Routing the cables...
  • Page 10 C O N T E N T S Resolving connection issues Accessing the service menu Locating serial numbers Transporting your interactive whiteboard system Remotely managing your interactive whiteboard system Web page management Connecting your room control system to the ECP Projector programming commands Simple Network Management Protocol (SNMP) Hardware environmental compliance...

  • Page 11: About Your Interactive Whiteboard System

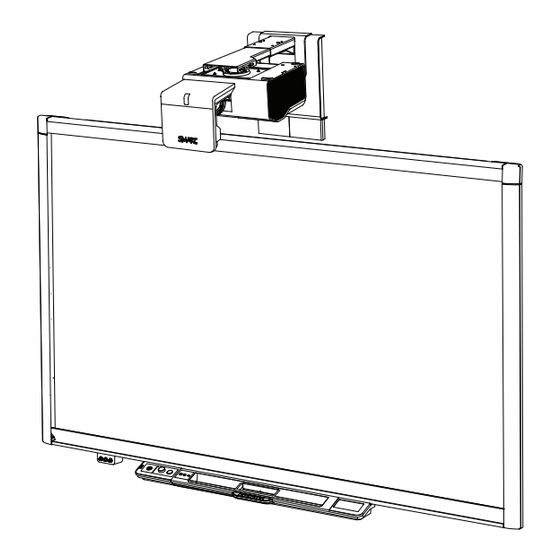

    Your SMART Board X800i5 interactive whiteboard system combines the wall-mounted, short-throw SMART UF75 or UF75w projector with a SMART Board X800 series interactive whiteboard. This chapter describes the features of your SMART Board X800i5 interactive whiteboard system and provides information about product parts and accessories.

  • Page 12: Smart Board X800I5 Interactive Whiteboard System Features

    When you use SMART software with your SMART Board X800i5 interactive whiteboard system, you can write or draw over the projected computer image in digital ink using a pen tray pen or your finger, and then save these notes to a .notebook file or directly into any Ink Aware application.

  • Page 13: Smart Uf75 Or Uf75W Projector

    A security cable lock feature that enables you to lock your interactive whiteboard to help safeguard it from theft For more information about your SMART Board interactive whiteboard, see the SMART Board X800 Series Interactive Whiteboard User’s Guide (smarttech.com/kb/144817). SMART UF75 or UF75w projector...

  • Page 14: Included Accessories

    The following accessories are included with your SMART Board X800i5 interactive whiteboard system. Remote control The remote control enables you to control the system and set up your SMART UF75 or UF75w projector. Use the remote control to access menu options, system information and input selection options.

  • Page 15: Optional Accessories

    Optional accessories You can add a variety of optional accessories to best meet your specific needs. Purchase these items from your authorized SMART reseller (smarttech.com/wheretobuy) when you order your interactive whiteboard system or later. For more information about accessories, go to smarttech.com/accessories.

  • Page 17: Installing Your Interactive Whiteboard System

      I M P O R T A N T Use the instructions included with the ECP to install your interactive whiteboard, projector and ECP. The instructions in your SMART Board interactive whiteboard box do not include instructions for installing the SMART UF75 or UF75w projector or ECP.

  • Page 18: Choosing A Location

    Installing your interactive whiteboard system Choosing a location Choose a location for your SMART Board X800i5 interactive whiteboard system that’s far from bright light sources, such as windows or strong overhead lighting. Bright light sources can cause distracting shadows on your interactive whiteboard and can reduce the contrast of the projected image.

  • Page 19: Choosing A Height

    C H A P T E R 2 Installing your interactive whiteboard system Choosing a height SMART includes a mounting template with each SMART Board X800i5 interactive whiteboard system. If you lose this template, contact your authorized SMART reseller (smarttech.com/wheretobuy). Using this template ensures that you: Mount the projector at a safe height for head space clearance, while maintaining enough space for airflow and installation access above the unit.

  • Page 20: Routing The Cables

    Installing your interactive whiteboard system Routing the cables When connecting cables from a SMART UF75 projector to your interactive whiteboard, make sure that all cables pass along the top of the interactive whiteboard wall-mounting bracket and then down the side of the interactive whiteboard.

  • Page 21: Securing The Interactive Whiteboard System

    This section explains how to secure the different components of your interactive whiteboard system. Locking the pen tray to your interactive whiteboard To learn how to lock the pen tray to your interactive whiteboard, see the SMART Board X800 Series Interactive Whiteboard User’s Guide (smarttech.com/kb/144817).

  • Page 23: Using Your Interactive Whiteboard System

    This section explains how to use your projector and its included remote control. Using your remote control The SMART UF75 or UF75w projector remote control enables you to access on-screen projector menus and change projector settings. Installing the remote control battery Follow this procedure to use the remote control for the first time or to replace the remote control battery.
  • Page 24 C H A P T E R 3 Using your interactive whiteboard system   W A R N I N G Reduce the risk associated with a leaking battery in the projector’s remote control by following these practices: Use only the specified type of coin-cell battery. Orient the battery’s positive (+) and negative (–) terminals according to the markings on the remote control.

  • Page 25: Using The Remote Control Buttons

    C H A P T E R 3 Using your interactive whiteboard system Using the remote control buttons The projector remote control enables you to access on-screen menus and change projector settings. Use the Power button on the remote control or ECP to put the projector into Standby mode or turn it on.

  • Page 26: Adjusting Projector Settings

    H-position Moves the projected image’s horizontal Don’t adjust this setting unless you’re position left or right from 0 to 100. advised to by a certified SMART Support specialist (smarttech.com/contactsupport). You can apply this setting only after you make all boom adjustments.
  • Page 27 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Saturation Adjusts the projected image’s color This setting applies to S-video and saturation from 0 to 100. composite video inputs only. Sharpness Adjusts the projected image’s This setting applies to S-video and sharpness from 0 to 31.
  • Page 28 C H A P T E R 3 Using your interactive whiteboard system Setting Notes 3D Invert Selects the 3D Invert setting (L-R or R- L-R displays visual data for the left eye Left-Right first. R-L displays visual data for the right eye first.
  • Page 29 (SMART, Capture User Startup projector lamp is starting and an image Screen or Preview Startup Screen). isn’t displayed. SMART displays the default SMART logo on a blue background. Capture User Startup Screen closes the on-screen display menu and captures the entire projected interactive whiteboard image.
  • Page 30 C H A P T E R 3 Using your interactive whiteboard system Setting Notes USB1 Source Enables touch for the selected video The default is VGA1. source (VGA1, VGA2, HDMI or When the user switches to the video Disable) by associating the video source you select in this setting, the source with the room computer USB interactive whiteboard recognizes...
  • Page 31 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Group Name Displays the projector’s workgroup name as set by an administrator (maximum 12 characters). Projector Name Displays the projector’s name as set by an administrator (maximum 12 characters).

  • Page 32: Focusing The Image

    C H A P T E R 3 Using your interactive whiteboard system Focusing the image To focus the projected image, use the focus lever located on the projector lens. To focus and adjust the image Move the focus lever up or down until the image is in focus.

  • Page 33: Adjusting The Image

    Using your interactive whiteboard system Adjusting the image Refer to these notes when adjusting the projected image as described in the included SMART Board X880i5 and X885i5 Interactive Whiteboard System Installation Guide (smarttech.com/kb/154546). Project a computer image set to the proper resolution while adjusting the image. If you don’t have a computer, use the projector’s default background so that you can see the full projected...
  • Page 34 C H A P T E R 3 Using your interactive whiteboard system No. Connector Connect to: Power Power supply 4-pin power mini-DIN 5V/2A output ECP harness cable 7-pin mini-DIN ECP harness cable RS-232F (DB9) ECP harness cable DB15F RGB video input (VGA 1) Primary computer (not included) DB15F RGB video input (VGA 2) Secondary computer (not included)

  • Page 35: Using Your Interactive Whiteboard

    For more information on this software, press the Help button on your interactive whiteboard pen tray. For more resources, go to smarttech.com, click the flag icon to the right of the SMART logo, and then select your country and language. In the Support section of this website, you’ll find up-to-date, product-specific information, including setup instructions and specifications.
  • Page 36 Two mini USB B receptacles (connect to room computer and laptop) 11-pin connector (connects to ECP harness cable) 4-pin connector (for room control)   N O T E The 4-pin connector cable is an optional accessory that you can order from your authorized SMART reseller (smarttech.com/wheretobuy).

  • Page 37: Using The Rca Connector Pod

    C H A P T E R 3 Using your interactive whiteboard system   T I P If your computer has an HDMI output, you can connect a USB cable from your computer to either of the USB B receptacles on the ECP and an HDMI cable from your computer to the HDMI connector on the projector.

  • Page 39: Integrating Other Devices

    This chapter provides information on integrating your SMART Board X800i5 interactive whiteboard system with peripheral devices. Video format compatibility SMART UF75 or UF75w projectors have a native video format and various video format compatibility modes. You can change image appearances for certain formats and compatibilities. Native video format The following table lists the native VESA RGB video formats for the projector.
  • Page 40 Video format compatibility The following tables list the projectors’ compatible VESA RGB video formats by resolution, which you can adjust by using the aspect ratio commands described in Default menu on page 17. SMART UF75 projector Resolution Mode Aspect ratio Refresh rate (Hz) “Match Input”...

  • Page 41: Hd And Sd Signal Format Compatibility

    C H A P T E R 4 Integrating other devices SMART UF75w projector Resolution Mode Aspect ratio Refresh rate (Hz) “Match Input” appearance 720 × 400 720×400_85 85.039 Letterbox 640 × 480 VGA 60 59.94 Pillarbox 800 × 600 VGA 72 72.809...

  • Page 42: Video System Signal Compatibility

    C H A P T E R 4 Integrating other devices SMART UF75 projector Signal format Aspect ratio Horizontal Vertical “Match Input” frequency (kHz) frequency (Hz) appearance 480i (DVD player) 15.73 59.94 Full screen (640 × 480) 567i (DVD player) 15.63...

  • Page 43: Connecting Peripheral Sources And Outputs

    Do not disconnect cables from the ECP to connect peripherals because you could disconnect controls for your interactive whiteboard or host computer. Don’t connect SMART Board Audio (SBA-L) USB speakers to the RCA connector pod. Connect these speakers to the projector connection panel using a dual-channel (left and right) RCA plug-to-3.5 mm audio connector cable (included with the speakers).
  • Page 44 C H A P T E R 4 Integrating other devices To connect a DVD/Blu-ray player or similar device 1. If you have speakers installed, turn the volume dial on the ECP all the way down to prevent buzzing or sparking. 2.

  • Page 45: Maintaining Your Interactive Whiteboard System

    Replacing the projector lamp Removing and replacing the projector lamp module Resetting the lamp timer This chapter includes methods for properly cleaning and preventing damage to your SMART Board X800i5 interactive whiteboard system. Maintaining your interactive whiteboard For information on maintaining your interactive whiteboard, see the SMART Board X800 Series Interactive Whiteboard User’s Guide (smarttech.com/kb/144817).

  • Page 46: Focusing And Adjusting The Projector Image

    C H A P T E R 5 Maintaining your interactive whiteboard system Before you clean the projector, press the Power button twice on the ECP or remote control to put the system in Standby mode, and then allow the lamp to cool for at least 30 minutes.

  • Page 47: Replacing The Projector Lamp

    Thoroughly clean the area around the projector, and discard any edible items placed in that area because they could be contaminated. Call your authorized SMART reseller (smarttech.com/wheretobuy) for instructions. Do not attempt to replace the lamp. Replacing the lamp in a wall-mounted projector can result in a fall or injury. Use caution when climbing a ladder, and consider removing the projector from the wall-mounting bracket to replace the lamp.
  • Page 48 Wear protective eyewear while changing the lamp. Failure to do so can cause injuries including loss of eyesight if the lamp shatters or bursts. Use only replacement lamps approved by SMART Technologies. Contact your authorized SMART reseller (smarttech.com/wheretobuy) for replacement parts.
  • Page 49 C H A P T E R 5 Maintaining your interactive whiteboard system 4. Remove the lamp cover from the projector, and then put it in a safe place.   T I P If the cover is difficult to remove, insert a flat screwdriver or small coin into the slot on the bottom of the lamp cover to gently pry the cover open.
  • Page 50 C H A P T E R 5 Maintaining your interactive whiteboard system To put the new lamp module into the projector 1. Remove the new lamp module from its packaging. 2. Carefully place the lamp module into the projector using the handle on the top of the module. Hold the lamp module vertically and guide it into its slot.

  • Page 51: Resetting The Lamp Timer

    You’re unable to reset the Display Hour value because it’s the running total of hours the projector has been in use. 3. Press the Menu button on the remote control. The SMART UF75 Settings menu appears. 4. Select to confirm that Lamp Hours is reset to zero.

  • Page 53: Troubleshooting Your Interactive Whiteboard System

    Chapter 6 Troubleshooting your interactive whiteboard system Correcting image alignment issues Diagnosing issues using the interactive whiteboard system indicators and controls Interactive whiteboard indicators and controls Projector lights and status ECP lights and status Projector error states Your projector doesn’t respond to commands The “Projector Overheated”...

  • Page 54: Correcting Image Alignment Issues

    Use the instructions in the included SMART Board X880i5 and X885i5 Interactive Whiteboard System Installation Guide (smarttech.com/kb/154548) to eliminate most image alignment issues.

  • Page 55: Projector Lights And Status

    Troubleshooting your interactive whiteboard system Projector lights and status Two indicator lights (Power and Service) are located on the bottom of the SMART UF75 or UF75w projector. Specific light sequences convey information about the state of the projector, including errors.

  • Page 56: Ecp Lights And Status

    Projector error states System administrators can solve or troubleshoot the following projector error states on their own prior to contacting SMART Support. Performing an initial troubleshooting on your projector will reduce the time of a support call. Your projector doesn’t respond to commands If your projector doesn’t respond to commands or if it starts to display code after you enter a...

  • Page 57: The "Projector Overheated" Message Appears

    2. If the lamp doesn’t illuminate, put the projector into Standby mode and wait 15 minutes for it to cool down. 3. Disconnect the power cable, and then contact your authorized SMART reseller (smarttech.com/wheretobuy). The “Color Wheel Failure” message appears If the “Color Wheel Failure”...

  • Page 58: The "Lamp Failure" Message Appears

    4. Replace your lamp as described in Removing and replacing the projector lamp module on page 5. If the projector still doesn’t turn on or if it continues to display the lamp error message, disconnect the power cable, and then contact your authorized SMART reseller (smarttech.com/wheretobuy).

  • Page 59: Resolving Network Communication Issues

    See Network menu on page 20 for a description of the IP address field. Enter this IP address into your browser or SNMP agent. 4. If you still don’t have network access, contact your network administrator. If your administrator is unable to resolve the issue, contact your authorized SMART reseller (smarttech.com/wheretobuy).

  • Page 60: Resolving Audio Issues

    5. Check that your source input, such as your computer or video device, isn’t malfunctioning, that its audio output is on and that its volume isn’t set to the lowest position. 6. If the previous steps don’t resolve the issue, contact your authorized SMART reseller (smarttech.com/wheretobuy).

  • Page 61: Resolving Image Issues

    2. If the image doesn’t synchronize, check your cable connections to the projector and the ECP. 3. Ensure that the image signal is compatible with the projector (see Video format compatibility on page 29). 4. If your projector still doesn’t show a source signal, contact your authorized SMART reseller (smarttech.com/wheretobuy). No projected image If the projector displays no image at all, and the ECP, interactive whiteboard and projector power lights aren’t on, perform the following procedure.

  • Page 62: Partial, Scrolling Or Incorrectly Displayed Image

    The Display Properties window appears. 3. Click Settings. 4. Verify that your display resolution setting is lower than or equal to 1024 × 768 (SMART UF75 projector) or 1280 × 800 (SMART UF75w projector). 5. If the projector still does not display the entire image, perform the following procedure to change the monitor display.

  • Page 63: Your Image Has A Vertical Flickering Bar

    C H A P T E R 6 Troubleshooting your interactive whiteboard system   I M P O R T A N T Write down your setting values before adjusting any of the settings in the following procedure. To resolve your unstable or flickering image 1.

  • Page 64: Resolving Connection Issues

    Unaligned projected image The SMART UF75 or UF75w projector image can slip if the projector is moved often or installed in a location prone to vibration, such as next to a heavy door. Follow these precautions to help prevent the image from becoming misaligned: Make sure that the installation wall is plumb and square and doesn’t move or vibrate...

  • Page 65: Accessing The Service Menu

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Accessing the service menu   C A U T I O N To prevent tampering or unintentional changes, only system administrators should access the service menu. Do not share the service menu access code with casual users of your interactive whiteboard system.

  • Page 66: Locating Serial Numbers

    Locating serial numbers Before contacting SMART Support (see Customer support on page 83), make note of your interactive whiteboard, projector and ECP serial numbers. For the location of the SMART Board X800 series interactive whiteboard serial number, see the...
  • Page 67 C H A P T E R 6 Troubleshooting your interactive whiteboard system The SMART UF75 or UF75w projector serial number is located on the top of the projector. The ECP serial number is located on the bottom of the ECP.

  • Page 68: Transporting Your Interactive Whiteboard System

    Troubleshooting your interactive whiteboard system Transporting your interactive whiteboard system Save your original SMART Board X800i5 interactive whiteboard system packaging so that it’s available if you need to transport your interactive whiteboard system. When required, repack it with as much of the original packaging as possible. This packaging was designed to provide optimal shock and vibration protection.

  • Page 69: Remotely Managing Your Interactive Whiteboard System

    Network controls System controls Simple Network Management Protocol (SNMP) This appendix includes detailed instructions on how to set up your computer or room control system to remotely manage your SMART Board X800i5 interactive whiteboard system settings through an RS-232 serial interface.

  • Page 70: Web Page Management

    Before you can access the web page, you must connect the network cable to your projector (see the SMART UF75 or UF75w projector connection diagram on page 23). When you first connect your projector to a network, an IP address appears on the on-screen display.

  • Page 71: Control Panel

    French or Spanish, depending on television channel or media setup. Display Mode Adjusts the display output to SMART Presentation, Bright Room, Dark Room, sRGB and User modes so you can project images from various sources with consistent color performance: SMART Presentation is recommended for color fidelity.
  • Page 72 Startup Screen Sets the type of startup screen to SMART or User. The SMART screen is the default SMART logo on a blue background. The User screen uses the saved picture from the Capture User Startup Screen...
  • Page 73 Projector Mode Adjusts the projection mode to Front, Ceiling, Rear or Rear Ceiling.   I M P O R T A N T SMART recommends that you never change this setting from the Ceiling projection mode. Source Adjusts the input source to VGA1, VGA2, Composite, S-Video or HDMI.

  • Page 74: Control Panel Ii

    A P P E N D I X Remotely managing your interactive whiteboard system Control panel II 3D settings This menu allows you to enable or disable 3D image display and set its format. Submenu setting Description 3D On/Off Turns the 3D feature on or off. 3D Invert Selects the 3D Invert setting (L-R or R-L).

  • Page 75: Network Settings

    A P P E N D I X Remotely managing your interactive whiteboard system Network settings This menu allows you to enable or disable Dynamic Host Control Protocol (DHCP) and set the network-related addresses and names. Submenu setting Description DHCP Turns the network’s DHCP on or off.

  • Page 76: E-Mail Alerts

    Submit.   N O T E The projector sends an alert e-mail (SMART Alert) to your e-mail address. Press E-mail Alert Test to confirm your e-mail address by sending a test e-mail (SMART Alert-Test Mail).

  • Page 77: Connecting Your Room Control System To The Ecp

    Serial interface settings The serial interface of the SMART UF75 or UF75w projector acts as a Data Communications Equipment (DCE) device and its settings can’t be configured. You must configure your computer’s serial communication program (such as Microsoft®...
  • Page 78 A P P E N D I X Remotely managing your interactive whiteboard system   N O T E S Asynchronous mode is disabled by default in the projector. All commands should be in ASCII format. Terminate all commands with a carriage return. All responses from the projector are terminated with a command prompt.

  • Page 79: Projector Programming Commands

    Idle (Standby mode) Command inventory SMART UF75 or UF75w projectors respond to the commands in the tables on the following pages. To see a list of valid commands in the projector’s current power state, type ? and press ENTER.   N O T E S Send a command only after the projector sends a command prompt.

  • Page 80: Video Source Specification Values

    A P P E N D I X Remotely managing your interactive whiteboard system All absolute values you enter must be within the command target range, and all adjustment values must equal a number within the command target range. See the following example for adjusting projector brightness: >get brightness brightness=55 >set brightness=65...

  • Page 81: Powerstate Controls

    A P P E N D I X Remotely managing your interactive whiteboard system Powerstate controls These commands place the projector in and out of Standby mode and request the projector’s current powerstate. The projector’s powerstate determines whether certain commands are available at that time.

  • Page 82: General Source Controls

    A P P E N D I X Remotely managing your interactive whiteboard system The following table describes the source selection commands: Command Description get input Returns the projector’s current input. set input [field] Returns the input to one of the selectable fields. The following table describes the source selection response fields: Field Description...

  • Page 83: Additional Vga Source Controls

    Standby mode or when the source is disconnected. See Value-based command methods on page 69 for setting absolute and adjustment commands. Command Command target range Response set displaymode [target] =SMART Presentation displaymode=[target] =Bright Classroom =Dark Classroom =sRGB =User...

  • Page 84: Additional Composite Video Source Controls

    A P P E N D I X Remotely managing your interactive whiteboard system These commands control the appearance of your VGA source. These settings are unavailable when the projector is in Standby mode or when the VGA source is disconnected. See Value-based command methods on page 69 for setting absolute and adjustment commands.

  • Page 85: Network Controls

    A P P E N D I X Remotely managing your interactive whiteboard system These commands inform you of the current audio output settings. Command Response get volume volume=[current volume setting] get mute mute=[current mute setting] get volumecontrol volumecontrol=[current volume control setting] get cc cc=[current closed captioning language setting] These commands control your audio output settings.

  • Page 86: System Controls

    A P P E N D I X Remotely managing your interactive whiteboard system These commands control your network settings. Command Command target range Response set dhcp [target] dhcp=[current] =off set ipaddr [target] =0.0.0.0 to =255.255.255.255 ipaddr=[current] set subnetmask [target] =0.0.0.0 to =255.255.255.255 subnetmask=[current] set gateway [target]...
  • Page 87 A P P E N D I X Remotely managing your interactive whiteboard system These commands inform you of the current system settings. These commands are available even when the projector is in Standby mode. Command Response get lamphrs lamphrs=[current lamp hours of operation] get syshrs syshrs=[current projector hours of operation] get fwverddp...
  • Page 88 =0 to =99 projectorid=[value] set hposition [value] =0 to =100 hposition=[value] set vposition [value] =-5 to =5 vposition=[value] set aspectratio [target] =fill aspectratio=[target] =match =16:9 set projectionmode [target] =front projectionmode=[target] =ceiling =rear =rear ceiling set startupscreen [target] =smart startupscreen=[target] =usercapture =preview...
  • Page 89 A P P E N D I X Remotely managing your interactive whiteboard system Command Command target range Response set language [target] =Brazilian Portuguese language=[target] =Czech =Danish =Dutch =English =Finnish =French =German =Greek =Iberian Portuguese =Italian =Korean =Japanese =Norwegian =Polish =Russian =Simplified Chinese =Spanish...

  • Page 90: Simple Network Management Protocol (Snmp)

    The VGA Out and Network settings features are off by default. Select On to activate these features. Simple Network Management Protocol (SNMP) SMART UF75 or UF75w projectors support a list of SNMP commands as described in the management information base (MIB) file.

  • Page 91: Hardware Environmental Compliance

    When you dispose of any electrical or electronic equipment, including SMART Technologies products, we strongly encourage you to properly recycle the electronic product when it has reached end of its life. If you require further information, please contact your reseller or SMART Technologies for information on which recycling agency to contact.

  • Page 92: Packaging

    A P P E N D I X Hardware environmental compliance product which contains a lithium ion battery or returning a lithium ion battery, call SMART Technologies RMA for information on these special shipping regulations: 1.866.518.6791, Option 4 (U.S./Canada) 1.403.228.5940 (all other countries) Packaging Many countries have regulations restricting the use of certain heavy metals in product packaging.

  • Page 93: Customer Support

    Technical support If you experience difficulty with your SMART product, please contact your local reseller before contacting SMART Support. Your local reseller can resolve most issues without delay.   N O T E To locate your local reseller, visit www.smarttech.com/wheretobuy.

  • Page 94: General Inquiries

    Toll Free 1.866.518.6791 (U.S./Canada) +1.403.228.2500 E-mail info@smarttech.com Warranty Product warranty is governed by the terms and conditions of SMART’s “Limited Equipment Warranty” that shipped with the SMART product at the time of purchase. Registration To help us serve you, register online at www.smarttech.com/registration.

  • Page 95: Index

    Index 3.5 mm audio connectors DHCP 65, 75 3D support display modes 65, 75 documentation drywall accessories dust included DVDs optional alarms aspect ratios 29-32, 62 audio e-mail alerts connections for controlling volume of 26, 61, 75 about muting 15, 75 lights and status of resolving issues with using...
  • Page 96 I N D E X lithium ion batteries location 8, 65 Low Power mode HD signal compatibility HDMI connections 24, 63, 72 head space clearance height MAC address Help button MAC support humidity mounting template mute control 15, 75 image adjusting native video formats correcting alignment issues with...
  • Page 97 SMART Board interactive See interactive warranty whiteboard whiteboard water and fluid resistance SMART Support web page management SMART UF75 or UF75w WEEE directive projector projector whiteboard See interactive whiteboard SMTP SNMP sound See audio startup screen...
  • Page 98 I N D E X XGA support zoom...
  • Page 100 Toll Free 1.866.518.6791 (U.S./Canada) or +1.403.228.5940 www.smarttech.com...
