Cordless Drill/Driver
12V
Instruction Manual
3 Year Replacement Warranty
CDR-013
WARNING! Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0112
www.ozito.com.au
To view the full range visit:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDR-013 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito CDR-013

Summary of Contents for Ozito CDR-013

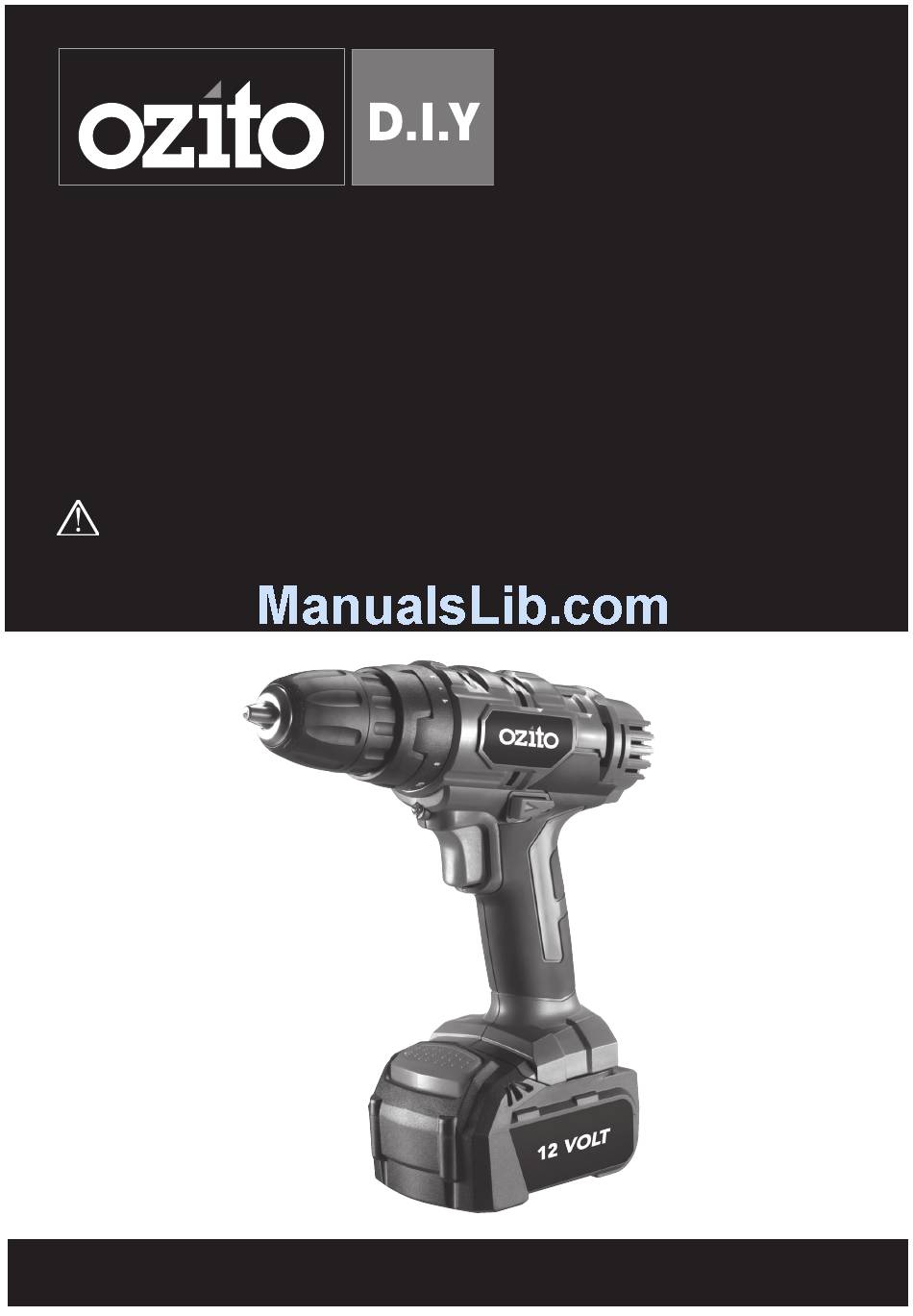

  • Page 1 Cordless Drill/Driver Instruction Manual 3 Year Replacement Warranty CDR-013 WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Specifications

    SpecificationS - model no. cdR-013 input power: charge time: 3 – 5 hours no load speed: 0-580/min chuck: 10mm Keyless max torque: 10Nm torque Settings: 19 + 1 Batteries: 1 x 12V Ni-Cad Weight with 1 battery: 1.45kg KnoW youR pRoduct 1.

  • Page 3: Table Of Contents

    taBle of contentS SPECIFICATIONS ……………………………………….. Page 1 INTRODUCTION………………………………………… Page 3 ELECTRICAL SAFETY…………….……………………… Page 3 GENERAL POWER TOOL SAFETY WARNINGS……… Page 4 BATTERY & CHARGER SAFETY WARNING…………… Page 6 ADDITIONAL SAFETY WARNINGS FOR DRILLS…….. Page 7 CHARGING THE BATTERY…………………………….. Page 8 INSTALLING OR REMOVING THE BATTERY...………...

  • Page 4: Introduction

    We hope you will enjoy using this tool for many years. Your Cordless Drill CDR-013 has been designed for general purpose drilling or screwdriving around the home and is intended for DIY use only.

  • Page 5: General Power Tool Safety Warnings

    GeneRal poWeR tool Safety WaRninGS WaRninG! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GeneRal poWeR tool Safety WaRninGS f) dress properly. do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) if devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 7: Battery & Charger Safety Warning

    BatteRy and cHaRGeR Safety WaRninGS THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR BATTERY CHARGER. Before using the charger read all instructions and cautionary markings on the charger, battery pack and the product using the battery pack. danger! If the battery pack case is cracked or damaged, do not insert it into charger.

  • Page 8: Additional Safety Warnings For Drills

    additional Safety WaRninG foR dRillS Do not use the drill in wet or damp conditions. Always keep the work area free of tripping hazards. When using the drill always ensure you are wearing protective safety equipment including safety glasses/goggles, ear muffs, dust mask and other protective clothing including gloves and apron.

  • Page 9: Charging The Battery

    cHaRGinG youR BatteRy The drill’s battery (7) has been shipped in a low charge condition, and requires charging prior to use. Connect the charging jack (9) to the charging cradle (10) (Fig. 1). Plug the charging adaptor (8) into a mains power outlet.

  • Page 10: Installing Or Removing The Battery

    cHaRGinG youR BatteRy (cont.) important charging notes The charging adaptor (8) and battery (7) may become warm to touch while charging. This is a normal condition, and does not indicate a problem. Use the charger at normal room temperature whenever possible. To prevent overheating, do not cover the charger and do not charge the battery pack in direct sunlight or near heat sources.

  • Page 11: Drill Operation

    inStallinG oR RemoVinG tHe BatteRy (cont.) Getting the Best performance from the Battery The length of service from each charging cycle will depend on the type of work you are doing. To obtain the longest possible battery life, we suggest the following: Store and charge your battery (7) in a cool area.
  • Page 12 dRill dRiVeR opeRation (cont.) torque Settings (tightening power of your drill) When using your drill for various driving applications, it becomes necessary to increase and decrease the power and torque in order to prevent the possibility of damaging screw heads, threads, work pieces, etc. In general, power and torque should correspond to the difficulty of the screw to be driven.
  • Page 13 dRill dRiVeR opeRation (cont.) installing drill or driver Bits Warning! Do not hold the chuck body with one hand and use power of the drill to tighten or loosen the chuck jaws. The chuck body could slip and your hand could come in contact with a rotating accessory. This could cause an accident resulting in personal injury.
  • Page 14 dRill dRiVeR opeRation (cont.) Wood drilling Mark the place where you want to drill with a punch or a nail. To avoid splintering on breakthrough, either clamp a piece of scrap wood to the back of your workpiece or continue the hole from the back of the wood when the drill bit first breaks through.

  • Page 15: Maintenance

    If the housing of the drill requires cleaning, do not use solvents but cloth only. Blow out the ventilation slots with compressed air periodically . note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the cordless drill/driver by an unauthorised person or by mishandling.

  • Page 16: Description Of Symbols

    deScRiption of SymBolS...

  • Page 17: Pack Contents

    1 x 12V Battery 1 x Charging cradle 1 x AC Charging adaptor 1 x Instruction Manual ozito induStRieS pty ltd auStRalia (Head office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...

  • Page 18: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. ozito Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
