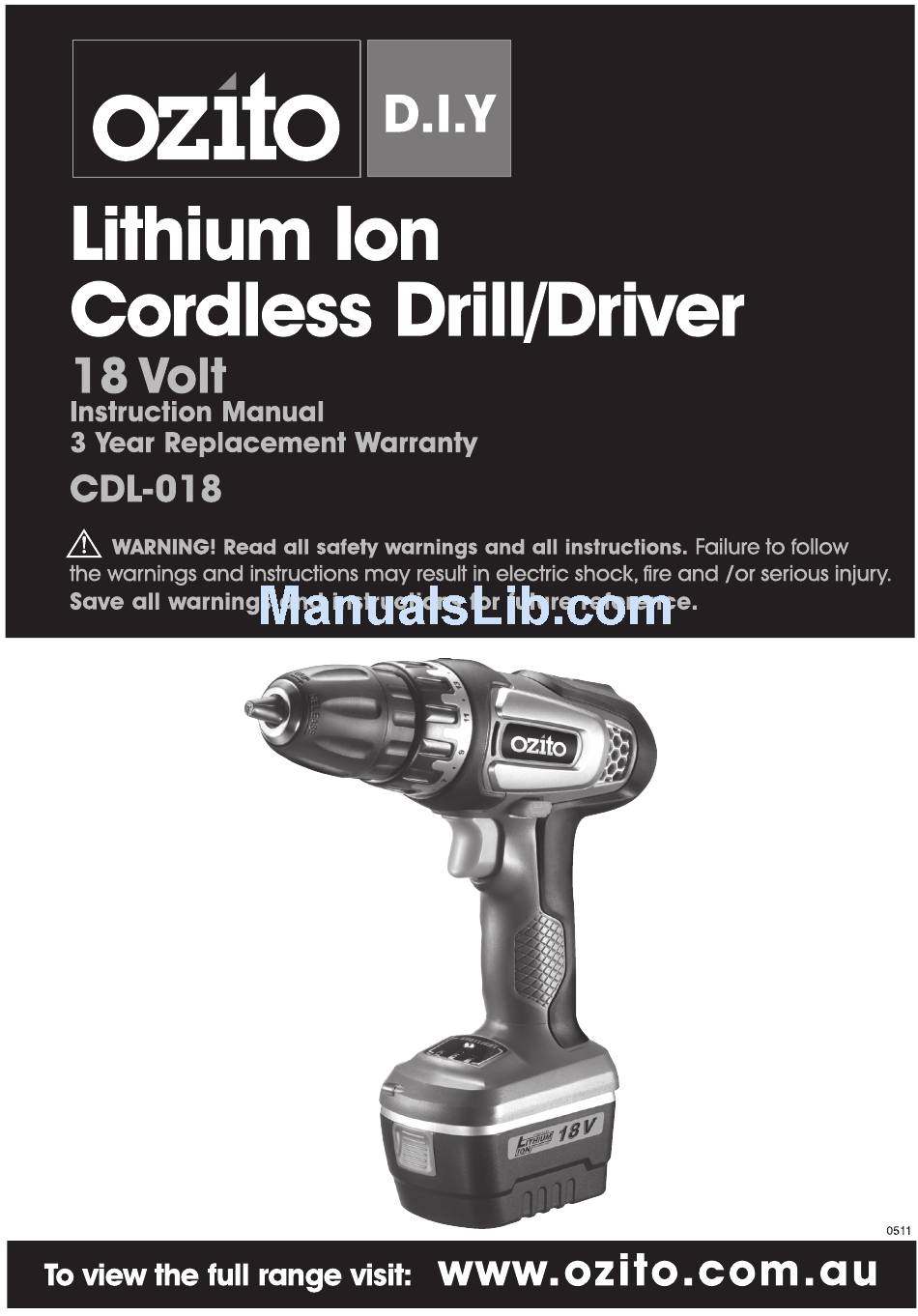

Page 2: Specifications
SPECIFICATIONS – MODEL NO. CDL-018 Battery power: Charge time: 3 – 5 hours No load speed: 0 – 580/min Chuck type: Keyless 10mm Torque settings: 19 + 1 Batteries: 2 x 1.3Ah Lithium Ion Weight with 1 battery: 1.25kg KNOW YOUR PRODUCT WARNIING! When using mains-powered tools, basic safety precautions, 1. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 1 INTRODUCTION………………………………………… Page 3 GENERAL POWER TOOL SAFETY WARNINGS…….. Page 4 BATTERY AND CHARGER SAFETY FEATURES……… Page 6 CHARGING THE BATTERIES………………………….. Page 9 INSTALLING OR REMOVING THE BATTERY...……… Page 10 DRILL/DRIVER OPERATION…………………………… Page 11 MAINTENANCE …………….………………………….. -
Page 4: Introduction
Drill/Driver. We aim to provide quality tools at an affordable price. We hope you will enjoy using this tool for many years. Your Lithium Ion Cordless Drill/Driver CDL-018 has been designed for general purpose drilling or screw driving around the home and is intended for DIY use only. -
Page 5: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool"... - Page 6 GENERAL POWER TOOL SAFETY WARNINGS - PERSONAL SAFETY d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.
-
Page 7: Battery And Charger Safety Features
BATTERY AND CHARGER SAFETY WARNINGS THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR BATTERY CHARGER. • Before using the charger read all instructions and cautionary markings on the charger, battery pack and the product using the battery pack. Danger! If the battery pack case is cracked or damaged, do not insert it into charger. - Page 8 BATTERY AND CHARGER SAFETY WARNINGS • The longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC or above 40ºC. This is important and will prevent damage to the battery pack.
- Page 9 DRILL SAFETY WARNINGS! ADDITIONAL SAFETY RULES (cont.) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 10: Charging The Batteries
CHARGING YOUR LITHIUM ION BATTERY The drills' battery (5) has been shipped in a low charge condition, and requires charging prior to use. • Connect the charger jack (12) to the charging cradle (11) (see Fig. 1). • Plug the charging adaptor (10) into a mains power Charger jack outlet. -
Page 11: Installing Or Removing The Battery
CHARGING YOUR LITHIUM ION BATTERY (cont.) • If the battery (5) does not charge properly: - Check current at mains power outlet by plugging in a lamp or other appliance. - If charging problems persist, have the complete tool checked by an electrician or a power tool repairer. -
Page 12: Drill/Driver Operation
INSTALLING OR REMOVING THE BATTERY (cont.) Getting the Best Performance from the Battery The length of service from each charging cycle will depend on the type of work undertaken. To obtain the longest possible battery life, we suggest the following: •... - Page 13 DRILL/DRIVER OPERATION (cont.) • The variable speed switch (9) can be locked off by pushing the forward/reverse selector (4) into the middle of both forward and reverse positions. WARNIING! Do not change direction of rotation while the keyless chuck (1) is in motion.
- Page 14 DRILL/DRIVER OPERATION (cont.) Keyless Chuck • The keyless chuck (1) allows for easy installation and removal of accessories. • To open and close the keyless chuck (1), firmly hold the chuck collar and rotate the chuck body with your hand (see Fig. 7). •...
- Page 15 DRILL/DRIVER OPERATION (cont.) General Hints for Drilling in all Materials • Always use sharp drill bits. • Mark the place where you would like the hole to be drilled. • Commence with a slow speed to start the hole (see section "Variable Speed Switch"...
-
Page 16: Maintenance
• Blow out the ventilation slots with compressed air periodically. Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the drill by an unauthorised person or by mishandling of the drill. SPARE PARTS Limited spare parts are available subject to availability. -
Page 17: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz ac/~ Alternating current Watts ø Direct current Diameter Milliamperes No load speed /min Revolutions or Amp hour reciprocation per minute Electrical Emissions Transformer Energy Conformity (EMC) Rating (MEPS) Read instruction manual Warning Indoor use only Double insulated Thermal cut-out protection Polarity... -
Page 18: Pack Contents
2 x 18V Li-Ion Battery Packs 1 x Charging cradle 1 x AC Charging adaptor 1 x Instruction manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au... -
Page 19: Warranty
DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. The Lithium Ion battery is covered by a 12 month warranty.
