Compact Security FloodLight
Installation and Operation Instructions
Introduction
The Arlec MAL615 Movement Activated Sensor Light is a compact sensor light unit. It controls
two PAR38, 150W floodlight bulbs for wide area illumination. The MAL615 can be used to provide lighting
for security and general purposes in a variety of locations around the home or workplace.
Overview

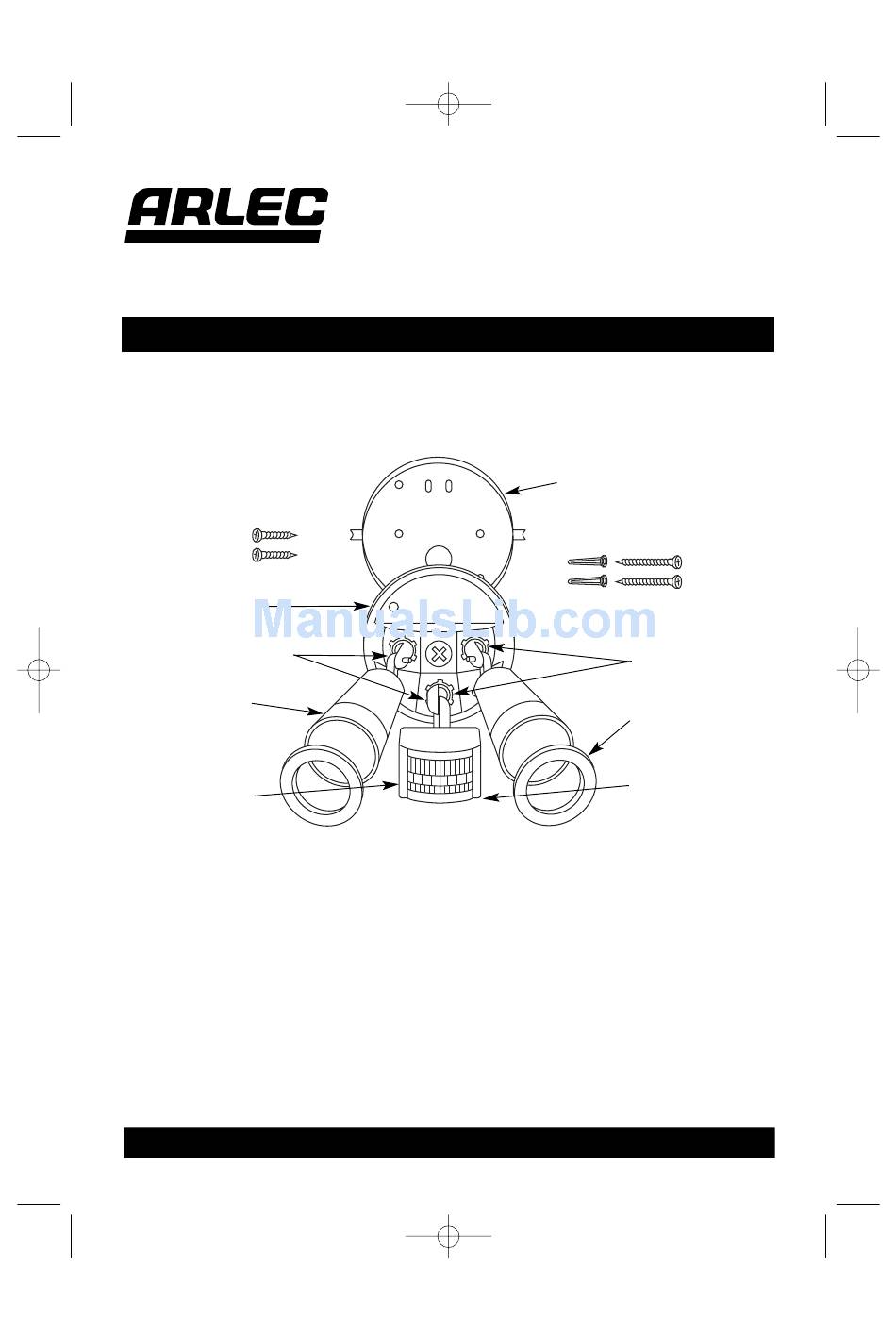

Fig. 1
Mounting Plate screws
Mounting Plate
Joint & Clamp Screw
Lampholders
Sensor Head
IMPORTANT: Loosen all lock nuts and screws on sensor and lamp holders before
making any adjustments.
NOTE: Always face control knobs on sensor downwards to ensure correct operation
Location of unit
To achieve best results for exterior use, your Movement Activated Floodlight should be securely
mounted to a wall or eaves in close proximity (max 300mm) to an existing bayonet style light fitting.
For ideal operation the sensor head should be located approx 2.5m above the area where movement
is to be sensed. This will provide the best scanning sensitivity and detection area.
• Although this product is weatherproof it is preferable to mount your Floodlight in a sheltered or
semi-sheltered location.
• To avoid damage to unit - do not aim the sensor towards the sun.
• To avoid nuisance triggering, the sensor should be directed away from heat sources such as BBQ's,
air conditioners, other outside lighting, flue vents and moving cars.
Important! Please read these instructions carefully.
1/9/05 12:18 PM Page 3
MAL615 (Series 5)
Junction Box
Screws for rawl plugs
for fixing Junction Box
Locknuts
Weatherproofing
Seals
Sensor Controls
(underside)
