Arlec HL33 Instruction Manual

HL33_CPIN551-2 22/2/12
Wall Mount Wide Angle
Halogen Floodlight
Instruction Manual
Please read the following instructions carefully
before proceeding with installation.
INSTALLATION OF THIS FITTING MUST BE
CARRIED OUT BY A QUALIFIED ELECTRICIAN.
This product is suitable for permanent outdoor
use.
WARNING: Before attempting any installation or
maintenance, ensure that the electrical supply
is switched off and the fuse removed or the
circuit breaker is in the "off" position.
Do not mount the Floodlight near flammable
surfaces, as the lamp body gets extremely hot.
Do not position the Floodlight closer than one
metre from surface to be illuminated.
Do not touch the fitting whilst it is in operation -
the fitting will become very hot.
The maximum rating of this floodlight is 250W
each tube.

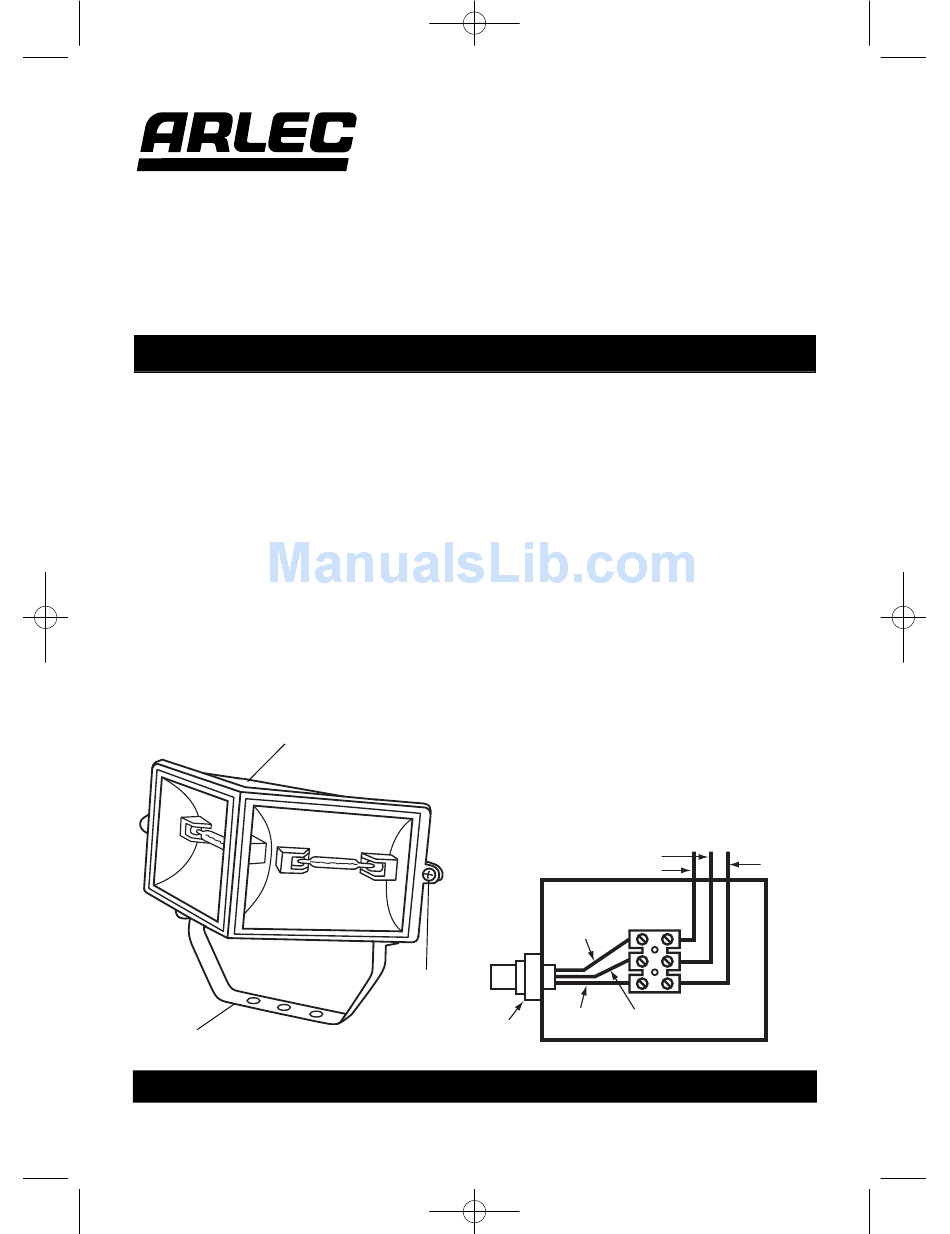

Fig. 1
Mounting
Bracket
Important! Please read these instructions carefully before use.
Due to continuous research and development the specifications herein are subject to change without notice.
3:53 PM Page 2
Lantern
Body
Front
Cover
Screws
MOUNTING THE FITTING
Attach the mounting bracket onto wall or
other vertical surface in desired position.
The mounting bracket must be installed
running horizontally.
Filament life will be reduced considerably if
the fitting is mounted on an angle.
WIRING
1. Remove the terminal cover and feed the
cable through the cable gland.
2. Tighten the cable gland to ensure a
waterproof seal.
3. Wire the unit in accordance with Fig. 2.
4. Check that all connections are correct
and tight.
5. Refit the terminal cover.
6. Form a drip loop in the cable to prevent
moisture running into the cable gland.
7. The Floodlight must be earthed.
Fig. 2
EARTH (Green/Yellow)
White
TO AC ACTIVE
POWER (Brown or Red)
230/240V
NEUTRAL EARTH
(Blue or Black) (Green/Yellow)
CABLE
GLAND
HL33
TO LAMPHOLDER
White
