Arlec HL5 Installation Instructions

Technical Data
SPECIFICATIONS
Input Voltage 230-240Vac, 50Hz
Supply Current 2A
Max Watt 500W
IP Classification IP23
Replacement Globe 500 Watt Tungsten Halogen ,
Arlec Part No HT500 or similar 118mm linear tube
CONSTRUCTION
Enclosure Zinc/ Aluminum alloy
Glass/ Lens 4.8mm thick tempered safety
Reflector 0.3mm aluminum
Colour Black
WARRANTY
Arlec guarantees this product in accordance with the Australian
Consumer Law.
Arlec also warrants to the original first purchaser of this product
("you") from a retailer that this product will be free of defects in
materials and workmanship for a period of
12 months from the date of purchase; provided the product is not
used or installed other than for the purpose, or in a manner not
within the scope of the recommendations and limitations,
specified by Arlec, is new and not damaged at the time of
purchase, has been properly installed by a licensed electrician or
contractor who is licensed to install electrical products in the
place in which the product was installed and in accordance with
Arlec's installation instructions, has been maintained in
accordance with the recommendations specified by Arlec, has
not been subjected to abuse, misuse, neglect or damage, has not
been modified or repaired without the approval of Arlec and has
not been used for, or installed in premises which are used for,
commercial purposes ("Warranty").
For all Sales & Warranty enquiries
Arlec Australia Pty Ltd. (A.C.N. 009 322 105)
Building 3, 31-41 Joseph Street,
Blackburn North, Victoria, 3130
P.O. Box 1065, Blackburn North LPO
Blackburn North, 3130
Phone (03) 9982 5111
Fax 1300 360 650
custservice@arlec.com.au
HL5 Instructions.indd 2
Replace any cracked protective shield.
In the event of a cracked or broken front
glass lens, please remove the lantern or
replace the glass lens (Arlec Part Number
SS1063 as soon as possible.
If you wish to claim on the Warranty, you must, at your own
expense, return the product or that part of the product which you
believe is defective in materials and workmanship, and provide
proof of original purchase, your name, address and telephone
number and a certificate of installation or other document
required by law for the installation of electrical products in the
place in which the product was installed issued by the licensed
electrician or contractor who installed the product, to Arlec at
the address below within 12 months from the date of purchase.
Please note that the Warranty does not cover removal or
re-installation of the product or that part of the product which
you believe is defective.
Arlec will assess any claim you may make on the Warranty in the
above manner and if, in Arlec's reasonable opinion, the Warranty
applies, Arlec will at its own option and expense replace the
product (or part of the product) with the same or similar product
(or part of the product) or repair the product (or part of the
product) and return it to you or refund the price you paid for the
product. Arlec will bear its own expenses of doing those things,
and you must bear any other expenses of claiming on the
Warranty.
The Warranty is in addition to other rights and remedies you may
have under a law in relation to the product to which the Warranty
relates.
Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major
failure.
© This instruction leaflet is subject to copyright and must not be reproduced,
copied or otherwise used in any way or for any purpose without the consent in
writing of the owner, Arlec Australia Pty Ltd (A.C.N. 009 322 105).
CPIN002265/3
INSTALLATION INSTRUCTIONS HL5
INTRODUCTION
The Arlec HL5, 500 Watt halogen worklight is suitable for indoor (ambient temperature 25˚C) or
permanent outdoor use.
Please read the following instructions carefully before proceeding with installation.
PARTS IDENTIFICATION

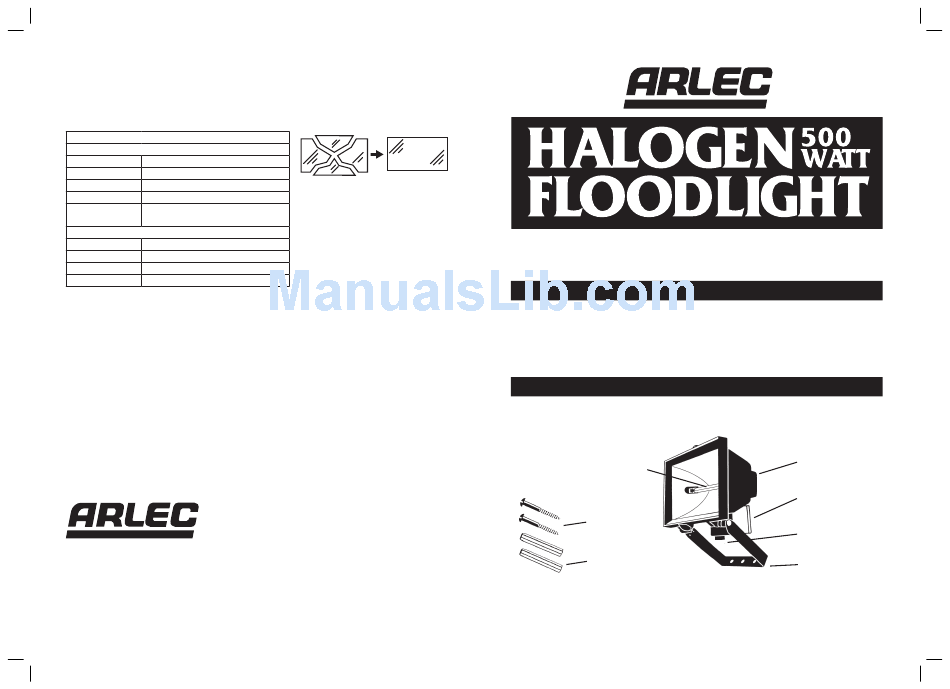

Fig. 1
Tungsten
halogen tube
2 x screws
2 x masonry
plugs
CPIN002265/3
Floodlight
housing
Terminal
Cable gland
Mounting
bracket
31/05/12 12:39 PM
