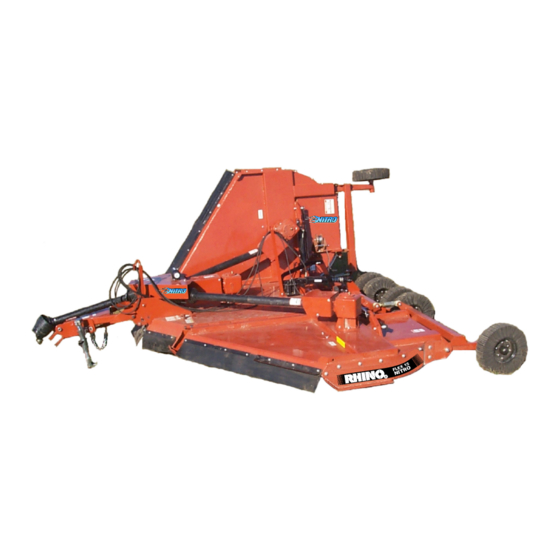

Page 1 FN10/FN15 NITRO HEAVY-DUTY FLEX-WING ROTARY CUTTER Published 02/10 Part NO. 00779794C OPERATOR’S MANUAL This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment.
Page 2 To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
Page 3 In order to reduce accidents and enhance the safe operation of mowers, Alamo Group Ag Division, in cooperation with other industry manufacturers has developed the AEM/FEMA Industrial and Agricultural Mower Safety Practices video and guide book. The video will familiarize and instruct mower-tractor operators in safe practices when using industrial and agricultural mowing equipment.
Page 4 Alamo Group Ag. Division is willing to provide one (1) AEM Mower Safety Practices Video Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video DVD Format – AEM/FEMA Mower Operator Safety Video Mower Operator’s Manual AEM Mower Operator’s Safety Manual Requester Name Phone: Requester Address:...
Page 5: Table Of Contents
TABLE OF CONTENTS SAFETY SECTION ......................1-1 General Safety Instructions and Practices ......................1-2 Operator Safety Instructions and Practices ....................... 1-3 Equipment Operation Safety Instructions and Practices ..................1-5 Connecting or Disconnecting Implement Safety Instructions and Practices ............ 1-11 Transporting Safety Instructions and Practices ....................1-12 Maintenance and Service Safety Instructions and Practices ................
Page 6 Starting the Tractor ............................4-29 Brake and Differential Lock Setting ........................4-29 Operating the Mower Wings ..........................4-29 Transport Position ............................4-30 Operating Position ............................4-30 Driving the Tractor and Cutter .......................... 4-31 Crossing Ditches and Steep Inclines ....................... 4-32 OPERATING THE TRACTOR AND IMPLEMENT ...................
Page 8: General Safety Instructions And Practices
SAFETY General Safety Instructions and Practices A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions.
Page 9: Operator Safety Instructions And Practices
SAFETY Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. (SG-30) Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
Page 10 SAFETY Always read carefully and comply fully with the manufacturer’s instructions when handling oil, solvents, cleansers, and any other chemical agent. (SG-22) KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement and possible serious injury or death. (SG-24) Never allow children to play on or around Tractor or Implement. Children can slip or fall off the Equipment and be injured or killed.
Page 11: Equipment Operation Safety Instructions And Practices
SAFETY Avoid contact with hot surfaces of the engine or muffler. Use gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or scalding. (SG-38) Do not put hands or feet under mower decks. Blade Contact can result in serious injury or even death.
Page 12 SAFETY Do not operate Mower if excessive vibration exists. Shut down PTO and the Tractor engine. Inspect the Mower to determine the source of the vibration. If Mower blades are missing or damaged replace them immediately. Do not operate the mower until the blades have been replaced and the Mower operates smoothly.
Page 13 SAFETY Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel are explosive and their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene.
Page 14 SAFETY There are obvious and hidden potential hazards in the operation of this Mower. REMEMBER! This machine is often operated in heavy brush and in heavy weeds. The Blades of this Mower can throw objects if shields are not properly installed and maintained. Serious injury or even death may occur unless care is taken to insure the safety of the operator, bystanders, or passersby in the area.
Page 15 SAFETY Follow these guidelines to reduce the risk of equipment and grass fires while operating, servicing, and repairing the Mower and Tractor: -Equip the Tractor with a fire extinguisher in an accesible location. -Do Not operate the Mower on a Tractor with an underframe exhaust. -Do Not smoke or have an open flame near the Mower and Tractor.
Page 16 SAFETY Rotary Mowers are capable under adverse conditions of throwing objects for great distances (300 feet or more) and causing serious injury or death. Follow safety messages carefully. STOP MOWING IF PASSERSBY ARE WITHIN 300 Feet UNLESS: -Front and Rear Deflectors, Chain Guards, or Bands are installed and in good, workable condition;...
Page 17: Connecting Or Disconnecting Implement Safety Instructions And Practices
SAFETY Connecting or Disconnecting Implement Safety Instructions and Practices DO NOT use a PTO adapter to attach a non-matching Implement driveline to a Tractor PTO. Use of an adapter can double the operating speed of the Implement resulting in excessive vibration, thrown objects, and blade and implement failure. Adapter use will also change the working length of the driveline exposing unshielded driveline areas.
Page 18: Transporting Safety Instructions And Practices
SAFETY Transporting Safety Instructions and Practices Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up hills only at a low speed and using a gradual steering angle. Rear mounted implements move the center of gravity to the rear and remove weight from the front wheels. Make certain, by adding front ballast, that at least 20% of the tractor’s weight is on the front wheels to prevent rearing up, loss of steering control or Tractor tip-over.
Page 19 SAFETY Transport only at speeds where you can maintain control of the equipment. Serious accidents and injuries can result from operating this equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.
Page 20: Maintenance And Service Safety Instructions And Practices
SAFETY Secure the Implement for transport before traveling on public roads. For pull-type Implements, secure the center axle using cylinder stops or transport pin and properly attach a safety chain between the Implement and Tractor. Secure wings in upright position on folding Implements using wing transport locks.
Page 21 SAFETY Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious injury or even death. (SG-14) Never attempt to lubricate, adjust, or remove material from the Implement while it is in motion or while tractor engine is running.
Page 22: Storage And Parking Safety Instructions And Practices
SAFETY PARTS INFORMATION Rhino mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Rhino specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit” parts may reduce mower performance, void warranties, and present a safety hazard.
Page 23: Decal Location
SAFETY Decal Location NOTE: Rhino supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Rhino cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply).
Page 24 SAFETY ITEM PART NO. TYPE DESCRIPTION D389 DECAL Lift Unit Decal Sheet D388 DECAL Driveline Hazards D390 DECAL Pull Type Units D417 3(2) IMPORTANT Replace Blades in Pairs 00753840 2(1) DANGER Folding Wing Thrown Objects D401 INSTRUCT 1000 RPM (Not Shown) 999403 0(1) DANGER...
Page 25: Decal Description
SAFETY Decal Description Multi Hazard Decal Sheet P/N D389 Decal D389 consists of the following multi-hazards. FN10/FN15 NITRO 02/10 Safety Section 1-19 © 2010 Alamo Group Inc.
Page 26 SAFETY Driveline Hazards P/N D388 Decal D388 consists of the following multi-hazards. FN10/FN15 NITRO 02/10 Safety Section 1-20 © 2010 Alamo Group Inc.
Page 27 SAFETY Multi Hazard Decal Sheet P/N D390 Decal D390 consists of the following multi-hazards. FN10/FN15 NITRO 02/10 Safety Section 1-21 © 2010 Alamo Group Inc.
Page 28 SAFETY IMPORTANT! Always replace blades in pairs. P/N D417 DANGER! Stay clear when lowering or raising wings. P/N 00753840 1000 RPM P/N D401 DANGER! Keep everyone clear when lifting, folding, and working under raised components. Block securely before working under mower. Install Weight Box and Weight (Min.
Page 29 SAFETY For safety and to guarantee optimum product reliability always use genuine RHINO replacement parts. P/N 00760657 DANGER! Guard Missing, Do Not Operate. If you see this decal, Do Not Operate the mower until the shield has been replaced. P/N 00756004 NAME LOGO - FL10 P/N FL10 NAME LOGO - FL15...
Page 30 SAFETY NAME LOGO: NITRO P/N D558 NAME LOGO: NITRO P/N D557 Blade Rotation Counter Clockwise. P/N D137 Blade Rotation Clockwise. P/N D138 FN10/FN15 NITRO 02/10 Safety Section 1-24 © 2010 Alamo Group Inc.
Page 31 SAFETY INFORMATION - 5 Year Gearbox Warranty P/N 00771283 INFORMATION - 2 Year Driveline Warranty P/N 00771284 Logo Product Name: Rhino P/N 99102 Logo Product Name: Rhino P/N D302 FN10/FN15 NITRO 02/10 Safety Section 1-25 © 2010 Alamo Group Inc.
Page 32 SAFETY Logo Product Name: Rhino P/N D303 Slow Moving Vehicle Decal. Keep SMV reflector clean and visible. DO NOT transport or operate without the SMV. P/N 03200347 Red Reflector. Keep reflectors clean and visible. P/N 1458392 Amber Reflector. Keep reflectors clean and visible. P/N 1458393 FN10/FN15 NITRO 02/10 Safety Section 1-26...
Page 33 SAFETY Read Operator’s Manual! The operator’s manual is located inside this canister. If the manual is missing order one from your dealer. P/N 00776031 WARNING! Explosion Hazard - Release all air pressure in tire before loosening bolts. P/N 1006348 WARNING! Jack - Maximum Capacity 3,200 lbs. Side Load 2,000 lbs.
Page 34 SAFETY DANGER! Crushing Hazard - Transport Latch P/N D539 DANGER! Crushing Hazard - Falling Wings P/N D519 FN10/FN15 NITRO 02/10 Safety Section 1-28 © 2010 Alamo Group Inc.
Page 35: Federal Laws And Regulations
SAFETY Federal Laws and Regulations This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such. Employer-Employee Operator Regulations U.S.
Page 82 INTRODUCTION This Rotary Cutter is designed with care and built with quality materials by skilled workers. Proper assembly, maintenance, and operating practices, as described in this manual, will help the owner/operator get years of satisfactory service from the machine. The purpose of this manual is to familiarize, instruct, and train. The Assembly Section instructs the owner/ operator in the correct assembly of the Mower using standard and optional equipment.
Page 83 INTRODUCTION Your heavy-duty Cutter is designed primarily for weeds, grass, and brush up to 5" diameter. With proper maintenance as described in this manual, your Cutter will provide you with years of dependable service with a minimum of repairs. It is recommended that all operators of this implement read this manual or be instructed of its contents as to safety, proper operation, and maintenance before beginning operation.
Page 84: Attention Owner/Operator
INTRODUCTION Attention Owner/Operator BEFORE OPERATING THIS MACHINE: 1. Carefully read the Operator’s Manual, completely understand the Safety Messages and instructions, and know how to operate correctly both the tractor and implement. 2. Fill out the Warranty Card in full. Be sure to answer all questions, including the Serial Number of the implement.
Page 86: Dealer Set-Up Instructions
ASSEMBLY DEALER SET-UP INSTRUCTIONS The mower as received from the factory is virtually completely assembled and requires minimum time to complete assembly ready for sale. On a fully assembled unit, do not release the Wing Retaining Strap until the hoses are attached to the tractor and the Wing Cylinders are filled with oil.
Page 87 ASSEMBLY 2. Make sure the tractor PTO is the correct speed and shaft size for the implement. Ensure the drawbar is extended the proper distance from the Tractor PTO shaft for desired PTO speed; 540 PTO is 14” and for 1000 PTO speed the distance is 16”...
Page 88 ASSEMBLY 8. Remove retaining bracket from end yoke of main driveline. Remove main driveline from mower and place on ground or hard surface. Figure AsmP-R-0120 9. Make sure the wing Transport Bars/Latches are locked in the position to hold the wings vertical before removing shipping strap.
Page 89: Connecting Driveline
ASSEMBLY 11. Filling the cylinders with oil should raise the wings slightly and loosen the wing Transport Bars/Latches retaining pin. NOTE: DO NOT release the wing Transport Bar/Latch if there is a force on the pin. If there is a force holding the Transport Bar/Latch in place, use the tractor hydraulic control levers while in the tractor seat to raise the wings until the force is relieved.
Page 90: Driveline Attachment
ASSEMBLY When attaching the Implement input driveline to the Tractor PTO, it is important that the connecting yoke spring activated locking collar slides freely and the locking balls are seated securely in the groove on the Tractor PTO shaft. Push and pull the driveline back and forth several times to ensure it is securely attached.
Page 91: Tires And Wheels
ASSEMBLY 2. Inner center axle dual tire assemblies are shipped bolted on wing mount tubes. Remove transport bars from wings and lower each wing so that inner tire and hub assembly can be removed and installed on center axle. NOTE: It will be necessary to raise each side of center axle slightly so inner dual tires can be installed.
Page 92 ASSEMBLY Lubricate the PTO drivelines and wheel hubs according to the lubrication information found in the Maintenance Section. FN10/FN15 NITRO 02/10 Assembly Section 3-8 © 2010 Alamo Group Inc.
Page 94 OPERATION RHINO FN10/FN15 NITRO ROTARY MOWER OPERATION INSTRUCTIONS Rhino FN10/FN15 NITRO rotary mowers are manufactured with quality material by skilled workers. These mowers are designed to cut grass, weeds, crop stalks, brush and other vegetation up to 5” diameter. The mower is equipped with protective deflectors and/or chain guards to prevent objects being thrown from the mower by the blades, however, no shielding is 100% effective.
Page 95: Standard Equipment And Specifications
OPERATION Standard Equipment and Specifications FN15 NITRO FN10 NITRO Cutting Width 180” 126” Transport Width 90-3/4” 86-3/8” Overall Width 186” 133” Overall Length 183” 183” Cutting Height 1-3/4” - 14-1/2” 1-3/4”-14-1/2” Hitch HD Clevis HD Clevis Blade Overlap 6” 6” Blade Carrier HD Pan HD Pan...
Page 96: Operator Requirements
OPERATION 2. OPERATOR REQUIREMENTS Safe operation of the unit is the responsibility of a qualified operator. A qualified operator has read and understands the implement and tractor Operator’s Manuals and is experienced in implement and tractor operation and all associated safety practices. In addition to the safety messages contained in this manual, safety signs are affixed to the implement and tractor.
Page 97: Tractor Requirements
OPERATION 3. TRACTOR REQUIREMENTS The tractor used to operate the mower must have the power capacity to lift, pull, and operate the Power Take Off (PTO) at the mower’s rated speed while traveling at a ground speed between 2 and 5 MPH. Operating the mower with a tractor that does not meet the following requirements may cause tractor or mower damage and be a potential danger to the operator and passersby.
Page 98: Tractor Horsepower
OPERATION 3.3 Tractor Horsepower The horsepower required to operate the mower depends on several operating factors including the vegetation to be cut, terrain condition, operator experience, condition of the mower and tractor, and others. For most mowing conditions, the FL10 NITRO mower requires a tractor with a minimum of 40 HP and the FL15 NITRO mower requires a tractor with a minimum of 50 HP.
Page 99: Front End Weight
OPERATION 3.6 Front End Weight A minimum of 20% total tractor weight must be maintained on the tractor front end at all times. Front end weight is critical to maintain steering control and to prevent the tractor from rearing up while driving. If the front end is too light, add weight until a minimum of 20% total weight is reached on the front tires.
Page 100: Tire Spacing
OPERATION 3.8 Tire Spacing Tractor tires should be set a minimum of 60”(1.5 mm) apart measured from inside of tire to inside of tire. Refer to the tractor Operator’s Manual or consult an authorized dealer for instructions to change tractor tire spacing. OPS-R- 0062 4.
Page 101: Dismounting The Tractor
OPERATION 4.2 Dismounting the Tractor Before dismounting, park the tractor and implement on a reasonably level surface, apply the parking brake, idle the engine down, disengage the PTO, and lower the implement to the ground. Shut down the tractor engine according to the operator’s manual, remove the key, and wait for all motion to completely stop. Never leave the seat until the tractor, its engine and all moving parts have come to a complete stop.
Page 102: Connecting The Mower To The Tractor
OPERATION Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health. (SG-23) Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result in injury or death. Read the Tractor operators manual for proper starting instructions.
Page 103: Connecting Mower Hydraulic Lines To The Tractor
OPERATION To attach the mower, place two 1” flatwashers positioned under top lip of tongue clevis and to the top of drawbar. Insert a 1” diameter grade 5 or 8 bolt through clevis and drawbar and retain in position with a 1” locknut. Tighten the locknut securely but do overtighten which could spring or break the clevis.
Page 104: Setting The Mower
OPERATION to outlets of the same tractor hydraulic port. Connect the mower hydraulics to the control valve bank with the center section line to the right port. Connect the wing cylinder lines to the control valve positioned to correspond with the left and right wing. To activate the 3-spool hydraulic control valve, tie the tractor’s hydraulic control lever back to keep hydraulic oil continuously fed to the valve bank.
Page 105: Setting Deck Height
OPERATION 7.1 Setting Deck Height LEVELING DECK CENTER SECTION Place the tractor and mower on a level surface and lower both wings. Using the center section hydraulic cylinder, position the mower so the skid shoes are 1” less off the ground than the desired final cut height.
Page 106: Setting Deck Pitch
OPERATION 7.2 Setting Deck Pitch To facilitate safe and efficient operation, the mower should be operated with the deck approximately 3/4” LOWER IN THE FRONT THAN THE REAR. Operating the mower at this pitch will allow the mower to cut the grass only once and requires less work from the tractor.
Page 107: Driveline Length Check
OPERATION 8.1 Driveline Length Check Before operating the Implement, check to make sure the Implement input driveline will not bottom out or become disengaged. Bottoming out occurs when the inner shaft penetrates the outer housing until the assembly becomes solid-it can shorten no more. Bottoming out can cause serious damage to the Tractor PTO by pushing the PTO into the Tractor and through the support bearings or downward onto the PTO shaft, breaking it off.
Page 108 OPERATION Engagement Check Procedure • With the driveline attached, position the mower to the point where the telescoping driveline is at its maximum extension. Completely shut down the tractor and secure in position. • Mark the inner driveline shield 1/8” from the end of the outer shield. •...
Page 109: Constant Velocity (Cv) Driveline
OPERATION 8.2 Constant Velocity (CV) Driveline Mowers are equipped with a Constant Velocity (CV) driveline, the maximum turning angle between the tractor and mower must be determined to ensure the joint angle does not over-extend which can cause CV joint damage.
Page 110: Pre-Operation Inspection And Service
OPERATION The Constant Velocity PTO driveline is HEAVY (70 lbs or greater) and Special Lifting Procedures are recommended. Use lifting assistance such as mechanical assistance, two people, and proper lifting techniques when connecting or installing the driveshaft to reduce the possibility of back injuries Do not turn so sharp or lift mower so high to produce a severe "knocking"...
Page 111: Tractor Pre-Operation Inspection/Service
OPERATION 9.1 Tractor Pre-Operation Inspection/Service Refer to the tractor operator’s manual to ensure a complete pre-operation inspection and scheduled service performed according manufacturers recommendations. The following are some of the items that require daily service and inspection: • Tire condition/air pressure •...
Page 112 OPERATION The operator’s manual and safety signs affixed on the unit contain important instructions on the safe and proper use of the equipment. Maintain these important safety features on the implement in good condition to ensure the information is available to the operator at all times.
Page 113 OPERATION • Ensure the tractor PTO master shield is in place, lowered and in good condition. • Ensure each mower slip clutch shield is secured in place and in good condition. • Ensure the driveline slip clutches are properly adjusted and the friction plates are not frozen together.
Page 114 OPERATION • Ensure each hydraulic cylinder is installed and retained correctly. Ensure the proper size pins are used to retain the cylinders in place and are secured with pins. • Check for hydraulic oil leaks on the cylinders, along the hydraulic lines, and at tractor hydraulic ports.IMPORTANT: DO NOT use your hands to check for oil leaks.
Page 115: Cutting Component Inspection
OPERATION 9.3 Cutting Component Inspection Inspect blade pan and blade assembly for the following: OPS-U-0031 FN10/FN15 NITRO 02/10 Operation Section 4-23 © 2010 Alamo Group Inc.
Page 116 OPERATION Operating the mower with loose blade hardware will damage the blade holder or blades and can result in blade breakage or blade fastener failure. Broken blades or bolts can be thrown out from under the mower for distances up to 300 feet. When the blades are replaced, the fastening hardware must be replaced.
Page 117: Blade Bolt Inspection
OPERATION 9.4 Blade Bolt Inspection Inspect Blade Bolt Head daily for wear as followed: Inspect the Blade Bolt Heads daily for abnormal wear. REPLACE BOTH BLADE BOLTS on the Blades IMMEDIATELY if either blade bolts has: • Visible cracks or •...
Page 118 OPERATION Rotary Mower PRE-OPERATION Inspection Mower ID#________________ Make ____________________ Date: ________________ Shift ____________________ Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 119 OPERATION Tractor PRE-OPERATION Inspection Tractor ID#________________ Make ____________________ Date: ________________ Shift ____________________ Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 120: Driving The Tractor And Implement
OPERATION 10. DRIVING THE TRACTOR AND IMPLEMENT Safe tractor transport requires the operator possess a thorough knowledge of the model being operated and precautions to take while driving with an attached implement. Ensure the tractor has the capacity to handle the weight of the implement and the tractor operating controls are set for safe transport.
Page 121: Starting The Tractor
OPERATION 10.1 Starting the Tractor The procedure to start the tractor is model specific. Refer to the tractor operator’s manual for starting procedures for your particular tractor. Consult an authorized dealer if the starting procedure is unclear. Ensure the 3-point control lever is in the lowered position and the PTO is disengaged before starting the tractor.
Page 122: Transport Position
OPERATION 10.4 Transport Position To raise mower wings, drive the unit to a level area and retract the wing hydraulic cylinders. DO NOT raise wings with the mower positioned on an embankment or other inclined position to prevent overturning the mower. After the wings are fully raised, install transport lock braces to prevent wings from inadvertently falling.
Page 123: Driving The Tractor And Cutter
OPERATION Use extreme care when lowering or unfolding the implement’s wings. Make sure no bystanders are close by or underneath the wings. Allow ample clearance around the implement when folding or unfolding the wings. Use extreme caution around buildings or overhead power lines.
Page 124: Crossing Ditches And Steep Inclines
OPERATION 10.7 Crossing Ditches and Steep Inclines When crossing ditches with steep banks or going up sharp inclines, it is possible that the main driveline inner profile will penetrate into the outer housing to its maximum depth until the assembly becomes solid (driveline is at its extreme shortest length).
Page 125: Operating The Tractor And Implement
OPERATION Inclines and ditches should be approached along a line which is at an angle as shown. This type of path will reduce the possibility of over-collapse of the driveline and resulting damage. If the gradient is so steep that such an approach increases the possibility of a tractor roll-over, select an alternate crossing path.
Page 126: Foreign Debris Hazards
OPERATION Many varied objects, such as wire, cable, rope, or chains, can become entangled in the operating parts of the mower head. These items could then swing outside the housing at greater velocities than the blades. Such a situation is extremely hazardous and could result in serious injury or even death.
Page 127: Engaging The Power Take Off (Pto)
OPERATION Rotary Mowers are capable under adverse conditions of throwing objects for great distances (300 feet or more) and causing serious injury or death. Follow safety messages carefully. STOP MOWING IF PASSERSBY ARE WITHIN 300 Feet UNLESS: -Front and Rear Deflectors, Chain Guards, or Bands are installed and in good, workable condition;...
Page 128: Pto Rpm And Ground Speed
OPERATION 11.4 PTO RPM and Ground Speed Ground speed for mowing will depend upon the height, type, and density of vegetation to be cut. Recommended speed for efficient mower performance is between 2 and 5 mph(3-8 kph). Operate the mower at its full rated PTO speed to maintain blade speed for a clean cut.
Page 129 OPERATION Do not mow with two machines in the same area except with Cab tractors with the windows closed. (SGM-11) Mow only in conditions where you have clear visibility in daylight or with adequate artificial lighting. Never mow in darkness or foggy conditions where you cannot clearly see at least 300 feet (90 m) in front and to the sides of the tractor and mower.
Page 130 OPERATION When you get to the end of a pass, slightly raise the mower (2-4”) before turning. Never raise the mower entirely while the blades are turning. If the mower must be raised higher than 12” from ground level, disengage the tractor PTO and wait for all mower rotation to come to a complete stop before proceeding to raise the mower.
Page 131 OPERATION When mowing across uneven areas such as road shoulders, ditch edges, and other uneven terrain, position mower so that one support wheel is near the highest point to prevent blades from cutting into gravel or dirt which can cause rapid blade wear and extremely severe shock loads on the drivetrain resulting in rapid wear or damage to these components.
Page 132: Shutting Down The Implement
OPERATION 11.6 Shutting Down the Implement To shut down attached mower head, first bring the tractor to a complete stop. Decrease engine RPM to idle then disengage cutterhead. The mower head will come to a complete stop within a suitable amount of time.
Page 133 OPERATION Never unhitch without using the Tongue Jack. The Tongue is very heavy. Attempting to lift the Tongue without using the Tongue Jack could cause strains or other injury. Allowing the tongue to fall suddenly and unexpectedly could result in crushing injury. Use the Tongue Jack for lifting the Implement only.
Page 134: Mower Storage
OPERATION 13. MOWER STORAGE It is recommended that the mower be stored with the center section and both wings fully lowered to ground level. If the mower is stored with the wings in the raised position, select a level area and install wing transport braces to prevent the wings from falling BEFORE disconnecting the mower hitch from the tractor.
Page 135 OPERATION Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death. (SG-10) Before transporting the tractor and mower, idle the tractor engine, disengage the PTO and wait for all mower moving parts to come to a complete stop.
Page 136: Tire And Wheels
OPERATION 14.1 Tire and Wheels Laminated Sectional Tires are designed for conditions where puncture proof performance is required and the mower will not be transported for long distances on roadways. Transport speed for laminated tires should not exceed 15 MPH. Excessive speed can cause damage to the machine and tire sections. Laminated tires must be installed such that the rubber segments lay with the ground.
Page 137: Transporting On Public Roadways
OPERATION 14.2 Transporting on Public Roadways Extreme caution should be used when transporting the tractor and mower on public roadways. The tractor must be equipped with all required safety warning features including a SMV emblem and flashing warning lights to alert drivers of the tractor’s presence. Remember that roadways are primarily designed for automotive drivers and most drivers will not be looking out for you, therefore, you must look out for them.
Page 138 OPERATION Make sure that all tractor flashing warning lights, headlights, and brake/tail lights are functioning properly before proceeding onto public roads. While newer model tractors have plenty of lighting to provide warning signals and operating lighting, most older models are only equipped with operating lights. Consult an authorized tractor dealer for lighting kits and modifications available to upgrade the lighting on older tractor models.
Page 139: Hauling The Tractor And Implement
OPERATION 14.3 Hauling the Tractor and Implement Before transporting a loaded tractor and implement, measure the height and width dimensions and gross weight of the complete loaded unit. Ensure that the load will be in compliance with the legal limits set for the areas that will be traveled through.
Page 140: Troubleshooting Guide
OPERATION 15. TROUBLESHOOTING GUIDE Problem Possible Cause Remedy Excessive Vibrations Check Gear box bolts. Tighten if loose. Check For loose nuts on Tighten If loose blade holder and blades Check for bent output shaft. Replace shaft if bent. If shaft is bent oil will normally leak from the bottom seal.
Page 141 OPERATION Gearbox Noisy Rough gears. Run in or change gears. Worn bearing. Replace bearing Gearbox Leaking Damaged oil seal Replace Seal. Bent shaft. Replace oil seal and shaft. Shaft rough in oil seal area. Replace or repair shaft. Oil seal installed wrong. Replace seal.
Page 142 OPERATION Oil Squirting from Breather Oil leaking by piston ring. Do not carry cutter on cylinder. vent hole (A small amount of leakage is (Use stroke collars) normal) Piston "O" ring worn Replace piston "O" ring. Cylinder wall scored or pitted. Replace cylinder.
Page 144: Lubrication
MAINTENANCE Before operating your Rotary Cutter, make sure it is properly lubricated and thoroughly inspected. Only a minimum of time and effort is required to regularly lubricate and maintain this machine to provide long life and trouble free operation. Always disengage the PTO before raising the Rotary Cutter for transporting or making adjustments.
Page 146: Center & Wing Gearboxes
MAINTENANCE CENTER & WING GEARBOXES The Gearboxes have been filled with lubricant to the proper level prior to shipment. However, you should check the oil level using dipstick before operating, and frequently thereafter. The gearbox should not require additional lubricant unless the box is cracked or a seal is leaking. It is recommended that the dipstick be removed after every 8 to 10 hours of operation and oil added until it rises to proper level on dipstick.
Page 147: Gearbox Arrangements (Secondary Gearboxes)
MAINTENANCE GEARBOX ARRANGEMENTS (Secondary Gearboxes) All Three secondary Gearboxes have the same identical parts in them for 540 or 1000 RPM and for the left, center, or right sections. To change Gearbox from 540 to 1000 RPM, the Gear (#1) and Pinion (#2) must be reversed.
Page 148: Drivelines
MAINTENANCE DRIVELINES The Drivelines and U-Joints should be inspected each morning before the mower is started. Many of the equipment components are HEAVY (70 lbs or greater) and Special Lifting Procedures are recommended. Use lifting assistance such as mechanical assistance, two people, and proper lifting techniques when connecting or installing the driveshaft to reduce the possibility of back injuries.
Page 149: Main Cv Driveline Shield Service Instructions
MAINTENANCE MAIN CV DRIVELINE SHIELD SERVICE INSTRUCTIONS Clean and grease bushing groove before the bushing is placed in the groove. Grease any remaining bushings in guard. Slide guard half over driveline and insert bushing tabs into the openings in the guard. Turn the bushing until it engages into the guard.
Page 150: Blade Servicing
MAINTENANCE BLADE SERVICING Inspect blades before each use to determine that they are properly installed and in good condition. Replace any blade that is bent, excessively nicked, worn, or has any other damage. Small nicks can be ground out when sharpening. Use only original equipment blades on this cutter.
Page 151: Blade Sharpening
MAINTENANCE BLADE SHARPENING Always sharpen both blades at same time to maintain balance. Follow original sharpening pattern as shown in FIGURE Mnt-R-0008. Always sharpen blades by grinding. DO NOT heat and pound out edge. Do not sharpen blade to a razor edge, but leave a 1/16" blunt edge. Do not sharpen back side of blade. IMPORTANT: When sharpening blades, grind each blade the same amount to maintain balance.
Page 152: Blade Bolt Inspection
MAINTENANCE Blade Bolt Inspection Inspect Blade Bolt Head daily for wear as followed: Inspect the Blade Bolt Heads daily for abnormal wear. REPLACE BOTH BLADE BOLTS on the Blades IMMEDIATELY if either blade bolts has: • Visible cracks or • If the recessed area on blade bolt is worn off or •...
Page 153: Blade Carrier Removal
MAINTENANCE BLADE CARRIER REMOVAL Remove cotter pin and loosen slotted nut on gear box shaft. Loosen but do not remove the nut until the blade carrier is loosened. Use a suitable two-jaw gear puller to pull carrier off tapered gear box shaft. If gear puller is not available use long bar inserted through blade bolt access hole with end against rotor bar.
Page 154: Blade Carrier Installation
MAINTENANCE BLADE CARRIER INSTALLATION Clean the splines on both the blade carrier and output shaft. Position carrier on the gear box output shaft and install flat washer and 1" hex nut. Tighten nut holding blade carrier to minimum 600 ft. pounds, strike the carrier on the hub several times with a heavy hammer to seat the hub.
Page 155: Seasonal Clutch Maintenance
MAINTENANCE SEASONAL CLUTCH MAINTENANCE It is important that the clutches slip when an obstacle or load heavier than the clutch setting is encountered. Before using the cutter each season, use the following procedure to make sure the clutch will slip and give the overload protection required.
Page 156: Wheel Hub Assembly
MAINTENANCE WHEEL HUB ASSEMBLY The Wheel Hub Assemblies need to be lubricated on a weekly basis. FIGURE MntP-R-0032. TIRES AND WHEELS Before working on any tires and wheels make certain the Cutter is jacked up high enough and securely supported. When installing laminated or airplane tires, be sure the flat side of the lug nut is against the Wheel. When installing Sectional Tires and Wheels note the direction of travel and the curvature of rubber segments in the tire (See Assembly Section).
Page 157: Tongue
MAINTENANCE Tongue The Tongue Hitch Pins attach the Tongue to the Center Section and should be checked for signs of wear or cracking. Replace as needed. The Drawbar 1" Bolt fastens the mower to the tractor Drawbar. When the mower is unhitched and this 1"...
Page 158: High Pressure Oil Leak Hazard
MAINTENANCE HIGH PRESSURE OIL LEAK HAZARD TO AVOID SERIOUS INJURY OR DEATH FROM HIGH PRESSURE HYDRAULIC OIL LEAKS PENERATING SKIN: • DO NOT OPERATE equipment with oil or fuel leaks. • KEEP all hydraulic hoses, lines and connections in GOOD CONDITION and TIGHT before applying system pressure.
Page 159: Flex Wing Hydraulic Cylinder Replacement Instructions
MAINTENANCE Flex Wing Hydraulic Cylinder Replacement Instructions Implement Cylinders Removal and Replacement Follow these Steps: Clear the area of all personnel before lowering the wings. From the tractor seat with your seat belt fastened around you, Lower the implement wings to the ground.
Page 160: Storage
MAINTENANCE SKID SHOES Skid shoes are made of carbon steel to reduce wear and increase service life. Premature wear can be caused by the mower Center or Wing sections being set too low which allows the Wing Skid Shoes to drag on the ground.
Page 164: Limited Warranty
RHINO LIMITED WARRANTY LIMITED WARRANTIES 1.01. Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship.
Page 165 TO THE OWNER/OPERATOR/DEALER In addition to the standard Limited Warranty shown on the facing page, Rhino also provides: 1. A FIVE-YEAR (60 months) LIMITED WARRANTY* on GEARBOX components provided they have been properly maintained† and have not been subjected to abuse or mis-use except as limited below. * WARRANTY LIMITATIONS - GEARBOX A.
Page 166 FN10/FN15 NITRO HEAVY-DUTY FLEX WING ROTARY CUTTER FN10/FN15-SOM-02/10 P/N 00779794C Printed U.S.A...
