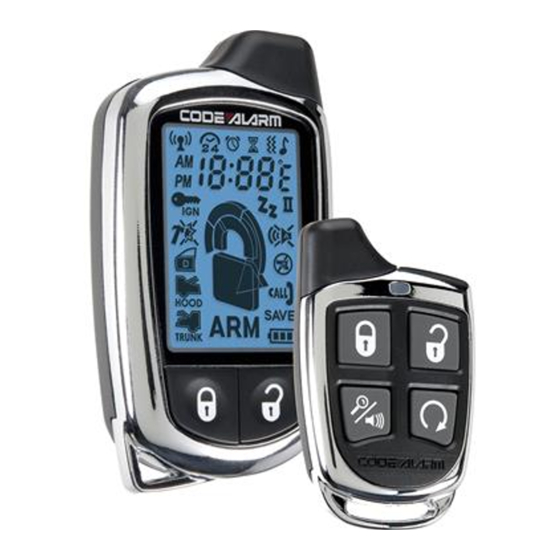

Audiovox ca 6552 Installation Manual

Code alarm professional series
Hide thumbs Also See for ca 6552:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
PROFESSIONAL
SERIES
Security and Remote Start Installation Guide
for models:
ca 6552
ca 6552 SST
ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ca 6552 and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox ca 6552

Summary of Contents for Audiovox ca 6552

  • Page 1 PROFESSIONAL SERIES Security and Remote Start Installation Guide for models: ca 6552 ca 6552 SST ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Smart Tachless Mode ................24 Adjusting the Shock Sensor ..............26 Testing the Shock Sensor ..............26 Chirp Delete - User Accessible .............. 26 Dome Light Delay / Theater Dimming ............. 26 ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 3 Feature Descriptions ................27 Transmitter Button Functions ............. 34 Security Trigger Zones ................. 36 Remote Start Shutdown Diagnostics ..........36 System Layout ..................37 ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 4: Before You Begin

    Use a Digital Multi Meter for testing and verifying circuits. DO NOT USE A TEST LIGHT, OR "COMPUTER SAFE PROBE" as these can set off air bags or damage vehicle computers. Technical Support (800) 421-3209 or go to http://techservices.codesystems.com ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 5: Pin Main Harness

    AUX 1 OUTPUT ( - ) RED/WHITE TRUNK RELEASE OUTPUT ( - ) LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - ) ORANGE GROUND WHEN ARMED OUTPUT ( - ) ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 6: Pin Input Harness

    AUX 4 OUTPUT ( - ) GRAY/BLACK AUX 3 OUTPUT ( - ) WHITE/BLACK AUX 2 OUTPUT ( - ) 3 Pin Lock Output Harness BLUE UNLOCK ( - ) OPEN GREEN LOCK ( - ) ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 7 Route the BROWN siren output wire from the control module through the firewall and connect to the RED wire on the siren. NOTE: Be sure to loom the siren wires, and seal the grommet. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 8 Verification: This wire registers voltage when the key is turned to ACC (Accessory) and the ON (or RUN) position. The voltage drops out when the key is turned to the START (or CRANK) position. Connect the ORANGE wire to the vehicle’s accessory wire. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 9 RUN) position. The voltage does not drop out when the key is turned to the START (or CRANK) position. Connect the PINK wire to the vehicle’s Ignition wire. This wire is also used for Ignition 1 Output. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 10: Pin Output Harness

    Jump To PINK BLUE/BLACK Active Output Accessory Output Wire Ignition Output Wire Wire From Wire From Control Module Control Module To Vehicle's 2nd or 3rd Accessory Wire To Vehicle's 2nd or 3rd Ignition Wire ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 11: Pin Input Harness

    8 Pin Input Harness BLUE/WHITE INSTANT TRIGGER INPUT ( - ) This wire is a GROUND input for an external sensor or secondary pin switch. Verification: This wire when connected will trigger the security system. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 12 Verification: This wire when connected will register ground when the vehicle's hood is opened. Connect the GRAY wire to the hood pin. NOTE: Be sure to loom the wire, and seal the grommet. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 13 Have someone press on the gas pedal slightly as you monitor the meter. If connected to the correct wire, the voltage reading will increase as the engine’s RPM increases. Connect the PURPLE/WHITE wire to the negative side of the vehicle ignition coil or fuel injector. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 14 Locate the vehicle’s second starter (crank) wire at the ignition switch. (if equipped) Verification: This wire registers voltage only in the start (crank) position of the ignition switch. This output can be configured in option programming. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 15: Optional Accessories (I.e. Power Window/Sunroof, Etc.)

    This wire provides a ( - ) 200mA output capable of driving relays. For Control of optional accessories (i.e. Power Window/Sunroof, etc.). To activate refer to the transmitter button configuration chart. Please refer to the selectable options for timing. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 16 Verification: These wires will register ground when the Lock and Unlock switches are activated. Connect the GREEN and BLUE wires shown in the diagram below. Negative Locks: GREEN (-) Lock Output Lock Vehicle Door Lock Control Relays Unlock BLUE (-) Unlock Output ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 17 (2) SPDT relays (not supplied). Reverse Polarity Locks: Fused +12 Volt Battery Souce GREEN (-) Lock Output Lock To Door Lock Motor Unlock Fused +12 Volt Battery Souce BLUE (-) Unlock Output To Door Lock Motor ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 18 Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram below using (2) SPDT relays (not supplied). Multiplex Locks: Fused +12 Volt GREEN (-) Lock Output BLUE (-) Unlock Output Battery Source Resistor Lock Vehicle Door Lock Control Relays Unlock ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 19 BLUE wires shown in the diagram below using (2) SPDT relays (not supplied). Fused +12 Volt Battery Source Door Lock GREEN (-) Lock Output Actuator Chassis Ground Fused +12 Volt Battery Source BLUE (-) Unlock Output Chassis Ground ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 20: Additional Ports

    This 4 pin port is used for telematic Interface accessories, such as the CarLink ASCL1, which can control some of the following features. Door Lock Control Trunk Release Sliding Doors AUX Output Car Find Remote Start ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 21: Set Up & Programming

    Press the transmitter button to change the desired feature. The LED will flash indicating the changed feature. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 22: Transmitter Programming

    4 Siren / Horn - Arm/Disarm Chirps Siren / Horn Siren Horn 5 Siren Duration 30 Seconds 60 Seconds 6 Security 7 Anti-Hijack Mode Ground While Ground While 8 Orange - Ground w/ Armed Output Armed Disarmed ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 23 Orange / Black Output IGN ON Pulse with Arm Disarm 10 Second AUX 5 Latched until 10 Second Push and Hold Latched Pulse with Pink / Black Output IGN ON Pulse with Arm Disarm ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 24 Running Crank Lock Pulse After Ground While Pulse During 3 Green / White Output Ignition Accessory Shutdown Running Crank Pulse During Ground While 4 Black / Yellow Output Ignition Accessory Crank Running ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 25: Tach Programming

    Within the 7 flash time period, press and hold the button. The system will chirp 1 time indicating the system is now in tachless mode. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 26: Adjusting The Shock Sensor

    2 seconds and then exit the learning mode. The LED will begin to flash indicating the system has exited the learning mode and is now armed. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 27: Feature Descriptions

    7- Anti-Hijack Mode: Controls car jack mode - ON / OFF. OFF - Standard security system operation. ON - Enables Car Jack mode functionality as described in the owners manual ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 28 Lock and Unlock - Doors lock when ignition is turned on and unlock when ignition is turned off. Lock Only - Doors lock when ignition is turned on. Unlock Only - Doors unlock when ignition is turned off. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 29 10 Second Pulse with Arm - Output stays active for 10 seconds with press of lock button. 10 Second Pulse with Disarm - Output stays active for 10 seconds with press of unlock button. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 30 2 - Run Time: Controls the time in minutes that the vehicle will stay running under control of the remote start until the system times out. The system may also be shut down at any time by use of the transmitter or system shutdowns. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 31 Crank Average - Determines crank time by averaging the last 8 times the vehicle was started with the key. Preset Time - Preset starter output time. (see crank time) ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 32 14 - Temperature Start: Sets the threshold temperature for temperature start mode. When temperature start is activated, the remote start function will activate when the ambient temperature drops below the selected temperature. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 33 Accessory - Output becomes active with the same timing as the accessory output, drops out during crank. Pulse During Crank - Output becomes active with the same timing as the starter output wire, during crank only. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 34: Transmitter Button Functions

    Transmitter LED flashes 1 time AUX 2 Push and Hold (3 Sec) AUX 3 Push and Hold (3 Sec) AUX 4 Push and Hold (3 Sec) AUX 5 Push and Hold (3 Sec) ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 35 Enter AUX Mode LCD displays AU AUX 2 Push and Hold (3 Sec) AUX 3 Push and Hold (3 Sec) AUX 4 Push and Hold (3 Sec) AUX 5 Push and Hold (3 Sec) ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 36: Security Trigger Zones

    Brake Input Neutral Safety Input 4 Flashes Remote Start Valet Mode 5 Flashes Manual Transmission Mode not set (manual transmission models only) 7 Flashes Tach not learned / Crank Average not learned ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.
  • Page 37 FACTORY ARM / PULSE AFTER START ( - ) LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - ) BLUE UNLOCK ( - ) OPEN GREEN LOCK ( - ) DBI PORT ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

  • Page 38: Customer Service

    2. This device must accept any interference received, including any interference that may cause undesired operation. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ca6552/6552sst. 2011 Audiovox Electronics Corporation. All rights reserved.

This manual is also suitable for:

Ca 6552 sst
