Summary of Contents for ORANGE OR15

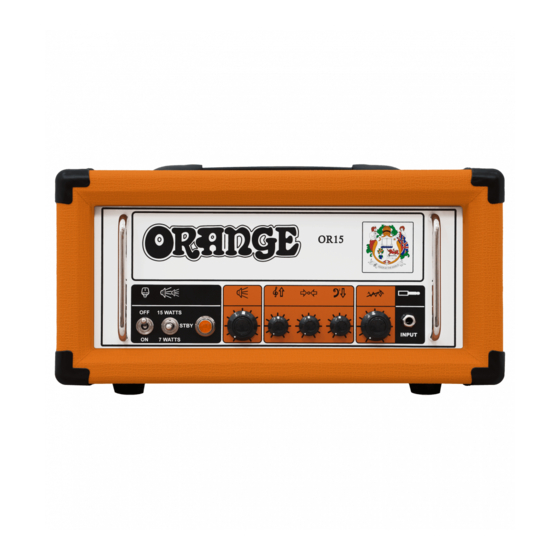

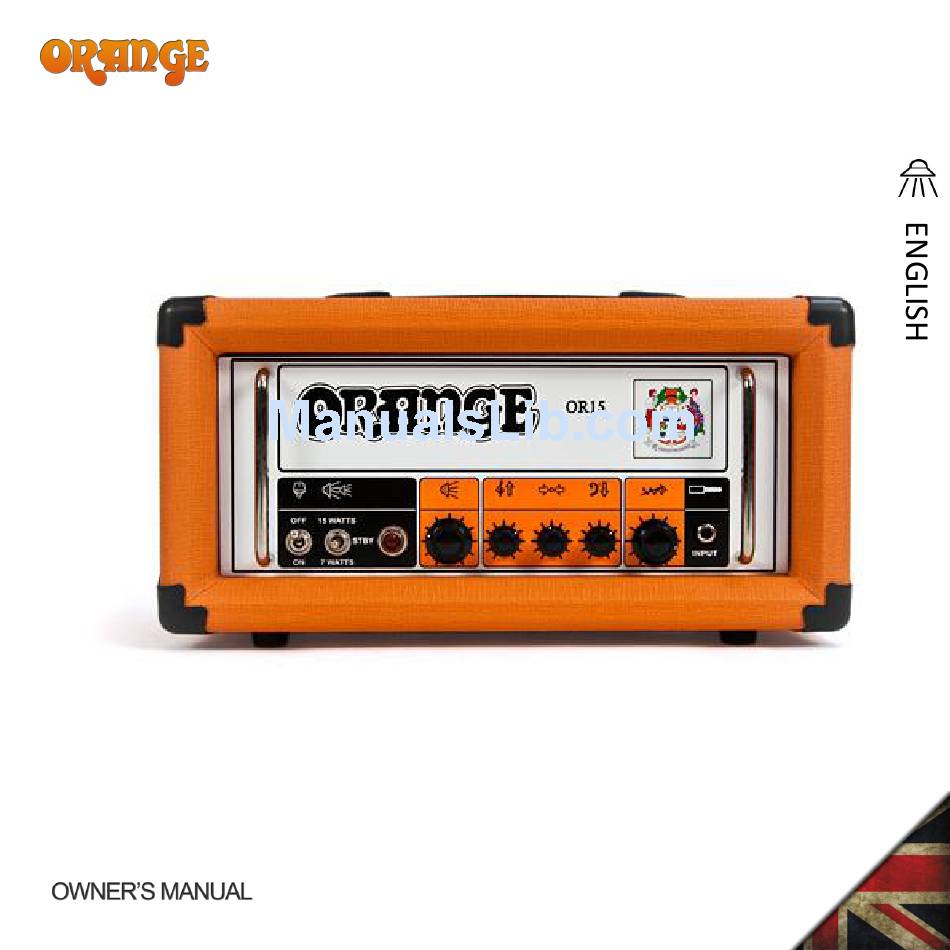

  • Page 1 OR15...

  • Page 2: Thank You

    To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory.

  • Page 3: Table Of Contents

    OR15 CONTENTS CONTENTS ........................... 3 CONTACT DETAILS ........................4 IMPORTANT SAFETY INFORMATION ....................5 USING YOUR AMPLIFIER........................ 7 FEATURES ............................ 9 VALVES AND FUSES CAN FAIL AT ANY TIME! ................. 11 FREE EXTENDED WARRANTY OFFER ..................... 11...

  • Page 4: Contact Details

    OR15 CONTACT DETAILS Orange Amplifiers OMEC House 108 Ripon Way Borehamwood Hertfordshire WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA 2065 Peachtree Industrial Ct. Suite 208 Atlanta, GA 30341 Tel: 1-404-303-8196 Fax: 1-404-303-7176...

  • Page 5: Important Safety Information

    OR15 IMPORTANT SAFETY INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 6 OR15 • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, one wider than the other.
  • Page 7 OR15 This Orange Amplifier conforms to UL Standard 60065 for Audio, Video and Similar Electronic Apparatus - Safety Requirements; Certified to CAN/CSA-C22.2 No. 60065-03; IEC 60065 2001 + A1:2005 This device complies with part 15 of the FCC Rules. Operation is subject to the...

  • Page 8: Using Your Amplifier

    OR15 USING YOUR AMPLIFIER IMPORTANT! For countries or regions with a mains voltage of 115v or 120v, please switch the small, red mains selector to 115v or 120v and replace the fuse in the black pull out fuse tray, below the mains inlet, with the 120v version supplied.

  • Page 9: Features

    OR15 FEATURES 1. Connect the amplifier to a speaker cabinet of the correct impedance. Connect 1 x 16ohm cabinet to the 16ohm speaker output jack socket. Connect 1 x 8ohm cabinet to either of the 8ohm speaker output jack socket.
  • Page 10 The effects loop is wired in series with the pre-amp signal and is completely valve driven. 10. VALVES. The OR15 contains 3 x 12AX7 (ECC83) and 1 x 12AT7 (ECC81) in the pre-amp and effects loop and 2 x EL84 in the output stage.

  • Page 11: Valves And Fuses Can Fail At Any Time

    90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange...
