Genelec 1032B Operating Manual page 3

TREBLE TILT
CONTROL
BASS TILT
CONTROL
BASS ROLL-OFF
CONTROL
INPUT
SENSITIVITY
CONTROL
XLR INPUT
CONNECTOR
ISS DISABLE AND
ISS SENSITIVITY
CONTROLS
THIS DEVICE COMPLIES WITH FCC PART 15 AND CANADIAN ICES-003 RADIO FREQUENCY
CLASS B EMISSION REQUIREMENTS. REFER TO OPERATING MANUAL FOR FULL INFORMATION.
MAINS VOLTAGE
SELECTOR
MAINS
CONNECTOR
MAINS SWITCH

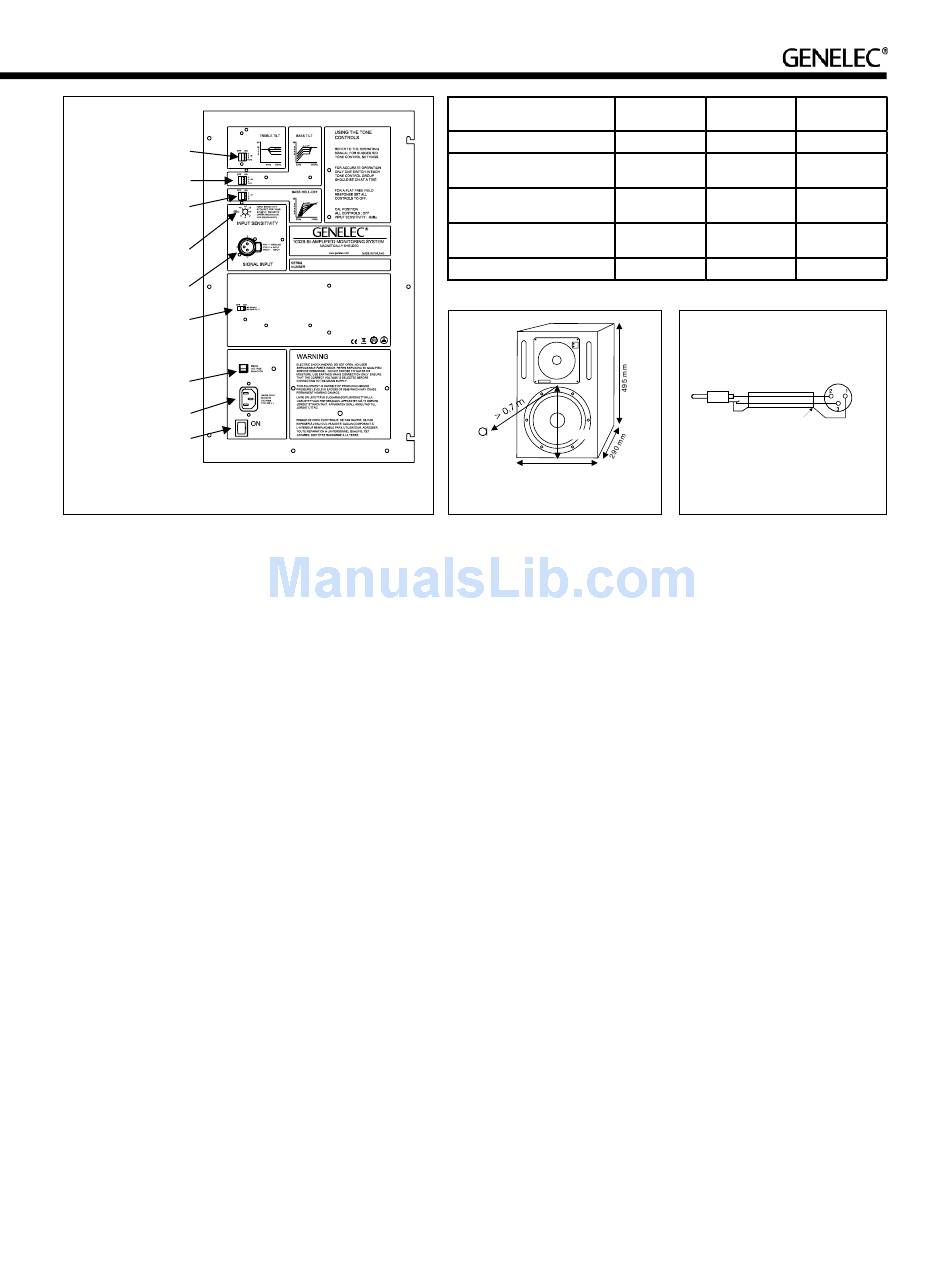

Figure 1. Amplifier panel layout of the 1032B
the response curve needed. If more than one
switch is set to 'ON' (within one switch group)
the attenuation value is not accurate.
Console top mounting
If the 1032B's are used for for near field moni-
toring, avoid mounting the speakers on the
meter bridge of the console. Instead position
them slightly behind the console by using
floor stands or wall mounts. This prevents the
the first reflections from the console surface
from coloring the direct sound.
Maintenance
No user serviceable parts are to be found
within the amplifier unit. Any maintenance
or repair of the 1032B unit should only be
undertaken by qualified service personnel.
Safety considerations
Although the 1032B has been designed in
accordance with international safety stand-
ards, to ensure safe operation and to main-
tain the instrument under safe operating con-
ditions, the following warnings and cautions
must be observed:
1. Servicing and adjustment must only
be perfor med by qualified ser vice
personnel. The amplifier's rear panel must
not be opened.
2. Do not use this product with an
unearthed mains cable or an unearthed
Speaker Mounting
Position
Flat anechoic response
Free standing in a
damped room
Free standing in a
reverberant room
Near field or console
bridge
In a corner
Table 1. Suggested tone control settings in some typical situations
AVERTISSEMENT
Figure 2. Location of the acoustic axis
mains connectionas this may lead to
personal injury.
3. To prevent fire or electric shock, do not
expose the unit to water or moisture. Do
not place any objects filled with liquid,
such as vases on the speaker or near it.
4. Note that the amplifier is not
completely disconnected from the AC
mains service unless the mains power cord
is removed from the amplifier or the mains
outlet.
WARNING!
This equipment is capable of producing sound
pressure levels in excess of 85 dB, which may
cause permanent hearing damage.
Guarantee
This product is supplied with two year guaran-
tee against manufacturing faults or defects that
might alter the performance of the unit. Refer
to supplier for full sales and guarantee terms..
Compliance to FCC rules
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference,
and this device must accept any interference
received, including interference that may cause
undesired operation.
Treble tilt
None
None
None
None
None
RCA
290 mm
(Source)
320 mm
Figure 3. RCA to XLR cable
Note: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful interfer-
ence in a residential installation. This equip-
ment generates, uses and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interfer-
ence will not occur in a particular installation.
If this equipment does cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
Modifications not expressly approved by the
manufacturer could void the user's authority to
operate the equipment under FCC rules.
Bass tilt Bass roll-off
None None
-2 dB None
-4 dB -2 dB
-4 dB -4 dB
-4 dB -4 dB
Cable
Screen
XLR
(Speaker)
