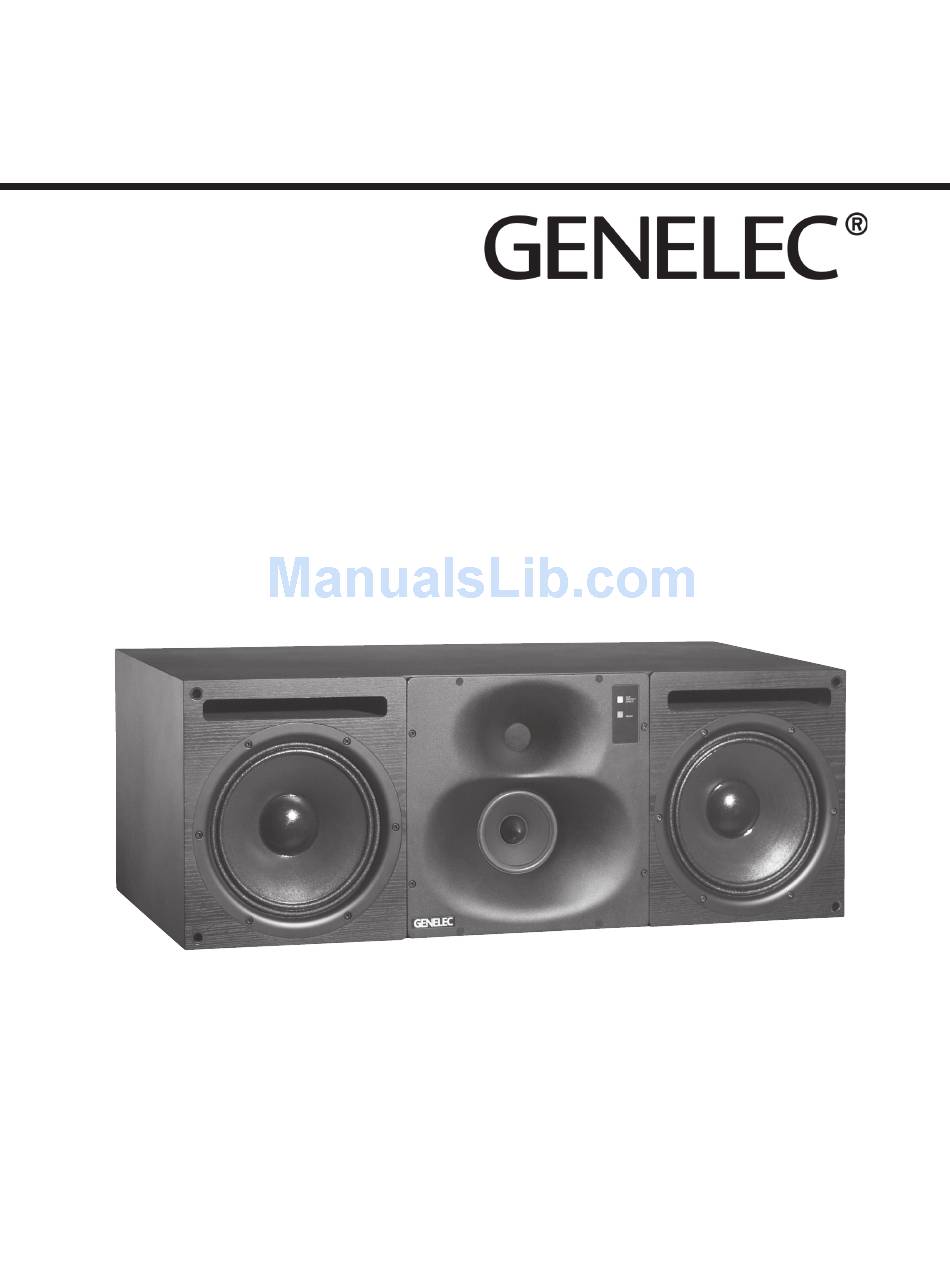

- Page 1 1038BC Operating Manual Genelec 1038BC Tri-amplified Monitoring System...
-
Page 2: Crossover Filters
DVD mas ter ing. The 1038BC is rec om mend ed to be flush mount ed into the con trol room wall, but it can also be used as a free- stand ing monitor. - Page 3 SELECTOR 500 mm (19 3/4 ) ″ Figure 2. Amplifier panel layout of the 1038BC Audio in put to the am pli fi er is made via a 10k Ohm bal anced (XLR) lead, but un bal - anced leads may be used as long as pin 3 is grounded to pin 1 of the XLR (see figure 3).
- Page 4 Flush mounting The 1038BC can be used flush mounted into the control room wall, which offers some acoustical benefits. No cabinet edge diffraction will occur, resulting in an improved response, especially at mid- range frequencies.
-
Page 5: Safety Considerations
Figure 8: The curves above show the effect of the ‘bass’, ‘mid’ and ‘treble’ level controls, and the ‘bass tilt’ and ‘bass roll-off ’ controls on the free field response of the 1038BC, measured at 2 m. acoustical structural mass that will disable low frequency sound propagation and pro- vide high LF sound isolation (see figure 6). - Page 6 *Without connecting cables. Cable connectors require additional 100 mm (4") of space behind the speaker and the amplifier Genelec Document D1038BCR001 Copyright Genelec Oy 3.2003. All data subject to change without prior notice AMPLIFIER SECTION Bass amplifier short term output power...
