Custom Overlay Panels

Custom overlay panels allow you to blend the exterior of your
refrigerator into the overall kitchen décor and to use custom
handles for additional design flexibility.
In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimension and placement instructions to be sure that the
custom overlay panels will fit properly.
IMPORTANT:
This installation does not require filler or backer panels.
The required thickness for all panels is ³⁄₄" (1.91 cm).
Bottom Mount
For 36" (91.4 cm) models, the weight of the refrigerator door
overlay panel cannot exceed 60 lbs (27.2 kg) and the freezer
drawer overlay panel cannot exceed 25 lbs (11.3 kg).
For 42" (106.7 cm) models, the weight of the refrigerator door
overlay panel cannot exceed 38 lbs (17.2 kg) and the freezer
drawer overlay panel cannot exceed 30 lbs (13.6 kg).
For both models, the weight of the top grille overlay panel
cannot exceed 7 lbs (3.2 kg) for both models.
Side by Side
The weight of the refrigerator door overlay panel cannot
exceed 66 lbs (29.9 kg) for 48" models or 65 lbs (29.5 kg) for
42" models.
The weight of the freezer door overlay panel cannot exceed
50 lbs (23 kg) for 48" models or 49 lbs (22.2 kg) for 42"
models.
The weight of the top grille overlay panel cannot exceed 8 lbs
(3.6 kg) for 48" models or 7 lbs (3.2 kg) for 42" models.
6

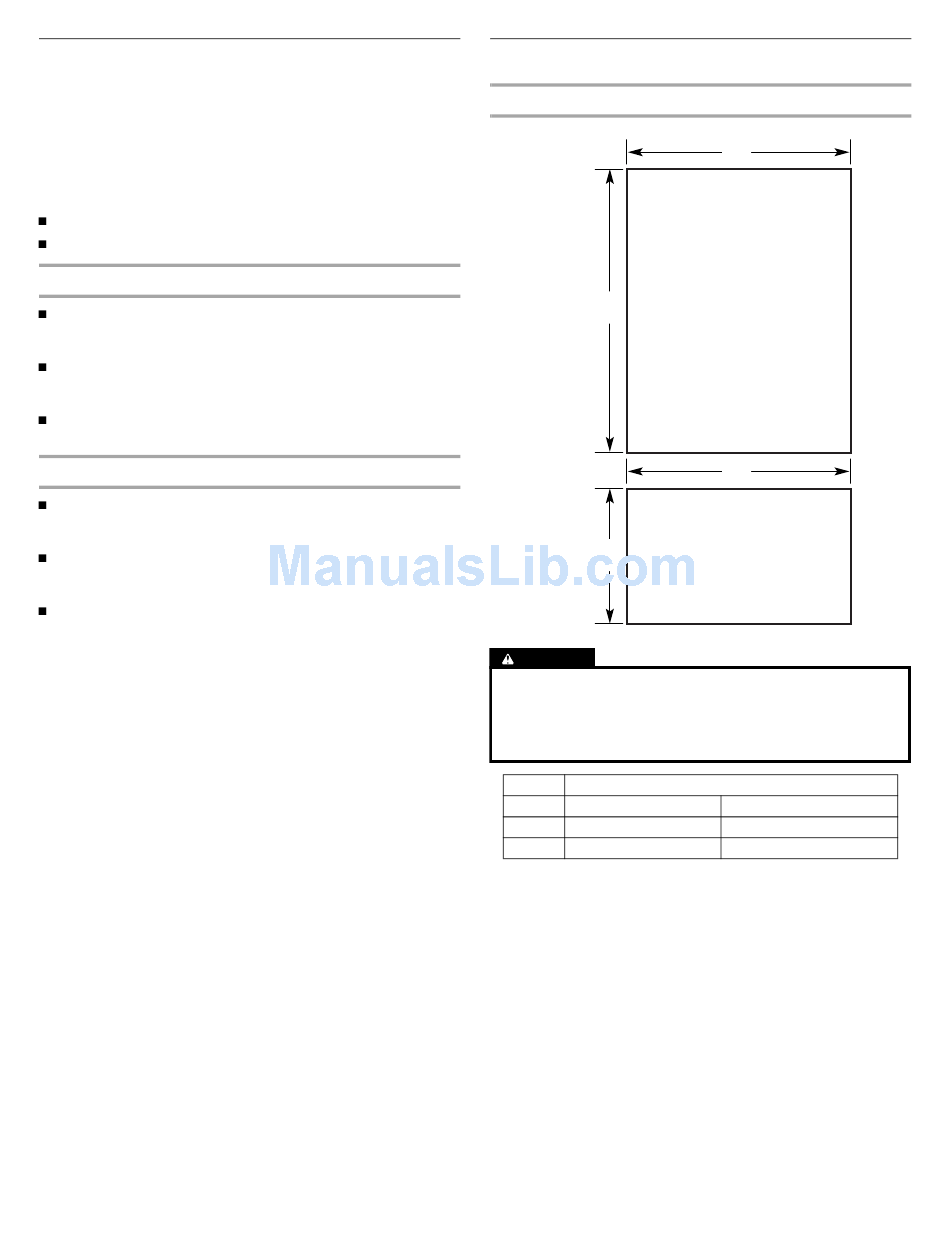

Overlay Panel Dimensions

36" (91.4 cm) Model - Door and Drawer Panels
59¹⁄₈"
REFRIGERATOR DOOR PANEL
(150.2 cm)
Maximum Weight: 60 lbs (27.2 kg)
20¹⁄₂"
FREEZER DRAWER PANEL
(52.07 cm)
Maximum Weight: 25 lbs (11.34 kg)
CAUTION
Pinch Hazard
Installation of door panels with less than a ³⁄₈" (0.95 cm) gap
between the door panel and the adjacent cabinet increases
the risk of potential pinching.
Model 36" Bottom-Mount
³⁄₈"
Reveal
A 35¹⁄₄" (89.54 cm)
B 35¹⁄₄" (89.54 cm)
A
B
¹⁄₈"
35³⁄₄" (90.81 cm)
35³⁄₄" (90.81 cm)
