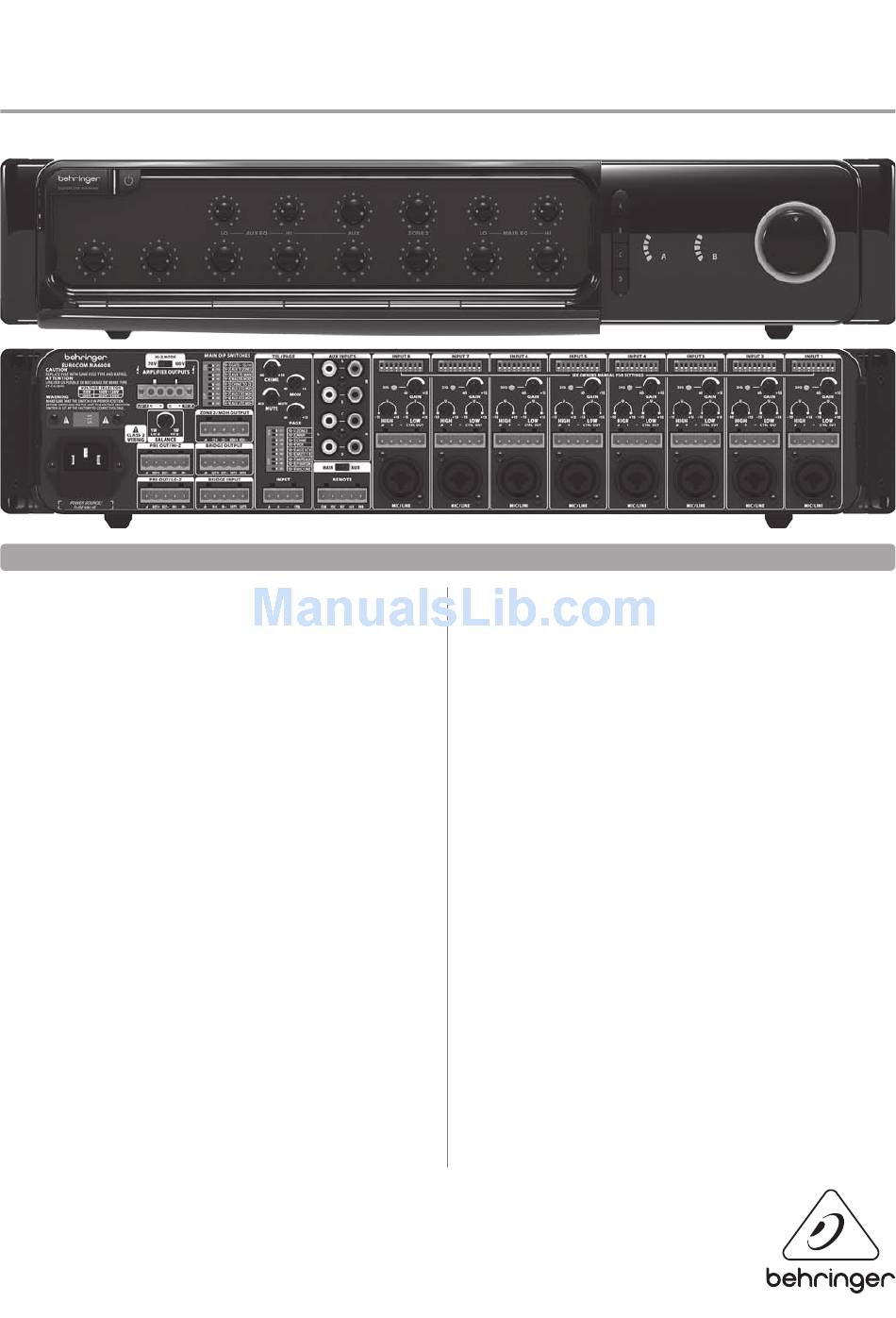

MA6018/MA6008
Energy-Efficient, Multi-Function 80-Watt Auto-Mixing Amplifier with Dual 70/100 V and 4 Ohms Outputs
Features
• Multi-function 80-Watt auto-mixing amplifier
with dual 70/100 V and 4 Ω outputs, designed for
continuous operation in distributed music, paging and
AV applications
• State-of-the-art, energy-saving Switch-Mode Power
technology with up to 67% power efficiency drastically
reduces energy cost
• 2 transformerless, cool-running Class-D amplifiers
simultaneously drive 70/100 V and 4 Ω loads with
adjustable Balance control
• 8 Mic/Line inputs on XLR/TRS and Euroblock
connectors, each with Lo and Hi frequency EQ,
individual Trim control and post-trim input level LED
• Switchable Mic/Line, Phantom power, Main Mix and/
or Zone 2 output, Mute Send/RCV, Remote Volume
control, Chime, and Auto-mixing on each input
• 4 pair summed RCA Aux inputs are assignable to the
Main Mix, Zone 2, and/or MOH
• Multi-featured, dedicated page input with assignable
Chime, switchable Mic/Line and Phantom power
• Wired Remote volume, power control and aux channel
selection plus remote volume assign switch
• Individual front panel input Level, Lo and Hi Main and
Aux EQ, Aux input and Zone 2 Level controls
• Auto-dimming control illumination, dual channel VU
meter, Power switch, and dual-function indicator ring
surrounding Master volume control
• 4 front panel buttons select which four rear-panel Aux
inputs are active and feeding the Main mix bus at any
given time
• Main mix output on Euroblock connector with
selectable 70/100 V and 8 Ω outputs. Zone 2 and MOH
assignable output with independent gain control
• 2 Preamp Out/Amp In processing loops for each
70/100 V and 4 Ω output
• Dual bridging input/output connectors allow multiple
units to be interconnected
• Detachable rack ears, screw covers, blank knob caps
for control lock-out, IEC-type AC power cord and all
mating Euroblock connectors included
• Independent DC and thermal overload protection plus
automatic limiters for each amplifier prevent overload,
clipping and distortion without shutting down audio
• Ultra-light, ultra-low noise and ultra-efficient switch-
mode power supply for noise-free audio, superior
transient response and low power consumption
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Behringer MA6018
Summary of Contents for Behringer MA6018
- Page 1 MA6018/MA6008 Energy-Efficient, Multi-Function 80-Watt Auto-Mixing Amplifier with Dual 70/100 V and 4 Ohms Outputs Features • Multi-function 80-Watt auto-mixing amplifier • Auto-dimming control illumination, dual channel VU with dual 70/100 V and 4 Ω outputs, designed for meter, Power switch, and dual-function indicator ring continuous operation in distributed music, paging and surrounding Master volume control AV applications • 4 front panel buttons select which four rear-panel Aux • State-of-the-art, energy-saving Switch-Mode Power inputs are active and feeding the Main mix bus at any technology with up to 67% power efficiency drastically given time reduces energy cost • Main mix output on Euroblock connector with • 2 transformerless, cool-running Class-D amplifiers selectable 70/100 V and 8 Ω outputs. Zone 2 and MOH simultaneously drive 70/100 V and 4 Ω loads with assignable output with independent gain control adjustable Balance control • 2 Preamp Out/Amp In processing loops for each...
- Page 2 MA6018/MA6008 Energy-Efficient, Multi-Function 80-Watt Auto-Mixing Amplifier with Dual 70/100 V and 4 Ohms Outputs Product Overview EUROCOM MA6018/MA6008 professional mixer- MA6018/MA6008 outputs, all mono, include a single 4-pin amplifiers offer extraordinary flexibility and ease-of-use Euroblock connector for both high-and low-Z outputs to in an integrated rack-mountable system that is ideal loudspeakers as well as both Zone 2 and MOH outputs for commercial sound in facilities such as conference combined onto a single 5-pin Euroblock connector. rooms, houses of worship, restaurants, clubs, and similar The MOH out is fed from the main mix bus, while inputs to applications involving foreground music and paging. the Zone 2 mix, which may be fed to an external recorder Incorporating BEHRINGER’s exclusive DualDrive or supplemental PA system, are assigned independently technology, the MA6018/MA6008 is powered by of the main mix. Each output has a level control, and two independent mono amplifiers, one with a high- neither is affected by master volume or EQ settings. impedance output that may be set to either 70 or 100 V, Additional MA6018/MA6008 connections include a 5-pin and the other with a standard low-impedance output. Euroblock for remote control, switchable between the main This versatile configuration enables easy installation of mix and the aux bus. Also on 5-pin Euroblock connectors...
- Page 3 MA6018/MA6008 Energy-Efficient, Multi-Function 80-Watt Auto-Mixing Amplifier with Dual 70/100 V and 4 Ohms Outputs Technical Specifications Audio Inputs Amplifier Mic / Line inputs 1 - 8 Amplifier channels LO-Z: 1 x 4 Ω, minimum HI-Z: 1 x 70 / 100 V, switchable • Type...
- Page 4 MA6018/MA6008 Energy-Efficient, Multi-Function 80-Watt Auto-Mixing Amplifier with Dual 70/100 V and 4 Ohms Outputs Technical Specifications continued Indicators Power LED ring illumination (Yellow) Overload / protection LED ring indication (Red) Output level LED VU output meter (Yellow and Red while clipping)
- Page 5 MA6018/MA6008 Energy-Efficient, Multi-Function 80-Watt Auto-Mixing Amplifier with Dual 70/100 V and 4 Ohms Outputs Architect’s and Engineer’s Specifications The mixer-amplifier shall be of rack-mountable multiinput design with built-in paging functions and two mono transformerless Class D power amplifiers with switch-mode power supplies, one low-Z and one high-Z (70/100 V) for distributed speaker systems. Controls and indicators shall include the following: • Power switch to turn the unit on and off • Power Indicator displaying amber logo when unit is powered • Master Volume knob for setting overall volume • Indicator ring for power (yellow) and clipping (flashing red) • VU meter to indicate amplifier signal level; • HI EQ/LO EQ knobs to adjust the overall treble and bass • Input level knobs (1-8) to set the relative level of each input • Mains voltage switch to select 115 or 240 VAC • High-Z output switch to select 70 or 100 V operation...
- Page 6 Energy-Efficient, Multi-Function 80-Watt Auto-Mixing Amplifier with Dual 70/100 V and 4 Ohms Outputs Architect’s and Engineer’s Specifications Continued Protections incorporated into the amplifier shall include automatic limiting and independent DC and thermal overload protection. Performance criteria met by the mixer-amplifier shall include: • RMS power output (1 kHz @ 1% THD) for the low-Z amp of 180 W @ 4 Ω (MA6018) and 80W @ 8 Ω (MA6008) • RMS power output (1 kHz @ 1% THD) and for the high-Z (100/70 V) amp of 180 W (MA6018) and 80 W (MA6008) • Frequency Response of 50 Hz-18 kHz, +/- 2 dB • Dynamic range of 65 dB for Mic and 80 dB for Line • Distortion (THD+N, 1 kHz) of 0.5% at rated output AC Power requirements of the mixer-amplifier shall be: • Mains voltage of 115 or 230 VAC at 50~60 Hz...
- Page 7 483.87 mm [19.05 in] Copyright © 2013 MUSIC Group IP Ltd. All rights reserved. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA, and TURBOSOUND are part of the MUSIC Group (music-group.com). The information contained herein is correct at the time of printing. Technical specifications and appearance are subject to change without notice. Colors and specifications may vary from actual product. MUSIC Group IP Ltd. accepts no liability for any damages or loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein.
