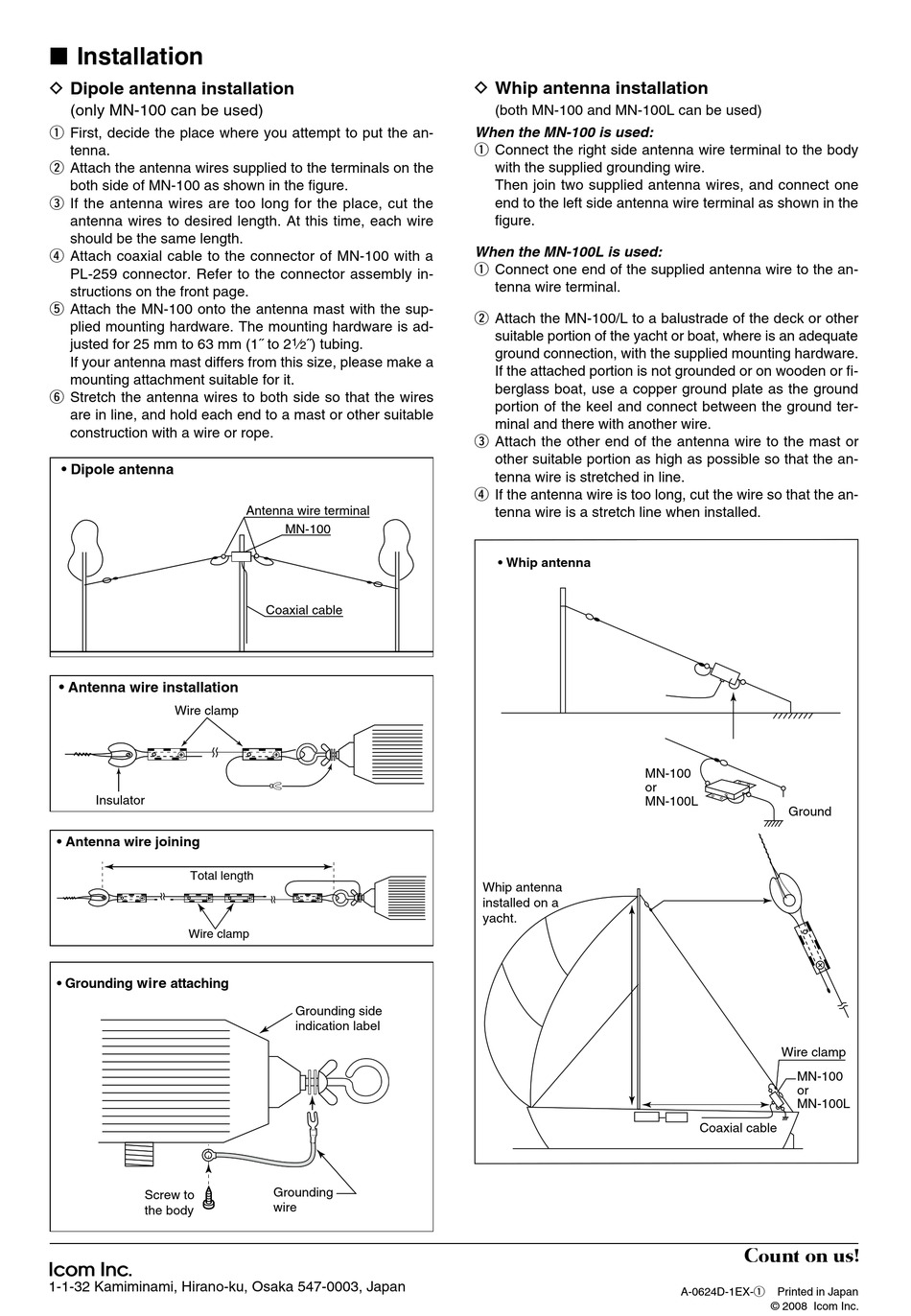

■ Installation
D D ipole antenna installation
(only MN-100 can be used)
q First, decide the place where you attempt to put the an-
tenna.
w Attach the antenna wires supplied to the terminals on the
both side of MN-100 as shown in the figure.
e If the antenna wires are too long for the place, cut the
antenna wires to desired length. At this time, each wire
should be the same length.
r Attach coaxial cable to the connector of MN-100 with a
PL-259 connector. Refer to the connector assembly in-
structions on the front page.
t Attach the MN-100 onto the antenna mast with the sup-
plied mounting hardware. The mounting hardware is ad-
justed for 25 mm to 63 mm (1˝ to 2
If your antenna mast differs from this size, please make a
mounting attachment suitable for it.
y Stretch the antenna wires to both side so that the wires
are in line, and hold each end to a mast or other suitable
construction with a wire or rope.
• Dipole antenna
• Antenna wire installation
Wire clamp
Insulator
• Antenna wire joining
Total length
Wire clamp
• Grounding wire attaching
Screw to
the body
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
1 ⁄ ˝) tubing.
2
Antenna wire terminal
MN-100
Coaxial cable
Grounding side
indication label
Grounding
wire
D W hip antenna installation
(both MN-100 and MN-100L can be used)
When the MN-100 is used:
q Connect the right side antenna wire terminal to the body
with the supplied grounding wire.
Then join two supplied antenna wires, and connect one
end to the left side antenna wire terminal as shown in the
figure.
When the MN-100L is used:
q Connect one end of the supplied antenna wire to the an-
tenna wire terminal.
w Attach the MN-100/L to a balustrade of the deck or other
suitable portion of the yacht or boat, where is an adequate
ground connection, with the supplied mounting hardware.
If the attached portion is not grounded or on wooden or fi-
berglass boat, use a copper ground plate as the ground
portion of the keel and connect between the ground ter-
minal and there with another wire.
e Attach the other end of the antenna wire to the mast or
other suitable portion as high as possible so that the an-
tenna wire is stretched in line.
r If the antenna wire is too long, cut the wire so that the an-
tenna wire is a stretch line when installed.
• Whip antenna
MN-100
or
MN-100L
Whip antenna
installed on a
yacht.
Ground
Wire clamp
MN-100
or
MN-100L
Coaxial cable
