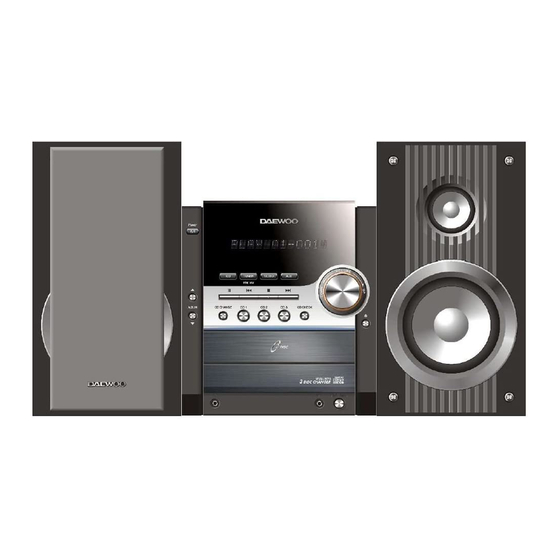

- Page 1 R H - 4 3 3 G ( R ) Model: R H - 4 3 4 G ( R ) R H - 4 3 5 G ( R ) DEMO STOP DAEWOO DAT CO., LTD. AFR. 2005 FEB. 2004...
-
Page 2: Table Of Contents
MICRO COMPONENT SYSTEM R H - 4 3 3 G ( R ) R H - 4 3 4 G ( R ) R H - 4 3 5 G ( R ) Table of Contents SAFETY PRECAUTIONS ..................2~3 EXPLODED VIEW AND PARTS LIST .............. -
Page 3: Safety Precautions
Safety Precautions WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE laundry tub, in a wet basement, or near a swimming pool, THIS APPLIANCE TO RAIN OR MOISTURE. and the like. 2. Carts and Stands - The appliance PORTABLE CART CAUTION should be used only with a cart or RISK OF ELECTRIC SHOCKS... - Page 4 Safety Precautions 13.Outdoor Antenna Grounding - If an outside antenna is 15.Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through connected to the receiver be sure the antenna system is openings.
-
Page 5: Exploded View And Parts List
Exploded View and Mechanical Parts List 14-1... - Page 6 Exploded View and Mechanical Parts List Part Code Remark WINDOW FLT 9CD1621900 H/MIRROR KNOB VOLUME 9CD1352100 CR Coating DECO VOLUME 9CD1006200 HIPS PANEL FRONT 9CD0313200 HIPS CUSHION FOOT 9CD4207700 URETHAN KNOB FUNCTION 9CD1352200 HIPS KNOB CONTROL 9CD1352300 CR Coating KNOB DEMO 9CD1352310 HIPS KNOB OPEN...
-
Page 7: Wiring Diagram
Wiring Diagram... -
Page 8: Block Diagram
Block Diagram... -
Page 9: Schematic Diagram
Schematic Diagram MAIN *OPTION TABLE( * MARK ) KARAOKE KARAOKE HR425 HR426 -87dB -87dB... -
Page 10: Amp
Schematic Diagram... -
Page 11: Mp3 Cd
Schematic Diagram MP3 CD... -
Page 12: Front
Schematic Diagram FRONT... -
Page 13: Power
Schematic Diagram POWER... -
Page 14: Jack
Schematic Diagram JACK... -
Page 15: Pcb Pattern Layout
P.C.B Pattern Layout MAIN & POWER <Top View>... - Page 16 P.C.B Pattern Layout MAIN & POWER <Bottom View>...
-
Page 17: Mp3 Cd
P.C.B Pattern Layout MP3 CD <Top View> <Bottom View>... -
Page 18: Front
P.C.B Pattern Layout FRONT <Top View>... - Page 19 P.C.B Pattern Layout FRONT <Bottom View>...
-
Page 20: Power
P.C.B Pattern Layout JACK <Top View> <Bottom View>... - Page 21 PCB MAIN Ass'y [9CDC073600] : RH-435 Loc. Part Code Part Name Description Remark B100 9CD6593900-01 PCB MAIN 330MM X 197MM CE101 CEXF1H109V-X C ELECTRO 50V RSS 1MF (5X11) TP CE102 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X17) CE103 CEXF1C101V-X C ELECTRO 16V RSS 100MF (6.3X11) TP CE104 CEXF1H100V-X C ELECTRO...
- Page 22 Loc. Part Code Part Name Description Remark HC112 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC113 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 HC114 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608 HC401 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 HC402 HCQK101JBA C CHIP CERA...
- Page 23 Loc. Part Code Part Name Description Remark HR116 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608 HR118 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 HR119 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 HR120 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 HR151 HRFT103JBA R CHIP...
- Page 24 Loc. Part Code Part Name Description Remark HR831 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 HR832 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608 HR833 HRFT273JBA R CHIP 1/10W 27K OHM J 1608 HR835 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608 HR836 HRFT332JBA R CHIP...
- Page 25 Loc. Part Code Part Name Description Remark CW301 9CD6278600 WAFER 12511HR-07A01 HC301 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 HC302 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 HC303 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 HC304 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608...
- Page 26 Loc. Part Code Part Name Description Remark HR369 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608 HR370 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 HR382 HRFT393JBA R CHIP 1/10W 39K OHM J 1608 IC301 1NJM4558M- IC CHIP OP AMP NJM4558M IC302 1NJM4558M-...
- Page 27 Loc. Part Code Part Name Description Remark HC512 HCBK563KBA C CHIP CERA 50V X7R 0.056MF M 1608 HC513 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 HC514 HCBK563KBA C CHIP CERA 50V X7R 0.056MF M 1608 HC515 HCBK683KBA C CHIP CERA 50V X7R 0.068MF M 1608 HC516 HCBK473KBA C CHIP CERA...
- Page 28 Loc. Part Code Part Name Description Remark HR521 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 HR522 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 HR523 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 HR524 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 HR525 HRFT472JBA R CHIP...
- Page 29 Loc. Part Code Part Name Description Remark HZ501 DRLZ3R9B-- DIODE ZENER CHIP RLZ3.9B HZ502 DRLZ5R6B-- DIODE ZENER CHIP RLZ5.6B IC501 1LC78648E- IC SERVO + DSP LC78648E(CD SERVO+DSP) IC502 1IP9005--- IC MOTOR DRIVE IP9005 (motor driver) IC503 1LC78684E- IC MP3 DECORDER LC78684E(mp3 decoder) IC504 1IP111718-...
- Page 30 Loc. Part Code Part Name Description Remark R729 RD-AZ561J- R CARBON FILM 1/6 560 OHM J R730 RD-AZ821J- R CARBON FILM 1/6 820 OHM J R732 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R733 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R734 RD-AZ272J- R CARBON FILM...
- Page 31 Loc. Part Code Part Name Description Remark D913 DIN4001--- DIODE IN4001 F901 5F1GB2522L FUSE GLASS TUBE UL/CSA TL 2.5A 250V MF51 F902 5FSGB1222L FUSE GLASS TUBE VDE TL 1.25A 250V MF51 FC901 9734600700 FUSE CLIP FC-5N FC902 9734600700 FUSE CLIP FC-5N FC903 9734600700...
-
Page 32: Electrical Part List
Electrical Part List-Option Table Page 12... - Page 33 Electrical Part List-Option Table Page 13...
- Page 34 Electrical Part List-Option Table Page 14...
