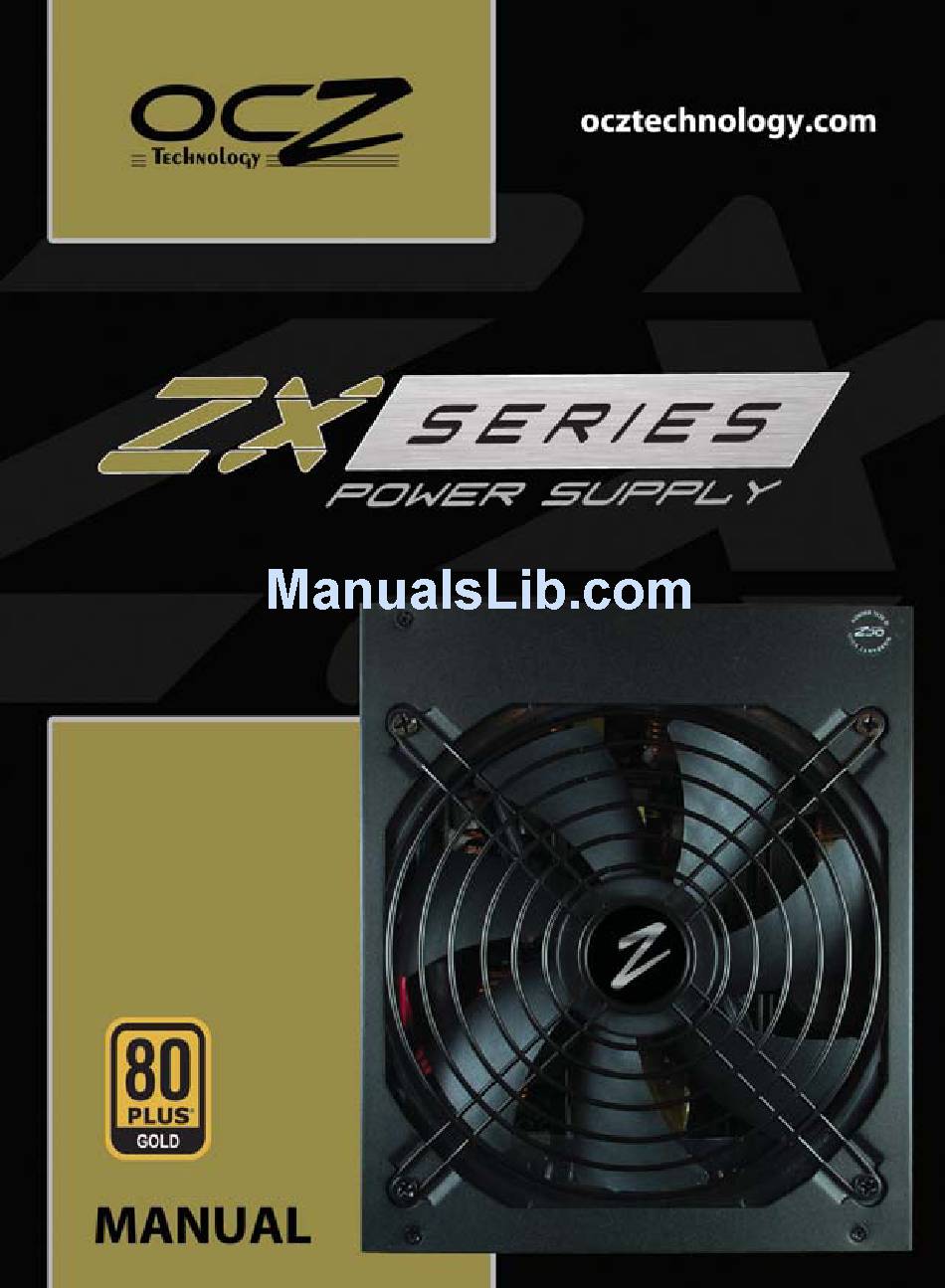

Zx series modular power supply

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZX series and is the answer not in the manual?

Questions and answers

Summary of Contents for OCZ ZX series

  • Page 2 80 PLUS Test Type Frac on of Rated Load 100% 100% Not defined 80 PLUS 80 PLUS Bronze 80 PLUS Silver GOLD 80 PLUS Gold Not defined 80 PLUS Pla num OCZ ZX Series 80 PLUS Gold Cer fied Model OCZ-ZX1250W, OCZ-ZX1000W, OCZ-ZX850W...
  • Page 3 · 80 Plus Gold Certified An 80PLUS Gold power supply will be at least 87%, 90%, 87% efficient at 20%, 50% and 100% operating loads, respectively. The ZX Series is our highest rated efficiency power supply to date; with up to 92% efficiency rating means maximum energy savings to ensure a greener environment.
  • Page 4 S E R I E S FEATURES · EPS12V PSU with 99.9% 12V output capability. · SYNC transformer array · Double main electrolytic capacitors · DC to DC circuitry design with solid state capacitors · Forward Safe Guard Circuitry design ·...
  • Page 5: Power Supply Installation

    ONLY the screws provided. NOTE: It is important to use the supplied screws to complete the PSU installation. The use of other type of screws may result in damage to the OCZ power supply and risk voiding the warranty.
  • Page 6: Specification

    S E R I E S SPECIFICATION Model OCZ-ZX850W OCZ-ZX1000W OCZ-ZX1250W Intel Specifica ons ATX12V /EPS12V Dimensions (LxWxH) 175 x 155 x 86 mm Efficiency 80 PLUS Gold PF Correc on Ac ve, 0.99PF Typical Fan Type Double Ball Bearing Opera ng Temp.
  • Page 7 S E R I E S CONNECTORS CONNECTOR 4+4P (8P) CPU+12V 6+2P (8P) PCI-EXPRESS (20+4) P MAINBOARD TYPE [detachable] [detachable] Native cable, 12V rail Modular cable/ socket, DESCRIPTION supplied. 12V rail supplied. - In Combined Mode - - In Combined Mode - 8 pin configuration 8 pin configuration supports multi-CPU...
  • Page 8: Modular Cables

    S E R I E S MODULAR CABLES MODEL / DESCRIPTION [850W] [1000W] [1250W] 5 PIN to 3 X SATA Connector Modular Cable 4 PCS 4 PCS 4 PCS Modular cable for SATA / SAS drives like ODD & HDD. 5 PIN to 3 X MOLEX &...
  • Page 9: Troubleshooting/Warranty And Rma

    5- Year Warranty Your OCZ PSU is covered by an industry-leading 5-Year Warranty. This product is warranted to be free from defects in material and workmanship for a period of five [5] years from the date of purchase. If any defects should occur during this period, contact OCZ Technology for further assistance and to take advantage of your warranty.

This manual is also suitable for:

Ocz-zx1250wOcz-zx1000wOcz-zx850w
