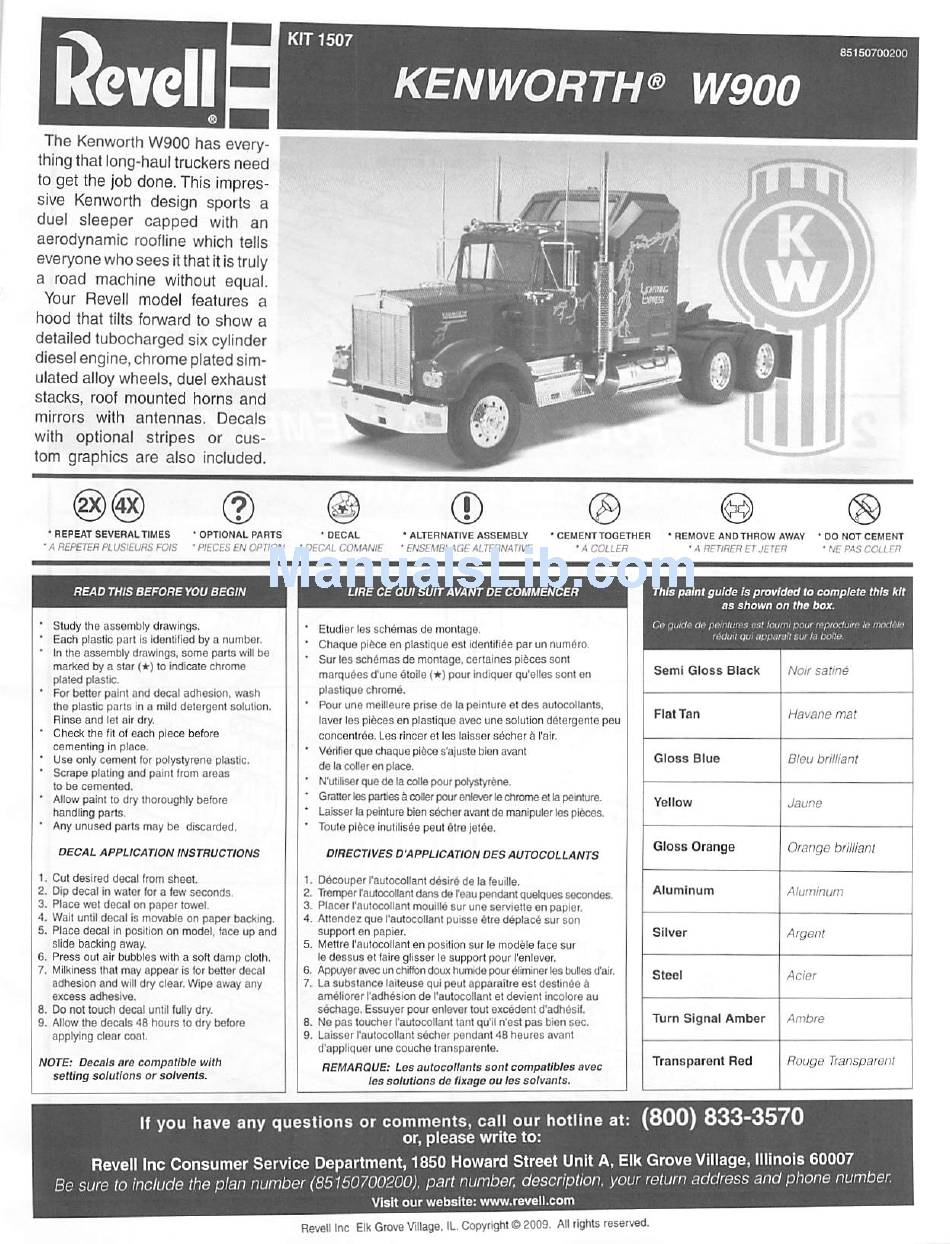

KIT 1507
85150700200

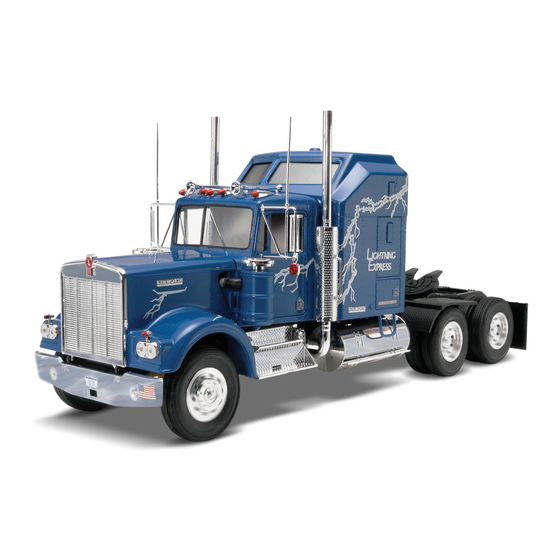

The Kenworth W900 has every
thing that long-haul truckers need
to get the job done. This impres
sive Kenworth design sports a
duel sleeper capped with an
aerodynamic roofline which tells
everyone whosees it that itis truly
a road machine without equal.
Your Revell model features a
hood that tilts forward to show a
detailed tubocharged six cylinder
diesel engine, chrome plated sim
ulated alloy wheels, duel exhaust
stacks, roof mounted horns and
mirrors with antennas. Decals
with optional stripes or cus
tom graphics are also included.
•REPEAT SEVERAL TIMES
• A REPETERPIUSILURS FOIS
• OPTIONAL PARTS
• PIECES EN OPTION
READ THIS BEFORE YOU BEGIN
• Study the assembly drawings.
• Each plastic part is identitied by a number.
" In the assembly drawings, some parts will be
marked by a star (*) to indicate chrome
plated plastic.
• For better paint and decal adhesion, wash
the plastic parts in a mild detergent solution.
Rinse and let air dry.
• Check the fit ol each piece before
cementing in place.
'
Use only cement for polystyrene plastic.
' Scrape plating and paint from areas
to be cemented.
• Allow paint to dry thoroughly before
handling parts.
• Any unused parts may be discarded.
DECAL APPLICATION INSTRUCTIONS
1. Cut desired decal from sheet.
2. Dip decal in water for a few seconds.
3. Place wet decal on paper towel.
<!. Wait untildecal is movable on paper backing.
5. Place decal in position on model, face up and
slide backing away.
6. Press out air bubblos with a soft damp cloth.
7. Milkiness that may appear is for bettor decal
adhesion and will dry clear. Wipe away any
excess adhesive.
8. Do not touch decal until fully dry.
9. Allow the decals 48 hours to dry before
applying clear coal.
NOTE: Decals arc compatible with
setting solutions or solvents.
KENWORTH® W900
CD
' DECAL
• DECAL COMANIE
• ALTERNATIVE ASSEMBLY
• ENSEMBLAGE ALTERNATIVE
•CEMENT TOGETHER
• A COLLER
• REMOVE AND THROW AWAY
•ARFTIRERET JETER
• DO NOT CEMENT
•NE PAS COLLFR
LIRE CE QUI SUIT AVANT DE COMMENCER
Etudinr los schemas do montago.
Chaque piece en plastique est identifiee par un numoro.
Sur les schemas de montage, certaines pieces sont
marquees d'une etoile (*) pour indiquer qu'elles sont en
plastique chrome.
Pour uno meilleure prise de la peinture et des autocollants.
laver les pieces en plastique avec une solution detergente peu
concentree. Les rincer et les laisser secher a I'air.
Verifierque chaque piece s'ajuste bien avant
de la coller en place.
N'utiliserque de la colle pour polystyrene.
Gratter les parties a collerpour enlever le chrome et la peinture.
Laisser la peinturebiensecher avant de manipuler les pieces.
Toute piece inulilisee pent etre jeteo.
DIRECTIVES D'APPLICATION DES AUTOCOLLANTS
Decouper I'autocollant desire de la feuille.
Tremper I'autocollant dans de leau pendant quelques secondes.
Placer I'autocollant mouille sur unoservietteen papior.
Attondez que I'autocollant puisso etre deplace sur son
support en papier.
Mettre I'autocollant en position sur le modele face sur
le dessus et faire glisser le support pour I'enlever,
Appuyeravec un chiffon doux humidopour eliminorles bulles d'air.
La substance laiteuse qui peut apparaitre est destinee a
ameliorer I'adhesion de I'autocollant et devient incolore au
sechage. Essuyer pour enlever tout excedent d'adhesif.
Ne pas toucher I'autocollant tant qu'il n'est pas bien sec.
Laisser I'autocollant secher pendant 48 heures avant
d'appliquor une couche Iransparente.
REMARQUE: Les autocollants sont compatibles avec
les solutions de lixagc ou les solvants.
This paint guide is provided to complete this kit
as shown on the box.
Co guide de pemiurososi loumipourwproduiw. le modAlo
rtfdtiii qui iipparitil sur In Polie.
Semi Gloss Black
Noir satine
Flat Tan
Havane mat
Gloss Blue
Bleu brilliant
Yellow
Jaune
Gloss Orange
Orange brilliant
Aluminum
Aluminum
Silver
Argent
Steel
Acier
Turn Signal Amber
Ambre
Transparent Red
Rouge Transparent
If you have any questions or comments, call our hotline at: (800) 833-3570
or, please write to:
Revell Inc Consumer Service Department, 1850 Howard Street Unit A, Elk Grove Village, Illinois 60007
Be sure to include the plan number (85150700200). part number, description, your return address and phone number.
Visit our website: www.revell.com
Revell Inc Elk Grove Village, IL. Copyright ©2009. All rights reserved.
