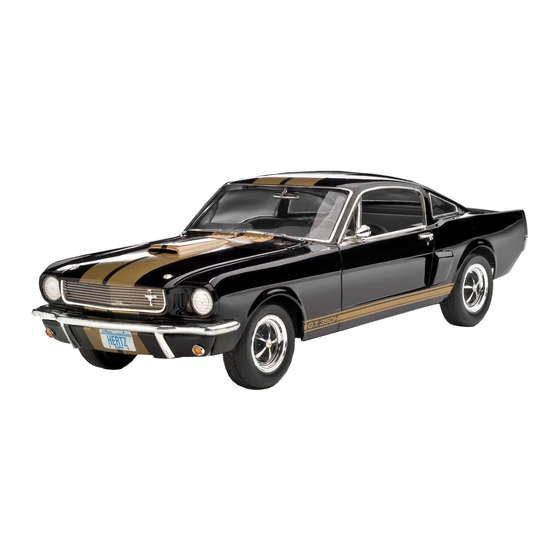

REVELL 66 Shelby Mustang GT350H Assembly Manual

Black-and-Gold....Lookin' Bold...This sleek Mustang GT-
350 has become a legendary muscle car due to its unique
heritage as part of a fascinating fleet of high-performance
"rent-a-rides". In 1965, Peyton Cramer of Shelby American,
Inc. decided to approach the Hertz car rental company with
the concept of renting high-performance GT-350's to their
customers. Research indicated that Hertz had manufactured
their own cars in the late twenties, and they were painted
Black-and-Gold. Hertz had just established the "Hertz Sports
Car Club", and the Shelby proposal was received most enthu-
siastically, and 1,000 special 1966 GT-350's were ordered.
Twenty years ago, a driver's license that proved you were
25 years old, your Hertz Sports Car Club card, and seventeen
dollars put you in the driver's seat, and the folks at Shelby-
* REPEAT SEVERAL TIMES * OPTIONAL PARTS
* A REPETER PLUSIEURS FOIS * PIECES EN OPTION
READ THIS BEFORE YOU BEGIN
* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be
marked by a star (★) to indicate chrome
plated plastic.
* For better paint and decal adhesion, wash
the plastic parts in a mild detergent solution.
Rinse and let air dry.
* Check the fit of each piece before
cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas
to be cemented.
* Allow paint to dry thoroughly before
handling parts.
* Any unused parts may be discarded.
DECAL APPLICATION INSTRUCTIONS
1. Cut desired decal from sheet.
2. Dip decal in water for a few seconds.
3. Place wet decal on paper towel.
4. Wait until decal is movable on paper backing.
5. Place decal in position on model, face up and
slide backing away.
6. Press out air bubbles with a soft damp cloth.
7. Milkiness that may appear is for better decal
adhesion and will dry clear. Wipe away any
excess adhesive.
8. Do not touch decal until fully dry.
9. Allow the decals 48 hours to dry before
applying clear coat.
NOTE: Decals are compatible with
setting solutions or solvents.
If you have any questions or comments, call our hotline at:
Revell-Monogram Consumer Service Department, 725 Landwher Road, Northbrook, Illinois 60062
Be sure to include the plan number (85248200200), part number, description, your return address and phone number.
KIT 2482
'66 Shelby Mustang GT350H
* DECAL
* DECAL COMANIE * ENSEMBLAGE ALTERNATIVE
LIRE CE QUI SUIT AVANT DE COMMENCER
* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont
marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.
* Pour une meilleure prise de la peinture et des autocollants,
laver les pièces en plastique avec une solution détergente
peu concentrée. Les rincer et les laisser sécher à l'air.
* Vérifier que chaque pièce s'ajuste bien avant
de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.
DIRECTIVES D'APPLICATION DES AUTOCOLLANTS
1. Découper l'autocollant désiré de la feuille.
2. Tremper l'autocollant dans de l'eau pendant quelques secondes.
3. Placer l'autocollant mouillé sur une serviette en papier.
4. Attendez que l'autocollant puisse être déplacé sur son support
en papier.
5. Mettre l'autocollant en position sur le modèle face sur
le dessus et faire glisser le support pour l'enlever.
6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.
7. La substance laiteuse qui peut apparaître est destinée à
améliorer l'adhésion de l'autocollant et devient incolore au
séchage. Essuyer pour enlever tout excédent d'adhésif.
8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.
9. Laisser l'autocollant sécher pendant 48 heures avant
d'appliquer une couche transparente.
REMARQUE: Les autocollants sont compatibles avec
les solutions de fixage ou les solvants.
Visit our website: www.revellmonogram.com
REVELL-MONOGRAM, LLC Northbrook, IL. Copyright © 2004. All rights reserved. Made in China
America made sure that you would enjoy the ride of your
life. The earliest GT-350's were primarily 1965 model cars
equipped with four-speed transmissions, override traction
bars, and the unique Hertz paint scheme. A special master
cylinder was fitted to reduce pedal pressure, and the speed-
ometer was fitted with cables that could not be disconnected
easily. These were brazenly fast machines for anyone accus-
tomed to the typical rental car, and tales persist to this day of
motors being temporarily removed from a rented GT-350 to
power a racing GT-350.
* ALTERNATIVE ASSEMBLY * CEMENT TOGETHER
or, please write to:
* REMOVE AND THROW AWAY
* A COLLER * A RETIRER ET JETER
This optional paint guide is provided if you
choose to detail paint your model.
Ce guide de peintures vous sera fourni si vous choisissez de
peindre votre modèle en détail.
Aluminum
Flat Black
Gloss Black
Gloss Red
Engine Blue
Semigloss Black
Satin White
Silver
Steel
Transparent Red
Turn Signal Amber
Tan
(800) 833-3570
85248200200
* DO NOT CEMENT
* NE PAS COLLER
Aluminium
Noir mat
Noir brilliant
Rouge brilliant
Bleu engine
Noir satiné
Blanc satiné
Argent
Acier
Rouge transparent
Feu clignotant de
direction ambre
Havane
