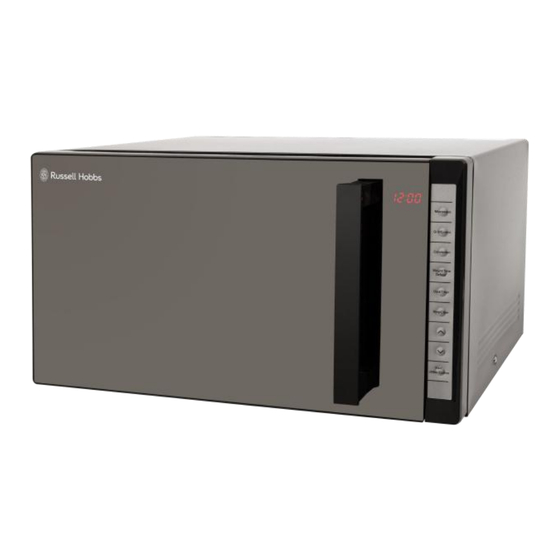

25 Litre microwave oven
User manual
Model number: RHM2561BCG
Important safety instructions, please read carefully and keep them for future reference
For Customer Services & Spare Parts please call
0845 209 7461
Opening times: Monday – Friday 8am – 6pm & Saturday 9am – 1pm
Or visit us at www.productcareuk.com
Advertisement
Table of Contents
Related Manuals for Russell Hobbs RHM2561BCG
Summary of Contents for Russell Hobbs RHM2561BCG
- Page 1 25 Litre microwave oven User manual Model number: RHM2561BCG Important safety instructions, please read carefully and keep them for future reference For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday – Friday 8am – 6pm & Saturday 9am – 1pm...
-
Page 2: Table Of Contents
Contents Page About this microwave oven........Unpacking your microwave oven......Safety instructions............. Microwave oven installation........Feature diagram............Turn table installation…………………………………………….. Control panel............How to use your microwave oven......Cooking…………………………......... Cleaning and care............. Important utensil information........Connection to the mains supply....... Guarantee………………………………........ -
Page 3: About This Microwave Oven
About this microwave oven Microwaves are high-frequency electromagnetic waves similar to radio waves. While radio waves may vary in length from one metre to many kilometres, microwaves are very short (less than 12.5 centimetres). Microwaves do not make any heat themselves but only cause water molecules in food to vibrate. -
Page 4: Unpacking Your Microwave Oven
Unpacking your microwave oven Before you use your microwave oven 1. Remove all the packaging. Do not remove the small piece of card from the right hand side of the cavity wall. This is called a wave-guide cover and allows the microwaves to pass through to cook the food. -
Page 5: Safety Instructions
Safety instructions To reduce the risk of fire, electric shock, other injuries and exposure to excessive microwave oven energy, follow these basic precautions: ➢ Do not use the oven for any reason other than preparing food, such as for drying clothes, paper or any other non-food items, or for sterilising purposes. - Page 6 Safety instructions To reduce the risk of fire, electric shock, other injuries and exposure to excessive microwave oven energy, follow these basic precautions: ➢ Do not use this oven near water, in a wet basement, or near a swimming pool ➢...
- Page 7 Safety instructions ➢ Heat from the contents of a container may be transmitted to the container itself, so please be careful when removing it from the oven. Please remember that the food or liquid inside will be releasing some steam or will be spitting. Never cover any container fully, always leave a gap for steam to escape.
- Page 8 Safety instructions ➢ Food containing a mixture of fat and water (e.g. stock) should stand for 30 to 60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent it from bubbling when a spoon is placed in it, or a stock cube is added. ➢...
- Page 9 Safety instructions To reduce the risk of fire in the oven cavity: ➢ Do not overcook food. ➢ Do not leave the microwave oven unattended while you are using it and if using paper or plastic containers check regularly to ensure they do not ignite. ➢...
- Page 10 Safety instructions Warning: It is dangerous for anyone, other than a qualified person to carry out any service or repair which involves the removal of the cover. This cover gives protection against exposure to microwave energy. Warning: If the door or door seals are damaged, the oven must not be operated until it has been repaired by an engineer.
-
Page 11: Microwave Oven Installation
Microwave oven installation ➢ Place on a level surface that provides enough space for the outlet vents. ➢ A minimum clearance of 7.5cm is required between the oven and any adjacent walls. One side must be open. Leave a minimum clearance of 30cm above the oven. -
Page 12: Feature Diagram
Feature Diagram Door Safety Lock System Oven Window Turntable Ring Control Panel Door Guard Glass Turntable – To be used for microwave, combination, grilling or convection cooking. Plastic turntable drive Grill rack – To be used in the combination cooking & Grilling. Rack can be used either way up to alter the distance to the grilling element. -
Page 13: Turn Table Installation
Turn table installation ➢ Before first use, check that any securing tape has been removed from the glass tray and turntable ring assembly. These parts must never be restricted from rotating. ➢ Never place the glass tray upside down. ➢ Both the glass tray and turntable ring assembly must always be used during cooking. -
Page 14: Control Panel
Control Panel MENU ACTION SCREEN Cooking time, power, action indicators, and clock time are displayed. MICROWAVE Press this button to use the microwave function. GRILL/COMBI Press this button to use the grill and combination cooking. The grill element is located on the top of the cavity. CONVECTION Press this button to use the convection function, an element at the back of the unit is used for convection cooking WEIGHT/TIME DEFROST Press this button for the defrost function. -
Page 15: How To Use Your Microwave Oven
How to use the microwave oven Clock Setting When the microwave oven is first turned on, the oven will display "0:00", the buzzer will ring once. 1) Press “CLOCK/TIMER” once. “00:00” is shown. 2) Use the “UP/DOWN” arrows to adjust the hour figures, the input time should be within 0 - 23(24-hour). - Page 16 How to use the microwave oven Kitchen Timer 1) Press " CLOCK/TIMER " twice, LED will display 00:00 (not flashing) 2) Use the “UP/DOWN” arrows to enter the desired time.(The maximum time is 95 minutes.) 3) Press " START/+30SEC./CONFIRM" to confirm setting. 4) When the countdown is complete, the buzzer will ring 5 times.
-
Page 17: Cooking
Cooking Microwave Cooking 1) Press the “MICROWAVE “ button once, and “P100” will be displayed. 2) Use the “UP/DOWN” arrows to select the desired microwave power. "P100”, “P80, "P50", “P30”and, “P10” will be displayed. 3) Press “START/+30 SEC./CONFIRM" to confirm. 4) Use the “UP/DOWN”... - Page 18 Cooking Grill Cooking 1) Press the “GRILL/COMBI.” button once, and “G-1” will be shown. 2) Press “START/+30 SEC./CONFIRM“ button to confirm. 3) Use the “UP/DOWN” arrows to adjust the cooking time. (The time setting should be 0:05- 95:00.) 4) Press “START/+30 SEC./CONFIRM“ button to start the cooking process.. Note: Half way through the grill time, the unit will pause and sound twice to tell you to turn the food over.
- Page 19 Cooking Combination Cooking (Microwave + Convection) 1) Press the “GRILL/COMBI.” button once, and “G-1” will display. 2) Use the “UP/DOWN” arrows to select the combination preferred cooking method. Stop turning when “C-1”,”C-2”,”C-3” and “C-4” are on the display. The table below indicates what functions will be activated in the cooking process.
- Page 20 Cooking Convection Cooking (with preheating function) The convection cooking allows you to cook food using the unit as a traditional oven, the microwave function is not used. It is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven.
- Page 21 Cooking Convection Cooking( Without pre-heating function) 1) Press the “CONVECTION” button once, and “150”, the cooking temperature will flash. 2) Use the “UP/DOWN” arrows to select the desired convection function temperature. Note: the temperature can be chosen from 150 degrees to 240 degrees, in 10 degree intervals. 3) Press the “START/+30 SEC./CONFIRM“...
- Page 22 Cooking Quick Start cooking 1) Press the "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increases the cooking time by 30 seconds. The maximum cooking time is 95 minutes. During the microwave,grill,convection and combination cooking process, press the "START/+30SEC./CONFIRM"...
- Page 23 Cooking Defrosting by Weight 1) Press " Weight/Time DEFROST" button once, the oven will display "d 1“. 2) Use the “UP/DOWN” arrows to select the weight of the food. At the same time, "g" will illuminate in red. The weight should be set between 100-2000g. 3) Press the "START/+30SEC./CONFIRM"...
- Page 24 Cooking Auto Menu 1) Use the “UP/DOWN” arrows to choose the required function, and "A1","A2","A3".."A10" will be displayed. 2) Press the "START/ +30 SEC./CONFIRM" button to confirm the menu you need. 3) Use the “UP/DOWN” arrows to choose the weight of the menu, and the "g" indicator will light. 4) Press "START/ +30 SEC./CONFIRM"...
- Page 25 Cooking Display Weight Power A1 Pizza Microwave and grill, C-4 A2 Potatoe 1 (230g) 100% 2 (460g) 3 (690g) A3 Meat 100% A4 Fish A5 Vegetable 100% A6 Beverage 1 (240ml) 2 (480ml) 3 (720ml) A7 Pasta 50 (add 450ml of water) 100 (add 800ml of water) 150 (add 1200ml of water) A8 Popcorn...
- Page 26 Cooking Child lock Lock on: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" as the lock activates a red key will illuminate in the display. LED will display current time or 0:00. Lock off: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released, the lock symbol will disappear.
-
Page 27: Cleaning And Care
Cleaning and care ➢ Before you clean the oven, turn it off and unplug it. ➢ Keep the inside of the oven clean. When food or liquids stick to the oven walls, wipe with a damp cloth. We recommend that you do not use harsh detergent or abrasives. ➢... - Page 28 Cleaning and care ➢ Regularly remove the glass turntable to clean it, and wash it in warm soapy water. ➢ Ensure that the turntable support and oven floor are cleaned regularly. Simply wipe the bottom surface of the oven with mild detergent and water, then dry. You can wash the turntable support in mild soapy water.
-
Page 29: Important Utensil Information
Important utensil information ➢ Do not use metal pans or dishes with metal handles without food in the microwave/oven ➢ Do not use anything with a metal trim, without food in the microwave/oven. ➢ Do not use paper covered wire twist-ties on plastic bags. ➢... -
Page 30: Connection To The Mains Supply
Connection to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of 230V – 240V ~ 50HZ. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 13A plug complying with BS1363. - Page 31 Connection to the mains supply For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which is marked with the letter E or by the earth symbol or coloured GREEN or GREEN/YELLOW.
- Page 32 Non-rewireable mains plug If your appliance is supplied with a non-rewireable plug fitted to the mains lead you will find that it incorporates a fuse, the value of which is indicated either on the base of the plug or on the fuse carrier. Should the fuse need replacing, you must use an ASTA approved fuse (conforming to BS1362) of the same rating.
-
Page 33: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the store. The following conditions apply: •... -
Page 34: Technical Specification
Specifications Model Number: RHM2561BCG Rated Voltage: 230V – 240V ~ 50Hz Rated Input Power(Microwave): 1500W Rated Output Power(Microwave): 900W Rated Power(Grill): 1400W Rated Power(Convection): 2400W Oven Capacity: 25 L Turntable Diameter: 315 mm External Dimensions(LxWxH): 511mmX 470mm X285mm Net Weight: Approx. 17.3 kg For Customer Services &... -
Page 35: Spares
Spares The following spare parts are available from www.productcareuk.com Glass turntable Turntable coupling Wave Guide cover... -
Page 36: For Customer Services & Spare Parts Please Call 0845 209 7461
For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
