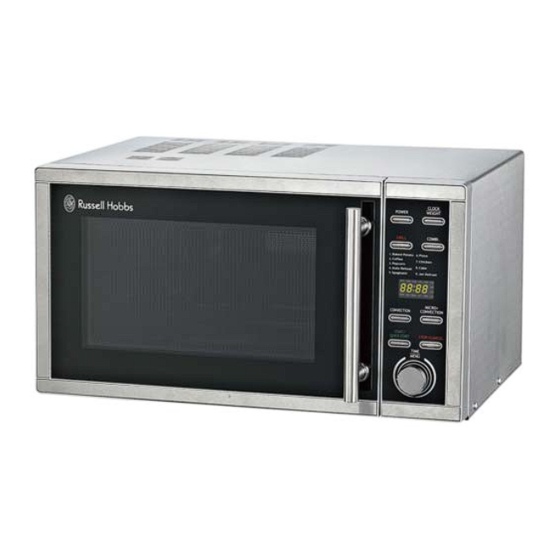

23 Litre Digital Microwave
Instruction Manual
Model Number: RHM2506
Please read these instructions carefully
and keep them for future reference
For Customer Services & Spare Parts please call
01204 664 084
Opening times: Monday – Friday
9am – 5pm
For Customer Services & Spare Parts please call 01204 664 084 Opening times: Monday – Friday 9am – 5pm
Advertisement
Table of Contents
Related Manuals for Russell Hobbs RHM2506
Summary of Contents for Russell Hobbs RHM2506
-

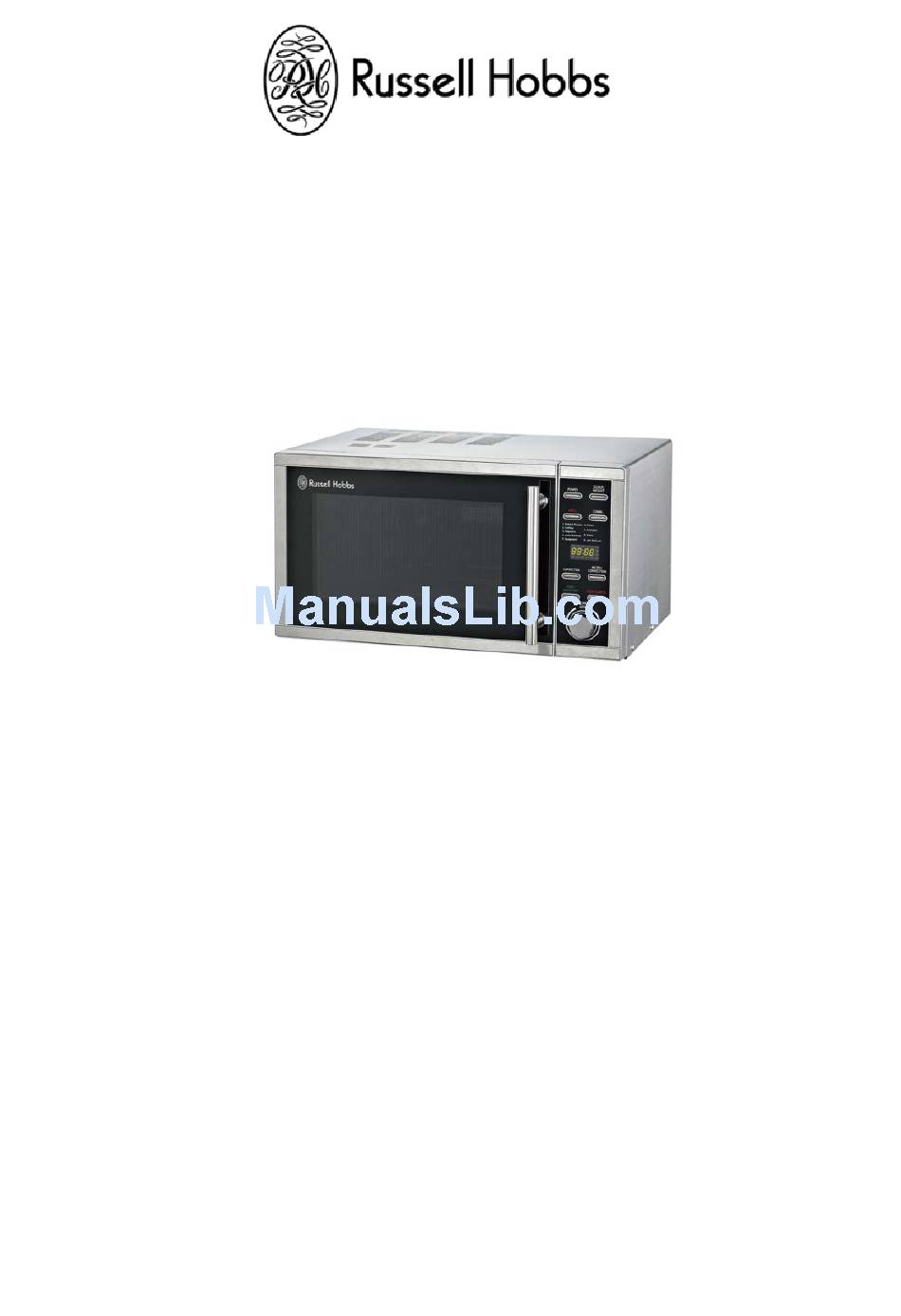

Page 1: Instruction Manual
23 Litre Digital Microwave Instruction Manual Model Number: RHM2506 Please read these instructions carefully and keep them for future reference For Customer Services & Spare Parts please call 01204 664 084 Opening times: Monday – Friday 9am – 5pm For Customer Services & Spare Parts please call 01204 664 084 Opening times: Monday – Friday 9am – 5pm... -
Page 2: Table Of Contents
Contents Page About this microwave oven …………………………………………..……. 3 Safety instructions………………………………………………….………… 4 Microwave oven Installation……………………………………….….……. 5 Feature diagram……………………………………………………….……… 6 Connection to the mains supply…………………………......… 6 Control panel……………………………………………………….……….…. 7 Operating instructions…………………………………………….…….…… 8 Setting the clock……………………………………………………..…..… 8 Microwave cooking…………………………………………………..…… 8 Grill Cooking………………………………………………………………..…… 9 Combination Cooking I..…………………………………………………... -
Page 3: About This Microwave Oven
About this microwave oven Microwaves are high-frequency electromagnetic waves similar to radio waves. While radio waves may vary in length from one metre to many kilometres, microwaves are very short (less than 12.5 centimetres). Microwaves do not make any heat themselves but only cause water molecules in food to vibrate. -
Page 4: Safety Instructions
Safety instructions Warning: this oven must be positioned so that the plug is accessible and the plug socket is within easy reach of the power cord. Warning: only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. -
Page 5: Microwave Oven Installation
In order to avoid burns, the contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption. Always test the temperature of cooked food, never eat or drink food or liquid straight from the oven, allow it to stand for a few minutes and stir to distribute the heat evenly. -
Page 6: Feature Diagram
Feature diagram 1 Door safety lock system 2 Oven window Roller Ring 4 Shaft Control Panel 6 Wave guide cover (do not remove) 7 Glass tray Grill Heater Mental Rack Connection to the mains supply WARNING - THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC230-240V ~ 50HZ. -
Page 7: Control Panel
Control panel MENU ACTION SCREEN Cooking time, power, action indicators, and clock time are displayed. POWER Touch this button to set microwave cooking power level. GRILL Press this button to set a grill-cooking program up to 95 minutes. CLOCK/WEIGHT Touch this button to set the oven clock. After choosing an auto-cooking menu, use it to specify food weights or number of servings. -
Page 8: Operating Instructions
Operating instructions Connect the main plug into a suitable 13amp mains socket, make sure the voltage is the same as on the rating label (do not use extension cables or mains adaptors). Each time a button is pressed, a beep will sound to acknowledge the press. After a cooking program finish, the system will sound beeps with END on display. -
Page 9: Grill Cooking
9 times 20%(P-20) 10 times 10%(P-10) 11 times 0%(P-00) For example, suppose you want to cook for 10 minute at 60% of microwave power. Press STOP/CANCEL button to reset the oven. Press POWER button to set 60%.the display shows “MICRO” Turn TIME/MENU to 10:00,the display shows “ENTER”,”MICRO””TIME”... -
Page 10: Convection Cooking Ii
COMBINATION2 Use for pudding, omelets, baked poultry. FOR EXAMPLE: Suppose you want to set combination 2 cooking for 12 minutes. 1. Press STOP/CANCEL button. 2. Press COMBI. Button twice. 3. Turn TIME/MENU to 12:00. 4. Press START/QUICK START button ONVECTION The maximum cooking time is 95 minutes. -
Page 11: Micro+ Convection
5. Press START/QUICK START button. Note: When the oven reaches the preheat temperature, the system will sound DE- every 5 seconds. If there is no any operation within 30 minutes, the system will display End. ICRO ONVECTION The maximum cooking time is 95 minutes. This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically. -
Page 12: Auto Cooking Menu
ULTI STAGE OOKING Your oven can be programmed for up to 3 automatic cooking sequences. Suppose you want to set the following cooking program. Microwave cooking Grill cooking Convection cooking (without preheat function) Steps: 1. Enter the first stage of a microwave cooking program. 2. -
Page 13: Quick Start
UICK START Use this feature to program the oven to microwave food at 100% power conveniently. Press START/QUICK START button in quick succession to set the cooking time. The oven will auto-start immediately. The longest time you can set is 10 minutes. YSTEM PROTECTION Overheating protection ℃... -
Page 14: Cleaning And Care
Preset Function Cleaning and Care Failure to maintain the oven in a clean condition, could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous condition. The oven should be cleaned regularly and any food deposits removed. Before you clean the microwave oven, turn it off and unplug it. -
Page 15: Problem Solving
Problem solving The microwave oven may cause interference to your radio, TV or similar equipment. If it does, you can get rid of the interference by moving the radio, TV or equipment as far away from your microwave oven as possible. If the oven doesn’t work, if the display does not appear or if the display has disappeared Make sure the oven is plugged in securely. - Page 16 Please use this page for your notes and recipes For Customer Services & Spare Parts please call 01204 664 084 Opening times: Monday – Friday 9am – 5pm...
-
Page 17: Non-Rewireable Mains Plug
Non-rewireable mains plug If your appliance is supplied with a non-rewireable plug fitted to the mains lead you will find that it incorporates a fuse, the value of which is indicated either on the base of the plug or on the fuse carrier. Should the fuse need replacing, you must use an ASTA approved fuse (conforming to BS1362) of the same rating. - Page 18 For Customer Service and Spare Parts please call 01204 664 084 Opening times: Monday – Friday 9am until 5pm Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. W hen this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
