SERVICE MANUAL
Ver 1.1 2004. 08
• SS-BX6AV/DX6AV is the front speaker system in
MHC-BX6AV/DX6AV.
Sony Corporation
9-929-251-12
2004H16-1
Audio Group
© 2004.08
Published by Sony Engineering Corporation
SS-BX6AV/DX6AV

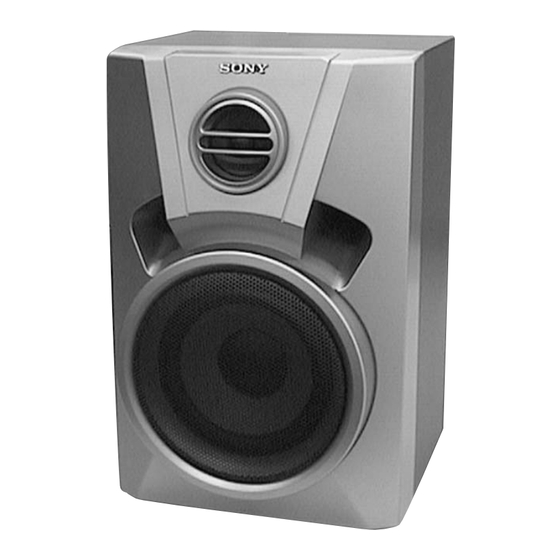

Photo: SS-BX6AV
SPECIFICATIONS
North American model:
SS-BX6AV for MHC-BX6AV:
Speaker system
Speaker units
Woofer:
Tweeter:
Nominal impedance
Dimensions (w/h/d)
Mass
European model:
SS-BX6AV for MHC-BX6AV:
Speaker system
Speaker units
Woofer:
Tweeter:
Nominal impedance
Dimensions (w/h/d)
Mass
Other models:
SS-DX6AV for MHC-DX6AV:
Speaker system
Speaker units
Woofer:
Tweeter:
Nominal impedance
Dimensions (w/h/d)
Mass
Design and specifications are subject to change
without notice.
2-way, bass-reflex type,
magnetically shielded type
14 cm, cone type
5 cm, cone type
6 ohms
Approx.
220 x 325 x 230 mm
Approx. 3.4 kg net per speaker
2-way, bass-reflex type,
magnetically shielded type
14 cm, cone type
5 cm, cone type
6 ohms
Approx.
220 x 325 x 252 mm
Approx. 3.6 kg net per speaker
2-way, bass-reflex type,
magnetically shielded type
14 cm, cone type
5 cm, cone type
6 ohms
Approx.
220 x 325 x 252 mm
Approx. 3.6 kg net per speaker
SPEAKER SYSTEM
US Model
Canadian Model
AEP Model
UK Model
SS-BX6AV
E Model
Australian Model
SS-DX6AV
