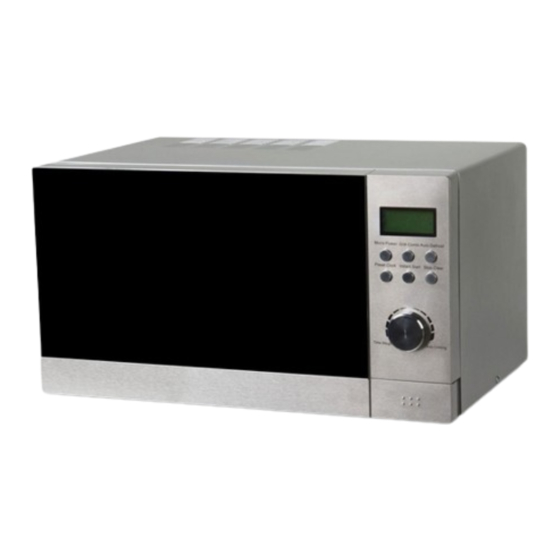

Haier HDN-2380EG Owner's Manual

Haier hdn-2380eg microwave oven owner's manual
Hide thumbs Also See for HDN-2380EG:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
MW
G
Auto
Def
L
M.L
M
M.H
H
Please read this booklet carefully before fixing and using and
save it for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Haier HDN-2380EG

Summary of Contents for Haier HDN-2380EG

  • Page 1 Auto Please read this booklet carefully before fixing and using and save it for future reference.

  • Page 2: Operaiton Theory Of Microwave Oven

    OPERAITON THEORY OF MICROWAVE OVEN 1. Microwave is a kind of high frequency electromagnetic wave, which is commonly distributed in the nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating purpose. The key component of magnetron of microwave oven will transform the energy of electricity to microwave and huge energy of microwave field is established under the closed cavity.

  • Page 3: For The First Use

    for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table. Material of container microwave Grill Combi Notes Heat-resistant ceramic Never use ceramics decorated with metal rim or glazed Heat-resistant plastic Can not be used for long time microwav...

  • Page 4: Household Use Only

    maintenance. Never try to adjust or repair the oven yourself. 6. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard. 7. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

  • Page 5: Product Introduction

    PRODUCT INTRODUCTION door interlock Glass turntable rotating axis rotating ring Housing Auto grill rack oven foot Waveguide cover Fig.1 Notes: 1. Door interlock ensures the oven can only be activated when the door is properly closed, which would prevent microwave radiation. 2.

  • Page 6: Operation Of Control Panel

    OPERATION OF CONTROL PANEL Auto 1. Before cooking MW G Auto Def 8 8 : 8 8 The LED will flash 3 times when plugged in power supply. Then it will flash L M.L M.H H prompting you to input the cooking menu and time. 2.
  • Page 7 Press Power button, LED will cycle to show 100P 80P 60P 40P 20P 100P --- High power, 100% microwave power. Example: To cook at 80P for 10 and half minutes. Applicable for quick and thorough cooking, such Depress Display as meat, vegetable 1.
  • Page 8 d.2--- for defrosting poultry, the weight range Example: To defrost 0.2kg poultry from 0.2 to 3.0Kg. Depress Display d.3--- for defrosting seafood, the weight range 1. After power-up, the colon flashes or from 0.1to 0.9Kg. press Pause/Cancel button once Note: 2.
  • Page 9 - After defrost time, stand covered with aluminium foil for 5-30 minutes. 9. Auto Cooking Example: Steam 0.45kg fish The oven has default cooking menu for simple Depress Display operation. When the LED flash colon, turn the 1. After power-up, the colon flashes or Time Weight/Auto cooking knob and LED will press Pause/Cancel button once cycle to show A.1、A.2 …...

  • Page 10: Microwave Cooking Tips

    If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps: 1. Setting the current clock;...

  • Page 11: Cleaning And Maintenance

    not overlap if possible. 2) Cooking time Start cooking with the shorter period of time and extend it according to the actual need. Overcooking may result in smoking and burning. 3) Cover foods before cooking refer to the recipe Use paper towels, microwave plastic wrap or a cover to cover food so that prevent spattering and help foods to cook evenly.
  • Page 12 Exterior: The outside may be cleaned wipe with a soft and damp cloth. Avoid the use of harsh abrasive cleaners. Door: Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters.
  • Page 13 English version: Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
