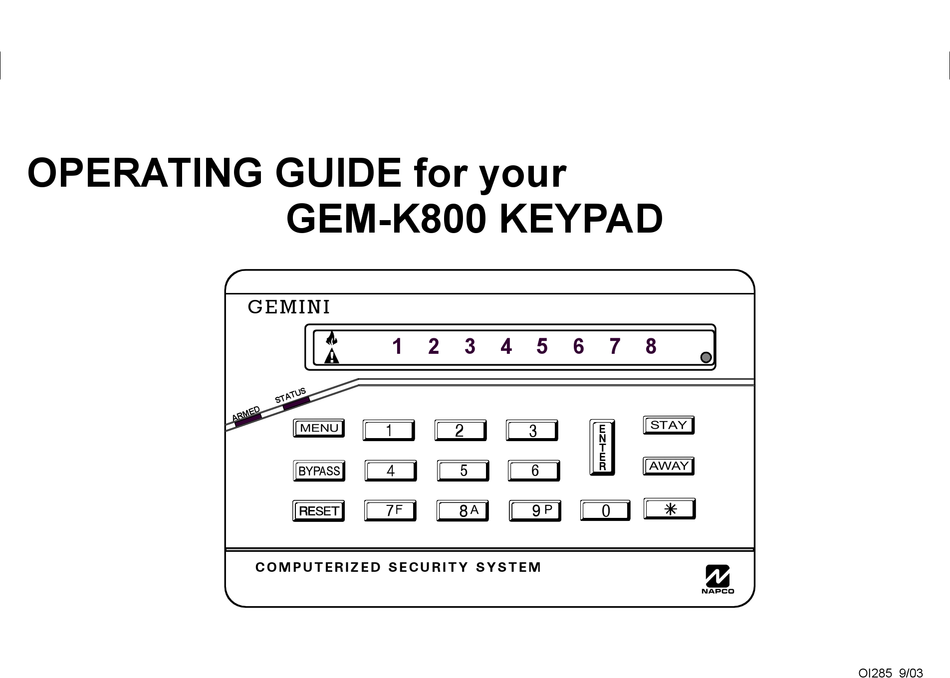

- Page 1 OPERATING GUIDE for your GEM-K800 KEYPAD G E M I N I 1 2 3 B 4 5 6 C 7 8 9 0 C O M P U T E R I Z E D S E C U R I T Y S Y S T E M OI285 9/03 ©...
-
Page 2: Napco
INTRODUCTION Congratulations on your purchase of an advanced GEMINI-P800 Series Security System. Meticulously developed by a leading manufacturer of state-of-the-art security products, this system will provide you with unprecedented peace-of-mind & incorporates some of the most sophisticated features available today. Above all, it has been designed an extra step, to provide all those operating it with very easy, intuitive use. -
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS System Information KEYPAD CONTROLS & INDICATORS ..........4 Central Station Phone Number: ___________________ ARMING AWAY: SETTING THE ALARM WHEN LEAVING ....5 ARMING STAY: PROTECTING YOURSELF AT HOME .......6 Central Station Account Number: _________________ EMERGENCY CONDITIONS ..............7 TURNING OFF THE ALARM (DISARMING) WHEN RETURNING ..8 For Service Call: ______________________________ FIRE PROTECTION ................9... -
Page 4: Keypad Controls & Indicators
KEYPAD CONTROLS AND INDICATORS Fire Alarm Light will flash and the Keypad Zone Lights (1 through 8) will light to indicate AC Light will light to indicate that the corresponding Zone is open, and will that AC Power is present. sounder will beep when system is in a Fire Alarm flash to indicate a Zone in alarm. -
Page 5: Arming Away: Setting The Alarm When Leaving
ARMING AWAY: SETTING THE ALARM WHEN LEAVING Arming in AWAY Mode Before arming your system, make sure the green Status light is ON. This indicates that all of your protective zones are secure. If any zones are open, the corresponding Zone number will be lit. Secure these zones before proceeding. If any zones cannot be secured, see Bypassing zones below. -
Page 6: Arming Stay: Protecting Yourself At Home
ARMING STAY: PROTECTING YOURSELF AT HOME Arming in STAY Mode (Arm with Interior Zones Bypassed) Interior Zones, when bypassed, allow free movement within the home while the protection of armed perimeter zones is maintained. Before arming your system, make sure the green Status light is ON. This indicates that all of your protective zones are secure. If any zones are open, the corresponding zone number will be lit. -
Page 7: Emergency Conditions
EMERGENCY CONDITIONS Emergency Buttons 7 8 9 G Fire Emergency The three sets of emergency buttons, if programmed, are always active whether the system is armed Enabled? or disarmed. Discuss these Buttons with your installer. The emergency signal will only be activated when the two respective buttons are pressed at the same time. -
Page 8: Turning Off The Alarm (Disarming) When Returning
TURNING OFF THE ALARM (DISARMING) WHEN RETURNING Disarming the System 1 Enter your premises through the Entry/Exit door. The keypad will sound a steady tone to remind you to disarm the system before your Entry Delay time expires. 2 Enter your User Code and press . -
Page 9: Fire Protection
FIRE PROTECTION Preparing a Fire Escape Plan Even with the most advanced fire alarm system, adequate protection requires an escape plan. To prepare your plan, draw floor plans of your building. (space is provided on the next page) Show two exits - a front or back door and a window from each room. - Page 10 FIRE PROTECTION Floorplan Draw a plan of your premises below.
-
Page 11: Function Menu
FUNCTION MENU By pressing followed by the the appropriate key, (do not press simultaneously) these special functions and features can be enabled: Easy Arm (when system is disarmed) Display System Trouble The Easy Arm feature allows the system to be armed by Pressing followed by when TROUBLE... -
Page 12: System Troubles
SYSTEM TROUBLES The GEM-P800 is constantly monitoring its own components, as well as all critical services, such as AC power and the telephone line, to insure that it is always ready to provide the protection for which it was designed. When a system trouble does occur, it will caution you by lighting the TROUBLE H light and beeping the keypad buzzer. - Page 13 SYSTEM TROUBLES Keypad Beeps or Zone light System Trouble Action Condition Flashes 2 Beeps Fire Trouble A problem has been detected in the Fire Circuit. Call installing company for service. 2 Beeps Wireless Receiver A problem has been detected with the wireless receiver. Call installing company for Trouble service.
-
Page 14: Programming (Optional)
PROGRAMMING (OPTIONAL) Your Installer has assigned a User 1 Code which can be used to not only Arm and Disarm the system, but also to enter the User Program Mode, where you can program other user codes. The following explains how you will use this code to program or erase additional user codes. -
Page 15: Glossary
GLOSSARY Ambush Code - In the event that you the zone number to bypass a zone. Keypad Sounder - A local warning are forced by an intruder to disarm your device at the keypad to alert that Entry Central Station Monitors alarm, system, this special code can be used to delay has started. -
Page 16: Limited Warranty
In no event shall NAPCO be liable for an amount in excess of NAPCO's original selling price of the product, for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any This warranty shall not apply to any equipment, or any part thereof, which has been repaired by others, failure of the product.
