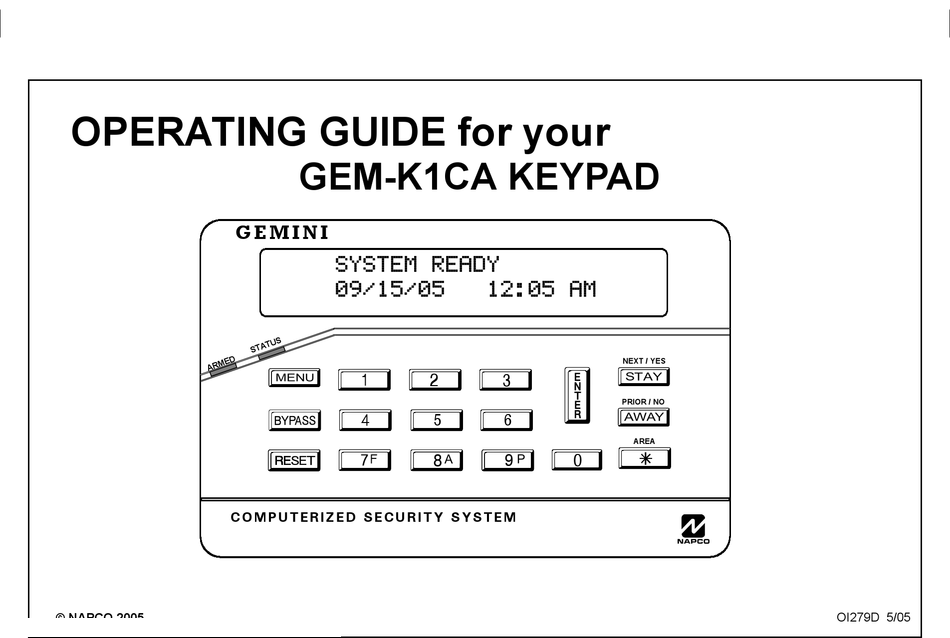

OPERATING GUIDE for your
© NAPCO 2005
GEM-K1CA KEYPAD
G E M I N I
SYSTEM READY
09/15/05
R
1 2 3
B 4 5 6
C 7 8 9 0
C O M P U T E R I Z E D S E C U R I T Y S Y S T E M
12:05 AM
NEXT / YES
U
P
PRIOR / NO
Q
AREA
G
OI279D 5/05
1
