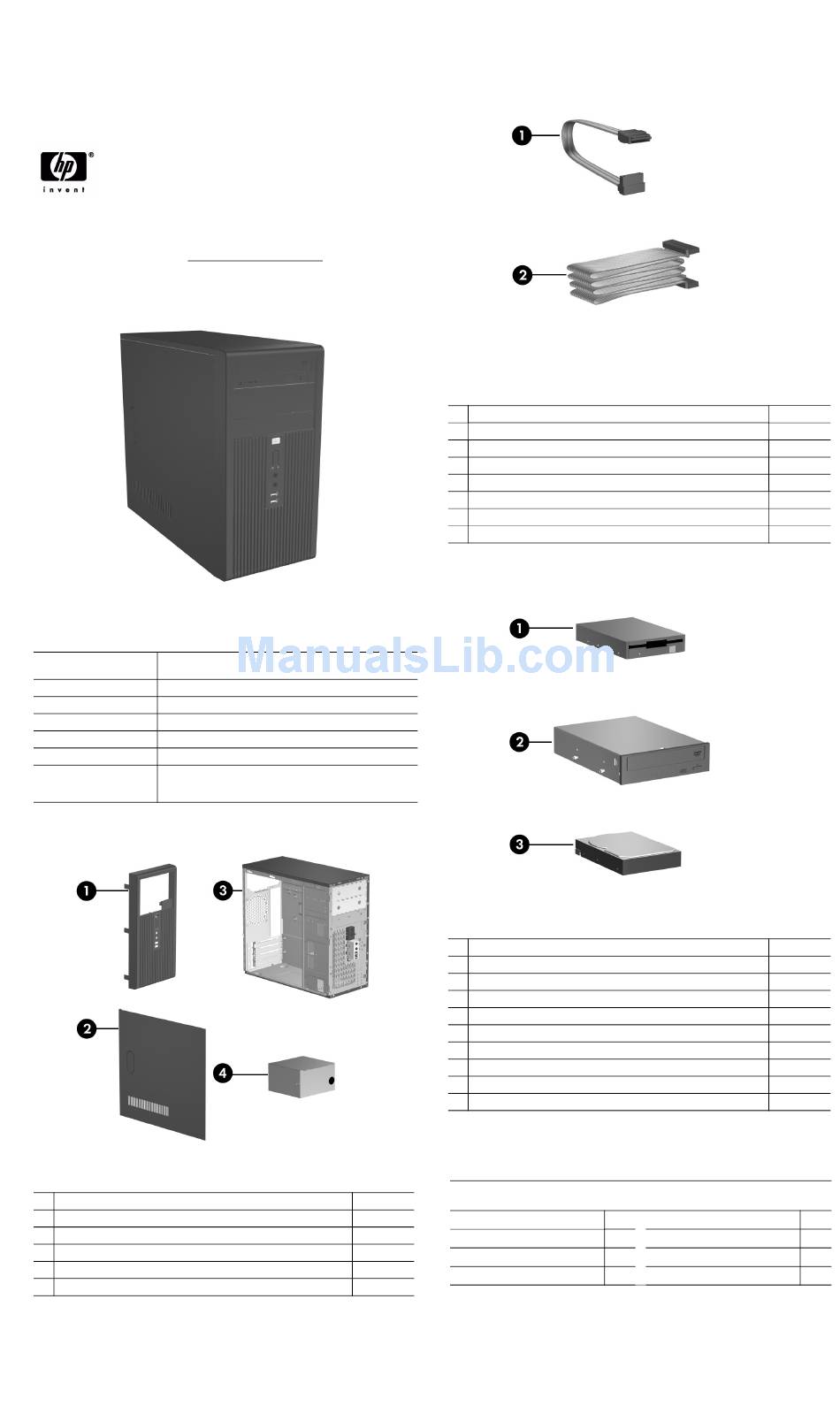

Illustrated Parts & Service Map
HP Compaq dx2300 and dx2308 Microtower
Business PC
©
2007 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 443233-001.
NOTE: The part numbers listed here may not be the most current
information available. See http://partsurfer.hp.com for the most
current spare parts listing.
Key Specifications
Processor Type:
Intel Celeron D, Intel Pentium 4, Intel Pentium D, and Intel
Core 2 Duo
RAM Type:
DDR PC2-5300 non-ECC
Maximum RAM Supported: 2 GB
Expansion Bus:
PCI 2.3, PCI Express Gen 1
Graphics Adapter:
Integrated controller. PCI-Ex16 (max 75W).
Hard drive interface:
SATA 3.0 Gb/s
I/O Interfaces:
Serial (1), parallel (1), USB 2.0 (6), RJ-45 (1), front audio
jacks (2), rear audio jacks (3), P/S2 (2), VGA (1), and serial (2
optional)
Spare Parts
System Unit
1
Front bezel without bezel blank (dx2300)
*
Front bezel without bezel blank (dx2308 for China only)
2
Access panel
3
Chassis
4
Power supply, PFC, 250W
*
Power supply, non-PFC, 250W
*Not shown
dx2300, dx2308 Illustrated Parts & Service Map, MT Chassis
1st Edition February 2007.
438609-001
445366-001
440197-001
not spared
441390-001
444813-001
443233-001
Cables
1
SATA cable, 10-in. (use for HDD)
1
SATA cable, 13-in. (use for 2nd ODD)
1
SATA cable, 14-in. (use for 1st ODD)
2
Diskette drive cable
*
Front USB cable with mounting screw
*
Power switch with cable and switch mounting bracket
*
Second serial port cable
*
DMS 59 to Dual VGA adapter
*Not shown
Mass Storage Devices
1
Diskette drive, 3.5-inch, with mounting screws
2
48X SATA CD-ROM drive
*
52X SATA CD-ROM drive
*
16X SATA DVD-ROM drive
*
16X SATA DVD R/W drive
*
48/32 SATA DVD-ROM/CD-RW drive
3
80-GB\7200 RPM SATA hard drive, 3.0 Gb/s
*
160-GB\7200 RPM SATA hard drive, 3.0 Gb/s
*
250-GB\7200 RPM SATA hard drive, 3.0 Gb/s
*
Media card reader
*Not shown
Keyboards (not illustrated)
PS/2, Basic
USB, Basic
French Canadian
-121
International
-B31
Korean (Hanguel)
-AD1
LA Spanish
-161
392307-001
391738-001
391740-001
392288-001
436328-001
416163-001
444656-001
339257-001
392415-001
419635-001
419469-001
419496-001
419498-001
419497-001
440754-001
440499-001
440747-001
407187-001
382925-xxx
382926-xxx
PRC
-AA1
Taiwanese
-AB1
Thai
-281
U.S.
-001
page 1
