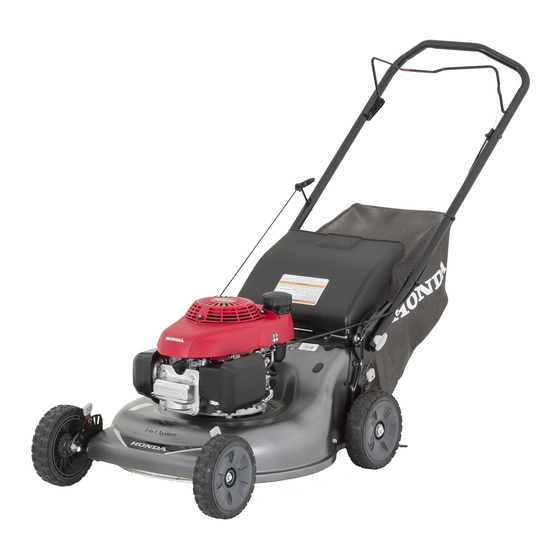

Honda HRR216PKA Owner's Manual

Honda HRR216PKA Owner's Manual

Lawn mower
Hide thumbs Also See for HRR216PKA:

Advertisement

INTRODUCTION

Congratulations on your selection of a Honda lawn mower! We are
certain you will be pleased with your purchase of one of the finest
lawn mowers on the market.
We want to help you get the best results from your new mower and to
operate it safely. This manual contains the information on how to do
that; please read it carefully.
We suggest you read the DISTRIBUTOR'S LIMITED WARRANTY
(page
20) and EMISSION CONTROL SYSTEM WARRANTY
(page
21) to fully understand coverage and your responsibilities of
ownership.
When your mower needs scheduled maintenance, keep in mind that
an authorized Honda servicing dealer is specially trained in servicing
Honda mowers and is supported by the parts and service divisions of
American Honda. Your Honda dealer is dedicated to your satisfaction
and will be pleased to answer your questions and concerns.
Keep this owner's manual handy, so you can refer to it at any time.
This owner's manual is considered a permanent part of the lawn
mower and should remain with the lawn mower if resold.
The information and specifications included in this publication were in
effect at the time of approval for printing. Honda Power Equipment
Mfg. Inc. reserves the right, however, to discontinue or change
specifications or design at any time without notice and without
incurring any obligation whatever. No part of this publication may be
reproduced without written permission.

SAFETY MESSAGES

Your safety and the safety of others are very important. We have
provided important safety messages in this manual and on the
mower. This information alerts you to potential hazards that could hurt
you or others. Please read these messages carefully.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining a lawn mower. You
must use your own good judgment.
You will find important safety information in a variety of forms:
• Safety Labels - on the lawn mower.
• Instructions - how to use this mower correctly and safely.
• Safety Messages - preceded by a safety alert  symbol and one
of three signal words: DANGER, WARNING, or CAUTION. These
signal words mean:

DANGER

WARNING

CAUTION
Each message tells you what the hazard is, what can happen, and
what you can do to avoid or reduce injury.
• Damage Prevention Messages - You will also see other
important messages that are preceded by the word NOTICE. This
word means:
Your engine or other property can be
NOTICE
damaged if you don't follow instructions.
© 2005-2012 American Honda Motor Co., Inc.-All Rights Reserved
31VL0U710
00X31-VL0-U710
You WILL be KILLED or SERIOUSLY
HURT if you don't follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don't follow instructions.
You CAN be HURT if you don't follow
instructions.
POM31VL0U710
K8
EM5
HPE.2012.04
PRINTED IN U.S.A.
OWNER'S MANUAL
HRR216PKA • HRR216VKA
Click here to save
this manual to your
computer.
WARNING:
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
CONTENTS*
INTRODUCTION ...............................1
SAFETY MESSAGES........................1
LAWN MOWER SAFETY ..................2
PARENTS.....................................2
CONTROL LOCATIONS ...................4
BEFORE OPERATION......................4
READY TO GO?...........................4
OPERATION......................................6
PRECAUTIONS ..........................6
STARTING THE ENGINE.............6
FOR MOWING..............................6
STOPPING THE ENGINE ............7
MAINTENANCE SAFETY.............8
BLADES........................................9
* For more information regarding how to mow your lawn, see
www.HondaPowerEquipment.com and click on FAQs.
REPLACEMENT ........................ 10
ENGINE MAINTENANCE .......... 10
REFUELING............................... 13
TRANSPORTING............................ 13
STORAGE....................................... 14
UNEXPECTED PROBLEMS........... 16
ALTITUDE OPERATION............ 17
SPECIFICATIONS ..................... 18
AND SERVICE ITEMS ............... 19
INFORMATION .......................... 19
WARRANTY............................... 20
SYSTEM WARRANTY ............... 21
CARD .................................Last page
