Page 1: User Guide
Britain’s No.1 Range Cooker USER GUIDE & INSTALLATION INSTRUCTIONS Toledo FS Hob... - Page 2 We o er cookware to work perfectly with all fuel types manufactured by Rangemaster, including induction hobs. You can be assured of functionality with style, as well as the quality and meticulous attention to detail you expect from the pioneers of range cooking.
-
Page 3: Table Of Contents
Final Checks The Griddle (optional) Customer Care Warmer Conversion to LP Gas Cleaning Your Cooker Injectors Essential Information Tap Adjustment Hotplate Burners Stick on Label The Griddle Pressure Testing Cleaning Table Circuit Diagram Troubleshooting Technical Data Toledo FS Hob U108900-09... -
Page 5: Before You Start
1. Before You Start... Personal Safety Your hob should give you many years of trouble-free cooking if installed and operated correctly. It is important that you DO NOT modify this appliance. read this section before you start, particularly if you have not used a gas hob before. -
Page 6: Hob Overview

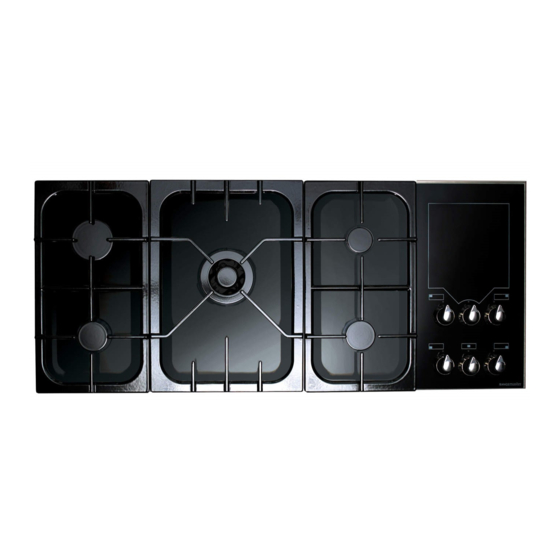

2. Hob Overview DocAUS.020-0004 - Overview - 110DF - Elan Fig.2-1 The Toledo FS hob (Fig.2-1) has the following features: Fig.2-2 5 hotplate burners including a wok burner A control panel A warmer plate Hotplate Burners The drawing by each of the central knobs indicates which burner that knob controls. -
Page 7: Wok Burner
Make sure that the ames are under the pans. Using a lid will Fig.2-4 help the contents boil more quickly (Fig.2-4). Large pans should be spaced well apart. Pans and kettles with concave bases or down-turned base rims should not be used (Fig.2-5). Simmering aids, such as asbestos or mesh mats, are NOT recommended (Fig.2-6). -
Page 8: The Wok Cradle (Optional)
The Wok Cradle (optional) Fig.2-9 The wok cradle is designed to t a Professional 35 cm Wok. If you use a di erent wok, make sure that it ts the cradle. Woks vary very widely in size and shape. It is important that the wok sits down on the pan support –... -
Page 9: Warmer
Warmer Warmer Fig.2-15 On the right of the hob is the Warmer (Fig.2-15). Use the Warmer for keeping food warm while the nal touches are put to a meal. To switch on the Warmer, turn the control knob either clockwise or counter-clockwise – the HOT indicator lights up. For best results, preheat a covered serving dish for 10 minutes before adding food to it. -
Page 10: Cleaning Your Cooker
3. Cleaning Your Cooker Essential Information Fig.3-1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix di erent cleaning products –... -
Page 11: Cleaning Table
Cleaning Table Cleaners listed (Table 3-1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 12: Troubleshooting
4. Troubleshooting Hotplate ignition or hotplate burners faulty What cleaning materials are recommended for the cooker? Is the power on? See the ‘Cleaning’ section for recommended cleaning If not, there maybe something wrong with the power materials. supply. Never use caustic or abrasive cleaners as these will Are the sparker (ignition electrode) or burner slots damage the surface. -
Page 13: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. 5. Installation Dear Installer In the UK the hob must be installed in accordance with: Before you start your installation, please complete the details below, so that, if your customer has a problem relating to •... -
Page 14: Location Of The Hob
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Checking the Parts: Location of the Hob The hob may be installed in a kitchen/kitchen diner but NOT 3 pan supports in a room containing a bath or shower. This appliance is designed for domestic cooking only. -
Page 15: Positioning The Hob
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Positioning the Hob Fig.5-1 Cut-out Worktop Fit the hob into a worksurface which is at least 600 mm deep. You can t the hob to worktops of between 30 mm and 50 mm thick. -
Page 16: Gas Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Gas Connection Fig.5-5 Front Before connecting the hob, check that it is suitable for your gas and electricity supply. This information is on the data label xed to the underside of the hob. Gas connection must comply with the relevant standards and regulations in force. -
Page 17: Pressure Testing
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Pressure Testing Fig.5-6 The gas pressure can be measured at one of the hotplate burner injectors (not the wok burner). Lift o a burner head. Fit the pressure gauge to the injector. Turn on and light one of the other hotplate burners. -
Page 18: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have nished. Electrical Connection Earth Live Fig.5-8 The hob must be installed by a quali ed electrician, in accordance with all relevant British Standards/Codes of Practice (in particular BS 7671), or with the relevant national and local regulations. -
Page 19: Conversion To Lp Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have nished. 6. Conversion to LP Gas Check in the ‘Technical Data’ section at the back of the Fig.6-1 book that the hotplate is convertible to the gas you want to use. -
Page 20: Pressure Testing
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have nished. Pressure Testing Connect the appliance to the gas supply. Check the appliance is gas sound. The gas pressure can be measured at one of the left-hand hotplate burner jets (not the wok burner). -
Page 21: Circuit Diagram
7. Circuit Diagram The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Colour Spark generator Blue Ignition switches Brown Warmer switch Black Warmer neon Orange Warmer element Violet White Yellow Green/yellow... -
Page 22: Technical Data
8. Technical Data THE HOB IS CATEGORY: II 2H3+. It is supplied set for group H natural gas. A conversion kit from NG to LP is available for the cooker. INSTALLER: Please leave these instructions with the User. DATA BADGE LOCATION: Hotplate base. COUNTRY OF DESTINATION: GB, IE. - Page 23 Gas Safe registered engineer for gas appliances or an approved electrician for electrical models. CONSUMER SERVICE For a competitive quote and to arrange for a Rangemaster approved If you have any product enquiries, or in the event of a problem engineer to attend, call Consumer Services on: 0870 7895107.
- Page 24 Registered in England and Wales. Registration No. 354715 Registered O ce: Juno Drive, Leamington Spa, Warwickshire, CV31 3RG Rangemaster continuously seeks improvements in speci cation, design and production of products and thus, alterations take place periodically. Whilst every e ort is made to produce up-to-date literature, this booklet should not be regarded as an infallible guide to...
