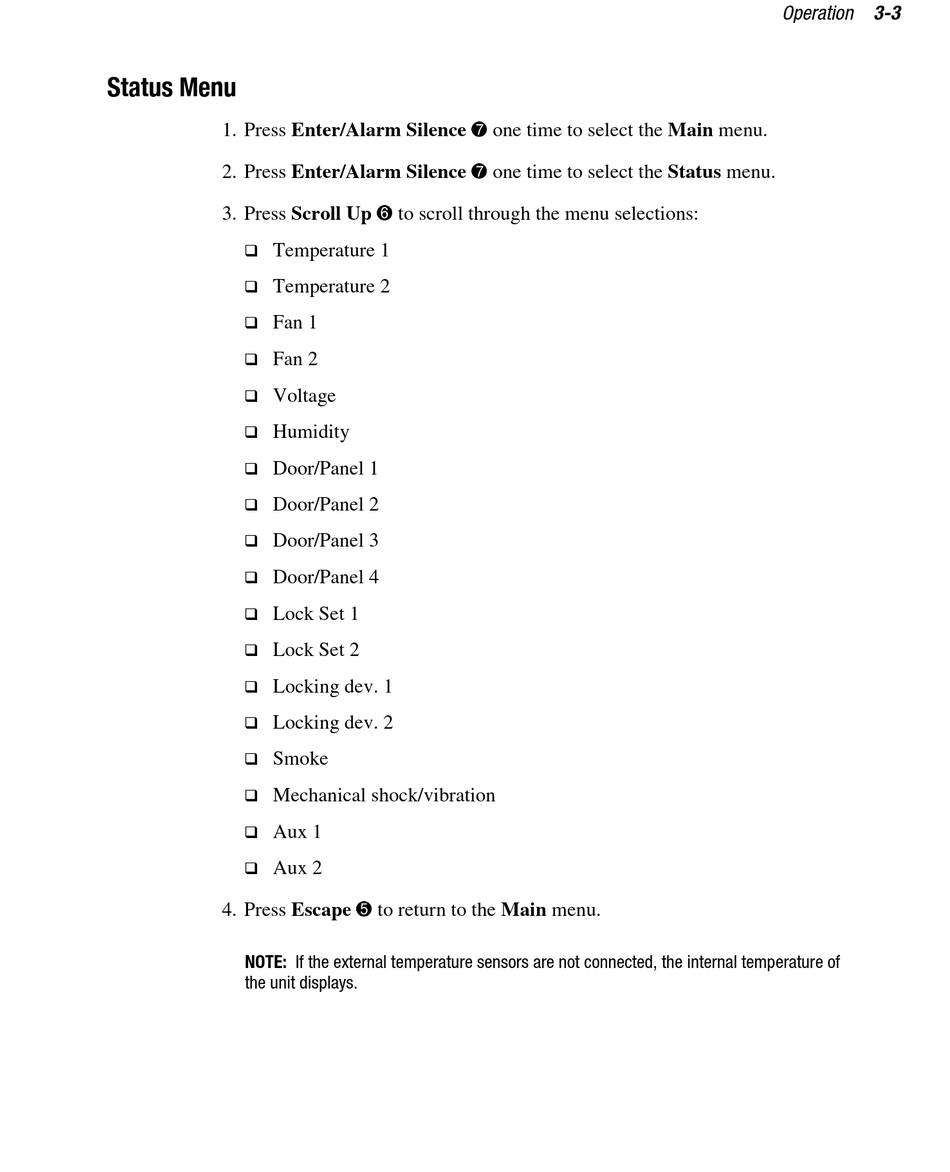

Status Menu

1. Press Enter/Alarm Silence
2. Press Enter/Alarm Silence
3. Press Scroll Up
G
Temperature 1
G
Temperature 2
G
Fan 1
G
Fan 2
G
Voltage
G
Humidity
G
Door/Panel 1
G
Door/Panel 2
G
Door/Panel 3
G
Door/Panel 4
G
Lock Set 1
G
Lock Set 2
G
Locking dev. 1
G
Locking dev. 2
G
Smoke
G
Mechanical shock/vibration
G
Aux 1
G
Aux 2
4. Press Escape
NOTE: If the external temperature sensors are not connected, the internal temperature of
the unit displays.
one time to select the Main menu.

one time to select the Status menu.

to scroll through the menu selections:

to return to the Main menu.

Operation 3-3
